Collection: Retaining Rings - External - Circlips - Tabbed

Retaining Rings (With Images)

External

Circlips

40 Products in this selection

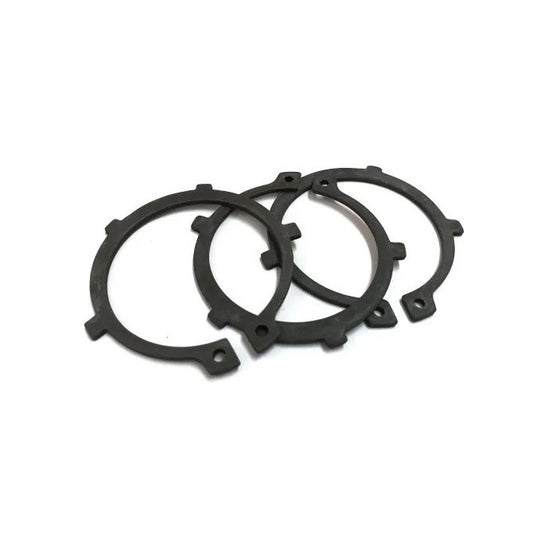

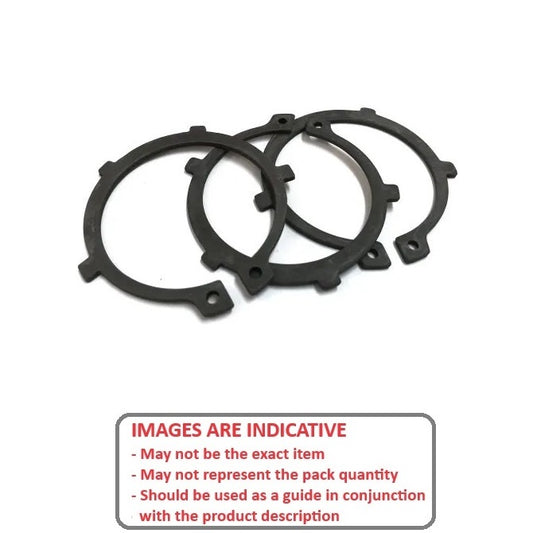

DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).
External tabs are concentrically positioned for positioning in a concealed assembly.
Tabs act as spacers for securing machine components.
Conforming to DIN 983.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Tabbed. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.12 _{(0.039 in.)}	Groove Dia. (Dg) 15.20 mm + 0.00 / - 0.06 _{(0.598 in.)}	Approx. Loose Circlip ID (A) 14.34 - 14.80 mm		Groove Width (W) 1.10 mm
Material: Spring Steel Tool: PRS-E013
Part Number: DAK-016 External Retaining Rings - 16x1x15.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.12 _{(0.039 in.)}	Groove Dia. (Dg) 15.20 mm + 0.00 / - 0.06 _{(0.598 in.)}	Approx. Loose Circlip ID (A) 14.34 - 14.80 mm
Material: Spring Steel Groove Width (W): 1.10 mm Tool: PRS-E013
Part Number: DAK-016 External Retaining Rings - 16x1x15.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.12 _{(0.039 in.)}	Groove Dia. (Dg) 16.20 mm + 0.00 / - 0.06 _{(0.638 in.)}	Approx. Loose Circlip ID (A) 15.37 mm		Groove Width (W) 1.10 mm
Material: Spring Steel Tool: PRS-E013
Part Number: DAK-017 External Retaining Rings - 17x1x16.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.12 _{(0.039 in.)}	Groove Dia. (Dg) 16.20 mm + 0.00 / - 0.06 _{(0.638 in.)}	Approx. Loose Circlip ID (A) 15.37 mm
Material: Spring Steel Groove Width (W): 1.10 mm Tool: PRS-E013
Part Number: DAK-017 External Retaining Rings - 17x1x16.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.11 _{(0.047 in.)}	Groove Dia. (Dg) 17.00 mm + 0.00 / - 0.06 _{(0.669 in.)}	Approx. Loose Circlip ID (A) 16.14 - 16.60 mm		Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E013
Part Number: DAK-018 (250 Pcs) External Retaining Rings - 18x1.2x17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $418.14 AUD Regular price Sale price $418.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.11 _{(0.047 in.)}	Groove Dia. (Dg) 17.00 mm + 0.00 / - 0.06 _{(0.669 in.)}	Approx. Loose Circlip ID (A) 16.14 - 16.60 mm
Material: Spring Steel Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: DAK-018 (250 Pcs) External Retaining Rings - 18x1.2x17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $418.14 AUD Regular price Sale price $418.14 AUD Unit price per Per 250 View the product page first if you are unsure.
DAK-018 (250 Pcs) --- External Retaining Rings - 18x1.2x17 mm - Spring Steel DAK-018 (250 Pcs) --- External Retaining Rings - 18x1.2x17 mm - Spring Steel Regular price $418.14 AUD Regular price Sale price $418.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.11 _{(0.047 in.)}	Groove Dia. (Dg) 18.00 mm + 0.00 / - 0.06 _{(0.709 in.)}	Approx. Loose Circlip ID (A) 17.14 - 17.60 mm		Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-019 External Retaining Rings - 19x1.2x18 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.11 _{(0.047 in.)}	Groove Dia. (Dg) 18.00 mm + 0.00 / - 0.06 _{(0.709 in.)}	Approx. Loose Circlip ID (A) 17.14 - 17.60 mm
Material: Spring Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-019 External Retaining Rings - 19x1.2x18 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip ID (A) 18.08 mm		Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E018
Part Number: DAK-020 (5 Pcs) External Retaining Rings - 20x1.2x19 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 5
Shaft Diameter (Ds) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip ID (A) 18.08 mm
Material: Carbon Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-020 (5 Pcs) External Retaining Rings - 20x1.2x19 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 5 View the product page first if you are unsure.
DAK-020 (5 Pcs) --- External Retaining Rings - 20x1.2x19 mm - Carbon Steel DAK-020 (5 Pcs) --- External Retaining Rings - 20x1.2x19 mm - Carbon Steel Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip ID (A) 20.08 - 20.63 mm		Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E018
Part Number: DAK-022 (7 Pcs) External Retaining Rings - 22x1.2x21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Per 7
Shaft Diameter (Ds) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip ID (A) 20.08 - 20.63 mm
Material: Carbon Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-022 (7 Pcs) External Retaining Rings - 22x1.2x21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Per 7 View the product page first if you are unsure.
DAK-022 (7 Pcs) --- External Retaining Rings - 22x1.2x21 mm - Carbon Steel DAK-022 (7 Pcs) --- External Retaining Rings - 22x1.2x21 mm - Carbon Steel Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip ID (A) 21.05 - 21.63 mm		Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-023 External Retaining Rings - 23x1.2x22 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip ID (A) 21.05 - 21.63 mm
Material: Spring Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-023 External Retaining Rings - 23x1.2x22 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 22.90 mm + 0.00 / - 0.06 _{(0.902 in.)}	Approx. Loose Circlip ID (A) 21.78 - 22.33 mm		Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-024 External Retaining Rings - 24x1.2x22.9 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 22.90 mm + 0.00 / - 0.06 _{(0.902 in.)}	Approx. Loose Circlip ID (A) 21.78 - 22.33 mm
Material: Spring Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-024 External Retaining Rings - 24x1.2x22.9 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 23.90 mm + 0.00 / - 0.06 _{(0.941 in.)}	Approx. Loose Circlip ID (A) 22.78 mm		Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E018
Part Number: DAK-025 (5 Pcs) External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel 9 units (45 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 23.90 mm + 0.00 / - 0.06 _{(0.941 in.)}	Approx. Loose Circlip ID (A) 22.78 mm
Material: Carbon Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-025 (5 Pcs) External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel 9 units (45 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Per 5 View the product page first if you are unsure.
DAK-025 (5 Pcs) --- External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel DAK-025 (5 Pcs) --- External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per 9 Available Now
Shaft Diameter (Ds) 26.00 mm _{(1.024 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 24.90 mm + 0.00 / - 0.06 _{(0.98 in.)}	Approx. Loose Circlip ID (A) 23.79 - 24.41 mm		Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-026 External Retaining Rings - 26x1.2x24.9 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 26.00 mm _{(1.024 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 24.90 mm + 0.00 / - 0.06 _{(0.98 in.)}	Approx. Loose Circlip ID (A) 23.79 - 24.41 mm
Material: Spring Steel Groove Width (W): 1.30 mm Tool: PRS-E018
Part Number: DAK-026 External Retaining Rings - 26x1.2x24.9 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 28.00 mm _{(1.102 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 26.60 mm + 0.00 / - 0.06 _{(1.047 in.)}	Approx. Loose Circlip ID (A) 25.48 - 26.11 mm		Groove Width (W) 1.60 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-028 External Retaining Rings - 28x1.5x26.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 28.00 mm _{(1.102 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 26.60 mm + 0.00 / - 0.06 _{(1.047 in.)}	Approx. Loose Circlip ID (A) 25.48 - 26.11 mm
Material: Spring Steel Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: DAK-028 External Retaining Rings - 28x1.5x26.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 29.00 mm _{(1.142 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 27.60 mm + 0.00 / - 0.06 _{(1.087 in.)}	Approx. Loose Circlip ID (A) 26.48 - 27.11 mm		Groove Width (W) 1.60 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-029 External Retaining Rings - 29x1.5x27.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 29.00 mm _{(1.142 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 27.60 mm + 0.00 / - 0.06 _{(1.087 in.)}	Approx. Loose Circlip ID (A) 26.48 - 27.11 mm
Material: Spring Steel Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: DAK-029 External Retaining Rings - 29x1.5x27.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 30.00 mm _{(1.181 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 28.60 mm + 0.00 / - 0.06 _{(1.126 in.)}	Approx. Loose Circlip ID (A) 27.48 mm		Groove Width (W) 1.60 mm
Material: Carbon Steel Tool: PRS-E018
Part Number: DAK-030 (250 Pcs) External Retaining Rings - 30x1.5x28.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,031.23 AUD Regular price Sale price $1,031.23 AUD Unit price per Per 250
Shaft Diameter (Ds) 30.00 mm _{(1.181 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 28.60 mm + 0.00 / - 0.06 _{(1.126 in.)}	Approx. Loose Circlip ID (A) 27.48 mm
Material: Carbon Steel Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: DAK-030 (250 Pcs) External Retaining Rings - 30x1.5x28.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,031.23 AUD Regular price Sale price $1,031.23 AUD Unit price per Per 250 View the product page first if you are unsure.
DAK-030 (250 Pcs) --- External Retaining Rings - 30x1.5x28.6 mm - Carbon Steel DAK-030 (250 Pcs) --- External Retaining Rings - 30x1.5x28.6 mm - Carbon Steel Regular price $1,031.23 AUD Regular price Sale price $1,031.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 30.30 mm + 0.00 / - 0.06 _{(1.193 in.)}	Approx. Loose Circlip ID (A) 29.18 - 29.81 mm		Groove Width (W) 1.60 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-032 External Retaining Rings - 32x1.5x30.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 30.30 mm + 0.00 / - 0.06 _{(1.193 in.)}	Approx. Loose Circlip ID (A) 29.18 - 29.81 mm
Material: Spring Steel Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: DAK-032 External Retaining Rings - 32x1.5x30.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 32.30 mm + 0.00 / - 0.06 _{(1.272 in.)}	Approx. Loose Circlip ID (A) 31.08 - 31.71 mm		Groove Width (W) 1.60 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-034 External Retaining Rings - 34x1.5x32.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 32.30 mm + 0.00 / - 0.06 _{(1.272 in.)}	Approx. Loose Circlip ID (A) 31.08 - 31.71 mm
Material: Spring Steel Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: DAK-034 External Retaining Rings - 34x1.5x32.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 33.00 mm + 0.00 / - 0.06 _{(1.299 in.)}	Approx. Loose Circlip ID (A) 31.70 mm		Groove Width (W) 1.60 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-035 External Retaining Rings - 35x1.5x33 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 33.00 mm + 0.00 / - 0.06 _{(1.299 in.)}	Approx. Loose Circlip ID (A) 31.70 mm
Material: Spring Steel Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: DAK-035 External Retaining Rings - 35x1.5x33 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 35.00 mm + 0.00 / - 0.06 _{(1.378 in.)}	Approx. Loose Circlip ID (A) 33.70 - 34.45 mm		Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-037 External Retaining Rings - 37x1.75x35 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 35.00 mm + 0.00 / - 0.06 _{(1.378 in.)}	Approx. Loose Circlip ID (A) 33.70 - 34.45 mm
Material: Spring Steel Groove Width (W): 1.85 mm Tool: PRS-E018
Part Number: DAK-037 External Retaining Rings - 37x1.75x35 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 36.00 mm + 0.00 / - 0.06 _{(1.417 in.)}	Approx. Loose Circlip ID (A) 34.70 mm		Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E018
Part Number: DAK-038 External Retaining Rings - 38x1.75x36 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 36.00 mm + 0.00 / - 0.06 _{(1.417 in.)}	Approx. Loose Circlip ID (A) 34.70 mm
Material: Spring Steel Groove Width (W): 1.85 mm Tool: PRS-E018
Part Number: DAK-038 External Retaining Rings - 38x1.75x36 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 37.50 mm + 0.00 / - 0.06 _{(1.476 in.)}	Approx. Loose Circlip ID (A) 35.60 mm		Groove Width (W) 1.85 mm
Material: Carbon Steel Tool: PRS-E023
Part Number: DAK-040 External Retaining Rings - 40x1.75x37.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each
Shaft Diameter (Ds) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 37.50 mm + 0.00 / - 0.06 _{(1.476 in.)}	Approx. Loose Circlip ID (A) 35.60 mm
Material: Carbon Steel Groove Width (W): 1.85 mm Tool: PRS-E023
Part Number: DAK-040 External Retaining Rings - 40x1.75x37.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each View the product page first if you are unsure.
DAK-040 --- External Retaining Rings - 40x1.75x37.5 mm - Carbon Steel DAK-040 --- External Retaining Rings - 40x1.75x37.5 mm - Carbon Steel Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 39.50 mm + 0.00 / - 0.06 _{(1.555 in.)}	Approx. Loose Circlip ID (A) 37.60 - 38.89 mm		Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E023
Part Number: DAK-042 External Retaining Rings - 42x1.75x39.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 39.50 mm + 0.00 / - 0.06 _{(1.555 in.)}	Approx. Loose Circlip ID (A) 37.60 - 38.89 mm
Material: Spring Steel Groove Width (W): 1.85 mm Tool: PRS-E023
Part Number: DAK-042 External Retaining Rings - 42x1.75x39.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 45.00 mm _{(1.772 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip ID (A) 40.60 mm		Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E023
Part Number: DAK-045 (250 Pcs) External Retaining Rings - 45x1.75x42.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $1,112.23 AUD Regular price Sale price $1,112.23 AUD Unit price per Per 250
Shaft Diameter (Ds) 45.00 mm _{(1.772 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip ID (A) 40.60 mm
Material: Spring Steel Groove Width (W): 1.85 mm Tool: PRS-E023
Part Number: DAK-045 (250 Pcs) External Retaining Rings - 45x1.75x42.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $1,112.23 AUD Regular price Sale price $1,112.23 AUD Unit price per Per 250 View the product page first if you are unsure.
DAK-045 (250 Pcs) --- External Retaining Rings - 45x1.75x42.5 mm - Spring Steel DAK-045 (250 Pcs) --- External Retaining Rings - 45x1.75x42.5 mm - Spring Steel Regular price $1,112.23 AUD Regular price Sale price $1,112.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 47.00 mm _{(1.85 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 44.50 mm + 0.00 / - 0.06 _{(1.752 in.)}	Approx. Loose Circlip ID (A) 42.60 - 44.89 mm		Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E023
Part Number: DAK-047 External Retaining Rings - 47x1.75x44.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 47.00 mm _{(1.85 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 44.50 mm + 0.00 / - 0.06 _{(1.752 in.)}	Approx. Loose Circlip ID (A) 42.60 - 44.89 mm
Material: Spring Steel Groove Width (W): 1.85 mm Tool: PRS-E023
Part Number: DAK-047 External Retaining Rings - 47x1.75x44.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 45.50 mm + 0.00 / - 0.06 _{(1.791 in.)}	Approx. Loose Circlip ID (A) 43.60 - 44.89 mm		Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E023
Part Number: DAK-048 External Retaining Rings - 48x1.75x45.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 45.50 mm + 0.00 / - 0.06 _{(1.791 in.)}	Approx. Loose Circlip ID (A) 43.60 - 44.89 mm
Material: Spring Steel Groove Width (W): 1.85 mm Tool: PRS-E023
Part Number: DAK-048 External Retaining Rings - 48x1.75x45.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.25 _{(0.079 in.)}	Groove Dia. (Dg) 47.00 mm + 0.00 / - 0.07 _{(1.85 in.)}	Approx. Loose Circlip ID (A) 44.90 mm		Groove Width (W) 2.15 mm
Material: Spring Steel Tool: PRS-E023
Part Number: DAK-050 External Retaining Rings - 50x2x47 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.25 _{(0.079 in.)}	Groove Dia. (Dg) 47.00 mm + 0.00 / - 0.07 _{(1.85 in.)}	Approx. Loose Circlip ID (A) 44.90 mm
Material: Spring Steel Groove Width (W): 2.15 mm Tool: PRS-E023
Part Number: DAK-050 External Retaining Rings - 50x2x47 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
