Collection: Retaining Rings - External - Circlips - Grooveless

Retaining Rings (With Images)

External

Circlips

35 Products in this selection

Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Grooveless. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 2.39 mm +/- 0.05 _{(0.094 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 2.26 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 41 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - - Carbon Steel 179 units (895 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per Per 5
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 2.39 mm +/- 0.05 _{(0.094 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 2.26 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 41 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - - Carbon Steel 179 units (895 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00239-C (5 Pcs) --- External Retaining Rings - 2.39x0.64 - - - Carbon Steel CNG-00239-C (5 Pcs) --- External Retaining Rings - 2.39x0.64 - - - Carbon Steel Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per 179 Available Now
Shaft Diameter (Ds) 2.39 mm +/- 0.05 _{(0.094 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 2.26 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 33 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C 90 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each
Shaft Diameter (Ds) 2.39 mm +/- 0.05 _{(0.094 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 2.26 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 33 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C 90 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each View the product page first if you are unsure.
CNG-00239-06-420-2 --- External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C CNG-00239-06-420-2 --- External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 90 Available Now
Shaft Diameter (Ds) 2.50 mm + 0 / - 0.025 _{(0.098 in.)}	Clip Thickness (T) 0.60 mm _{(0.024 in.)}		Approx. Loose Circlip ID (A) 2.35 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.50 Allowable Load: 60 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 2.50 mm + 0 / - 0.025 _{(0.098 in.)}	Clip Thickness (T) 0.60 mm _{(0.024 in.)}		Approx. Loose Circlip ID (A) 2.35 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.50 Allowable Load: 60 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00250-C (100 Pcs) --- External Retaining Rings - 2.5x0.6 - - - Carbon Steel Sale CNG-00250-C (100 Pcs) --- External Retaining Rings - 2.5x0.6 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 3.00 mm +/- 0.06 _{(0.118 in.)}	Clip Thickness (T) 0.60 mm _{(0.024 in.)}		Approx. Loose Circlip ID (A) 2.84 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 7.40 Allowable Load: 73 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - - Carbon Steel 1 pack (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 3.00 mm +/- 0.06 _{(0.118 in.)}	Clip Thickness (T) 0.60 mm _{(0.024 in.)}		Approx. Loose Circlip ID (A) 2.84 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 7.40 Allowable Load: 73 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - - Carbon Steel 1 pack (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00300-C (100 Pcs) --- External Retaining Rings - 3x0.6 - - - Carbon Steel Sale CNG-00300-C (100 Pcs) --- External Retaining Rings - 3x0.6 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm +/- 0.05 _{(0.125 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.05 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 41 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C 1 Available Immediately \| Further orders can be expected around Thu, Aug 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each
Shaft Diameter (Ds) 3.18 mm +/- 0.05 _{(0.125 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.05 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 41 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C 1 Available Immediately \| Further orders can be expected around Thu, Aug 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure.
CNG-00318-06-420-2 --- External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C CNG-00318-06-420-2 --- External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 1 Available Now
Shaft Diameter (Ds) 3.18 mm +/- 0.05 _{(0.125 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.05 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Per 5
Shaft Diameter (Ds) 3.18 mm +/- 0.05 _{(0.125 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.05 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00318-C (5 Pcs) --- External Retaining Rings - 3.18x0.64 - - - Carbon Steel CNG-00318-C (5 Pcs) --- External Retaining Rings - 3.18x0.64 - - - Carbon Steel Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per 119 Available Now
Shaft Diameter (Ds) 3.97 mm +/- 0.05 _{(0.156 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.79 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 89 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-06-C-2 (100 Pcs) External Retaining Rings - 3.97x0.64 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 3.97 mm +/- 0.05 _{(0.156 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.79 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 89 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-06-C-2 (100 Pcs) External Retaining Rings - 3.97x0.64 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00397-06-C-2 (100 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Carbon Steel CNG-00397-06-C-2 (100 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Carbon Steel Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 3.97 mm +/- 0.05 _{(0.156 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.79 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 49 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-4 (125 Pcs) External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $814.86 AUD Regular price Sale price $814.86 AUD Unit price per Per 125
Shaft Diameter (Ds) 3.97 mm +/- 0.05 _{(0.156 in.)}	Clip Thickness (T) 0.64 mm _{(0.025 in.)}		Approx. Loose Circlip ID (A) 3.79 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 49 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-4 (125 Pcs) External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $814.86 AUD Regular price Sale price $814.86 AUD Unit price per Per 125 View the product page first if you are unsure.
CNG-00397-4 (125 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C CNG-00397-4 (125 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C Regular price $814.86 AUD Regular price Sale price $814.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 4.78 mm +/- 0.08 _{(0.188 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 4.57 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 101 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-C (5 Pcs) External Retaining Rings - 4.78x0.89 - - - Carbon Steel 4 units (20 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Per 5
Shaft Diameter (Ds) 4.78 mm +/- 0.08 _{(0.188 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 4.57 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 101 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-C (5 Pcs) External Retaining Rings - 4.78x0.89 - - - Carbon Steel 4 units (20 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00478-C (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Carbon Steel CNG-00478-C (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Carbon Steel Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per 4 Available Now
Shaft Diameter (Ds) 4.78 mm +/- 0.05 _{(0.188 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 4.57 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-4 (5 Pcs) External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Per 5
Shaft Diameter (Ds) 4.78 mm +/- 0.05 _{(0.188 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 4.57 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-4 (5 Pcs) External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00478-4 (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C CNG-00478-4 (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 4.570 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-CZ (250 Pcs) External Retaining Rings - 4.78x0.89 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $148.14 AUD Regular price Sale price $148.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 4.570 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-CZ (250 Pcs) External Retaining Rings - 4.78x0.89 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $148.14 AUD Regular price Sale price $148.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CNG-00478-CZ (250 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Carbon Steel Zinc Plated Yellow CNG-00478-CZ (250 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Carbon Steel Zinc Plated Yellow Regular price $148.14 AUD Regular price Sale price $148.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.00 mm +/- 0.06 _{(0.197 in.)}	Clip Thickness (T) 0.80 mm _{(0.031 in.)}		Approx. Loose Circlip ID (A) 4.75 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.00 Allowable Load: 127 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00500-C (100 Pcs) External Retaining Rings - 5x0.8 - - - Carbon Steel 8 units (800 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.00 mm +/- 0.06 _{(0.197 in.)}	Clip Thickness (T) 0.80 mm _{(0.031 in.)}		Approx. Loose Circlip ID (A) 4.75 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.00 Allowable Load: 127 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00500-C (100 Pcs) External Retaining Rings - 5x0.8 - - - Carbon Steel 8 units (800 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00500-C (100 Pcs) --- External Retaining Rings - 5x0.8 - - - Carbon Steel Sale CNG-00500-C (100 Pcs) --- External Retaining Rings - 5x0.8 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 8 Available Now Sale
Shaft Diameter (Ds) 5.95 mm +/- 0.08 _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.69 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-C (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.68 AUD Regular price Sale price $57.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.95 mm +/- 0.08 _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.69 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-C (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.68 AUD Regular price Sale price $57.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel CNG-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel Regular price $57.68 AUD Regular price Sale price $57.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.690 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-CZ (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $92.14 AUD Regular price Sale price $92.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.690 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-CZ (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $92.14 AUD Regular price Sale price $92.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00595-CZ (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow CNG-00595-CZ (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow Regular price $92.14 AUD Regular price Sale price $92.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.00 mm +/- 0.08 _{(0.236 in.)}	Clip Thickness (T) 1.00 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.60 Allowable Load: 166 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00600-C (100 Pcs) External Retaining Rings - 6x1 - - - Carbon Steel 4 units (400 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.00 mm +/- 0.08 _{(0.236 in.)}	Clip Thickness (T) 1.00 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.60 Allowable Load: 166 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00600-C (100 Pcs) External Retaining Rings - 6x1 - - - Carbon Steel 4 units (400 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00600-C (100 Pcs) --- External Retaining Rings - 6x1 - - - Carbon Steel Sale CNG-00600-C (100 Pcs) --- External Retaining Rings - 6x1 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 6.35 mm +/- 0.05 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 93 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-09-420-2 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 6.35 mm +/- 0.05 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 93 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-09-420-2 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00635-09-420-2 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C CNG-00635-09-420-2 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm +/- 0.08 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-4 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 6.35 mm +/- 0.08 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-4 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00635-4 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C CNG-00635-4 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-C (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-C (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00635-C (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel CNG-00635-C (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-CZ (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-CZ (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00635-CZ (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow CNG-00635-CZ (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}
Material: Stainless Steel AISI 420C Lug Type: 2 (Closed) mm
Part Number: CNG-00794-4 (3 Pcs) External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 3
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}
Material: Stainless Steel AISI 420C Lug Type: 2 (Closed) mm
Part Number: CNG-00794-4 (3 Pcs) External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 3 View the product page first if you are unsure.
CNG-00794-4 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C CNG-00794-4 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}
Material: Carbon Steel Lug Type: 2 (Closed) mm
Part Number: CNG-00794-C (50 Pcs) External Retaining Rings - 7.94x1.07 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}
Material: Carbon Steel Lug Type: 2 (Closed) mm
Part Number: CNG-00794-C (50 Pcs) External Retaining Rings - 7.94x1.07 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CNG-00794-C (50 Pcs) --- External Retaining Rings - 7.94x1.07 - - - Carbon Steel CNG-00794-C (50 Pcs) --- External Retaining Rings - 7.94x1.07 - - - Carbon Steel Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.94 mm +/- 0.08 _{(0.313 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}		Approx. Loose Circlip ID (A) 7.70 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 17.27 Allowable Load: 102 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00794-11-420-2 (3 Pcs) External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Per 3
Shaft Diameter (Ds) 7.94 mm +/- 0.08 _{(0.313 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}		Approx. Loose Circlip ID (A) 7.70 mm

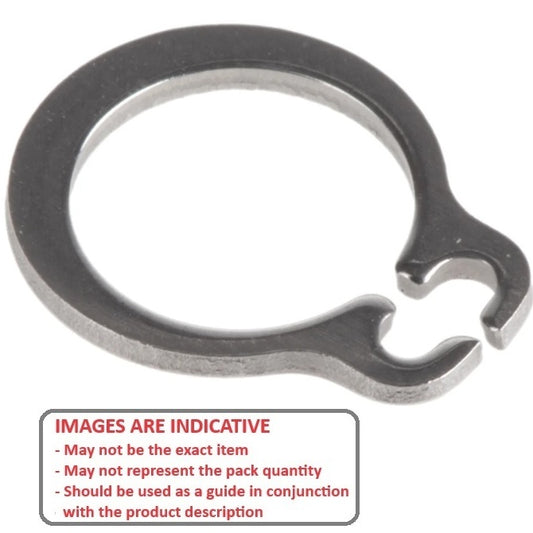

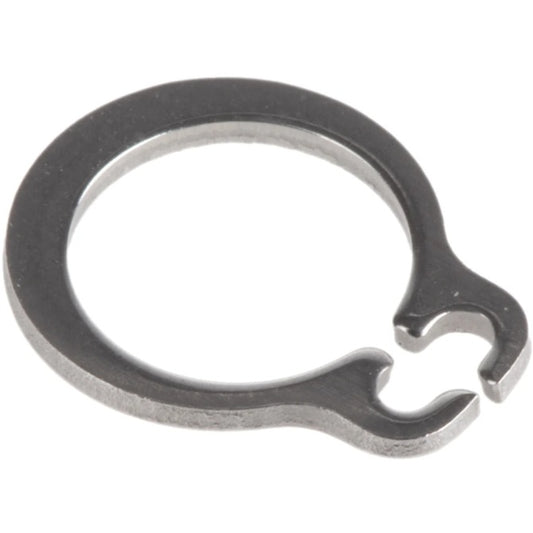

Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 17.27 Allowable Load: 102 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00794-11-420-2 (3 Pcs) External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Per 3 View the product page first if you are unsure.
CNG-00794-11-420-2 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C CNG-00794-11-420-2 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - - Stainless Steel AISI 420C Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 8.00 mm +/- 0.08 _{(0.315 in.)}	Clip Thickness (T) 1.00 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 7.70 mm

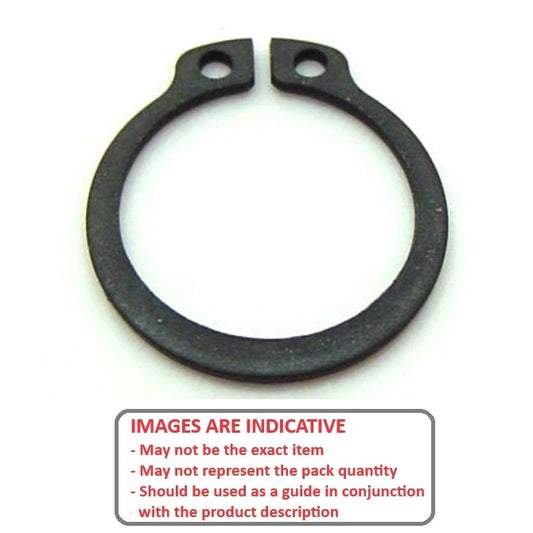

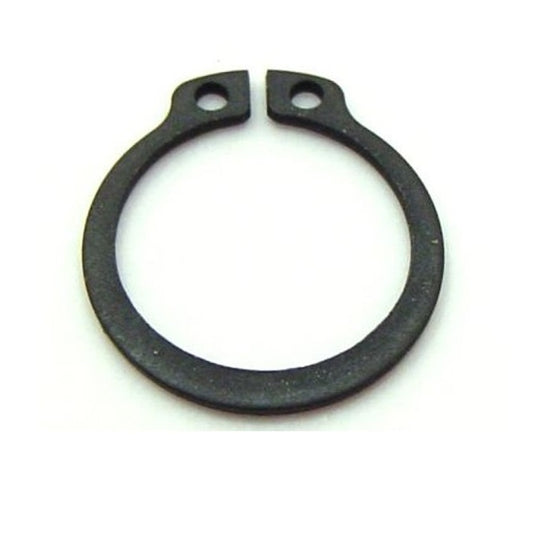

Material: Carbon Steel Assemb. Clearance on Shaft (C): 17.30 Allowable Load: 196 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00800-C (5 Pcs) External Retaining Rings - 8x1 - - - Carbon Steel 526 units (2630 pcs) Available Immediately \| Further orders can be expected around Fri, Jan 02, 2026 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Per 5
Shaft Diameter (Ds) 8.00 mm +/- 0.08 _{(0.315 in.)}	Clip Thickness (T) 1.00 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 7.70 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 17.30 Allowable Load: 196 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00800-C (5 Pcs) External Retaining Rings - 8x1 - - - Carbon Steel 526 units (2630 pcs) Available Immediately \| Further orders can be expected around Fri, Jan 02, 2026 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00800-C (5 Pcs) --- External Retaining Rings - 8x1 - - - Carbon Steel CNG-00800-C (5 Pcs) --- External Retaining Rings - 8x1 - - - Carbon Steel Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per 526 Available Now
Shaft Diameter (Ds) 9.53 mm +/- 0.08 _{(0.375 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}		Approx. Loose Circlip ID (A) 8.97 mm

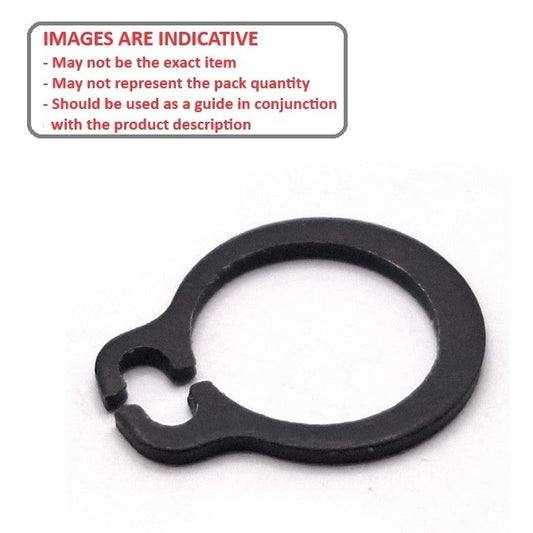

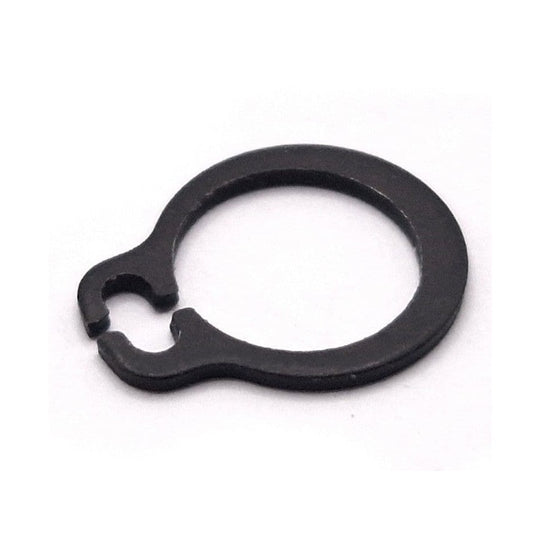

Material: Carbon Steel Assemb. Clearance on Shaft (C): 18.54 Allowable Load: 243 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00953-C (10 Pcs) External Retaining Rings - 9.53x1.07 - - - Carbon Steel 1 pack (10 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 10
Shaft Diameter (Ds) 9.53 mm +/- 0.08 _{(0.375 in.)}	Clip Thickness (T) 1.07 mm _{(0.042 in.)}		Approx. Loose Circlip ID (A) 8.97 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 18.54 Allowable Load: 243 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00953-C (10 Pcs) External Retaining Rings - 9.53x1.07 - - - Carbon Steel 1 pack (10 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 10 View the product page first if you are unsure.
CNG-00953-C (10 Pcs) --- External Retaining Rings - 9.53x1.07 - - - Carbon Steel CNG-00953-C (10 Pcs) --- External Retaining Rings - 9.53x1.07 - - - Carbon Steel Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per 1 Available Now
