| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

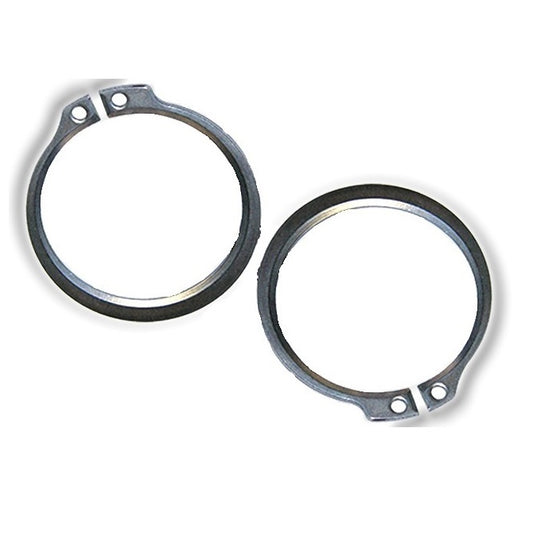

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
107.95
mm (4.25 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
101.83
mm +/- 0.08 (4.009 in.) |
Approx. Loose Circlip ID (A)
100.56
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.47 - 8.08
mm |
Groove Width (W)
2.39
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-10795-C (13 Pcs) External Retaining Rings - 107.95x2.77x101.83 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,882.68 AUD
Regular price
Unit price
per
Per 13
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |

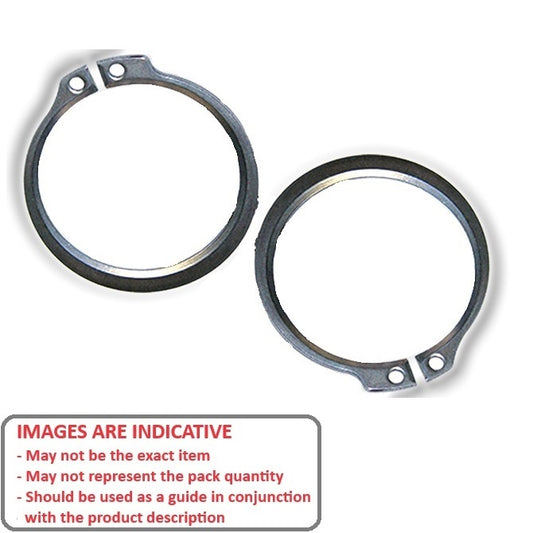

Indicative Image |
||
|
Shaft Diameter (Ds)
107.95
mm (4.25 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
101.83
mm +/- 0.08 (4.009 in.) |
Approx. Loose Circlip ID (A)
100.56
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 4.47 - 8.08 mm Groove Width (W): 2.39 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-10795-C (13 Pcs) External Retaining Rings - 107.95x2.77x101.83 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,882.68 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Shaft Diameter (Ds)
111.13
mm (4.375 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.08 (4.125 in.) |
Approx. Loose Circlip ID (A)
103.53
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.60 - 8.08
mm |
Groove Width (W)
2.39
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-11113-C External Retaining Rings - 111.13x2.77x104.78 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
111.13
mm (4.375 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.08 (4.125 in.) |
Approx. Loose Circlip ID (A)
103.53
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 4.60 - 8.08 mm Groove Width (W): 2.39 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-11113-C External Retaining Rings - 111.13x2.77x104.78 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
114.30
mm (4.5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
107.77
mm +/- 0.08 (4.243 in.) |
Approx. Loose Circlip ID (A)
106.50
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.70 - 10.29
mm |
Groove Width (W)
2.39
mm + 0.08 / - 0.00 |
|
| Material: Carbon Steel Tool: PRR-E120-X | ||||||
|
Part Number: CEB-11430-C (13 Pcs) External Retaining Rings - 114.3x2.77x107.77 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,891.68 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
Shaft Diameter (Ds)
114.30
mm (4.5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
107.77
mm +/- 0.08 (4.243 in.) |
Approx. Loose Circlip ID (A)
106.50
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 4.70 - 10.29 mm Groove Width (W): 2.39 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-11430-C (13 Pcs) External Retaining Rings - 114.3x2.77x107.77 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,891.68 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Shaft Diameter (Ds)
120.65
mm (4.75 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
113.71
mm +/- 0.08 (4.477 in.) |
Approx. Loose Circlip ID (A)
112.47
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.45 - 7.70
mm |
Groove Width (W)
2.34
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-12065-C (10 Pcs) External Retaining Rings - 120.65x2.77x113.71 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,507.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
120.65
mm (4.75 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
113.71
mm +/- 0.08 (4.477 in.) |
Approx. Loose Circlip ID (A)
112.47
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 3.45 - 7.70 mm Groove Width (W): 2.34 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-12065-C (10 Pcs) External Retaining Rings - 120.65x2.77x113.71 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,507.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
119.68
mm +/- 0.08 (4.712 in.) |
Approx. Loose Circlip ID (A)
118.41
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.93 - 9.14
mm |
Groove Width (W)
2.31
mm + 0.08 / - 0.00 |
|
| Material: Carbon Steel Tool: PRR-E120-X | ||||||
|
Part Number: CEB-12700-C External Retaining Rings - 127x2.77x119.68 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$132.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
119.68
mm +/- 0.08 (4.712 in.) |
Approx. Loose Circlip ID (A)
118.41
mm + 1.27 / - 0.00 |
|
||
| Material: Carbon Steel Radial Wall (S) min/max: 4.93 - 9.14 mm Groove Width (W): 2.31 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-12700-C External Retaining Rings - 127x2.77x119.68 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$132.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (5.25 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
125.65
mm +/- 0.10 (4.947 in.) |
Approx. Loose Circlip ID (A)
124.13
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.36 - 9.45
mm |
Groove Width (W)
2.67
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-13335-C External Retaining Rings - 133.35x3.18x125.65 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
133.35
mm (5.25 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
125.65
mm +/- 0.10 (4.947 in.) |
Approx. Loose Circlip ID (A)
124.13
mm + 1.52 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 5.36 - 9.45 mm Groove Width (W): 2.67 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-13335-C External Retaining Rings - 133.35x3.18x125.65 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
139.70
mm (5.5 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
131.62
mm +/- 0.10 (5.182 in.) |
Approx. Loose Circlip ID (A)
130.10
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.31 - 9.91
mm |
Groove Width (W)
2.64
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-13970-C External Retaining Rings - 139.7x3.18x131.62 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,031.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (5.5 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
131.62
mm +/- 0.10 (5.182 in.) |
Approx. Loose Circlip ID (A)
130.10
mm + 1.52 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 5.31 - 9.91 mm Groove Width (W): 2.64 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-13970-C External Retaining Rings - 139.7x3.18x131.62 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,031.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
137.57
mm +/- 0.10 (5.416 in.) |
Approx. Loose Circlip ID (A)
136.04
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.59 - 10.36
mm |
Groove Width (W)
2.62
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-14605-C External Retaining Rings - 146.05x3.18x137.57 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
137.57
mm +/- 0.10 (5.416 in.) |
Approx. Loose Circlip ID (A)
136.04
mm + 1.52 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 5.59 - 10.36 mm Groove Width (W): 2.62 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-14605-C External Retaining Rings - 146.05x3.18x137.57 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
143.54
mm +/- 0.10 (5.651 in.) |
Approx. Loose Circlip ID (A)
142.01
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
4.34 - 9.68
mm |
Groove Width (W)
2.59
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-15240-C External Retaining Rings - 152.4x3.18x143.54 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,082.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
143.54
mm +/- 0.10 (5.651 in.) |
Approx. Loose Circlip ID (A)
142.01
mm + 1.52 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 4.34 - 9.68 mm Groove Width (W): 2.59 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-15240-C External Retaining Rings - 152.4x3.18x143.54 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,082.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
158.75
mm (6.25 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
149.50
mm +/- 0.13 (5.886 in.) |
Approx. Loose Circlip ID (A)
147.73
mm + 1.78 / - 0.00 |
Radial Wall (S) min/max
4.47 - 10.06
mm |
Groove Width (W)
3.35
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-15875-C (5 Pcs) External Retaining Rings - 158.75x3.96x149.5 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$11,359.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
158.75
mm (6.25 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
149.50
mm +/- 0.13 (5.886 in.) |
Approx. Loose Circlip ID (A)
147.73
mm + 1.78 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 4.47 - 10.06 mm Groove Width (W): 3.35 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-15875-C (5 Pcs) External Retaining Rings - 158.75x3.96x149.5 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$11,359.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
165.10
mm (6.5 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
155.45
mm +/- 0.13 (6.12 in.) |
Approx. Loose Circlip ID (A)
153.67
mm + 1.78 / - 0.00 |
Radial Wall (S) min/max
5.99 - 11.13
mm |
Groove Width (W)
3.35
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E120-X | ||||||
|
Part Number: CEB-16510-C External Retaining Rings - 165.1x3.96x155.45 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
165.10
mm (6.5 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
155.45
mm +/- 0.13 (6.12 in.) |
Approx. Loose Circlip ID (A)
153.67
mm + 1.78 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 5.99 - 11.13 mm Groove Width (W): 3.35 mm + 0.08 / - 0.00 Tool: PRR-E120-X | ||||||
|
Part Number: CEB-16510-C External Retaining Rings - 165.1x3.96x155.45 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
171.45
mm (6.75 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
161.42
mm +/- 0.13 (6.355 in.) |
Approx. Loose Circlip ID (A)
159.64
mm + 1.78 / - 0.00 |
Radial Wall (S) min/max
6.25 - 11.58
mm |
Groove Width (W)
3.30
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-17145-C External Retaining Rings - 171.45x3.96x161.42 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
171.45
mm (6.75 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
161.42
mm +/- 0.13 (6.355 in.) |
Approx. Loose Circlip ID (A)
159.64
mm + 1.78 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 6.25 - 11.58 mm Groove Width (W): 3.30 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-17145-C External Retaining Rings - 171.45x3.96x161.42 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
177.80
mm (7 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
167.39
mm +/- 0.13 (6.59 in.) |
Approx. Loose Circlip ID (A)
165.61
mm + 1.78 / - 0.00 |
Radial Wall (S) min/max
6.50 - 12.04
mm |
Groove Width (W)
3.28
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-17780-C External Retaining Rings - 177.8x3.96x167.39 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,207.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
177.80
mm (7 in.) |
Clip Thickness (T)
3.96
mm + 0.00 / - 0.20 (0.156 in.) |
Groove Dia. (Dg)
167.39
mm +/- 0.13 (6.59 in.) |
Approx. Loose Circlip ID (A)
165.61
mm + 1.78 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 6.50 - 12.04 mm Groove Width (W): 3.28 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-17780-C External Retaining Rings - 177.8x3.96x167.39 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,207.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
190.50
mm (7.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
179.30
mm +/- 0.13 (7.059 in.) |
Approx. Loose Circlip ID (A)
177.27
mm + 2.03 / - 0.00 |
Radial Wall (S) min/max
7.04 - 12.88
mm |
Groove Width (W)
4.01
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-19050-C External Retaining Rings - 190.5x4.75x179.3 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
190.50
mm (7.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
179.30
mm +/- 0.13 (7.059 in.) |
Approx. Loose Circlip ID (A)
177.27
mm + 2.03 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 7.04 - 12.88 mm Groove Width (W): 4.01 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-19050-C External Retaining Rings - 190.5x4.75x179.3 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
203.20
mm (8 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
191.21
mm +/- 0.13 (7.528 in.) |
Approx. Loose Circlip ID (A)
189.18
mm + 2.03 / - 0.00 |
Radial Wall (S) min/max
7.47 - 13.72
mm |
Groove Width (W)
3.99
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-20320-C External Retaining Rings - 203.2x4.75x191.21 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
203.20
mm (8 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
191.21
mm +/- 0.13 (7.528 in.) |
Approx. Loose Circlip ID (A)
189.18
mm + 2.03 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 7.47 - 13.72 mm Groove Width (W): 3.99 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-20320-C External Retaining Rings - 203.2x4.75x191.21 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
215.90
mm (8.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
203.12
mm +/- 0.13 (7.997 in.) |
Approx. Loose Circlip ID (A)
201.09
mm + 2.03 / - 0.00 |
Radial Wall (S) min/max
7.98 - 14.55
mm |
Groove Width (W)
3.91
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-21590-C External Retaining Rings - 215.9x4.75x203.12 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
215.90
mm (8.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
203.12
mm +/- 0.13 (7.997 in.) |
Approx. Loose Circlip ID (A)
201.09
mm + 2.03 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 7.98 - 14.55 mm Groove Width (W): 3.91 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-21590-C External Retaining Rings - 215.9x4.75x203.12 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
228.60
mm (9 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
215.01
mm +/- 0.13 (8.465 in.) |
Approx. Loose Circlip ID (A)
212.98
mm + 2.03 / - 0.00 |
Radial Wall (S) min/max
8.46 - 15.47
mm |
Groove Width (W)
3.89
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-22860-C External Retaining Rings - 228.6x4.75x215.01 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
228.60
mm (9 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
215.01
mm +/- 0.13 (8.465 in.) |
Approx. Loose Circlip ID (A)
212.98
mm + 2.03 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 8.46 - 15.47 mm Groove Width (W): 3.89 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-22860-C External Retaining Rings - 228.6x4.75x215.01 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
241.30
mm (9.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
226.95
mm +/- 0.13 (8.935 in.) |
Approx. Loose Circlip ID (A)
224.92
mm + 2.03 / - 0.00 |
Radial Wall (S) min/max
8.89 - 16.31
mm |
Groove Width (W)
3.81
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E170 | ||||||
|
Part Number: CEB-24130-C External Retaining Rings - 241.3x4.75x226.95 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
241.30
mm (9.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
226.95
mm +/- 0.13 (8.935 in.) |
Approx. Loose Circlip ID (A)
224.92
mm + 2.03 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 8.89 - 16.31 mm Groove Width (W): 3.81 mm + 0.08 / - 0.00 Tool: PRR-E170 | ||||||
|
Part Number: CEB-24130-C External Retaining Rings - 241.3x4.75x226.95 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
254.00
mm (10 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
238.89
mm +/- 0.13 (9.405 in.) |
Approx. Loose Circlip ID (A)
236.86
mm + 2.03 / - 0.00 |
Radial Wall (S) min/max
9.32 - 17.15
mm |
Groove Width (W)
3.76
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Self Finish Tool: PRR-E045 | ||||||
|
Part Number: CEB-25400-C External Retaining Rings - 254x4.75x238.89 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$4,780.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
254.00
mm (10 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (0.187 in.) |
Groove Dia. (Dg)
238.89
mm +/- 0.13 (9.405 in.) |
Approx. Loose Circlip ID (A)
236.86
mm + 2.03 / - 0.00 |
|
||
| Material: Carbon Spring Steel Self Finish Radial Wall (S) min/max: 9.32 - 17.15 mm Groove Width (W): 3.76 mm + 0.08 / - 0.00 Tool: PRR-E045 | ||||||
|
Part Number: CEB-25400-C External Retaining Rings - 254x4.75x238.89 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$4,780.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
