Collection: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD

Pulleys (With Images)

Metric Timing Stock

5.000mm Pitch

T5 Aluminium

88 Products in this selection

This is a combined category of HTD 5.000mm Pitch Metric Timing Stock Pulleys.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Timing Pulleys Catalogue PDF
Pulley Flanges
5mm HTD Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD. Smallparts promote the most popular MBA products.

Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Teeth 12	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 19.10 mm	Outside Diameter (OD) 17.96 mm

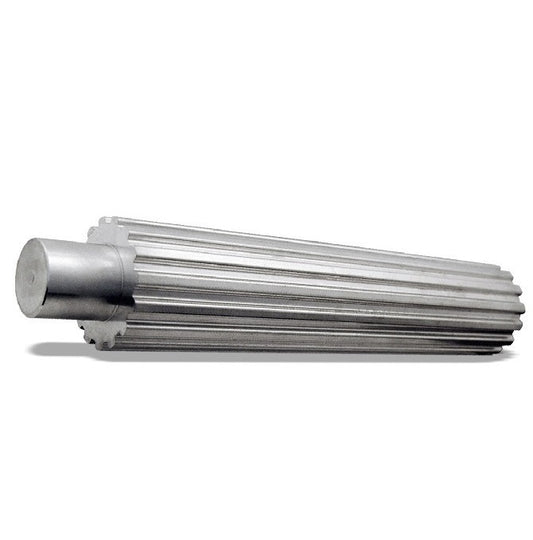

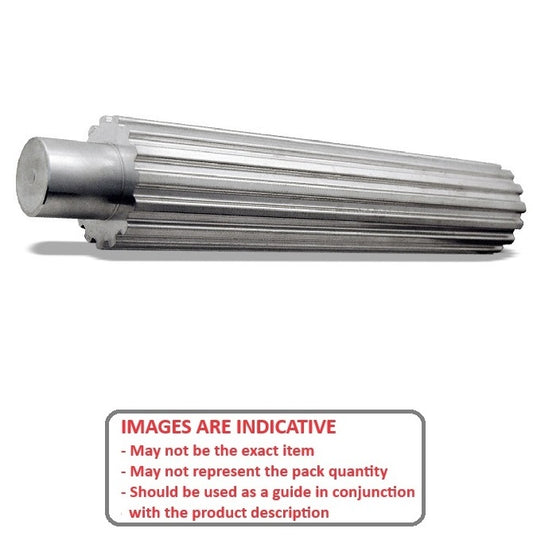

Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-012-150A Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Aluminium 2 Available Immediately \| Further orders can be expected around Mon, Jun 16, 2025 Regular price $108.32 AUD Regular price Sale price $108.32 AUD Unit price per Each
Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Teeth 12	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 19.10 mm	Outside Diameter (OD) 17.96 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-012-150A Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Aluminium 2 Available Immediately \| Further orders can be expected around Mon, Jun 16, 2025 Regular price $108.32 AUD Regular price Sale price $108.32 AUD Unit price per Each View the product page first if you are unsure.
P-050H-012-150A --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Aluminium P-050H-012-150A --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Aluminium Regular price $108.32 AUD Regular price Sale price $108.32 AUD Unit price per 2 Available Now
Teeth 12	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 19.10 mm	Outside Diameter (OD) 17.96 mm

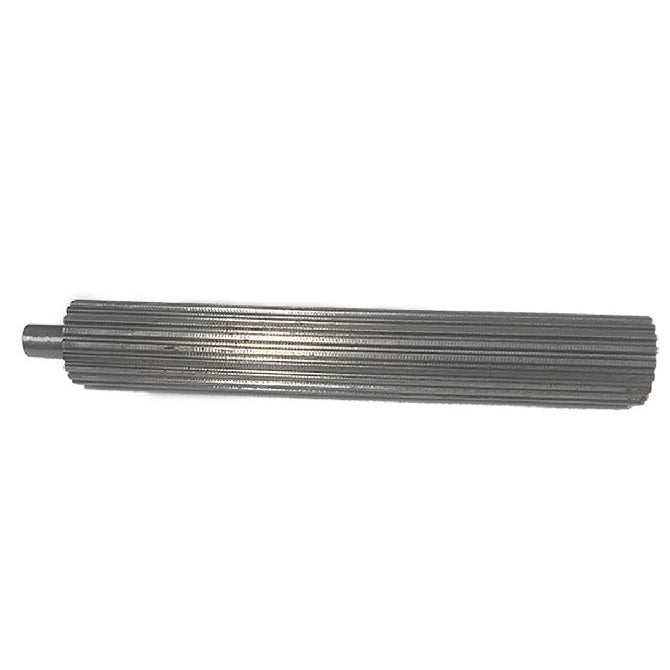

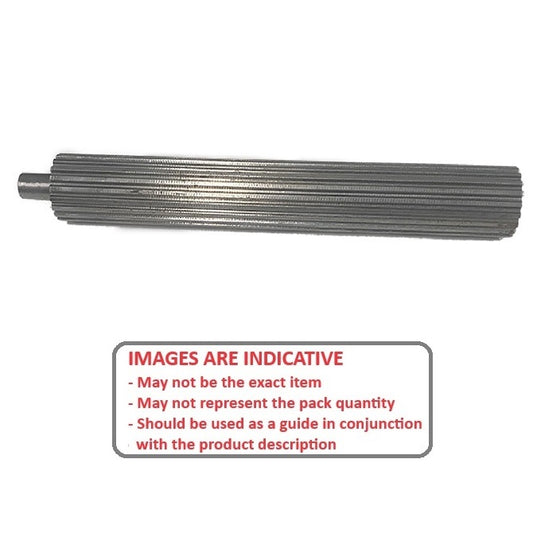

Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-012-150C Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $168.23 AUD Regular price Sale price $168.23 AUD Unit price per Each
Teeth 12	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 19.10 mm	Outside Diameter (OD) 17.96 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-012-150C Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $168.23 AUD Regular price Sale price $168.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-012-150C --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Carbon Steel P-050H-012-150C --- Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm - Carbon Steel Regular price $168.23 AUD Regular price Sale price $168.23 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 22.30 mm	Outside Diameter (OD) 21.14 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-014-175C Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $180.86 AUD Regular price Sale price $180.86 AUD Unit price per Each
Teeth 14	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 22.30 mm	Outside Diameter (OD) 21.14 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-014-175C Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $180.86 AUD Regular price Sale price $180.86 AUD Unit price per Each View the product page first if you are unsure.
P-050H-014-175C --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Carbon Steel P-050H-014-175C --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Carbon Steel Regular price $180.86 AUD Regular price Sale price $180.86 AUD Unit price per Out of stock! Backorder Now
Teeth 13	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 20.70 mm	Outside Diameter (OD) 19.55 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-013-150A Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $116.14 AUD Regular price Sale price $116.14 AUD Unit price per Each
Teeth 13	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 20.70 mm	Outside Diameter (OD) 19.55 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-013-150A Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $116.14 AUD Regular price Sale price $116.14 AUD Unit price per Each View the product page first if you are unsure.
P-050H-013-150A --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Aluminium P-050H-013-150A --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Aluminium Regular price $116.14 AUD Regular price Sale price $116.14 AUD Unit price per Out of stock! Backorder Now
Teeth 13	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 20.70 mm	Outside Diameter (OD) 19.55 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-013-150C Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $172.23 AUD Regular price Sale price $172.23 AUD Unit price per Each
Teeth 13	Min. Usable Length (L) 150.0 mm	Pitch Diameter (PD) 20.70 mm	Outside Diameter (OD) 19.55 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 22.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-013-150C Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $172.23 AUD Regular price Sale price $172.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-013-150C --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Carbon Steel P-050H-013-150C --- Metric Timing Stock Pulleys - 13 tooth - 150x20.7 mm - Carbon Steel Regular price $172.23 AUD Regular price Sale price $172.23 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 22.30 mm	Outside Diameter (OD) 21.14 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-014-175A Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $126.68 AUD Regular price Sale price $126.68 AUD Unit price per Each
Teeth 14	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 22.30 mm	Outside Diameter (OD) 21.14 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-014-175A Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $126.68 AUD Regular price Sale price $126.68 AUD Unit price per Each View the product page first if you are unsure.
P-050H-014-175A --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Aluminium P-050H-014-175A --- Metric Timing Stock Pulleys - 14 tooth - 175x22.3 mm - Aluminium Regular price $126.68 AUD Regular price Sale price $126.68 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 23.90 mm	Outside Diameter (OD) 22.73 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-015-175A Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $134.50 AUD Regular price Sale price $134.50 AUD Unit price per Each
Teeth 15	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 23.90 mm	Outside Diameter (OD) 22.73 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-015-175A Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $134.50 AUD Regular price Sale price $134.50 AUD Unit price per Each View the product page first if you are unsure.
P-050H-015-175A --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Aluminium P-050H-015-175A --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Aluminium Regular price $134.50 AUD Regular price Sale price $134.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 23.90 mm	Outside Diameter (OD) 22.73 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-015-175C Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $186.86 AUD Regular price Sale price $186.86 AUD Unit price per Each
Teeth 15	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 23.90 mm	Outside Diameter (OD) 22.73 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-015-175C Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $186.86 AUD Regular price Sale price $186.86 AUD Unit price per Each View the product page first if you are unsure.
P-050H-015-175C --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Carbon Steel P-050H-015-175C --- Metric Timing Stock Pulleys - 15 tooth - 175x23.9 mm - Carbon Steel Regular price $186.86 AUD Regular price Sale price $186.86 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 25.50 mm	Outside Diameter (OD) 24.32 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-016-175C Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $192.41 AUD Regular price Sale price $192.41 AUD Unit price per Each
Teeth 16	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 25.50 mm	Outside Diameter (OD) 24.32 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-016-175C Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $192.41 AUD Regular price Sale price $192.41 AUD Unit price per Each View the product page first if you are unsure.
P-050H-016-175C --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel P-050H-016-175C --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel Regular price $192.41 AUD Regular price Sale price $192.41 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 25.50 mm	Outside Diameter (OD) 24.32 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-016-175A Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $143.86 AUD Regular price Sale price $143.86 AUD Unit price per Each
Teeth 16	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 25.50 mm	Outside Diameter (OD) 24.32 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-016-175A Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $143.86 AUD Regular price Sale price $143.86 AUD Unit price per Each View the product page first if you are unsure.
P-050H-016-175A --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium P-050H-016-175A --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium Regular price $143.86 AUD Regular price Sale price $143.86 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 27.10 mm	Outside Diameter (OD) 25.91 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-017-175C Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $201.77 AUD Regular price Sale price $201.77 AUD Unit price per Each
Teeth 17	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 27.10 mm	Outside Diameter (OD) 25.91 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-017-175C Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $201.77 AUD Regular price Sale price $201.77 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-175C --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel P-050H-017-175C --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel Regular price $201.77 AUD Regular price Sale price $201.77 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 27.10 mm	Outside Diameter (OD) 25.91 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-017-175A Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $147.77 AUD Regular price Sale price $147.77 AUD Unit price per Each
Teeth 17	Min. Usable Length (L) 175.0 mm	Pitch Diameter (PD) 27.10 mm	Outside Diameter (OD) 25.91 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-017-175A Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $147.77 AUD Regular price Sale price $147.77 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-175A --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium P-050H-017-175A --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium Regular price $147.77 AUD Regular price Sale price $147.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 28.60 mm	Outside Diameter (OD) 27.50 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-018-200A Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Each
Teeth 18	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 28.60 mm	Outside Diameter (OD) 27.50 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-018-200A Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-200A --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium P-050H-018-200A --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 30.20 mm	Outside Diameter (OD) 29.10 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-019-200A Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $179.32 AUD Regular price Sale price $179.32 AUD Unit price per Each
Teeth 19	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 30.20 mm	Outside Diameter (OD) 29.10 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-019-200A Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $179.32 AUD Regular price Sale price $179.32 AUD Unit price per Each View the product page first if you are unsure.
P-050H-019-200A --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Aluminium P-050H-019-200A --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Aluminium Regular price $179.32 AUD Regular price Sale price $179.32 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 28.60 mm	Outside Diameter (OD) 27.50 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-018-200C Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $210.86 AUD Regular price Sale price $210.86 AUD Unit price per Each
Teeth 18	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 28.60 mm	Outside Diameter (OD) 27.50 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-018-200C Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $210.86 AUD Regular price Sale price $210.86 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-200C --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Carbon Steel P-050H-018-200C --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Carbon Steel Regular price $210.86 AUD Regular price Sale price $210.86 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 30.20 mm	Outside Diameter (OD) 29.10 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-019-200C Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $218.95 AUD Regular price Sale price $218.95 AUD Unit price per Each
Teeth 19	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 30.20 mm	Outside Diameter (OD) 29.10 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-019-200C Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $218.95 AUD Regular price Sale price $218.95 AUD Unit price per Each View the product page first if you are unsure.
P-050H-019-200C --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Carbon Steel P-050H-019-200C --- Metric Timing Stock Pulleys - 19 tooth - 200x30.2 mm - Carbon Steel Regular price $218.95 AUD Regular price Sale price $218.95 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 31.80 mm	Outside Diameter (OD) 30.69 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-020-200A Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $192.23 AUD Regular price Sale price $192.23 AUD Unit price per Each
Teeth 20	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 31.80 mm	Outside Diameter (OD) 30.69 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-020-200A Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $192.23 AUD Regular price Sale price $192.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-020-200A --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Aluminium P-050H-020-200A --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Aluminium Regular price $192.23 AUD Regular price Sale price $192.23 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 33.40 mm	Outside Diameter (OD) 32.28 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-021-200C Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $236.95 AUD Regular price Sale price $236.95 AUD Unit price per Each
Teeth 21	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 33.40 mm	Outside Diameter (OD) 32.28 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-021-200C Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $236.95 AUD Regular price Sale price $236.95 AUD Unit price per Each View the product page first if you are unsure.
P-050H-021-200C --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Carbon Steel P-050H-021-200C --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Carbon Steel Regular price $236.95 AUD Regular price Sale price $236.95 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 31.80 mm	Outside Diameter (OD) 30.69 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-020-200C Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $226.41 AUD Regular price Sale price $226.41 AUD Unit price per Each
Teeth 20	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 31.80 mm	Outside Diameter (OD) 30.69 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-020-200C Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $226.41 AUD Regular price Sale price $226.41 AUD Unit price per Each View the product page first if you are unsure.
P-050H-020-200C --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Carbon Steel P-050H-020-200C --- Metric Timing Stock Pulleys - 20 tooth - 200x31.8 mm - Carbon Steel Regular price $226.41 AUD Regular price Sale price $226.41 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 35.00 mm	Outside Diameter (OD) 33.87 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-022-200C Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $246.50 AUD Regular price Sale price $246.50 AUD Unit price per Each
Teeth 22	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 35.00 mm	Outside Diameter (OD) 33.87 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-022-200C Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $246.50 AUD Regular price Sale price $246.50 AUD Unit price per Each View the product page first if you are unsure.
P-050H-022-200C --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Carbon Steel P-050H-022-200C --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Carbon Steel Regular price $246.50 AUD Regular price Sale price $246.50 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 33.40 mm	Outside Diameter (OD) 32.28 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-021-200A Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $206.14 AUD Regular price Sale price $206.14 AUD Unit price per Each
Teeth 21	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 33.40 mm	Outside Diameter (OD) 32.28 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-021-200A Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $206.14 AUD Regular price Sale price $206.14 AUD Unit price per Each View the product page first if you are unsure.
P-050H-021-200A --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Aluminium P-050H-021-200A --- Metric Timing Stock Pulleys - 21 tooth - 200x33.4 mm - Aluminium Regular price $206.14 AUD Regular price Sale price $206.14 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 35.00 mm	Outside Diameter (OD) 33.87 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-022-200A Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $242.68 AUD Regular price Sale price $242.68 AUD Unit price per Each
Teeth 22	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 35.00 mm	Outside Diameter (OD) 33.87 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-022-200A Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $242.68 AUD Regular price Sale price $242.68 AUD Unit price per Each View the product page first if you are unsure.
P-050H-022-200A --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Aluminium P-050H-022-200A --- Metric Timing Stock Pulleys - 22 tooth - 200x35 mm - Aluminium Regular price $242.68 AUD Regular price Sale price $242.68 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 38.20 mm	Outside Diameter (OD) 37.05 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-024-200C Metric Timing Stock Pulleys - 24 tooth - 200x38.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $264.23 AUD Regular price Sale price $264.23 AUD Unit price per Each
Teeth 24	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 38.20 mm	Outside Diameter (OD) 37.05 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-024-200C Metric Timing Stock Pulleys - 24 tooth - 200x38.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $264.23 AUD Regular price Sale price $264.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-024-200C --- Metric Timing Stock Pulleys - 24 tooth - 200x38.2 mm - Carbon Steel P-050H-024-200C --- Metric Timing Stock Pulleys - 24 tooth - 200x38.2 mm - Carbon Steel Regular price $264.23 AUD Regular price Sale price $264.23 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 36.60 mm	Outside Diameter (OD) 35.46 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-023-200A Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $249.05 AUD Regular price Sale price $249.05 AUD Unit price per Each
Teeth 23	Min. Usable Length (L) 200.0 mm	Pitch Diameter (PD) 36.60 mm	Outside Diameter (OD) 35.46 mm
Material: Aluminium Shank Diameter (D1): 12.70 mm Shank Length (Sl): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-023-200A Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $249.05 AUD Regular price Sale price $249.05 AUD Unit price per Each View the product page first if you are unsure.
P-050H-023-200A --- Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm - Aluminium P-050H-023-200A --- Metric Timing Stock Pulleys - 23 tooth - 200x36.6 mm - Aluminium Regular price $249.05 AUD Regular price Sale price $249.05 AUD Unit price per Out of stock! Backorder Now
