Collection: Pulleys - Metric Timing - 5.000mm Pitch - T5

Pulleys (With Images)

Metric Timing

5.000mm Pitch

97 Products in this selection

This is a combined category of T5 5.000mm Pitch Metric Timing Pulleys.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Timing Pulleys Catalogue PDF
T 5mm Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 5.000mm Pitch - T5. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type	Indicative Image
Teeth 10	Max Belt Width 16.00 mm	Bore (d) 4.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-010-160FF-AS-N-040 Metric Timing Pulleys - 10 tooth - 16x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 10	Max Belt Width 16.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-010-160FF-AS-N-040 Metric Timing Pulleys - 10 tooth - 16x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Each View the product page first if you are unsure.
P-050T-010-160FF-AS-N-040 --- Metric Timing Pulleys - 10 tooth - 16x4 mm - Aluminium with Steel Flanges P-050T-010-160FF-AS-N-040 --- Metric Timing Pulleys - 10 tooth - 16x4 mm - Aluminium with Steel Flanges Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Out of stock! Backorder Now
Teeth 10	Max Belt Width 10.00 mm	Bore (d) 4.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-010-100FF-AS-N-040 Metric Timing Pulleys - 10 tooth - 10x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Each
Teeth 10	Max Belt Width 10.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-010-100FF-AS-N-040 Metric Timing Pulleys - 10 tooth - 10x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Each View the product page first if you are unsure.
P-050T-010-100FF-AS-N-040 --- Metric Timing Pulleys - 10 tooth - 10x4 mm - Aluminium with Steel Flanges P-050T-010-100FF-AS-N-040 --- Metric Timing Pulleys - 10 tooth - 10x4 mm - Aluminium with Steel Flanges Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Out of stock! Backorder Now
Teeth 10	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-010-250FF-AS-N-060 Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Each
Teeth 10	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-010-250FF-AS-N-060 Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Each View the product page first if you are unsure.
P-050T-010-250FF-AS-N-060 --- Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges P-050T-010-250FF-AS-N-060 --- Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Out of stock! Backorder Now
Teeth 10	Max Belt Width 125.0 mm	Bore (d) 15.05 mm	Bore Type 15.05
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-010-125A Metric Timing Stock Pulleys - 10 tooth - 125x15.05 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $81.41 AUD Regular price Sale price $81.41 AUD Unit price per Each
Teeth 10	Max Belt Width 125.0 mm	Bore (d) 15.05 mm	Bore Type 15.05
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-010-125A Metric Timing Stock Pulleys - 10 tooth - 125x15.05 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $81.41 AUD Regular price Sale price $81.41 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-010-125A --- Metric Timing Stock Pulleys - 10 tooth - 125x15.05 mm - Aluminium P-050T-010-125A --- Metric Timing Stock Pulleys - 10 tooth - 125x15.05 mm - Aluminium Regular price $81.41 AUD Regular price Sale price $81.41 AUD Unit price per Out of stock! Backorder Now
Teeth 11	Max Belt Width 125.0 mm	Bore (d) 16.65 mm	Bore Type 16.65
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-011-125A Metric Timing Stock Pulleys - 11 tooth - 125x16.65 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Each
Teeth 11	Max Belt Width 125.0 mm	Bore (d) 16.65 mm	Bore Type 16.65
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-011-125A Metric Timing Stock Pulleys - 11 tooth - 125x16.65 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-011-125A --- Metric Timing Stock Pulleys - 11 tooth - 125x16.65 mm - Aluminium P-050T-011-125A --- Metric Timing Stock Pulleys - 11 tooth - 125x16.65 mm - Aluminium Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Max Belt Width 10.00 mm	Bore (d) 4.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-012-100FF-AS-N-040 Metric Timing Pulleys - 12 tooth - 10x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $43.95 AUD Regular price Sale price $43.95 AUD Unit price per Each
Teeth 12	Max Belt Width 10.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-012-100FF-AS-N-040 Metric Timing Pulleys - 12 tooth - 10x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $43.95 AUD Regular price Sale price $43.95 AUD Unit price per Each View the product page first if you are unsure.
P-050T-012-100FF-AS-N-040 --- Metric Timing Pulleys - 12 tooth - 10x4 mm - Aluminium with Steel Flanges P-050T-012-100FF-AS-N-040 --- Metric Timing Pulleys - 12 tooth - 10x4 mm - Aluminium with Steel Flanges Regular price $43.95 AUD Regular price Sale price $43.95 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-012-250FF-AS-N-060 Metric Timing Pulleys - 12 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Each
Teeth 12	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-012-250FF-AS-N-060 Metric Timing Pulleys - 12 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Each View the product page first if you are unsure.
P-050T-012-250FF-AS-N-060 --- Metric Timing Pulleys - 12 tooth - 25x6 mm - Aluminium with Steel Flanges P-050T-012-250FF-AS-N-060 --- Metric Timing Pulleys - 12 tooth - 25x6 mm - Aluminium with Steel Flanges Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Max Belt Width 16.00 mm	Bore (d) 4.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-012-160FF-AS-N-040 Metric Timing Pulleys - 12 tooth - 16x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Each
Teeth 12	Max Belt Width 16.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.2 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-012-160FF-AS-N-040 Metric Timing Pulleys - 12 tooth - 16x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Each View the product page first if you are unsure.
P-050T-012-160FF-AS-N-040 --- Metric Timing Pulleys - 12 tooth - 16x4 mm - Aluminium with Steel Flanges P-050T-012-160FF-AS-N-040 --- Metric Timing Pulleys - 12 tooth - 16x4 mm - Aluminium with Steel Flanges Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Max Belt Width 125.0 mm	Bore (d) 18.25 mm	Bore Type 18.25
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-012-125A Metric Timing Stock Pulleys - 12 tooth - 125x18.25 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $83.14 AUD Regular price Sale price $83.14 AUD Unit price per Each
Teeth 12	Max Belt Width 125.0 mm	Bore (d) 18.25 mm	Bore Type 18.25
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-012-125A Metric Timing Stock Pulleys - 12 tooth - 125x18.25 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $83.14 AUD Regular price Sale price $83.14 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-012-125A --- Metric Timing Stock Pulleys - 12 tooth - 125x18.25 mm - Aluminium P-050T-012-125A --- Metric Timing Stock Pulleys - 12 tooth - 125x18.25 mm - Aluminium Regular price $83.14 AUD Regular price Sale price $83.14 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 16.00 mm	Bore (d) 4.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-014-160FF-AS-N-040 Metric Timing Pulleys - 14 tooth - 16x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Each
Teeth 14	Max Belt Width 16.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-014-160FF-AS-N-040 Metric Timing Pulleys - 14 tooth - 16x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Each View the product page first if you are unsure.
P-050T-014-160FF-AS-N-040 --- Metric Timing Pulleys - 14 tooth - 16x4 mm - Aluminium with Steel Flanges P-050T-014-160FF-AS-N-040 --- Metric Timing Pulleys - 14 tooth - 16x4 mm - Aluminium with Steel Flanges Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-014-250FF-AS-N-060 Metric Timing Pulleys - 14 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $41.41 AUD Regular price Sale price $41.41 AUD Unit price per Each
Teeth 14	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-014-250FF-AS-N-060 Metric Timing Pulleys - 14 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $41.41 AUD Regular price Sale price $41.41 AUD Unit price per Each View the product page first if you are unsure.
P-050T-014-250FF-AS-N-060 --- Metric Timing Pulleys - 14 tooth - 25x6 mm - Aluminium with Steel Flanges P-050T-014-250FF-AS-N-060 --- Metric Timing Pulleys - 14 tooth - 25x6 mm - Aluminium with Steel Flanges Regular price $41.41 AUD Regular price Sale price $41.41 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 132.0 mm	Bore (d) 21.45 mm	Bore Type 21.45
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-014-132A Metric Timing Stock Pulleys - 14 tooth - 132x21.45 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $88.95 AUD Regular price Sale price $88.95 AUD Unit price per Each
Teeth 14	Max Belt Width 132.0 mm	Bore (d) 21.45 mm	Bore Type 21.45
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-014-132A Metric Timing Stock Pulleys - 14 tooth - 132x21.45 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $88.95 AUD Regular price Sale price $88.95 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-014-132A --- Metric Timing Stock Pulleys - 14 tooth - 132x21.45 mm - Aluminium P-050T-014-132A --- Metric Timing Stock Pulleys - 14 tooth - 132x21.45 mm - Aluminium Regular price $88.95 AUD Regular price Sale price $88.95 AUD Unit price per Out of stock! Backorder Now
Teeth 13	Max Belt Width 125.0 mm	Bore (d) 19.85 mm	Bore Type 19.85
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-013-125A Metric Timing Stock Pulleys - 13 tooth - 125x19.85 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $84.23 AUD Regular price Sale price $84.23 AUD Unit price per Each
Teeth 13	Max Belt Width 125.0 mm	Bore (d) 19.85 mm	Bore Type 19.85
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-013-125A Metric Timing Stock Pulleys - 13 tooth - 125x19.85 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $84.23 AUD Regular price Sale price $84.23 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-013-125A --- Metric Timing Stock Pulleys - 13 tooth - 125x19.85 mm - Aluminium P-050T-013-125A --- Metric Timing Stock Pulleys - 13 tooth - 125x19.85 mm - Aluminium Regular price $84.23 AUD Regular price Sale price $84.23 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 10.00 mm	Bore (d) 4.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-014-100FF-AS-N-040 Metric Timing Pulleys - 14 tooth - 10x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $44.41 AUD Regular price Sale price $44.41 AUD Unit price per Each
Teeth 14	Max Belt Width 10.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.4 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-014-100FF-AS-N-040 Metric Timing Pulleys - 14 tooth - 10x4 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $44.41 AUD Regular price Sale price $44.41 AUD Unit price per Each View the product page first if you are unsure.
P-050T-014-100FF-AS-N-040 --- Metric Timing Pulleys - 14 tooth - 10x4 mm - Aluminium with Steel Flanges P-050T-014-100FF-AS-N-040 --- Metric Timing Pulleys - 14 tooth - 10x4 mm - Aluminium with Steel Flanges Regular price $44.41 AUD Regular price Sale price $44.41 AUD Unit price per Out of stock! Backorder Now

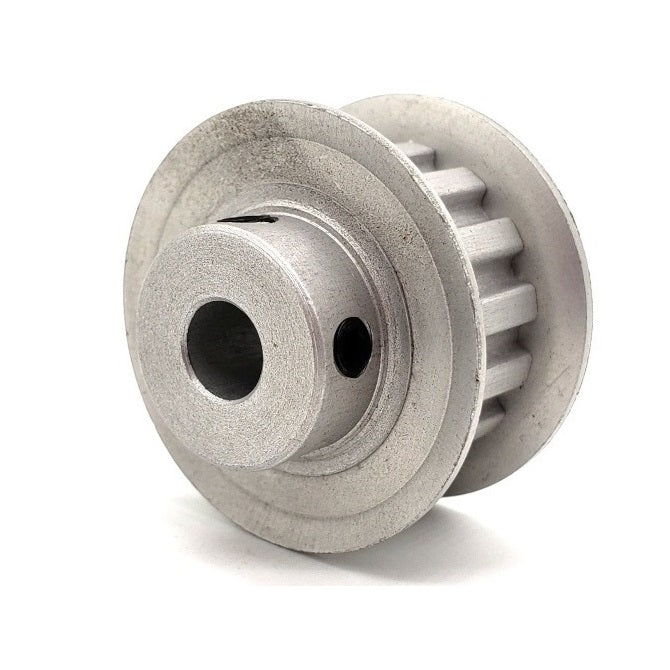

Teeth 15	Max Belt Width 10.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screws (2)
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-015-100FF-AL-G-060 Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each
Teeth 15	Max Belt Width 10.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws (2) Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-015-100FF-AL-G-060 Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each
P-050T-015-100FF-AL-G-060 --- Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium Sale P-050T-015-100FF-AL-G-060 --- Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Teeth 15	Max Belt Width 10.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-015-100FF-AS-N-060 Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $44.86 AUD Regular price Sale price $44.86 AUD Unit price per Each
Teeth 15	Max Belt Width 10.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-015-100FF-AS-N-060 Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $44.86 AUD Regular price Sale price $44.86 AUD Unit price per Each View the product page first if you are unsure.
P-050T-015-100FF-AS-N-060 --- Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium with Steel Flanges P-050T-015-100FF-AS-N-060 --- Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium with Steel Flanges Regular price $44.86 AUD Regular price Sale price $44.86 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 16.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-015-160FF-AS-N-060 Metric Timing Pulleys - 15 tooth - 16x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Each
Teeth 15	Max Belt Width 16.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-015-160FF-AS-N-060 Metric Timing Pulleys - 15 tooth - 16x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Each View the product page first if you are unsure.
P-050T-015-160FF-AS-N-060 --- Metric Timing Pulleys - 15 tooth - 16x6 mm - Aluminium with Steel Flanges P-050T-015-160FF-AS-N-060 --- Metric Timing Pulleys - 15 tooth - 16x6 mm - Aluminium with Steel Flanges Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-015-250FF-AS-N-060 Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each
Teeth 15	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 27.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-015-250FF-AS-N-060 Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each View the product page first if you are unsure.
P-050T-015-250FF-AS-N-060 --- Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium with Steel Flanges P-050T-015-250FF-AS-N-060 --- Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium with Steel Flanges Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 132.0 mm	Bore (d) 23.05 mm	Bore Type 23.05
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-015-132A Metric Timing Stock Pulleys - 15 tooth - 132x23.05 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $87.41 AUD Regular price Sale price $87.41 AUD Unit price per Each
Teeth 15	Max Belt Width 132.0 mm	Bore (d) 23.05 mm	Bore Type 23.05
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-015-132A Metric Timing Stock Pulleys - 15 tooth - 132x23.05 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $87.41 AUD Regular price Sale price $87.41 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-015-132A --- Metric Timing Stock Pulleys - 15 tooth - 132x23.05 mm - Aluminium P-050T-015-132A --- Metric Timing Stock Pulleys - 15 tooth - 132x23.05 mm - Aluminium Regular price $87.41 AUD Regular price Sale price $87.41 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 16.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.0 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-016-160FF-AS-N-060 Metric Timing Pulleys - 16 tooth - 16x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each
Teeth 16	Max Belt Width 16.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.0 mm Overall Length: 27.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-016-160FF-AS-N-060 Metric Timing Pulleys - 16 tooth - 16x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each View the product page first if you are unsure.
P-050T-016-160FF-AS-N-060 --- Metric Timing Pulleys - 16 tooth - 16x6 mm - Aluminium with Steel Flanges P-050T-016-160FF-AS-N-060 --- Metric Timing Pulleys - 16 tooth - 16x6 mm - Aluminium with Steel Flanges Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 10.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-016-100FF-AS-N-060 Metric Timing Pulleys - 16 tooth - 10x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Each
Teeth 16	Max Belt Width 10.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.0 mm Overall Length: 21.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Part Number: P-050T-016-100FF-AS-N-060 Metric Timing Pulleys - 16 tooth - 10x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Each View the product page first if you are unsure.
P-050T-016-100FF-AS-N-060 --- Metric Timing Pulleys - 16 tooth - 10x6 mm - Aluminium with Steel Flanges P-050T-016-100FF-AS-N-060 --- Metric Timing Pulleys - 16 tooth - 10x6 mm - Aluminium with Steel Flanges Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-016-250FF-AS-N-060 Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $44.32 AUD Regular price Sale price $44.32 AUD Unit price per Each
Teeth 16	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-016-250FF-AS-N-060 Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $44.32 AUD Regular price Sale price $44.32 AUD Unit price per Each View the product page first if you are unsure.
P-050T-016-250FF-AS-N-060 --- Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium with Steel Flanges P-050T-016-250FF-AS-N-060 --- Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium with Steel Flanges Regular price $44.32 AUD Regular price Sale price $44.32 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 140.0 mm	Bore (d) 24.60 mm	Bore Type 24.60
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-016-140A Metric Timing Stock Pulleys - 16 tooth - 140x24.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $99.77 AUD Regular price Sale price $99.77 AUD Unit price per Each
Teeth 16	Max Belt Width 140.0 mm	Bore (d) 24.60 mm	Bore Type 24.60
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-050T-016-140A Metric Timing Stock Pulleys - 16 tooth - 140x24.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $99.77 AUD Regular price Sale price $99.77 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050T-016-140A --- Metric Timing Stock Pulleys - 16 tooth - 140x24.6 mm - Aluminium P-050T-016-140A --- Metric Timing Stock Pulleys - 16 tooth - 140x24.6 mm - Aluminium Regular price $99.77 AUD Regular price Sale price $99.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium with Steel Flanges Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 33.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-018-250FF-AS-N-060 Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each
Teeth 18	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium with Steel Flanges Locking Type: None Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 33.0 mm Overall Length: 36.0 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-018-250FF-AS-N-060 Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium with Steel Flanges Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each View the product page first if you are unsure.
P-050T-018-250FF-AS-N-060 --- Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium with Steel Flanges P-050T-018-250FF-AS-N-060 --- Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium with Steel Flanges Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Out of stock! Backorder Now
