Collection: Pulleys - Inch Timing Stock - 5.080mm Pitch XL

Pulleys -> Inch Timing Stock -> 5.080mm Pitch XL

There are 96 products in the sub-categories of Pulleys - Inch Timing Stock - 5.080mm Pitch XL. Scroll down or follow the link to Pulleys - Inch Timing Stock - 5.080mm Pitch XL in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

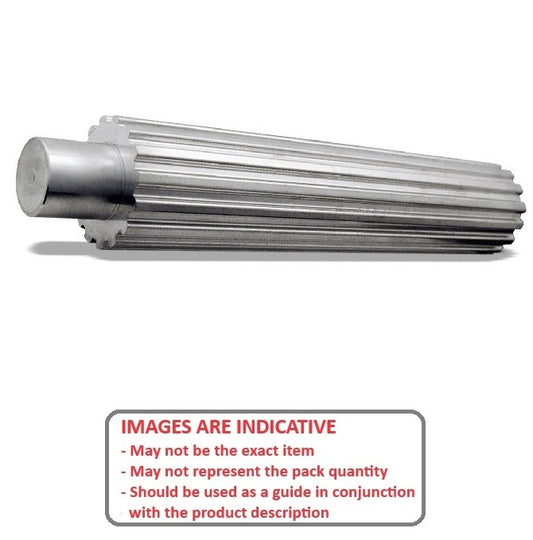

Inch Timing Stock Pulleys - 8 tooth - 150x12.93 mm - Aluminium

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium

A selection of Aluminium 5.080mm Pitch XL Inch Timing Stock Pulleys. For...

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium

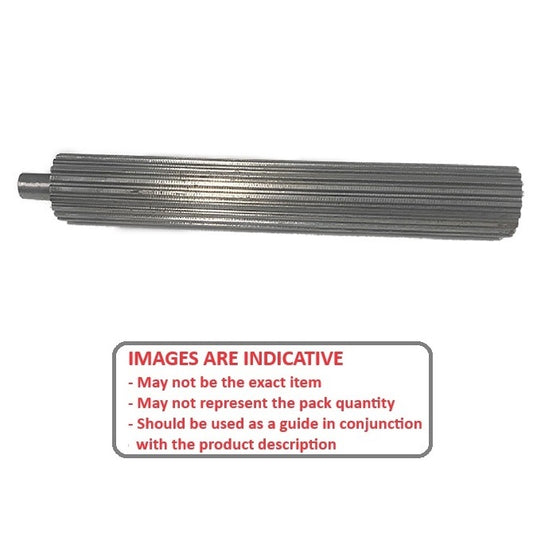

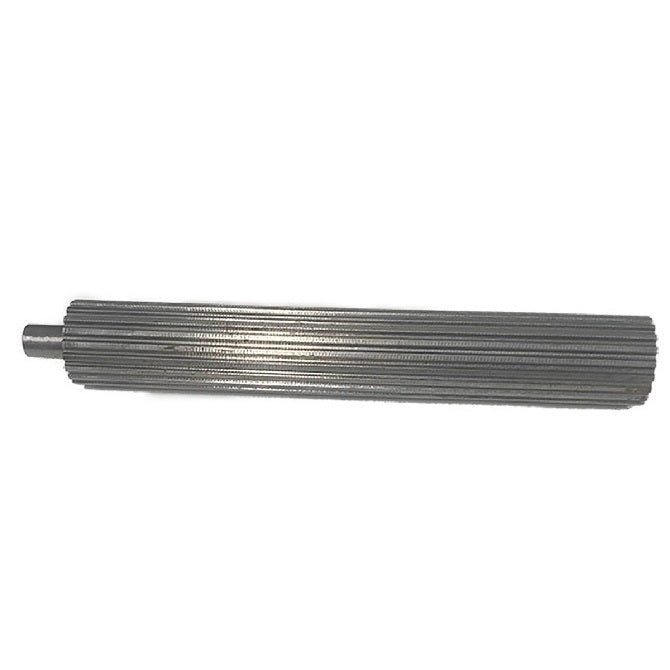

Inch Timing Stock Pulleys - 10 tooth - 150x16.2 mm - Carbon Steel

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel

A selection of Carbon Steel 5.080mm Pitch XL Inch Timing Stock Pulleys....

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel

Category Details

This category includes various types of inch timing stock pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing Stock - 5.080mm Pitch XL category on the Small Parts & Bearings online store.

Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 8	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 12.93 mm (Equiv. 0.509 in.)	Outside Diameter (OD) 12.42 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-008-150A Inch Timing Stock Pulleys - 8 tooth - 150x12.93 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $60.32 AUD Regular price ~~$101.49 AUD~~ Sale price $60.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Number of Teeth 8	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 12.93 mm (Equiv. 0.509 in.)	Outside Diameter (OD) 12.42 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-008-150A Inch Timing Stock Pulleys - 8 tooth - 150x12.93 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $60.32 AUD Regular price ~~$101.49 AUD~~ Sale price $60.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-008-150A --- Inch Timing Stock Pulleys - 8 tooth - 150x12.93 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-008-150A --- Inch Timing Stock Pulleys - 8 tooth - 150x12.93 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $60.32 AUD Regular price ~~$101.49 AUD~~ Sale price $60.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 16.16 mm (Equiv. 0.636 in.)	Outside Diameter (OD) 15.66 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-010-150A Inch Timing Stock Pulleys - 10 tooth - 150x16.16 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $71.86 AUD Regular price ~~$121.23 AUD~~ Sale price $71.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 16.16 mm (Equiv. 0.636 in.)	Outside Diameter (OD) 15.66 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-010-150A Inch Timing Stock Pulleys - 10 tooth - 150x16.16 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $71.86 AUD Regular price ~~$121.23 AUD~~ Sale price $71.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-010-150A --- Inch Timing Stock Pulleys - 10 tooth - 150x16.16 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-010-150A --- Inch Timing Stock Pulleys - 10 tooth - 150x16.16 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $71.86 AUD Regular price ~~$121.23 AUD~~ Sale price $71.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 10	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 16.20 mm (Equiv. 0.638 in.)	Outside Diameter (OD) 15.67 mm
Material: Carbon Steel Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-010-150C Inch Timing Stock Pulleys - 10 tooth - 150x16.2 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $79.95 AUD Regular price ~~$95.95 AUD~~ Sale price $79.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 16.20 mm (Equiv. 0.638 in.)	Outside Diameter (OD) 15.67 mm
Material: Carbon Steel Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-010-150C Inch Timing Stock Pulleys - 10 tooth - 150x16.2 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $79.95 AUD Regular price ~~$95.95 AUD~~ Sale price $79.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-010-150C --- Inch Timing Stock Pulleys - 10 tooth - 150x16.2 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-010-150C --- Inch Timing Stock Pulleys - 10 tooth - 150x16.2 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $79.95 AUD Regular price ~~$95.95 AUD~~ Sale price $79.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 17.78 mm (Equiv. 0.7 in.)	Outside Diameter (OD) 17.28 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-011-150A Inch Timing Stock Pulleys - 11 tooth - 150x17.78 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $77.86 AUD Regular price ~~$131.60 AUD~~ Sale price $77.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 17.78 mm (Equiv. 0.7 in.)	Outside Diameter (OD) 17.28 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-011-150A Inch Timing Stock Pulleys - 11 tooth - 150x17.78 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $77.86 AUD Regular price ~~$131.60 AUD~~ Sale price $77.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-011-150A --- Inch Timing Stock Pulleys - 11 tooth - 150x17.78 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-011-150A --- Inch Timing Stock Pulleys - 11 tooth - 150x17.78 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $77.86 AUD Regular price ~~$131.60 AUD~~ Sale price $77.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 11	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 17.80 mm (Equiv. 0.701 in.)	Outside Diameter (OD) 17.27 mm
Material: Carbon Steel Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-011-150C Inch Timing Stock Pulleys - 11 tooth - 150x17.8 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $99.68 AUD Regular price ~~$119.62 AUD~~ Sale price $99.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Min. Usable Length (L) 150.0 mm (Equiv. 5.906 in.)	Pitch Diameter (PD) 17.80 mm (Equiv. 0.701 in.)	Outside Diameter (OD) 17.27 mm
Material: Carbon Steel Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-011-150C Inch Timing Stock Pulleys - 11 tooth - 150x17.8 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $99.68 AUD Regular price ~~$119.62 AUD~~ Sale price $99.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-011-150C --- Inch Timing Stock Pulleys - 11 tooth - 150x17.8 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-011-150C --- Inch Timing Stock Pulleys - 11 tooth - 150x17.8 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $99.68 AUD Regular price ~~$119.62 AUD~~ Sale price $99.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 19.40 mm (Equiv. 0.764 in.)	Outside Diameter (OD) 18.90 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-012-200A Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $86.59 AUD Regular price ~~$146.42 AUD~~ Sale price $86.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 19.40 mm (Equiv. 0.764 in.)	Outside Diameter (OD) 18.90 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-012-200A Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $86.59 AUD Regular price ~~$146.42 AUD~~ Sale price $86.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-012-200A --- Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-012-200A --- Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $86.59 AUD Regular price ~~$146.42 AUD~~ Sale price $86.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 12	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 19.40 mm (Equiv. 0.764 in.)	Outside Diameter (OD) 18.90 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-012-200C Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $130.77 AUD Regular price Sale price $130.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 19.40 mm (Equiv. 0.764 in.)	Outside Diameter (OD) 18.90 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-012-200C Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $130.77 AUD Regular price Sale price $130.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-012-200C --- Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Carbon Steel Pulley P-XL-012-200C --- Inch Timing Stock Pulleys - 12 tooth - 200x19.4 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $130.77 AUD Regular price Sale price $130.77 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 13	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 21.00 mm (Equiv. 0.827 in.)	Outside Diameter (OD) 20.51 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-013-200A Inch Timing Stock Pulleys - 13 tooth - 200x21 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $93.14 AUD Regular price ~~$157.72 AUD~~ Sale price $93.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 21.00 mm (Equiv. 0.827 in.)	Outside Diameter (OD) 20.51 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-013-200A Inch Timing Stock Pulleys - 13 tooth - 200x21 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $93.14 AUD Regular price ~~$157.72 AUD~~ Sale price $93.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-013-200A --- Inch Timing Stock Pulleys - 13 tooth - 200x21 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-013-200A --- Inch Timing Stock Pulleys - 13 tooth - 200x21 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $93.14 AUD Regular price ~~$157.72 AUD~~ Sale price $93.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 13	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 21.01 mm (Equiv. 0.827 in.)	Outside Diameter (OD) 20.52 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-013-200C Inch Timing Stock Pulleys - 13 tooth - 200x21.01 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $117.77 AUD Regular price ~~$141.33 AUD~~ Sale price $117.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 13	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 21.01 mm (Equiv. 0.827 in.)	Outside Diameter (OD) 20.52 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-013-200C Inch Timing Stock Pulleys - 13 tooth - 200x21.01 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $117.77 AUD Regular price ~~$141.33 AUD~~ Sale price $117.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-013-200C --- Inch Timing Stock Pulleys - 13 tooth - 200x21.01 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-013-200C --- Inch Timing Stock Pulleys - 13 tooth - 200x21.01 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $117.77 AUD Regular price ~~$141.33 AUD~~ Sale price $117.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 22.63 mm (Equiv. 0.891 in.)	Outside Diameter (OD) 22.12 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-014-200C Inch Timing Stock Pulleys - 14 tooth - 200x22.63 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $121.23 AUD Regular price ~~$145.47 AUD~~ Sale price $121.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 22.63 mm (Equiv. 0.891 in.)	Outside Diameter (OD) 22.12 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-014-200C Inch Timing Stock Pulleys - 14 tooth - 200x22.63 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $121.23 AUD Regular price ~~$145.47 AUD~~ Sale price $121.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-014-200C --- Inch Timing Stock Pulleys - 14 tooth - 200x22.63 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-014-200C --- Inch Timing Stock Pulleys - 14 tooth - 200x22.63 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $121.23 AUD Regular price ~~$145.47 AUD~~ Sale price $121.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 14	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 22.60 mm (Equiv. 0.89 in.)	Outside Diameter (OD) 22.13 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-014-200A Inch Timing Stock Pulleys - 14 tooth - 200x22.6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $97.59 AUD Regular price ~~$165.37 AUD~~ Sale price $97.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 22.60 mm (Equiv. 0.89 in.)	Outside Diameter (OD) 22.13 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-014-200A Inch Timing Stock Pulleys - 14 tooth - 200x22.6 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $97.59 AUD Regular price ~~$165.37 AUD~~ Sale price $97.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-014-200A --- Inch Timing Stock Pulleys - 14 tooth - 200x22.6 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-014-200A --- Inch Timing Stock Pulleys - 14 tooth - 200x22.6 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $97.59 AUD Regular price ~~$165.37 AUD~~ Sale price $97.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 24.24 mm (Equiv. 0.954 in.)	Outside Diameter (OD) 23.75 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-015-200C Inch Timing Stock Pulleys - 15 tooth - 200x24.24 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $127.95 AUD Regular price ~~$153.55 AUD~~ Sale price $127.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 24.24 mm (Equiv. 0.954 in.)	Outside Diameter (OD) 23.75 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-015-200C Inch Timing Stock Pulleys - 15 tooth - 200x24.24 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $127.95 AUD Regular price ~~$153.55 AUD~~ Sale price $127.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-015-200C --- Inch Timing Stock Pulleys - 15 tooth - 200x24.24 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-015-200C --- Inch Timing Stock Pulleys - 15 tooth - 200x24.24 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $127.95 AUD Regular price ~~$153.55 AUD~~ Sale price $127.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 15	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 24.30 mm (Equiv. 0.957 in.)	Outside Diameter (OD) 23.75 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-015-200A Inch Timing Stock Pulleys - 15 tooth - 200x24.3 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $101.68 AUD Regular price ~~$172.31 AUD~~ Sale price $101.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 24.30 mm (Equiv. 0.957 in.)	Outside Diameter (OD) 23.75 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-015-200A Inch Timing Stock Pulleys - 15 tooth - 200x24.3 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $101.68 AUD Regular price ~~$172.31 AUD~~ Sale price $101.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-015-200A --- Inch Timing Stock Pulleys - 15 tooth - 200x24.3 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-015-200A --- Inch Timing Stock Pulleys - 15 tooth - 200x24.3 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $101.68 AUD Regular price ~~$172.31 AUD~~ Sale price $101.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 25.87 mm (Equiv. 1.019 in.)	Outside Diameter (OD) 25.36 mm
Material: Aluminium Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-016-100A Inch Timing Stock Pulleys - 16 tooth - 100x25.87 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $72.86 AUD Regular price ~~$122.98 AUD~~ Sale price $72.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 25.87 mm (Equiv. 1.019 in.)	Outside Diameter (OD) 25.36 mm
Material: Aluminium Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-016-100A Inch Timing Stock Pulleys - 16 tooth - 100x25.87 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $72.86 AUD Regular price ~~$122.98 AUD~~ Sale price $72.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-016-100A --- Inch Timing Stock Pulleys - 16 tooth - 100x25.87 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-016-100A --- Inch Timing Stock Pulleys - 16 tooth - 100x25.87 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $72.86 AUD Regular price ~~$122.98 AUD~~ Sale price $72.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 25.86 mm (Equiv. 1.018 in.)	Outside Diameter (OD) 25.37 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-016-200C Inch Timing Stock Pulleys - 16 tooth - 200x25.86 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $134.32 AUD Regular price ~~$161.18 AUD~~ Sale price $134.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 25.86 mm (Equiv. 1.018 in.)	Outside Diameter (OD) 25.37 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-016-200C Inch Timing Stock Pulleys - 16 tooth - 200x25.86 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $134.32 AUD Regular price ~~$161.18 AUD~~ Sale price $134.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-016-200C --- Inch Timing Stock Pulleys - 16 tooth - 200x25.86 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-016-200C --- Inch Timing Stock Pulleys - 16 tooth - 200x25.86 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $134.32 AUD Regular price ~~$161.18 AUD~~ Sale price $134.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 25.90 mm (Equiv. 1.02 in.)	Outside Diameter (OD) 25.36 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-016-200A Inch Timing Stock Pulleys - 16 tooth - 200x25.9 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $105.59 AUD Regular price ~~$179.03 AUD~~ Sale price $105.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 25.90 mm (Equiv. 1.02 in.)	Outside Diameter (OD) 25.36 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-016-200A Inch Timing Stock Pulleys - 16 tooth - 200x25.9 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $105.59 AUD Regular price ~~$179.03 AUD~~ Sale price $105.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-016-200A --- Inch Timing Stock Pulleys - 16 tooth - 200x25.9 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-016-200A --- Inch Timing Stock Pulleys - 16 tooth - 200x25.9 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $105.59 AUD Regular price ~~$179.03 AUD~~ Sale price $105.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 27.48 mm (Equiv. 1.082 in.)	Outside Diameter (OD) 26.98 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-017-200C Inch Timing Stock Pulleys - 17 tooth - 200x27.48 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $144.86 AUD Regular price ~~$173.84 AUD~~ Sale price $144.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 27.48 mm (Equiv. 1.082 in.)	Outside Diameter (OD) 26.98 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-017-200C Inch Timing Stock Pulleys - 17 tooth - 200x27.48 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $144.86 AUD Regular price ~~$173.84 AUD~~ Sale price $144.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-017-200C --- Inch Timing Stock Pulleys - 17 tooth - 200x27.48 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-017-200C --- Inch Timing Stock Pulleys - 17 tooth - 200x27.48 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $144.86 AUD Regular price ~~$173.84 AUD~~ Sale price $144.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 17	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 27.50 mm (Equiv. 1.083 in.)	Outside Diameter (OD) 26.98 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-017-200A Inch Timing Stock Pulleys - 17 tooth - 200x27.5 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $112.59 AUD Regular price ~~$190.94 AUD~~ Sale price $112.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 27.50 mm (Equiv. 1.083 in.)	Outside Diameter (OD) 26.98 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-017-200A Inch Timing Stock Pulleys - 17 tooth - 200x27.5 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $112.59 AUD Regular price ~~$190.94 AUD~~ Sale price $112.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-017-200A --- Inch Timing Stock Pulleys - 17 tooth - 200x27.5 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-017-200A --- Inch Timing Stock Pulleys - 17 tooth - 200x27.5 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $112.59 AUD Regular price ~~$190.94 AUD~~ Sale price $112.59 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 29.11 mm (Equiv. 1.146 in.)	Outside Diameter (OD) 28.60 mm
Material: Aluminium Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-018-100A Inch Timing Stock Pulleys - 18 tooth - 100x29.11 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $74.05 AUD Regular price ~~$124.97 AUD~~ Sale price $74.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 29.11 mm (Equiv. 1.146 in.)	Outside Diameter (OD) 28.60 mm
Material: Aluminium Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-018-100A Inch Timing Stock Pulleys - 18 tooth - 100x29.11 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $74.05 AUD Regular price ~~$124.97 AUD~~ Sale price $74.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-018-100A --- Inch Timing Stock Pulleys - 18 tooth - 100x29.11 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-018-100A --- Inch Timing Stock Pulleys - 18 tooth - 100x29.11 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $74.05 AUD Regular price ~~$124.97 AUD~~ Sale price $74.05 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 29.09 mm (Equiv. 1.145 in.)	Outside Diameter (OD) 28.60 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-018-200C Inch Timing Stock Pulleys - 18 tooth - 200x29.09 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $157.41 AUD Regular price ~~$188.89 AUD~~ Sale price $157.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 29.09 mm (Equiv. 1.145 in.)	Outside Diameter (OD) 28.60 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-018-200C Inch Timing Stock Pulleys - 18 tooth - 200x29.09 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $157.41 AUD Regular price ~~$188.89 AUD~~ Sale price $157.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-018-200C --- Inch Timing Stock Pulleys - 18 tooth - 200x29.09 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-018-200C --- Inch Timing Stock Pulleys - 18 tooth - 200x29.09 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $157.41 AUD Regular price ~~$188.89 AUD~~ Sale price $157.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 29.10 mm (Equiv. 1.146 in.)	Outside Diameter (OD) 28.60 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-018-200A Inch Timing Stock Pulleys - 18 tooth - 200x29.1 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $121.68 AUD Regular price ~~$206.51 AUD~~ Sale price $121.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 29.10 mm (Equiv. 1.146 in.)	Outside Diameter (OD) 28.60 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-018-200A Inch Timing Stock Pulleys - 18 tooth - 200x29.1 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $121.68 AUD Regular price ~~$206.51 AUD~~ Sale price $121.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-018-200A --- Inch Timing Stock Pulleys - 18 tooth - 200x29.1 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-018-200A --- Inch Timing Stock Pulleys - 18 tooth - 200x29.1 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $121.68 AUD Regular price ~~$206.51 AUD~~ Sale price $121.68 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 30.72 mm (Equiv. 1.209 in.)	Outside Diameter (OD) 30.22 mm
Material: Aluminium Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-019-100A Inch Timing Stock Pulleys - 19 tooth - 100x30.72 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $77.23 AUD Regular price ~~$130.40 AUD~~ Sale price $77.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 100.0 mm (Equiv. 3.937 in.)	Pitch Diameter (PD) 30.72 mm (Equiv. 1.209 in.)	Outside Diameter (OD) 30.22 mm
Material: Aluminium Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-019-100A Inch Timing Stock Pulleys - 19 tooth - 100x30.72 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $77.23 AUD Regular price ~~$130.40 AUD~~ Sale price $77.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-019-100A --- Inch Timing Stock Pulleys - 19 tooth - 100x30.72 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-019-100A --- Inch Timing Stock Pulleys - 19 tooth - 100x30.72 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $77.23 AUD Regular price ~~$130.40 AUD~~ Sale price $77.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.70 mm (Equiv. 1.209 in.)	Outside Diameter (OD) 30.22 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-019-200A Inch Timing Stock Pulleys - 19 tooth - 200x30.7 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $132.41 AUD Regular price ~~$224.97 AUD~~ Sale price $132.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.70 mm (Equiv. 1.209 in.)	Outside Diameter (OD) 30.22 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Aluminium
Part Number: P-XL-019-200A Inch Timing Stock Pulleys - 19 tooth - 200x30.7 mm 5.080mm Pitch XL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $132.41 AUD Regular price ~~$224.97 AUD~~ Sale price $132.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-019-200A --- Inch Timing Stock Pulleys - 19 tooth - 200x30.7 mm 5.080mm Pitch XL - Aluminium Pulley Sale P-XL-019-200A --- Inch Timing Stock Pulleys - 19 tooth - 200x30.7 mm 5.080mm Pitch XL - Aluminium Pulley Regular price $132.41 AUD Regular price ~~$224.97 AUD~~ Sale price $132.41 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.71 mm (Equiv. 1.209 in.)	Outside Diameter (OD) 30.23 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-019-200C Inch Timing Stock Pulleys - 19 tooth - 200x30.71 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $192.50 AUD Regular price ~~$231.00 AUD~~ Sale price $192.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Min. Usable Length (L) 200.0 mm (Equiv. 7.874 in.)	Pitch Diameter (PD) 30.71 mm (Equiv. 1.209 in.)	Outside Diameter (OD) 30.23 mm
Material: Carbon Steel Shank Diameter (D1): 12.70 mm Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Part Number: P-XL-019-200C Inch Timing Stock Pulleys - 19 tooth - 200x30.71 mm 5.080mm Pitch XL - Carbon Steel Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 19, 2025 Regular price $192.50 AUD Regular price ~~$231.00 AUD~~ Sale price $192.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
P-XL-019-200C --- Inch Timing Stock Pulleys - 19 tooth - 200x30.71 mm 5.080mm Pitch XL - Carbon Steel Pulley Sale P-XL-019-200C --- Inch Timing Stock Pulleys - 19 tooth - 200x30.71 mm 5.080mm Pitch XL - Carbon Steel Pulley Regular price $192.50 AUD Regular price ~~$231.00 AUD~~ Sale price $192.50 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Pulleys - Inch Timing Stock - 5.080mm Pitch XL

Category Details

Filter

Filter

Subscribe to our emails
