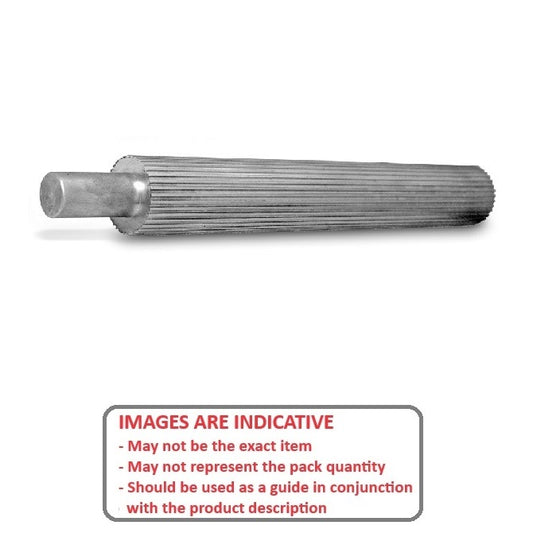

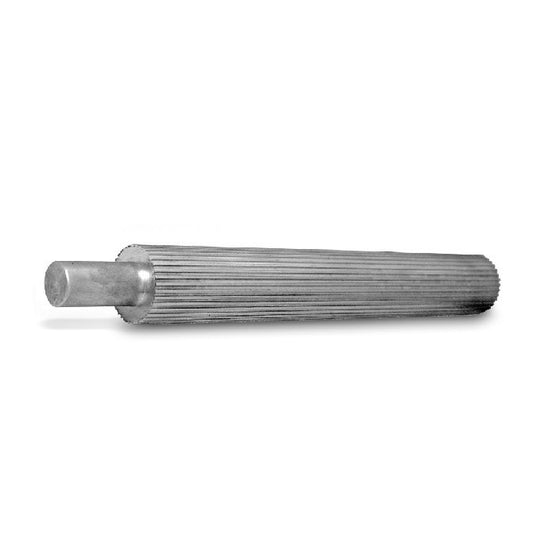

Collection: Pulleys - Inch Timing Stock - 2.032mm Pitch MXL Aluminium

Pulleys (With Images)

Inch Timing Stock

93 Products in this selection

For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
2.032mm metric is equivalent to 0.080 pitch imperial

Additional resources:
Timing Pulleys Catalogue PDF
Pulley Flanges
MXL Section Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Inch Timing Stock - 2.032mm Pitch MXL Aluminium. Smallparts promote the most popular MBA products.

Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Teeth 10	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 6.50 mm _{(0.256 in.)}	Outside Diameter (OD) 5.96 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-010-050A Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Each
Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Teeth 10	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 6.50 mm _{(0.256 in.)}	Outside Diameter (OD) 5.96 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-010-050A Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-010-050A --- Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm - Aluminium P-MXL-010-050A --- Inch Timing Stock Pulleys - 10 tooth - 50x6.5 mm - Aluminium Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Out of stock! Backorder Now
Teeth 10	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 6.470 mm _{(0.255 in.)}	Outside Diameter (OD) 5.96 mm
Material: Aluminium
Part Number: P-MXL-010-100A Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 10	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 6.470 mm _{(0.255 in.)}	Outside Diameter (OD) 5.96 mm
Material: Aluminium
Part Number: P-MXL-010-100A Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-010-100A --- Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm - Aluminium P-MXL-010-100A --- Inch Timing Stock Pulleys - 10 tooth - 100x6.47 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 11	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 7.10 mm _{(0.28 in.)}	Outside Diameter (OD) 6.61 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-011-050A Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each
Teeth 11	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 7.10 mm _{(0.28 in.)}	Outside Diameter (OD) 6.61 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-011-050A Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-011-050A --- Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm - Aluminium P-MXL-011-050A --- Inch Timing Stock Pulleys - 11 tooth - 50x7.1 mm - Aluminium Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Out of stock! Backorder Now
Teeth 11	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 7.110 mm _{(0.28 in.)}	Outside Diameter (OD) 6.61 mm
Material: Aluminium
Part Number: P-MXL-011-100A Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 11	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 7.110 mm _{(0.28 in.)}	Outside Diameter (OD) 6.61 mm
Material: Aluminium
Part Number: P-MXL-011-100A Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-011-100A --- Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm - Aluminium P-MXL-011-100A --- Inch Timing Stock Pulleys - 11 tooth - 100x7.11 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 7.80 mm _{(0.307 in.)}	Outside Diameter (OD) 7.25 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-012-050A Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $62.41 AUD Regular price Sale price $62.41 AUD Unit price per Each
Teeth 12	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 7.80 mm _{(0.307 in.)}	Outside Diameter (OD) 7.25 mm
Material: Aluminium Shank Diameter (D1): 8.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-012-050A Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $62.41 AUD Regular price Sale price $62.41 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-012-050A --- Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm - Aluminium P-MXL-012-050A --- Inch Timing Stock Pulleys - 12 tooth - 50x7.8 mm - Aluminium Regular price $62.41 AUD Regular price Sale price $62.41 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 7.760 mm _{(0.306 in.)}	Outside Diameter (OD) 7.25 mm
Material: Aluminium
Part Number: P-MXL-012-100A Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 12	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 7.760 mm _{(0.306 in.)}	Outside Diameter (OD) 7.25 mm
Material: Aluminium
Part Number: P-MXL-012-100A Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-012-100A --- Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm - Aluminium P-MXL-012-100A --- Inch Timing Stock Pulleys - 12 tooth - 100x7.76 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 13	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 8.40 mm _{(0.331 in.)}	Outside Diameter (OD) 7.90 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-013-050A Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $63.32 AUD Regular price Sale price $63.32 AUD Unit price per Each
Teeth 13	Min. Usable Length (L) 50.0 mm _{(1.969 in.)}	Pitch Diameter (PD) 8.40 mm _{(0.331 in.)}	Outside Diameter (OD) 7.90 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-013-050A Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $63.32 AUD Regular price Sale price $63.32 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-013-050A --- Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm - Aluminium P-MXL-013-050A --- Inch Timing Stock Pulleys - 13 tooth - 50x8.4 mm - Aluminium Regular price $63.32 AUD Regular price Sale price $63.32 AUD Unit price per Out of stock! Backorder Now
Teeth 13	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 8.410 mm _{(0.331 in.)}	Outside Diameter (OD) 7.90 mm
Material: Aluminium
Part Number: P-MXL-013-100A Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 13	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 8.410 mm _{(0.331 in.)}	Outside Diameter (OD) 7.90 mm
Material: Aluminium
Part Number: P-MXL-013-100A Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-013-100A --- Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm - Aluminium P-MXL-013-100A --- Inch Timing Stock Pulleys - 13 tooth - 100x8.41 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 9.10 mm _{(0.358 in.)}	Outside Diameter (OD) 8.55 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-014-075A Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $64.86 AUD Regular price Sale price $64.86 AUD Unit price per Each
Teeth 14	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 9.10 mm _{(0.358 in.)}	Outside Diameter (OD) 8.55 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-014-075A Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $64.86 AUD Regular price Sale price $64.86 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-014-075A --- Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm - Aluminium P-MXL-014-075A --- Inch Timing Stock Pulleys - 14 tooth - 75x9.1 mm - Aluminium Regular price $64.86 AUD Regular price Sale price $64.86 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 9.060 mm _{(0.357 in.)}	Outside Diameter (OD) 8.55 mm
Material: Aluminium
Part Number: P-MXL-014-100A Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 14	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 9.060 mm _{(0.357 in.)}	Outside Diameter (OD) 8.55 mm
Material: Aluminium
Part Number: P-MXL-014-100A Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-014-100A --- Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm - Aluminium P-MXL-014-100A --- Inch Timing Stock Pulleys - 14 tooth - 100x9.06 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 9.70 mm _{(0.382 in.)}	Outside Diameter (OD) 9.19 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-015-075A Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $66.14 AUD Regular price Sale price $66.14 AUD Unit price per Each
Teeth 15	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 9.70 mm _{(0.382 in.)}	Outside Diameter (OD) 9.19 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-015-075A Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $66.14 AUD Regular price Sale price $66.14 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-015-075A --- Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm - Aluminium P-MXL-015-075A --- Inch Timing Stock Pulleys - 15 tooth - 75x9.7 mm - Aluminium Regular price $66.14 AUD Regular price Sale price $66.14 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 9.700 mm _{(0.382 in.)}	Outside Diameter (OD) 9.19 mm
Material: Aluminium
Part Number: P-MXL-015-100A Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 15	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 9.700 mm _{(0.382 in.)}	Outside Diameter (OD) 9.19 mm
Material: Aluminium
Part Number: P-MXL-015-100A Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-015-100A --- Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm - Aluminium P-MXL-015-100A --- Inch Timing Stock Pulleys - 15 tooth - 100x9.7 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 10.30 mm _{(0.406 in.)}	Outside Diameter (OD) 9.84 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-016-075A Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Each
Teeth 16	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 10.30 mm _{(0.406 in.)}	Outside Diameter (OD) 9.84 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-016-075A Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-016-075A --- Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm - Aluminium P-MXL-016-075A --- Inch Timing Stock Pulleys - 16 tooth - 75x10.3 mm - Aluminium Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 10.350 mm _{(0.407 in.)}	Outside Diameter (OD) 9.84 mm
Material: Aluminium
Part Number: P-MXL-016-100A Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 16	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 10.350 mm _{(0.407 in.)}	Outside Diameter (OD) 9.84 mm
Material: Aluminium
Part Number: P-MXL-016-100A Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-016-100A --- Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm - Aluminium P-MXL-016-100A --- Inch Timing Stock Pulleys - 16 tooth - 100x10.35 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 11.00 mm _{(0.433 in.)}	Outside Diameter (OD) 10.49 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-017-075A Inch Timing Stock Pulleys - 17 tooth - 75x11 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $68.14 AUD Regular price Sale price $68.14 AUD Unit price per Each
Teeth 17	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 11.00 mm _{(0.433 in.)}	Outside Diameter (OD) 10.49 mm
Material: Aluminium Shank Diameter (D1): 11.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-017-075A Inch Timing Stock Pulleys - 17 tooth - 75x11 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $68.14 AUD Regular price Sale price $68.14 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-017-075A --- Inch Timing Stock Pulleys - 17 tooth - 75x11 mm - Aluminium P-MXL-017-075A --- Inch Timing Stock Pulleys - 17 tooth - 75x11 mm - Aluminium Regular price $68.14 AUD Regular price Sale price $68.14 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 11.000 mm _{(0.433 in.)}	Outside Diameter (OD) 10.49 mm
Material: Aluminium
Part Number: P-MXL-017-100A Inch Timing Stock Pulleys - 17 tooth - 100x11 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each
Teeth 17	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 11.000 mm _{(0.433 in.)}	Outside Diameter (OD) 10.49 mm
Material: Aluminium
Part Number: P-MXL-017-100A Inch Timing Stock Pulleys - 17 tooth - 100x11 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-017-100A --- Inch Timing Stock Pulleys - 17 tooth - 100x11 mm - Aluminium P-MXL-017-100A --- Inch Timing Stock Pulleys - 17 tooth - 100x11 mm - Aluminium Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 11.60 mm _{(0.457 in.)}	Outside Diameter (OD) 11.13 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-018-075A Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $69.68 AUD Regular price Sale price $69.68 AUD Unit price per Each
Teeth 18	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 11.60 mm _{(0.457 in.)}	Outside Diameter (OD) 11.13 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-018-075A Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $69.68 AUD Regular price Sale price $69.68 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-018-075A --- Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm - Aluminium P-MXL-018-075A --- Inch Timing Stock Pulleys - 18 tooth - 75x11.6 mm - Aluminium Regular price $69.68 AUD Regular price Sale price $69.68 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 11.640 mm _{(0.458 in.)}	Outside Diameter (OD) 11.14 mm
Material: Aluminium
Part Number: P-MXL-018-100A Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Each
Teeth 18	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 11.640 mm _{(0.458 in.)}	Outside Diameter (OD) 11.14 mm
Material: Aluminium
Part Number: P-MXL-018-100A Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-018-100A --- Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm - Aluminium P-MXL-018-100A --- Inch Timing Stock Pulleys - 18 tooth - 100x11.64 mm - Aluminium Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 12.30 mm _{(0.484 in.)}	Outside Diameter (OD) 11.78 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-019-075A Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $70.59 AUD Regular price Sale price $70.59 AUD Unit price per Each
Teeth 19	Min. Usable Length (L) 75.0 mm _{(2.953 in.)}	Pitch Diameter (PD) 12.30 mm _{(0.484 in.)}	Outside Diameter (OD) 11.78 mm
Material: Aluminium Shank Diameter (D1): 13.00 mm Shank Length (Sl): 25.0 mm
Part Number: P-MXL-019-075A Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $70.59 AUD Regular price Sale price $70.59 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-019-075A --- Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm - Aluminium P-MXL-019-075A --- Inch Timing Stock Pulleys - 19 tooth - 75x12.3 mm - Aluminium Regular price $70.59 AUD Regular price Sale price $70.59 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 12.290 mm _{(0.484 in.)}	Outside Diameter (OD) 11.78 mm
Material: Aluminium
Part Number: P-MXL-019-100A Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each
Teeth 19	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 12.290 mm _{(0.484 in.)}	Outside Diameter (OD) 11.78 mm
Material: Aluminium
Part Number: P-MXL-019-100A Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-019-100A --- Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm - Aluminium P-MXL-019-100A --- Inch Timing Stock Pulleys - 19 tooth - 100x12.29 mm - Aluminium Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 12.90 mm _{(0.508 in.)}	Outside Diameter (OD) 12.43 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-020-100A Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm - Aluminium 1 Available Immediately \| Further orders can be expected around Sun, Jun 29, 2025 Regular price $52.68 AUD Regular price ~~$63.22 AUD~~ Sale price $52.68 AUD Unit price per Each
Teeth 20	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 12.90 mm _{(0.508 in.)}	Outside Diameter (OD) 12.43 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-020-100A Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm - Aluminium 1 Available Immediately \| Further orders can be expected around Sun, Jun 29, 2025 Regular price $52.68 AUD Regular price ~~$63.22 AUD~~ Sale price $52.68 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-020-100A --- Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm - Aluminium Sale P-MXL-020-100A --- Inch Timing Stock Pulleys - 20 tooth - 100x12.9 mm - Aluminium Regular price $52.68 AUD Regular price ~~$63.22 AUD~~ Sale price $52.68 AUD Unit price per 1 Available Now Sale
Teeth 21	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 13.60 mm _{(0.535 in.)}	Outside Diameter (OD) 13.07 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-021-100A Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $74.68 AUD Regular price Sale price $74.68 AUD Unit price per Each
Teeth 21	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 13.60 mm _{(0.535 in.)}	Outside Diameter (OD) 13.07 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-021-100A Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $74.68 AUD Regular price Sale price $74.68 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-021-100A --- Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm - Aluminium P-MXL-021-100A --- Inch Timing Stock Pulleys - 21 tooth - 100x13.6 mm - Aluminium Regular price $74.68 AUD Regular price Sale price $74.68 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 14.20 mm _{(0.559 in.)}	Outside Diameter (OD) 13.72 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-022-100A Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $76.23 AUD Regular price Sale price $76.23 AUD Unit price per Each
Teeth 22	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 14.20 mm _{(0.559 in.)}	Outside Diameter (OD) 13.72 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-022-100A Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $76.23 AUD Regular price Sale price $76.23 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-022-100A --- Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm - Aluminium P-MXL-022-100A --- Inch Timing Stock Pulleys - 22 tooth - 100x14.2 mm - Aluminium Regular price $76.23 AUD Regular price Sale price $76.23 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 14.90 mm _{(0.587 in.)}	Outside Diameter (OD) 14.37 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-023-100A Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $83.32 AUD Regular price Sale price $83.32 AUD Unit price per Each
Teeth 23	Min. Usable Length (L) 100.0 mm _{(3.937 in.)}	Pitch Diameter (PD) 14.90 mm _{(0.587 in.)}	Outside Diameter (OD) 14.37 mm
Material: Aluminium Shank Diameter (D1): 9.50 mm Shank Length (Sl): 22.0 mm
Part Number: P-MXL-023-100A Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $83.32 AUD Regular price Sale price $83.32 AUD Unit price per Each View the product page first if you are unsure.
P-MXL-023-100A --- Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm - Aluminium P-MXL-023-100A --- Inch Timing Stock Pulleys - 23 tooth - 100x14.9 mm - Aluminium Regular price $83.32 AUD Regular price Sale price $83.32 AUD Unit price per Out of stock! Backorder Now
