Collection: Pulleys - Inch Timing Stock - 12.700mm Pitch H - Carbon Steel

Pulleys (With Images)

Inch Timing Stock

12.700mm Pitch H

Aluminium
Carbon Steel

27 Products in this selection

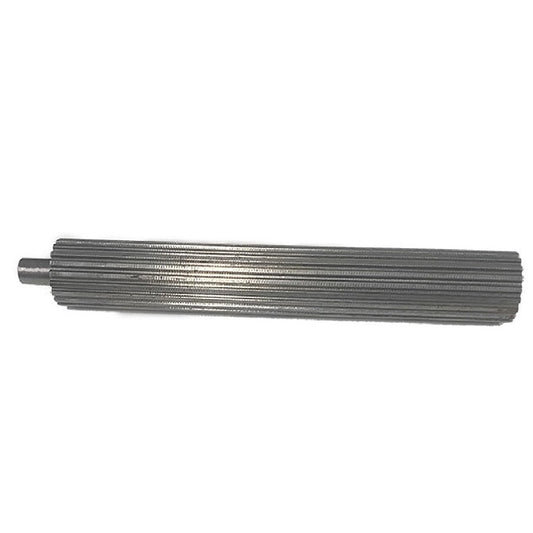

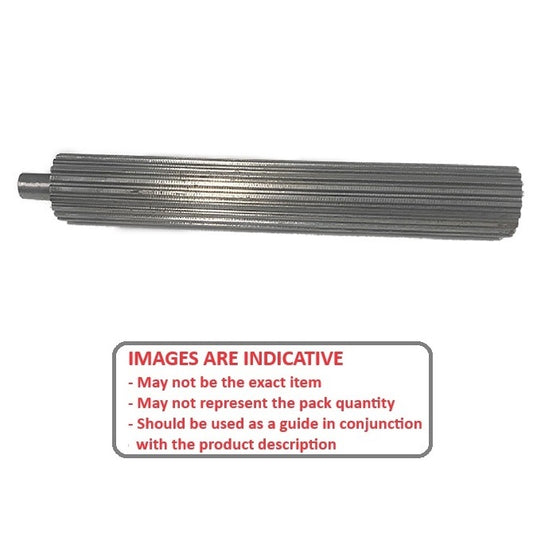

For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

Additional resources:
Timing Pulleys Catalogue PDF
Pulley Flanges
H Section Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Inch Timing Stock - 12.700mm Pitch H - Carbon Steel. Smallparts promote the most popular MBA products.

Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Teeth 14	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 56.57 mm _{(2.227 in.)}	Outside Diameter (OD) 55.22 mm
Material: Carbon Steel Shank Diameter (D1): 19.05 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-014-250C Inch Timing Stock Pulleys - 14 tooth - 250x56.57 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $646.68 AUD Regular price Sale price $646.68 AUD Unit price per Each
Teeth	Min. Usable Length (L)	Pitch Diameter (PD)	Outside Diameter (OD)	Indicative Image
Teeth 14	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 56.57 mm _{(2.227 in.)}	Outside Diameter (OD) 55.22 mm
Material: Carbon Steel Shank Diameter (D1): 19.05 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-014-250C Inch Timing Stock Pulleys - 14 tooth - 250x56.57 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $646.68 AUD Regular price Sale price $646.68 AUD Unit price per Each View the product page first if you are unsure.
P-H-014-250C --- Inch Timing Stock Pulleys - 14 tooth - 250x56.57 mm - Carbon Steel P-H-014-250C --- Inch Timing Stock Pulleys - 14 tooth - 250x56.57 mm - Carbon Steel Regular price $646.68 AUD Regular price Sale price $646.68 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 60.61 mm _{(2.386 in.)}	Outside Diameter (OD) 59.26 mm
Material: Carbon Steel Shank Diameter (D1): 19.05 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-015-250C Inch Timing Stock Pulleys - 15 tooth - 250x60.61 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $734.95 AUD Regular price Sale price $734.95 AUD Unit price per Each
Teeth 15	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 60.61 mm _{(2.386 in.)}	Outside Diameter (OD) 59.26 mm
Material: Carbon Steel Shank Diameter (D1): 19.05 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-015-250C Inch Timing Stock Pulleys - 15 tooth - 250x60.61 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $734.95 AUD Regular price Sale price $734.95 AUD Unit price per Each View the product page first if you are unsure.
P-H-015-250C --- Inch Timing Stock Pulleys - 15 tooth - 250x60.61 mm - Carbon Steel P-H-015-250C --- Inch Timing Stock Pulleys - 15 tooth - 250x60.61 mm - Carbon Steel Regular price $734.95 AUD Regular price Sale price $734.95 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 64.65 mm _{(2.545 in.)}	Outside Diameter (OD) 63.30 mm
Material: Carbon Steel Shank Diameter (D1): 19.05 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-016-250C Inch Timing Stock Pulleys - 16 tooth - 250x64.65 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $812.23 AUD Regular price Sale price $812.23 AUD Unit price per Each
Teeth 16	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 64.65 mm _{(2.545 in.)}	Outside Diameter (OD) 63.30 mm
Material: Carbon Steel Shank Diameter (D1): 19.05 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-016-250C Inch Timing Stock Pulleys - 16 tooth - 250x64.65 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $812.23 AUD Regular price Sale price $812.23 AUD Unit price per Each View the product page first if you are unsure.
P-H-016-250C --- Inch Timing Stock Pulleys - 16 tooth - 250x64.65 mm - Carbon Steel P-H-016-250C --- Inch Timing Stock Pulleys - 16 tooth - 250x64.65 mm - Carbon Steel Regular price $812.23 AUD Regular price Sale price $812.23 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 68.69 mm _{(2.704 in.)}	Outside Diameter (OD) 67.36 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-017-250C Inch Timing Stock Pulleys - 17 tooth - 250x68.69 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $855.32 AUD Regular price Sale price $855.32 AUD Unit price per Each
Teeth 17	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 68.69 mm _{(2.704 in.)}	Outside Diameter (OD) 67.36 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-017-250C Inch Timing Stock Pulleys - 17 tooth - 250x68.69 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $855.32 AUD Regular price Sale price $855.32 AUD Unit price per Each View the product page first if you are unsure.
P-H-017-250C --- Inch Timing Stock Pulleys - 17 tooth - 250x68.69 mm - Carbon Steel P-H-017-250C --- Inch Timing Stock Pulleys - 17 tooth - 250x68.69 mm - Carbon Steel Regular price $855.32 AUD Regular price Sale price $855.32 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 72.73 mm _{(2.863 in.)}	Outside Diameter (OD) 71.40 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-018-250C Inch Timing Stock Pulleys - 18 tooth - 250x72.73 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $943.50 AUD Regular price Sale price $943.50 AUD Unit price per Each
Teeth 18	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 72.73 mm _{(2.863 in.)}	Outside Diameter (OD) 71.40 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-018-250C Inch Timing Stock Pulleys - 18 tooth - 250x72.73 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $943.50 AUD Regular price Sale price $943.50 AUD Unit price per Each View the product page first if you are unsure.
P-H-018-250C --- Inch Timing Stock Pulleys - 18 tooth - 250x72.73 mm - Carbon Steel P-H-018-250C --- Inch Timing Stock Pulleys - 18 tooth - 250x72.73 mm - Carbon Steel Regular price $943.50 AUD Regular price Sale price $943.50 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 76.77 mm _{(3.022 in.)}	Outside Diameter (OD) 75.44 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-019-250C Inch Timing Stock Pulleys - 19 tooth - 250x76.77 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $997.41 AUD Regular price Sale price $997.41 AUD Unit price per Each
Teeth 19	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 76.77 mm _{(3.022 in.)}	Outside Diameter (OD) 75.44 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-019-250C Inch Timing Stock Pulleys - 19 tooth - 250x76.77 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $997.41 AUD Regular price Sale price $997.41 AUD Unit price per Each View the product page first if you are unsure.
P-H-019-250C --- Inch Timing Stock Pulleys - 19 tooth - 250x76.77 mm - Carbon Steel P-H-019-250C --- Inch Timing Stock Pulleys - 19 tooth - 250x76.77 mm - Carbon Steel Regular price $997.41 AUD Regular price Sale price $997.41 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 80.81 mm _{(3.181 in.)}	Outside Diameter (OD) 79.48 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-020-250C Inch Timing Stock Pulleys - 20 tooth - 250x80.81 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,063.50 AUD Regular price Sale price $1,063.50 AUD Unit price per Each
Teeth 20	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 80.81 mm _{(3.181 in.)}	Outside Diameter (OD) 79.48 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-020-250C Inch Timing Stock Pulleys - 20 tooth - 250x80.81 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,063.50 AUD Regular price Sale price $1,063.50 AUD Unit price per Each View the product page first if you are unsure.
P-H-020-250C --- Inch Timing Stock Pulleys - 20 tooth - 250x80.81 mm - Carbon Steel P-H-020-250C --- Inch Timing Stock Pulleys - 20 tooth - 250x80.81 mm - Carbon Steel Regular price $1,063.50 AUD Regular price Sale price $1,063.50 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 84.86 mm _{(3.341 in.)}	Outside Diameter (OD) 83.52 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-021-250C Inch Timing Stock Pulleys - 21 tooth - 250x84.86 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,136.14 AUD Regular price Sale price $1,136.14 AUD Unit price per Each
Teeth 21	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 84.86 mm _{(3.341 in.)}	Outside Diameter (OD) 83.52 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-021-250C Inch Timing Stock Pulleys - 21 tooth - 250x84.86 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,136.14 AUD Regular price Sale price $1,136.14 AUD Unit price per Each View the product page first if you are unsure.
P-H-021-250C --- Inch Timing Stock Pulleys - 21 tooth - 250x84.86 mm - Carbon Steel P-H-021-250C --- Inch Timing Stock Pulleys - 21 tooth - 250x84.86 mm - Carbon Steel Regular price $1,136.14 AUD Regular price Sale price $1,136.14 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 88.90 mm _{(3.5 in.)}	Outside Diameter (OD) 87.55 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-022-250C Inch Timing Stock Pulleys - 22 tooth - 250x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,257.50 AUD Regular price Sale price $1,257.50 AUD Unit price per Each
Teeth 22	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 88.90 mm _{(3.5 in.)}	Outside Diameter (OD) 87.55 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-022-250C Inch Timing Stock Pulleys - 22 tooth - 250x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,257.50 AUD Regular price Sale price $1,257.50 AUD Unit price per Each View the product page first if you are unsure.
P-H-022-250C --- Inch Timing Stock Pulleys - 22 tooth - 250x88.9 mm - Carbon Steel P-H-022-250C --- Inch Timing Stock Pulleys - 22 tooth - 250x88.9 mm - Carbon Steel Regular price $1,257.50 AUD Regular price Sale price $1,257.50 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 92.94 mm _{(3.659 in.)}	Outside Diameter (OD) 91.64 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-023-250C Inch Timing Stock Pulleys - 23 tooth - 250x92.94 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,355.41 AUD Regular price Sale price $1,355.41 AUD Unit price per Each
Teeth 23	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 92.94 mm _{(3.659 in.)}	Outside Diameter (OD) 91.64 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-023-250C Inch Timing Stock Pulleys - 23 tooth - 250x92.94 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,355.41 AUD Regular price Sale price $1,355.41 AUD Unit price per Each View the product page first if you are unsure.
P-H-023-250C --- Inch Timing Stock Pulleys - 23 tooth - 250x92.94 mm - Carbon Steel P-H-023-250C --- Inch Timing Stock Pulleys - 23 tooth - 250x92.94 mm - Carbon Steel Regular price $1,355.41 AUD Regular price Sale price $1,355.41 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 96.98 mm _{(3.818 in.)}	Outside Diameter (OD) 95.66 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-024-250C Inch Timing Stock Pulleys - 24 tooth - 250x96.98 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,373.59 AUD Regular price Sale price $1,373.59 AUD Unit price per Each
Teeth 24	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 96.98 mm _{(3.818 in.)}	Outside Diameter (OD) 95.66 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-024-250C Inch Timing Stock Pulleys - 24 tooth - 250x96.98 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,373.59 AUD Regular price Sale price $1,373.59 AUD Unit price per Each View the product page first if you are unsure.
P-H-024-250C --- Inch Timing Stock Pulleys - 24 tooth - 250x96.98 mm - Carbon Steel P-H-024-250C --- Inch Timing Stock Pulleys - 24 tooth - 250x96.98 mm - Carbon Steel Regular price $1,373.59 AUD Regular price Sale price $1,373.59 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 101.02 mm _{(3.977 in.)}	Outside Diameter (OD) 99.72 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-025-250C Inch Timing Stock Pulleys - 25 tooth - 250x101.02 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,531.59 AUD Regular price Sale price $1,531.59 AUD Unit price per Each
Teeth 25	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 101.02 mm _{(3.977 in.)}	Outside Diameter (OD) 99.72 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-025-250C Inch Timing Stock Pulleys - 25 tooth - 250x101.02 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,531.59 AUD Regular price Sale price $1,531.59 AUD Unit price per Each View the product page first if you are unsure.
P-H-025-250C --- Inch Timing Stock Pulleys - 25 tooth - 250x101.02 mm - Carbon Steel P-H-025-250C --- Inch Timing Stock Pulleys - 25 tooth - 250x101.02 mm - Carbon Steel Regular price $1,531.59 AUD Regular price Sale price $1,531.59 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 105.06 mm _{(4.136 in.)}	Outside Diameter (OD) 103.73 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-026-250C Inch Timing Stock Pulleys - 26 tooth - 250x105.06 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,583.77 AUD Regular price Sale price $1,583.77 AUD Unit price per Each
Teeth 26	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 105.06 mm _{(4.136 in.)}	Outside Diameter (OD) 103.73 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-026-250C Inch Timing Stock Pulleys - 26 tooth - 250x105.06 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,583.77 AUD Regular price Sale price $1,583.77 AUD Unit price per Each View the product page first if you are unsure.
P-H-026-250C --- Inch Timing Stock Pulleys - 26 tooth - 250x105.06 mm - Carbon Steel P-H-026-250C --- Inch Timing Stock Pulleys - 26 tooth - 250x105.06 mm - Carbon Steel Regular price $1,583.77 AUD Regular price Sale price $1,583.77 AUD Unit price per Out of stock! Backorder Now
Teeth 27	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 109.10 mm _{(4.295 in.)}	Outside Diameter (OD) 107.82 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-027-250C Inch Timing Stock Pulleys - 27 tooth - 250x109.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,792.59 AUD Regular price Sale price $1,792.59 AUD Unit price per Each
Teeth 27	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 109.10 mm _{(4.295 in.)}	Outside Diameter (OD) 107.82 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-027-250C Inch Timing Stock Pulleys - 27 tooth - 250x109.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,792.59 AUD Regular price Sale price $1,792.59 AUD Unit price per Each View the product page first if you are unsure.
P-H-027-250C --- Inch Timing Stock Pulleys - 27 tooth - 250x109.1 mm - Carbon Steel P-H-027-250C --- Inch Timing Stock Pulleys - 27 tooth - 250x109.1 mm - Carbon Steel Regular price $1,792.59 AUD Regular price Sale price $1,792.59 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 113.14 mm _{(4.454 in.)}	Outside Diameter (OD) 111.81 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-028-250C Inch Timing Stock Pulleys - 28 tooth - 250x113.14 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,808.77 AUD Regular price Sale price $1,808.77 AUD Unit price per Each
Teeth 28	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 113.14 mm _{(4.454 in.)}	Outside Diameter (OD) 111.81 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-028-250C Inch Timing Stock Pulleys - 28 tooth - 250x113.14 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $1,808.77 AUD Regular price Sale price $1,808.77 AUD Unit price per Each View the product page first if you are unsure.
P-H-028-250C --- Inch Timing Stock Pulleys - 28 tooth - 250x113.14 mm - Carbon Steel P-H-028-250C --- Inch Timing Stock Pulleys - 28 tooth - 250x113.14 mm - Carbon Steel Regular price $1,808.77 AUD Regular price Sale price $1,808.77 AUD Unit price per Out of stock! Backorder Now
Teeth 29	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 117.18 mm _{(4.613 in.)}	Outside Diameter (OD) 115.85 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-029-250C Inch Timing Stock Pulleys - 29 tooth - 250x117.18 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,031.50 AUD Regular price Sale price $2,031.50 AUD Unit price per Each
Teeth 29	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 117.18 mm _{(4.613 in.)}	Outside Diameter (OD) 115.85 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-029-250C Inch Timing Stock Pulleys - 29 tooth - 250x117.18 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,031.50 AUD Regular price Sale price $2,031.50 AUD Unit price per Each View the product page first if you are unsure.
P-H-029-250C --- Inch Timing Stock Pulleys - 29 tooth - 250x117.18 mm - Carbon Steel P-H-029-250C --- Inch Timing Stock Pulleys - 29 tooth - 250x117.18 mm - Carbon Steel Regular price $2,031.50 AUD Regular price Sale price $2,031.50 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 121.22 mm _{(4.772 in.)}	Outside Diameter (OD) 119.91 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-030-250C Inch Timing Stock Pulleys - 30 tooth - 250x121.22 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,161.77 AUD Regular price Sale price $2,161.77 AUD Unit price per Each
Teeth 30	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 121.22 mm _{(4.772 in.)}	Outside Diameter (OD) 119.91 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-030-250C Inch Timing Stock Pulleys - 30 tooth - 250x121.22 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,161.77 AUD Regular price Sale price $2,161.77 AUD Unit price per Each View the product page first if you are unsure.
P-H-030-250C --- Inch Timing Stock Pulleys - 30 tooth - 250x121.22 mm - Carbon Steel P-H-030-250C --- Inch Timing Stock Pulleys - 30 tooth - 250x121.22 mm - Carbon Steel Regular price $2,161.77 AUD Regular price Sale price $2,161.77 AUD Unit price per Out of stock! Backorder Now
Teeth 31	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 125.26 mm _{(4.931 in.)}	Outside Diameter (OD) 123.95 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-031-250C Inch Timing Stock Pulleys - 31 tooth - 250x125.26 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,291.77 AUD Regular price Sale price $2,291.77 AUD Unit price per Each
Teeth 31	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 125.26 mm _{(4.931 in.)}	Outside Diameter (OD) 123.95 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-031-250C Inch Timing Stock Pulleys - 31 tooth - 250x125.26 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,291.77 AUD Regular price Sale price $2,291.77 AUD Unit price per Each View the product page first if you are unsure.
P-H-031-250C --- Inch Timing Stock Pulleys - 31 tooth - 250x125.26 mm - Carbon Steel P-H-031-250C --- Inch Timing Stock Pulleys - 31 tooth - 250x125.26 mm - Carbon Steel Regular price $2,291.77 AUD Regular price Sale price $2,291.77 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 129.30 mm _{(5.091 in.)}	Outside Diameter (OD) 127.99 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-032-250C Inch Timing Stock Pulleys - 32 tooth - 250x129.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,396.23 AUD Regular price Sale price $2,396.23 AUD Unit price per Each
Teeth 32	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 129.30 mm _{(5.091 in.)}	Outside Diameter (OD) 127.99 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-032-250C Inch Timing Stock Pulleys - 32 tooth - 250x129.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,396.23 AUD Regular price Sale price $2,396.23 AUD Unit price per Each View the product page first if you are unsure.
P-H-032-250C --- Inch Timing Stock Pulleys - 32 tooth - 250x129.3 mm - Carbon Steel P-H-032-250C --- Inch Timing Stock Pulleys - 32 tooth - 250x129.3 mm - Carbon Steel Regular price $2,396.23 AUD Regular price Sale price $2,396.23 AUD Unit price per Out of stock! Backorder Now
Teeth 33	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 133.34 mm _{(5.25 in.)}	Outside Diameter (OD) 132.08 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-033-250C Inch Timing Stock Pulleys - 33 tooth - 250x133.34 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,546.50 AUD Regular price Sale price $2,546.50 AUD Unit price per Each
Teeth 33	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 133.34 mm _{(5.25 in.)}	Outside Diameter (OD) 132.08 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-033-250C Inch Timing Stock Pulleys - 33 tooth - 250x133.34 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,546.50 AUD Regular price Sale price $2,546.50 AUD Unit price per Each View the product page first if you are unsure.
P-H-033-250C --- Inch Timing Stock Pulleys - 33 tooth - 250x133.34 mm - Carbon Steel P-H-033-250C --- Inch Timing Stock Pulleys - 33 tooth - 250x133.34 mm - Carbon Steel Regular price $2,546.50 AUD Regular price Sale price $2,546.50 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 137.38 mm _{(5.409 in.)}	Outside Diameter (OD) 136.14 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-034-250C Inch Timing Stock Pulleys - 34 tooth - 250x137.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,677.59 AUD Regular price Sale price $2,677.59 AUD Unit price per Each
Teeth 34	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 137.38 mm _{(5.409 in.)}	Outside Diameter (OD) 136.14 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-034-250C Inch Timing Stock Pulleys - 34 tooth - 250x137.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,677.59 AUD Regular price Sale price $2,677.59 AUD Unit price per Each View the product page first if you are unsure.
P-H-034-250C --- Inch Timing Stock Pulleys - 34 tooth - 250x137.38 mm - Carbon Steel P-H-034-250C --- Inch Timing Stock Pulleys - 34 tooth - 250x137.38 mm - Carbon Steel Regular price $2,677.59 AUD Regular price Sale price $2,677.59 AUD Unit price per Out of stock! Backorder Now
Teeth 35	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 141.43 mm _{(5.568 in.)}	Outside Diameter (OD) 140.18 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-035-250C Inch Timing Stock Pulleys - 35 tooth - 250x141.43 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,820.14 AUD Regular price Sale price $2,820.14 AUD Unit price per Each
Teeth 35	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 141.43 mm _{(5.568 in.)}	Outside Diameter (OD) 140.18 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-035-250C Inch Timing Stock Pulleys - 35 tooth - 250x141.43 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,820.14 AUD Regular price Sale price $2,820.14 AUD Unit price per Each View the product page first if you are unsure.
P-H-035-250C --- Inch Timing Stock Pulleys - 35 tooth - 250x141.43 mm - Carbon Steel P-H-035-250C --- Inch Timing Stock Pulleys - 35 tooth - 250x141.43 mm - Carbon Steel Regular price $2,820.14 AUD Regular price Sale price $2,820.14 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 145.47 mm _{(5.727 in.)}	Outside Diameter (OD) 144.17 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-036-250C Inch Timing Stock Pulleys - 36 tooth - 250x145.47 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,871.95 AUD Regular price Sale price $2,871.95 AUD Unit price per Each
Teeth 36	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 145.47 mm _{(5.727 in.)}	Outside Diameter (OD) 144.17 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-036-250C Inch Timing Stock Pulleys - 36 tooth - 250x145.47 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $2,871.95 AUD Regular price Sale price $2,871.95 AUD Unit price per Each View the product page first if you are unsure.
P-H-036-250C --- Inch Timing Stock Pulleys - 36 tooth - 250x145.47 mm - Carbon Steel P-H-036-250C --- Inch Timing Stock Pulleys - 36 tooth - 250x145.47 mm - Carbon Steel Regular price $2,871.95 AUD Regular price Sale price $2,871.95 AUD Unit price per Out of stock! Backorder Now
Teeth 37	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 149.51 mm _{(5.886 in.)}	Outside Diameter (OD) 148.26 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-037-250C Inch Timing Stock Pulleys - 37 tooth - 250x149.51 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $3,132.14 AUD Regular price Sale price $3,132.14 AUD Unit price per Each
Teeth 37	Min. Usable Length (L) 250.0 mm _{(9.843 in.)}	Pitch Diameter (PD) 149.51 mm _{(5.886 in.)}	Outside Diameter (OD) 148.26 mm
Material: Carbon Steel Shank Diameter (D1): 25.40 mm Shank Length (Sl): 25.4 mm
Part Number: P-H-037-250C Inch Timing Stock Pulleys - 37 tooth - 250x149.51 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $3,132.14 AUD Regular price Sale price $3,132.14 AUD Unit price per Each View the product page first if you are unsure.
P-H-037-250C --- Inch Timing Stock Pulleys - 37 tooth - 250x149.51 mm - Carbon Steel P-H-037-250C --- Inch Timing Stock Pulleys - 37 tooth - 250x149.51 mm - Carbon Steel Regular price $3,132.14 AUD Regular price Sale price $3,132.14 AUD Unit price per Out of stock! Backorder Now
