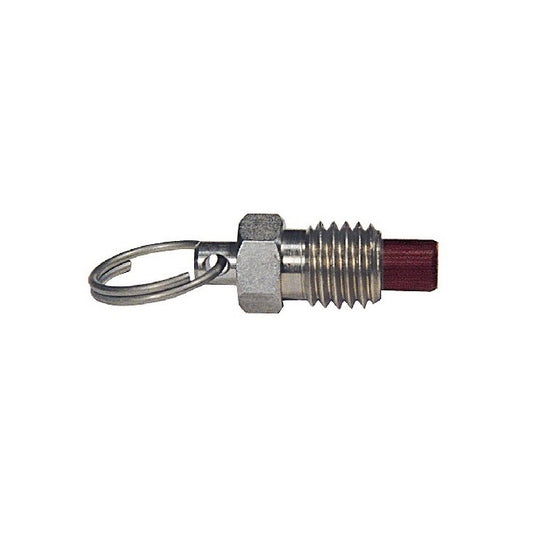

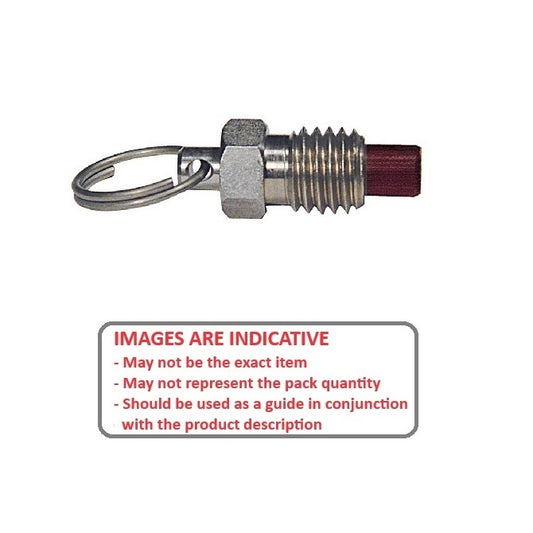

Plungers - Spring - Ring Handle - Non Locking - Steel-Phenolic

4 Products in this selection
  • Steel body with phenolic nose
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Miniature Bearings Australia (Minibearings)

Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
A more concise listing may be found on the Smallparts store at Plungers - Spring - Ring Handle - Non Locking - Steel-Phenolic. Smallparts promote the most popular MBA products.
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D) Tip Length (C) Indicative
Thread Size (A)
1/4-20 UNC (6.35mm)
Thread Length (B)
6.4
mm

(0.252 in.)
Initial Pressure (F1)
2.2
N
Final Pressure (F2)
8.9
N
Tip Diameter (D)
4.0
mm
Tip Length (C)
4.8
mm
Spring Plungers - 1/4-20 UNC -6.35mm- 6.4 mm - 2.2 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Overall Length (B): 11.1 mm    Across Flats (E): 6.4 mm    F: 0.8 mm    G: 4.0 mm    Thread Length (H): 7.1 mm    Ring Diameter (J): 19.1
Part Number: PLST-064C-111-RPC-009 Spring Plungers - 1/4-20 UNC - 6.35mm - 6.4 mm - 2.2 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$82.32 AUD
$82.32 AUD
Each
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
Thread Size (A)
1/4-20 UNC (6.35mm)
Thread Length (B)
6.4
mm

(0.252 in.)
Initial Pressure (F1)
2.2
N
Final Pressure (F2)
8.9
N
Spring Plungers - 1/4-20 UNC -6.35mm- 6.4 mm - 2.2 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Tip Diameter (D): 4.0 mm    Tip Length (C): 4.8 mm    Overall Length (B): 11.1 mm    Across Flats (E): 6.4 mm    F: 0.8 mm    G: 4.0 mm    Thread Length (H): 7.1 mm    Ring Diameter (J): 19.1
Part Number: PLST-064C-111-RPC-009 Spring Plungers - 1/4-20 UNC - 6.35mm - 6.4 mm - 2.2 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$82.32 AUD
$82.32 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/8-16 UNC (9.53mm)
Thread Length (B)
7.9
mm

(0.311 in.)
Initial Pressure (F1)
3.3
N
Final Pressure (F2)
13.4
N
Tip Diameter (D)
6.4
mm
Tip Length (C)
7.1
mm
Spring Plungers - 3/8-16 UNC -9.53mm- 7.9 mm - 3.3 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Overall Length (B): 15.9 mm    Across Flats (E): 9.5 mm    F: 3.2 mm    G: 4.8 mm    Thread Length (H): 11.1 mm    Ring Diameter (J): 19.1
Part Number: PLST-095C-159-RPC-013 Spring Plungers - 3/8-16 UNC - 9.53mm - 7.9 mm - 3.3 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$88.59 AUD
$88.59 AUD
Each
Thread Size (A)
3/8-16 UNC (9.53mm)
Thread Length (B)
7.9
mm

(0.311 in.)
Initial Pressure (F1)
3.3
N
Final Pressure (F2)
13.4
N
Spring Plungers - 3/8-16 UNC -9.53mm- 7.9 mm - 3.3 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Tip Diameter (D): 6.4 mm    Tip Length (C): 7.1 mm    Overall Length (B): 15.9 mm    Across Flats (E): 9.5 mm    F: 3.2 mm    G: 4.8 mm    Thread Length (H): 11.1 mm    Ring Diameter (J): 19.1
Part Number: PLST-095C-159-RPC-013 Spring Plungers - 3/8-16 UNC - 9.53mm - 7.9 mm - 3.3 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$88.59 AUD
$88.59 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/2-13 UNC (12.7mm)
Thread Length (B)
10.3
mm

(0.406 in.)
Initial Pressure (F1)
4.5
N
Final Pressure (F2)
17.8
N
Tip Diameter (D)
7.9
mm
Tip Length (C)
9.5
mm
Spring Plungers - 1/2-13 UNC -12.7mm- 10.3 mm - 4.5 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Overall Length (B): 20.6 mm    Across Flats (E): 12.7 mm    F: 4.0 mm    G: 6.4 mm    Thread Length (H): 14.3 mm    Ring Diameter (J): 25.4
Part Number: PLST-127C-206-RPC-018 Spring Plungers - 1/2-13 UNC - 12.7mm - 10.3 mm - 4.5 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$110.50 AUD
$110.50 AUD
Each
Thread Size (A)
1/2-13 UNC (12.7mm)
Thread Length (B)
10.3
mm

(0.406 in.)
Initial Pressure (F1)
4.5
N
Final Pressure (F2)
17.8
N
Spring Plungers - 1/2-13 UNC -12.7mm- 10.3 mm - 4.5 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Tip Diameter (D): 7.9 mm    Tip Length (C): 9.5 mm    Overall Length (B): 20.6 mm    Across Flats (E): 12.7 mm    F: 4.0 mm    G: 6.4 mm    Thread Length (H): 14.3 mm    Ring Diameter (J): 25.4
Part Number: PLST-127C-206-RPC-018 Spring Plungers - 1/2-13 UNC - 12.7mm - 10.3 mm - 4.5 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$110.50 AUD
$110.50 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Thread Length (B)
13.5
mm

(0.531 in.)
Initial Pressure (F1)
5.6
N
Final Pressure (F2)
22.2
N
Tip Diameter (D)
9.5
mm
Tip Length (C)
11.1
mm
Spring Plungers - 5/8-11 UNC -15.88mm- 13.5 mm - 5.6 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Overall Length (B): 25.4 mm    Across Flats (E): 15.9 mm    F: 4.0 mm    G: 7.9 mm    Thread Length (H): 27.0 mm    Ring Diameter (J): 25.4
Part Number: PLST-159C-254-RPC-022 Spring Plungers - 5/8-11 UNC - 15.88mm - 13.5 mm - 5.6 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$111.23 AUD
$133.47 AUD $111.23 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Thread Length (B)
13.5
mm

(0.531 in.)
Initial Pressure (F1)
5.6
N
Final Pressure (F2)
22.2
N
Spring Plungers - 5/8-11 UNC -15.88mm- 13.5 mm - 5.6 N - Steel Body with Phenolic
Material: Steel Body with Phenolic    Tip Diameter (D): 9.5 mm    Tip Length (C): 11.1 mm    Overall Length (B): 25.4 mm    Across Flats (E): 15.9 mm    F: 4.0 mm    G: 7.9 mm    Thread Length (H): 27.0 mm    Ring Diameter (J): 25.4
Part Number: PLST-159C-254-RPC-022 Spring Plungers - 5/8-11 UNC - 15.88mm - 13.5 mm - 5.6 N Ring Handle - Steel Body with Phenolic
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 23, 2025
$111.23 AUD
$133.47 AUD $111.23 AUD
Each
View the product page first if you are unsure.
