Plungers - Ball Push Fit - Stainless Body - Acetal Ball

Plungers -> Ball Push Fit -> Stainless Body -> Acetal Ball

There are 6 products in the sub-categories of Plungers - Ball Push Fit - Stainless Body - Acetal Ball. Browse the Plungers - Ball Push Fit - Stainless Body - Acetal Ball products table.

Category Details

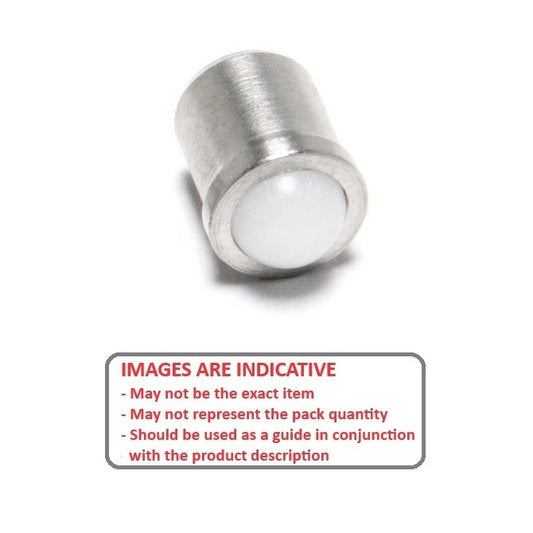

A selection of Acetal Ball Stainless Body Ball Push Fit Plungers. Unthreaded.

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Plungers - Ball Push Fit - Stainless Body - Acetal Ball category on the Small Parts & Bearings online store.
    Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
    Body Diameter (D)
    3.18
    mm
    + 0.1 / - 0.0
    (Equiv. 0.125 in.)
    Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    22.2
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.9
    mm
    		Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal
    Material: Acetal    Shoulder Diameter (S): 4.8 mm
    Part Number: PLBP-032-064-SA-022
    Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.32 AUD
    $13.58 AUD $11.32 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
    Body Diameter (D)
    3.18
    mm
    + 0.1 / - 0.0
    (Equiv. 0.125 in.)
    Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    22.2
    N
    		Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal
    Material: Acetal    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.9 mm    Shoulder Diameter (S): 4.8 mm
    Part Number: PLBP-032-064-SA-022
    Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.32 AUD
    $13.58 AUD $11.32 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    4.78
    mm
    + 0.1 / - 0.0
    (Equiv. 0.188 in.)
    Length (L)
    10.3
    mm

    (Equiv. 0.406 in.)
    Initial Pressure (F1)
    17.8
    N
    Final Pressure (F2)
    44.5
    N
    Ball Diameter (D1)
    4.0
    mm
    Ball Height (H)
    1.5
    mm
    		Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Acetal
    Material: Acetal    Shoulder Diameter (S): 6.4 mm
    Part Number: PLBP-048-103-SA-044
    Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.23 AUD
    $13.47 AUD $11.23 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    4.78
    mm
    + 0.1 / - 0.0
    (Equiv. 0.188 in.)
    Length (L)
    10.3
    mm

    (Equiv. 0.406 in.)
    Initial Pressure (F1)
    17.8
    N
    Final Pressure (F2)
    44.5
    N
    		Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Acetal
    Material: Acetal    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.5 mm    Shoulder Diameter (S): 6.4 mm
    Part Number: PLBP-048-103-SA-044
    Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.23 AUD
    $13.47 AUD $11.23 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    6.35
    mm
    + 0.1 / - 0.0
    (Equiv. 0.25 in.)
    Length (L)
    12.2
    mm

    (Equiv. 0.48 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    57.8
    N
    Ball Diameter (D1)
    4.8
    mm
    Ball Height (H)
    1.8
    mm
    		Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Stainless Body - Acetal
    Material: Acetal    Shoulder Diameter (S): 7.9 mm
    Part Number: PLBP-064-122-SA-058
    Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.05 AUD
    $14.45 AUD $12.05 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    6.35
    mm
    + 0.1 / - 0.0
    (Equiv. 0.25 in.)
    Length (L)
    12.2
    mm

    (Equiv. 0.48 in.)
    Initial Pressure (F1)
    26.7
    N
    Final Pressure (F2)
    57.8
    N
    		Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Stainless Body - Acetal
    Material: Acetal    Ball Diameter (D1): 4.8 mm    Ball Height (H): 1.8 mm    Shoulder Diameter (S): 7.9 mm
    Part Number: PLBP-064-122-SA-058
    Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.05 AUD
    $14.45 AUD $12.05 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    7.93
    mm
    + 0.1 / - 0.0
    (Equiv. 0.312 in.)
    Length (L)
    16.3
    mm

    (Equiv. 0.642 in.)
    Initial Pressure (F1)
    35.6
    N
    Final Pressure (F2)
    71.2
    N
    Ball Diameter (D1)
    6.4
    mm
    Ball Height (H)
    2.3
    mm
    		Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Stainless Body - Acetal
    Material: Acetal    Shoulder Diameter (S): 9.5 mm
    Part Number: PLBP-079-163-SA-071
    Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.86 AUD
    $14.24 AUD $11.86 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    7.93
    mm
    + 0.1 / - 0.0
    (Equiv. 0.312 in.)
    Length (L)
    16.3
    mm

    (Equiv. 0.642 in.)
    Initial Pressure (F1)
    35.6
    N
    Final Pressure (F2)
    71.2
    N
    		Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Stainless Body - Acetal
    Material: Acetal    Ball Diameter (D1): 6.4 mm    Ball Height (H): 2.3 mm    Shoulder Diameter (S): 9.5 mm
    Part Number: PLBP-079-163-SA-071
    Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.86 AUD
    $14.24 AUD $11.86 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    9.53
    mm
    + 0.1 / - 0.0
    (Equiv. 0.375 in.)
    Length (L)
    19.9
    mm

    (Equiv. 0.783 in.)
    Initial Pressure (F1)
    44.5
    N
    Final Pressure (F2)
    80.1
    N
    Ball Diameter (D1)
    7.9
    mm
    Ball Height (H)
    2.8
    mm
    		Ball Push Fit Plungers - 9.53x19.9 mm - 44.5 N Stainless Body - Acetal
    Material: Acetal    Shoulder Diameter (S): 12.7 mm
    Part Number: PLBP-095-199-SA-080
    Ball Push Fit Plungers - 9.53x19.9 mm - 44.5 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.50 AUD
    $15.00 AUD $12.50 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    9.53
    mm
    + 0.1 / - 0.0
    (Equiv. 0.375 in.)
    Length (L)
    19.9
    mm

    (Equiv. 0.783 in.)
    Initial Pressure (F1)
    44.5
    N
    Final Pressure (F2)
    80.1
    N
    		Ball Push Fit Plungers - 9.53x19.9 mm - 44.5 N Stainless Body - Acetal
    Material: Acetal    Ball Diameter (D1): 7.9 mm    Ball Height (H): 2.8 mm    Shoulder Diameter (S): 12.7 mm
    Part Number: PLBP-095-199-SA-080
    Ball Push Fit Plungers - 9.53x19.9 mm - 44.5 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.50 AUD
    $15.00 AUD $12.50 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    12.70
    mm
    + 0.1 / - 0.0
    (Equiv. 0.5 in.)
    Length (L)
    28.7
    mm

    (Equiv. 1.13 in.)
    Initial Pressure (F1)
    53.4
    N
    Final Pressure (F2)
    102.3
    N
    Ball Diameter (D1)
    11.1
    mm
    Ball Height (H)
    4.1
    mm
    		Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal
    Material: Acetal    Shoulder Diameter (S): 17.5 mm
    Part Number: PLBP-127-287-SA-102
    Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $25.14 AUD
    $25.14 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    12.70
    mm
    + 0.1 / - 0.0
    (Equiv. 0.5 in.)
    Length (L)
    28.7
    mm

    (Equiv. 1.13 in.)
    Initial Pressure (F1)
    53.4
    N
    Final Pressure (F2)
    102.3
    N
    		Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal
    Material: Acetal    Ball Diameter (D1): 11.1 mm    Ball Height (H): 4.1 mm    Shoulder Diameter (S): 17.5 mm
    Part Number: PLBP-127-287-SA-102
    Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $25.14 AUD
    $25.14 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
