Collection: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Pins -> Dowel -> Standard -> Chamfered Ends -> 303-304 Stainless

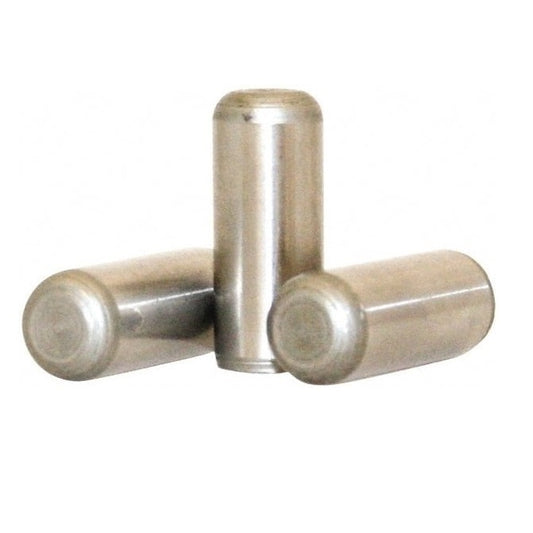

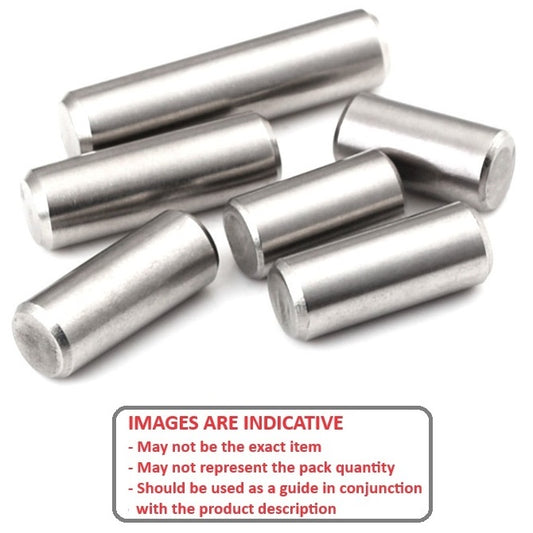

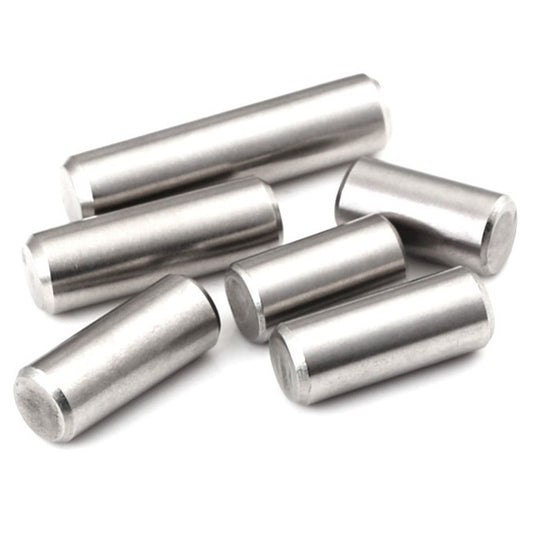

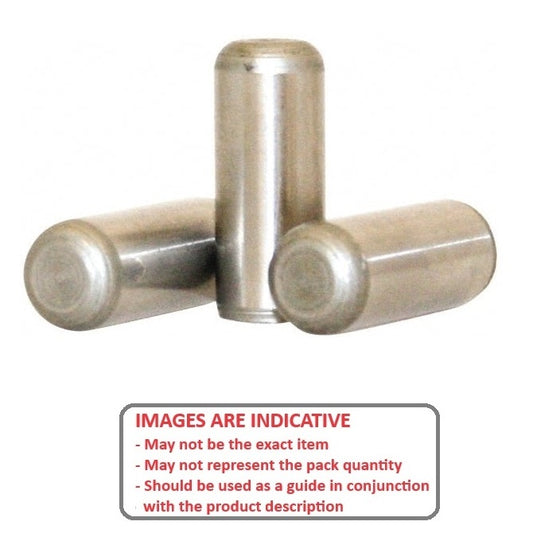

Diameter (D)	Length (L)	Approx. Overall Length	Type	Indicative Image
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 12.00 mm _{+/- 0.350} (Equiv. 0.472 in.)	Approx. Overall Length 12.00 mm _{+/ - 0.350} (Equiv. 0.472 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-012-303-2 (500 Pcs) Dowel Pins - 3x12 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 12.00 mm _{+/- 0.350} (Equiv. 0.472 in.)	Approx. Overall Length 12.00 mm _{+/ - 0.350} (Equiv. 0.472 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-012-303-2 (500 Pcs) Dowel Pins - 3x12 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 14.00 mm _{+/- 0.350} (Equiv. 0.551 in.)	Approx. Overall Length 14.00 mm _{+/ - 0.350} (Equiv. 0.551 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-014-303-2 (10 Pcs) Dowel Pins - 3x14 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 474 units (4740 pcs) Available Now \| Further orders can be expected around Fri, Oct 31, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 10 Quantity Required 474 units (4740 pcs) Available Now. Backorder if more than 474.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 14.00 mm _{+/- 0.350} (Equiv. 0.551 in.)	Approx. Overall Length 14.00 mm _{+/ - 0.350} (Equiv. 0.551 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-014-303-2 (10 Pcs) Dowel Pins - 3x14 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 474 units (4740 pcs) Available Now \| Further orders can be expected around Fri, Oct 31, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 10 Quantity Required 474 units (4740 pcs) Available Now. Backorder if more than 474.
DP030-014-303-2 (10 Pcs) --- Dowel Pins - 3x14 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin DP030-014-303-2 (10 Pcs) --- Dowel Pins - 3x14 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 474 Available Now
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 16.00 mm _{+/- 0.350} (Equiv. 0.63 in.)	Approx. Overall Length 16.00 mm _{+/ - 0.350} (Equiv. 0.63 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-016-303-2 Dowel Pins - 3x16 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $0.80 AUD Regular price ~~$1.52 AUD~~ Sale price $0.80 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 16.00 mm _{+/- 0.350} (Equiv. 0.63 in.)	Approx. Overall Length 16.00 mm _{+/ - 0.350} (Equiv. 0.63 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-016-303-2 Dowel Pins - 3x16 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $0.80 AUD Regular price ~~$1.52 AUD~~ Sale price $0.80 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
DP030-016-303-2 --- Dowel Pins - 3x16 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Sale DP030-016-303-2 --- Dowel Pins - 3x16 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Regular price $0.80 AUD Regular price ~~$1.52 AUD~~ Sale price $0.80 AUD Unit price per 1 Available Now Sale
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 18.00 mm _{+/- 0.420} (Equiv. 0.709 in.)	Approx. Overall Length 18.00 mm _{+/ - 0.420} (Equiv. 0.709 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-018-304-1 (500 Pcs) Dowel Pins - 3x18 Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 18.00 mm _{+/- 0.420} (Equiv. 0.709 in.)	Approx. Overall Length 18.00 mm _{+/ - 0.420} (Equiv. 0.709 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-018-304-1 (500 Pcs) Dowel Pins - 3x18 Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 18.00 mm _{+/- 0.420} (Equiv. 0.709 in.)	Approx. Overall Length 18.00 mm _{+/ - 0.420} (Equiv. 0.709 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-018-303-2 (5 Pcs) Dowel Pins - 3x18 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 368 units (1840 pcs) Available Now \| Further orders can be expected around Fri, Oct 31, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 5 Quantity Required 368 units (1840 pcs) Available Now. Backorder if more than 368.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 18.00 mm _{+/- 0.420} (Equiv. 0.709 in.)	Approx. Overall Length 18.00 mm _{+/ - 0.420} (Equiv. 0.709 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-018-303-2 (5 Pcs) Dowel Pins - 3x18 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 368 units (1840 pcs) Available Now \| Further orders can be expected around Fri, Oct 31, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 5 Quantity Required 368 units (1840 pcs) Available Now. Backorder if more than 368.
DP030-018-303-2 (5 Pcs) --- Dowel Pins - 3x18 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin DP030-018-303-2 (5 Pcs) --- Dowel Pins - 3x18 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 368 Available Now
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 20.00 mm _{+/- 0.420} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm _{+/ - 0.420} (Equiv. 0.787 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-020-303-2 (500 Pcs) Dowel Pins - 3x20 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 20.00 mm _{+/- 0.420} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm _{+/ - 0.420} (Equiv. 0.787 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-020-303-2 (500 Pcs) Dowel Pins - 3x20 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 24.00 mm _{+/- 0.420} (Equiv. 0.945 in.)	Approx. Overall Length 24.00 mm _{+/ - 0.420} (Equiv. 0.945 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-024-303-2 (500 Pcs) Dowel Pins - 3x24 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 24.00 mm _{+/- 0.420} (Equiv. 0.945 in.)	Approx. Overall Length 24.00 mm _{+/ - 0.420} (Equiv. 0.945 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-024-303-2 (500 Pcs) Dowel Pins - 3x24 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 28.00 mm _{+/- 0.420} (Equiv. 1.102 in.)	Approx. Overall Length 28.00 mm _{+/ - 0.420} (Equiv. 1.102 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-028-303-2 (5 Pcs) Dowel Pins - 3x28 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 570 units (2850 pcs) Available Now \| Further orders can be expected around Fri, Oct 31, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 5 Quantity Required 570 units (2850 pcs) Available Now. Backorder if more than 570.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 28.00 mm _{+/- 0.420} (Equiv. 1.102 in.)	Approx. Overall Length 28.00 mm _{+/ - 0.420} (Equiv. 1.102 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-028-303-2 (5 Pcs) Dowel Pins - 3x28 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 570 units (2850 pcs) Available Now \| Further orders can be expected around Fri, Oct 31, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 5 Quantity Required 570 units (2850 pcs) Available Now. Backorder if more than 570.
DP030-028-303-2 (5 Pcs) --- Dowel Pins - 3x28 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin DP030-028-303-2 (5 Pcs) --- Dowel Pins - 3x28 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 570 Available Now
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 30.00 mm _{+/- 0.500} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm _{+/ - 0.500} (Equiv. 1.181 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-030-303-2 (50 Pcs) Dowel Pins - 3x30 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.000 mm _{+ 0.004 / + 0.012} (Equiv. 0.118 in.)	Length (L) 30.00 mm _{+/- 0.500} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm _{+/ - 0.500} (Equiv. 1.181 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Standard: Based on ISO 2338
Part Number: DP030-030-303-2 (50 Pcs) Dowel Pins - 3x30 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 2.39 mm _{+/- 0.254} (Equiv. 0.094 in.)	Approx. Overall Length 2.39 mm _{+/ - 0.254} (Equiv. 0.094 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-002-303-1 (500 Pcs) Dowel Pins - 3.175x2.39 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 2.39 mm _{+/- 0.254} (Equiv. 0.094 in.)	Approx. Overall Length 2.39 mm _{+/ - 0.254} (Equiv. 0.094 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-002-303-1 (500 Pcs) Dowel Pins - 3.175x2.39 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 3.18 mm _{+/- 0.254} (Equiv. 0.125 in.)	Approx. Overall Length 3.18 mm _{+/ - 0.254} (Equiv. 0.125 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-003-303-1 (500 Pcs) Dowel Pins - 3.175x3.18 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 3.18 mm _{+/- 0.254} (Equiv. 0.125 in.)	Approx. Overall Length 3.18 mm _{+/ - 0.254} (Equiv. 0.125 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-003-303-1 (500 Pcs) Dowel Pins - 3.175x3.18 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 3.96 mm _{+/- 0.254} (Equiv. 0.156 in.)	Approx. Overall Length 3.96 mm _{+/ - 0.254} (Equiv. 0.156 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-004-303-1 (50 Pcs) Dowel Pins - 3.175x3.96 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 3.96 mm _{+/- 0.254} (Equiv. 0.156 in.)	Approx. Overall Length 3.96 mm _{+/ - 0.254} (Equiv. 0.156 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-004-303-1 (50 Pcs) Dowel Pins - 3.175x3.96 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 4.78 mm _{+/- 0.254} (Equiv. 0.188 in.)	Approx. Overall Length 4.78 mm _{+/ - 0.254} (Equiv. 0.188 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-005-303-1 Dowel Pins - 3.175x4.78 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 4.78 mm _{+/- 0.254} (Equiv. 0.188 in.)	Approx. Overall Length 4.78 mm _{+/ - 0.254} (Equiv. 0.188 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-005-303-1 Dowel Pins - 3.175x4.78 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 5.56 mm _{+/- 0.254} (Equiv. 0.219 in.)	Approx. Overall Length 5.56 mm _{+/ - 0.254} (Equiv. 0.219 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-006-303-1 (500 Pcs) Dowel Pins - 3.175x5.56 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 5.56 mm _{+/- 0.254} (Equiv. 0.219 in.)	Approx. Overall Length 5.56 mm _{+/ - 0.254} (Equiv. 0.219 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-006-303-1 (500 Pcs) Dowel Pins - 3.175x5.56 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 6.35 mm _{+/- 0.254} (Equiv. 0.25 in.)	Approx. Overall Length 6.35 mm _{+/ - 0.254} (Equiv. 0.25 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-007-303-1 (500 Pcs) Dowel Pins - 3.175x6.35 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 6.35 mm _{+/- 0.254} (Equiv. 0.25 in.)	Approx. Overall Length 6.35 mm _{+/ - 0.254} (Equiv. 0.25 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-007-303-1 (500 Pcs) Dowel Pins - 3.175x6.35 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 7.93 mm _{+/- 0.254} (Equiv. 0.312 in.)	Approx. Overall Length 7.93 mm _{+/ - 0.254} (Equiv. 0.312 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-008-303-1 (50 Pcs) Dowel Pins - 3.175x7.93 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 22 units (1100 pcs) Available Now \| Item Discontinued - Up to 22 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Per 50 Quantity Required 22 units (1100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 7.93 mm _{+/- 0.254} (Equiv. 0.312 in.)	Approx. Overall Length 7.93 mm _{+/ - 0.254} (Equiv. 0.312 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-008-303-1 (50 Pcs) Dowel Pins - 3.175x7.93 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 22 units (1100 pcs) Available Now \| Item Discontinued - Up to 22 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Per 50 Quantity Required 22 units (1100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
DP032-008-303-1 (50 Pcs) --- Dowel Pins - 3.175x7.93 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Sale DP032-008-303-1 (50 Pcs) --- Dowel Pins - 3.175x7.93 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per 22 Available Now Sale
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 9.53 mm _{+/- 0.254} (Equiv. 0.375 in.)	Approx. Overall Length 9.53 mm _{+/ - 0.254} (Equiv. 0.375 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-010-303-1 (500 Pcs) Dowel Pins - 3.175x9.53 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 9.53 mm _{+/- 0.254} (Equiv. 0.375 in.)	Approx. Overall Length 9.53 mm _{+/ - 0.254} (Equiv. 0.375 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-010-303-1 (500 Pcs) Dowel Pins - 3.175x9.53 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 11.13 mm _{+/- 0.350} (Equiv. 0.438 in.)	Approx. Overall Length 11.13 mm _{+/ - 0.350} (Equiv. 0.438 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-011-303-1 (500 Pcs) Dowel Pins - 3.175x11.13 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 11.13 mm _{+/- 0.350} (Equiv. 0.438 in.)	Approx. Overall Length 11.13 mm _{+/ - 0.350} (Equiv. 0.438 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-011-303-1 (500 Pcs) Dowel Pins - 3.175x11.13 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 12.70 mm _{+/- 0.350} (Equiv. 0.5 in.)	Approx. Overall Length 12.70 mm _{+/ - 0.350} (Equiv. 0.5 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-013-303-1 (60 Pcs) Dowel Pins - 3.175x12.7 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 12.70 mm _{+/- 0.350} (Equiv. 0.5 in.)	Approx. Overall Length 12.70 mm _{+/ - 0.350} (Equiv. 0.5 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-013-303-1 (60 Pcs) Dowel Pins - 3.175x12.7 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 14.28 mm _{+/- 0.350} (Equiv. 0.562 in.)	Approx. Overall Length 14.28 mm _{+/ - 0.350} (Equiv. 0.562 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-014-303-1 (500 Pcs) Dowel Pins - 3.175x14.28 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 14.28 mm _{+/- 0.350} (Equiv. 0.562 in.)	Approx. Overall Length 14.28 mm _{+/ - 0.350} (Equiv. 0.562 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-014-303-1 (500 Pcs) Dowel Pins - 3.175x14.28 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 15.88 mm _{+/- 0.350} (Equiv. 0.625 in.)	Approx. Overall Length 15.88 mm _{+/ - 0.350} (Equiv. 0.625 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-016-303-1 (500 Pcs) Dowel Pins - 3.175x15.88 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 15.88 mm _{+/- 0.350} (Equiv. 0.625 in.)	Approx. Overall Length 15.88 mm _{+/ - 0.350} (Equiv. 0.625 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-016-303-1 (500 Pcs) Dowel Pins - 3.175x15.88 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 19.05 mm _{+/- 0.420} (Equiv. 0.75 in.)	Approx. Overall Length 19.05 mm _{+/ - 0.420} (Equiv. 0.75 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-019-303-1 (50 Pcs) Dowel Pins - 3.175x19.05 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 7 units (350 pcs) Available Now \| Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50 Quantity Required 7 units (350 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 19.05 mm _{+/- 0.420} (Equiv. 0.75 in.)	Approx. Overall Length 19.05 mm _{+/ - 0.420} (Equiv. 0.75 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-019-303-1 (50 Pcs) Dowel Pins - 3.175x19.05 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin 7 units (350 pcs) Available Now \| Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50 Quantity Required 7 units (350 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
DP032-019-303-1 (50 Pcs) --- Dowel Pins - 3.175x19.05 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Sale DP032-019-303-1 (50 Pcs) --- Dowel Pins - 3.175x19.05 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 7 Available Now Sale
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 22.23 mm _{+/- 0.420} (Equiv. 0.875 in.)	Approx. Overall Length 22.23 mm _{+/ - 0.420} (Equiv. 0.875 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-022-303-1 (500 Pcs) Dowel Pins - 3.175x22.23 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 22.23 mm _{+/- 0.420} (Equiv. 0.875 in.)	Approx. Overall Length 22.23 mm _{+/ - 0.420} (Equiv. 0.875 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-022-303-1 (500 Pcs) Dowel Pins - 3.175x22.23 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-025-303-1 (500 Pcs) Dowel Pins - 3.175x25.4 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) 3.175 mm _{+ 0.004 / + 0.012} (Equiv. 0.125 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 0.50 x 15 Deg Standard: Based on DIN 6325
Part Number: DP032-025-303-1 (500 Pcs) Dowel Pins - 3.175x25.4 Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
