Collection: Pins - Dowel - Extractable - Carbon Steel

Pins -> Dowel -> Extractable -> Carbon Steel

There are 33 products in the sub-categories of Pins - Dowel - Extractable - Carbon Steel. Scroll down or follow the link to Pins - Dowel - Extractable - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel Extractable Dowel Pins. Hardened and Ground Steel 100 Cr6. Din 7979.

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
An expanded range may be available on special order. Please enquire.

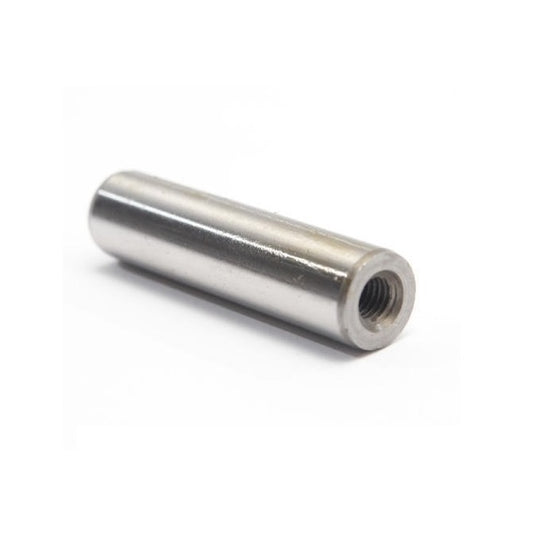

Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes.
Hardness 55-62 HRC, HV550-650
Extractable pins may or may not have a flat to vent pressure when pulling

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pins - Dowel - Extractable - Carbon Steel category on the Small Parts & Bearings online store.

Diameter (D)	Length (L)	Approx. Overall Length	Type
Diameter (D) 6.000 mm _{+ 0.006 / + 0.015} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+/- 0.500} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm _{+/ - 0.500} (Equiv. 1.181 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: M4 (4x0.7mm)
Part Number: DP060-030-CH-1E Dowel Pins - 6x30 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $5.05 AUD Regular price ~~$6.05 AUD~~ Sale price $5.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.

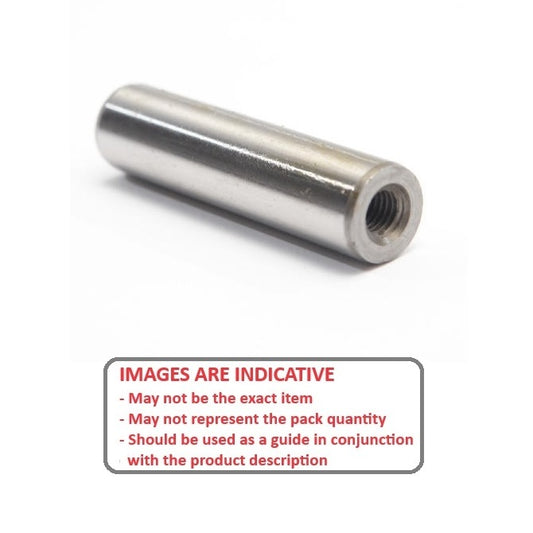

Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 6.000 mm _{+ 0.006 / + 0.015} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+/- 0.500} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm _{+/ - 0.500} (Equiv. 1.181 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: M4 (4x0.7mm)
Part Number: DP060-030-CH-1E Dowel Pins - 6x30 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $5.05 AUD Regular price ~~$6.05 AUD~~ Sale price $5.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP060-030-CH-1E --- Dowel Pins - 6x30 Extractable - Carbon Steel Rc 58-62 Pin Sale DP060-030-CH-1E --- Dowel Pins - 6x30 Extractable - Carbon Steel Rc 58-62 Pin Regular price $5.05 AUD Regular price ~~$6.05 AUD~~ Sale price $5.05 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 12.70 mm _{+/- 0.350} (Equiv. 0.5 in.)	Approx. Overall Length 12.70 mm _{+/ - 0.350} (Equiv. 0.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-013-CH-1E (5 Pcs) Dowel Pins - 6.35x12.7 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Fri, Sep 26, 2025 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 12.70 mm _{+/- 0.350} (Equiv. 0.5 in.)	Approx. Overall Length 12.70 mm _{+/ - 0.350} (Equiv. 0.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-013-CH-1E (5 Pcs) Dowel Pins - 6.35x12.7 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Fri, Sep 26, 2025 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
DP064-013-CH-1E (5 Pcs) --- Dowel Pins - 6.35x12.7 Extractable - Carbon Steel Rc 58-62 Pin DP064-013-CH-1E (5 Pcs) --- Dowel Pins - 6.35x12.7 Extractable - Carbon Steel Rc 58-62 Pin Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 19.05 mm _{+/- 0.420} (Equiv. 0.75 in.)	Approx. Overall Length 19.05 mm _{+/ - 0.420} (Equiv. 0.75 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-019-CH-1E Dowel Pins - 6.35x19.05 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 19.05 mm _{+/- 0.420} (Equiv. 0.75 in.)	Approx. Overall Length 19.05 mm _{+/ - 0.420} (Equiv. 0.75 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-019-CH-1E Dowel Pins - 6.35x19.05 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP064-019-CH-1E --- Dowel Pins - 6.35x19.05 Extractable - Carbon Steel Rc 58-62 Pin DP064-019-CH-1E --- Dowel Pins - 6.35x19.05 Extractable - Carbon Steel Rc 58-62 Pin Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-025-CH-1E Dowel Pins - 6.35x25.4 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-025-CH-1E Dowel Pins - 6.35x25.4 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP064-025-CH-1E --- Dowel Pins - 6.35x25.4 Extractable - Carbon Steel Rc 58-62 Pin DP064-025-CH-1E --- Dowel Pins - 6.35x25.4 Extractable - Carbon Steel Rc 58-62 Pin Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 31.75 mm _{+/- 0.500} (Equiv. 1.25 in.)	Approx. Overall Length 31.75 mm _{+/ - 0.500} (Equiv. 1.25 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-032-CH-1E Dowel Pins - 6.35x31.75 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 31.75 mm _{+/- 0.500} (Equiv. 1.25 in.)	Approx. Overall Length 31.75 mm _{+/ - 0.500} (Equiv. 1.25 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-032-CH-1E Dowel Pins - 6.35x31.75 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP064-032-CH-1E --- Dowel Pins - 6.35x31.75 Extractable - Carbon Steel Rc 58-62 Pin DP064-032-CH-1E --- Dowel Pins - 6.35x31.75 Extractable - Carbon Steel Rc 58-62 Pin Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-038-CH-1E Dowel Pins - 6.35x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.86 AUD Regular price ~~$11.84 AUD~~ Sale price $9.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-038-CH-1E Dowel Pins - 6.35x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.86 AUD Regular price ~~$11.84 AUD~~ Sale price $9.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP064-038-CH-1E --- Dowel Pins - 6.35x38.1 Extractable - Carbon Steel Rc 58-62 Pin Sale DP064-038-CH-1E --- Dowel Pins - 6.35x38.1 Extractable - Carbon Steel Rc 58-62 Pin Regular price $9.86 AUD Regular price ~~$11.84 AUD~~ Sale price $9.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-051-CH-1E (100 Pcs) Dowel Pins - 6.35x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $173.14 AUD Regular price ~~$207.76 AUD~~ Sale price $173.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-051-CH-1E (100 Pcs) Dowel Pins - 6.35x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $173.14 AUD Regular price ~~$207.76 AUD~~ Sale price $173.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
DP064-051-CH-1E (100 Pcs) --- Dowel Pins - 6.35x50.8 Extractable - Carbon Steel Rc 58-62 Pin Sale DP064-051-CH-1E (100 Pcs) --- Dowel Pins - 6.35x50.8 Extractable - Carbon Steel Rc 58-62 Pin Regular price $173.14 AUD Regular price ~~$207.76 AUD~~ Sale price $173.14 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 63.50 mm _{+/- 0.600} (Equiv. 2.5 in.)	Approx. Overall Length 63.50 mm _{+/ - 0.600} (Equiv. 2.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-064-CH-1E Dowel Pins - 6.35x63.5 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price Sale price $2.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.350 mm _{+ 0.006 / + 0.015} (Equiv. 0.25 in.)	Length (L) 63.50 mm _{+/- 0.600} (Equiv. 2.5 in.)	Approx. Overall Length 63.50 mm _{+/ - 0.600} (Equiv. 2.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-064-CH-1E Dowel Pins - 6.35x63.5 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price Sale price $2.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP064-064-CH-1E --- Dowel Pins - 6.35x63.5 Extractable - Carbon Steel Rc 58-62 Pin DP064-064-CH-1E --- Dowel Pins - 6.35x63.5 Extractable - Carbon Steel Rc 58-62 Pin Regular price $2.23 AUD Regular price Sale price $2.23 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 7.938 mm _{+ 0.006 / + 0.015} (Equiv. 0.313 in.)	Length (L) 31.75 mm _{+/- 0.500} (Equiv. 1.25 in.)	Approx. Overall Length 31.75 mm _{+/ - 0.500} (Equiv. 1.25 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP079-032-CH-1E (5 Pcs) Dowel Pins - 7.938x31.75 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Fri, Sep 26, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Diameter (D) 7.938 mm _{+ 0.006 / + 0.015} (Equiv. 0.313 in.)	Length (L) 31.75 mm _{+/- 0.500} (Equiv. 1.25 in.)	Approx. Overall Length 31.75 mm _{+/ - 0.500} (Equiv. 1.25 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP079-032-CH-1E (5 Pcs) Dowel Pins - 7.938x31.75 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Fri, Sep 26, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
DP079-032-CH-1E (5 Pcs) --- Dowel Pins - 7.938x31.75 Extractable - Carbon Steel Rc 58-62 Pin Sale DP079-032-CH-1E (5 Pcs) --- Dowel Pins - 7.938x31.75 Extractable - Carbon Steel Rc 58-62 Pin Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 7.938 mm _{+ 0.006 / + 0.015} (Equiv. 0.313 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP079-038-CH-1E Dowel Pins - 7.938x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 7.938 mm _{+ 0.006 / + 0.015} (Equiv. 0.313 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP079-038-CH-1E Dowel Pins - 7.938x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP079-038-CH-1E --- Dowel Pins - 7.938x38.1 Extractable - Carbon Steel Rc 58-62 Pin DP079-038-CH-1E --- Dowel Pins - 7.938x38.1 Extractable - Carbon Steel Rc 58-62 Pin Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-025-CH-1E Dowel Pins - 9.525x25.4 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-025-CH-1E Dowel Pins - 9.525x25.4 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP095-025-CH-1E --- Dowel Pins - 9.525x25.4 Extractable - Carbon Steel Rc 58-62 Pin Sale DP095-025-CH-1E --- Dowel Pins - 9.525x25.4 Extractable - Carbon Steel Rc 58-62 Pin Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 31.75 mm _{+/- 0.500} (Equiv. 1.25 in.)	Approx. Overall Length 31.75 mm _{+/ - 0.500} (Equiv. 1.25 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-032-CH-1E Dowel Pins - 9.525x31.75 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 31.75 mm _{+/- 0.500} (Equiv. 1.25 in.)	Approx. Overall Length 31.75 mm _{+/ - 0.500} (Equiv. 1.25 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-032-CH-1E Dowel Pins - 9.525x31.75 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP095-032-CH-1E --- Dowel Pins - 9.525x31.75 Extractable - Carbon Steel Rc 58-62 Pin DP095-032-CH-1E --- Dowel Pins - 9.525x31.75 Extractable - Carbon Steel Rc 58-62 Pin Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-038-CH-1E Dowel Pins - 9.525x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-038-CH-1E Dowel Pins - 9.525x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP095-038-CH-1E --- Dowel Pins - 9.525x38.1 Extractable - Carbon Steel Rc 58-62 Pin DP095-038-CH-1E --- Dowel Pins - 9.525x38.1 Extractable - Carbon Steel Rc 58-62 Pin Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 44.45 mm _{+/- 0.500} (Equiv. 1.75 in.)	Approx. Overall Length 44.45 mm _{+/ - 0.500} (Equiv. 1.75 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-044-CH-1E Dowel Pins - 9.525x44.45 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 44.45 mm _{+/- 0.500} (Equiv. 1.75 in.)	Approx. Overall Length 44.45 mm _{+/ - 0.500} (Equiv. 1.75 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-044-CH-1E Dowel Pins - 9.525x44.45 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP095-044-CH-1E --- Dowel Pins - 9.525x44.45 Extractable - Carbon Steel Rc 58-62 Pin DP095-044-CH-1E --- Dowel Pins - 9.525x44.45 Extractable - Carbon Steel Rc 58-62 Pin Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-051-CH-1E Dowel Pins - 9.525x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-051-CH-1E Dowel Pins - 9.525x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP095-051-CH-1E --- Dowel Pins - 9.525x50.8 Extractable - Carbon Steel Rc 58-62 Pin DP095-051-CH-1E --- Dowel Pins - 9.525x50.8 Extractable - Carbon Steel Rc 58-62 Pin Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 63.50 mm _{+/- 0.600} (Equiv. 2.5 in.)	Approx. Overall Length 63.50 mm _{+/ - 0.600} (Equiv. 2.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-064-CH-1E Dowel Pins - 9.525x63.5 Extractable - Carbon Steel Rc 58-62 Pin 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$3.65 AUD~~ Sale price $3.05 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 63.50 mm _{+/- 0.600} (Equiv. 2.5 in.)	Approx. Overall Length 63.50 mm _{+/ - 0.600} (Equiv. 2.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-064-CH-1E Dowel Pins - 9.525x63.5 Extractable - Carbon Steel Rc 58-62 Pin 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$3.65 AUD~~ Sale price $3.05 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
DP095-064-CH-1E --- Dowel Pins - 9.525x63.5 Extractable - Carbon Steel Rc 58-62 Pin Sale DP095-064-CH-1E --- Dowel Pins - 9.525x63.5 Extractable - Carbon Steel Rc 58-62 Pin Regular price $3.05 AUD Regular price ~~$3.65 AUD~~ Sale price $3.05 AUD Unit price per 10 Available Now Sale
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 76.20 mm _{+/- 0.600} (Equiv. 3 in.)	Approx. Overall Length 76.20 mm _{+/ - 0.600} (Equiv. 3 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-076-CH-1E (5 Pcs) Dowel Pins - 9.525x76.2 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $20.41 AUD Regular price ~~$24.49 AUD~~ Sale price $20.41 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Diameter (D) 9.525 mm _{+ 0.006 / + 0.015} (Equiv. 0.375 in.)	Length (L) 76.20 mm _{+/- 0.600} (Equiv. 3 in.)	Approx. Overall Length 76.20 mm _{+/ - 0.600} (Equiv. 3 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-076-CH-1E (5 Pcs) Dowel Pins - 9.525x76.2 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $20.41 AUD Regular price ~~$24.49 AUD~~ Sale price $20.41 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
DP095-076-CH-1E (5 Pcs) --- Dowel Pins - 9.525x76.2 Extractable - Carbon Steel Rc 58-62 Pin Sale DP095-076-CH-1E (5 Pcs) --- Dowel Pins - 9.525x76.2 Extractable - Carbon Steel Rc 58-62 Pin Regular price $20.41 AUD Regular price ~~$24.49 AUD~~ Sale price $20.41 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 11.113 mm _{+ 0.007 / + 0.018} (Equiv. 0.438 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP111-051-CH-1E Dowel Pins - 11.113x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $4.77 AUD Regular price ~~$5.73 AUD~~ Sale price $4.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 11.113 mm _{+ 0.007 / + 0.018} (Equiv. 0.438 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP111-051-CH-1E Dowel Pins - 11.113x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $4.77 AUD Regular price ~~$5.73 AUD~~ Sale price $4.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP111-051-CH-1E --- Dowel Pins - 11.113x50.8 Extractable - Carbon Steel Rc 58-62 Pin Sale DP111-051-CH-1E --- Dowel Pins - 11.113x50.8 Extractable - Carbon Steel Rc 58-62 Pin Regular price $4.77 AUD Regular price ~~$5.73 AUD~~ Sale price $4.77 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-025-CH-1E Dowel Pins - 12.7x25.4 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 25.40 mm _{+/- 0.420} (Equiv. 1 in.)	Approx. Overall Length 25.40 mm _{+/ - 0.420} (Equiv. 1 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-025-CH-1E Dowel Pins - 12.7x25.4 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP127-025-CH-1E --- Dowel Pins - 12.7x25.4 Extractable - Carbon Steel Rc 58-62 Pin DP127-025-CH-1E --- Dowel Pins - 12.7x25.4 Extractable - Carbon Steel Rc 58-62 Pin Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-038-CH-1E (20 Pcs) Dowel Pins - 12.7x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $97.05 AUD Regular price ~~$116.45 AUD~~ Sale price $97.05 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 38.10 mm _{+/- 0.500} (Equiv. 1.5 in.)	Approx. Overall Length 38.10 mm _{+/ - 0.500} (Equiv. 1.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-038-CH-1E (20 Pcs) Dowel Pins - 12.7x38.1 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $97.05 AUD Regular price ~~$116.45 AUD~~ Sale price $97.05 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
DP127-038-CH-1E (20 Pcs) --- Dowel Pins - 12.7x38.1 Extractable - Carbon Steel Rc 58-62 Pin Sale DP127-038-CH-1E (20 Pcs) --- Dowel Pins - 12.7x38.1 Extractable - Carbon Steel Rc 58-62 Pin Regular price $97.05 AUD Regular price ~~$116.45 AUD~~ Sale price $97.05 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 44.45 mm _{+/- 0.500} (Equiv. 1.75 in.)	Approx. Overall Length 44.45 mm _{+/ - 0.500} (Equiv. 1.75 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-044-CH-1E Dowel Pins - 12.7x44.45 Extractable - Carbon Steel Rc 58-62 Pin 8 Available Now \| Further orders can be expected around Fri, Sep 26, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 44.45 mm _{+/- 0.500} (Equiv. 1.75 in.)	Approx. Overall Length 44.45 mm _{+/ - 0.500} (Equiv. 1.75 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-044-CH-1E Dowel Pins - 12.7x44.45 Extractable - Carbon Steel Rc 58-62 Pin 8 Available Now \| Further orders can be expected around Fri, Sep 26, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
DP127-044-CH-1E --- Dowel Pins - 12.7x44.45 Extractable - Carbon Steel Rc 58-62 Pin DP127-044-CH-1E --- Dowel Pins - 12.7x44.45 Extractable - Carbon Steel Rc 58-62 Pin Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per 8 Available Now
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-051-CH-1E (20 Pcs) Dowel Pins - 12.7x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $266.23 AUD Regular price Sale price $266.23 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 50.80 mm _{+/- 0.600} (Equiv. 2 in.)	Approx. Overall Length 50.80 mm _{+/ - 0.600} (Equiv. 2 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-051-CH-1E (20 Pcs) Dowel Pins - 12.7x50.8 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $266.23 AUD Regular price Sale price $266.23 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
DP127-051-CH-1E (20 Pcs) --- Dowel Pins - 12.7x50.8 Extractable - Carbon Steel Rc 58-62 Pin DP127-051-CH-1E (20 Pcs) --- Dowel Pins - 12.7x50.8 Extractable - Carbon Steel Rc 58-62 Pin Regular price $266.23 AUD Regular price Sale price $266.23 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 63.50 mm _{+/- 0.600} (Equiv. 2.5 in.)	Approx. Overall Length 63.50 mm _{+/ - 0.600} (Equiv. 2.5 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-064-CH-1E (20 Pcs) Dowel Pins - 12.7x63.5 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $212.95 AUD Regular price Sale price $212.95 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 63.50 mm _{+/- 0.600} (Equiv. 2.5 in.)	Approx. Overall Length 63.50 mm _{+/ - 0.600} (Equiv. 2.5 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-064-CH-1E (20 Pcs) Dowel Pins - 12.7x63.5 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $212.95 AUD Regular price Sale price $212.95 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
DP127-064-CH-1E (20 Pcs) --- Dowel Pins - 12.7x63.5 Extractable - Carbon Steel Rc 58-62 Pin DP127-064-CH-1E (20 Pcs) --- Dowel Pins - 12.7x63.5 Extractable - Carbon Steel Rc 58-62 Pin Regular price $212.95 AUD Regular price Sale price $212.95 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 76.20 mm _{+/- 0.600} (Equiv. 3 in.)	Approx. Overall Length 76.20 mm _{+/ - 0.600} (Equiv. 3 in.)	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-076-CH-1E Dowel Pins - 12.7x76.2 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.86 AUD Regular price ~~$9.44 AUD~~ Sale price $7.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 12.700 mm _{+ 0.007 / + 0.018} (Equiv. 0.5 in.)	Length (L) 76.20 mm _{+/- 0.600} (Equiv. 3 in.)	Approx. Overall Length 76.20 mm _{+/ - 0.600} (Equiv. 3 in.)
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-076-CH-1E Dowel Pins - 12.7x76.2 Extractable - Carbon Steel Rc 58-62 Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.86 AUD Regular price ~~$9.44 AUD~~ Sale price $7.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DP127-076-CH-1E --- Dowel Pins - 12.7x76.2 Extractable - Carbon Steel Rc 58-62 Pin Sale DP127-076-CH-1E --- Dowel Pins - 12.7x76.2 Extractable - Carbon Steel Rc 58-62 Pin Regular price $7.86 AUD Regular price ~~$9.44 AUD~~ Sale price $7.86 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Pins - Dowel - Extractable - Carbon Steel

Category Details

Filter

Filter

Subscribe to our emails
