Collection: Pins - Clevis - Self Locking Zinc Plated

Pins -> Clevis -> Self Locking Zinc Plated

There are 33 products in the sub-categories of Pins - Clevis - Self Locking Zinc Plated. Scroll down or follow the link to Pins - Clevis - Self Locking Zinc Plated in the products table to see all these items combined into a handy table with filters.

Category Details

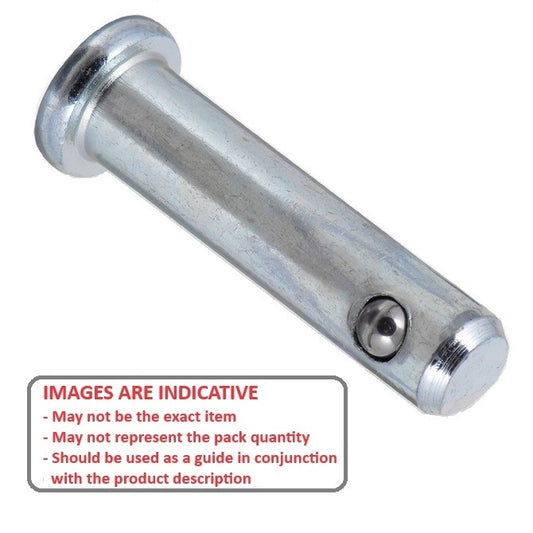

A selection of Self Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.

Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
Self locking and reusable with a spring loaded ball lock
Zinc plated low carbon steel with stainless steel ball

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pins - Clevis - Self Locking Zinc Plated category on the Small Parts & Bearings online store.

Nominal Pin Diameter (A)	Grip Length (EL)	Nom. Length (L)	Indicative Image
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 20.64 mm _{+ 0.51 / - 0.00} (Equiv. 0.813 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0206-CZ Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 46 Available Now \| Further orders can be expected around Tue, Feb 17, 2026 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 46 Available Now. Backorder if more than 46.
Nominal Pin Diameter (A)	Grip Length (EL)	Nom. Length (L)	Indicative Image
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 20.64 mm _{+ 0.51 / - 0.00} (Equiv. 0.813 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0206-CZ Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 46 Available Now \| Further orders can be expected around Tue, Feb 17, 2026 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 46 Available Now. Backorder if more than 46.
BLP-048-0206-CZ --- Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-048-0206-CZ --- Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 46 Available Now
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 33.34 mm _{+ 0.51 / - 0.00} (Equiv. 1.313 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 18889
Part Number: BLP-048-0333-CZ Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 62 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 62 Available Now. Backorder if more than 62.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 33.34 mm _{+ 0.51 / - 0.00} (Equiv. 1.313 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 18889
Part Number: BLP-048-0333-CZ Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 62 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 62 Available Now. Backorder if more than 62.
BLP-048-0333-CZ --- Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-048-0333-CZ --- Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 62 Available Now
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 46.04 mm _{+ 0.51 / - 0.00} (Equiv. 1.813 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 880
Part Number: BLP-048-0460-CZ (4 Pcs) Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 46.04 mm _{+ 0.51 / - 0.00} (Equiv. 1.813 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 880
Part Number: BLP-048-0460-CZ (4 Pcs) Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
BLP-048-0460-CZ (4 Pcs) --- Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-048-0460-CZ (4 Pcs) --- Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 58.74 mm _{+ 0.51 / - 0.00} (Equiv. 2.313 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 6034
Part Number: BLP-048-0587-CZ (5 Pcs) Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 58.74 mm _{+ 0.51 / - 0.00} (Equiv. 2.313 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 6034
Part Number: BLP-048-0587-CZ (5 Pcs) Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
BLP-048-0587-CZ (5 Pcs) --- Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-048-0587-CZ (5 Pcs) --- Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 71.44 mm _{+ 0.51 / - 0.00} (Equiv. 2.813 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 6051
Part Number: BLP-048-0714-CZ Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 21 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 21 Available Now. Backorder if more than 21.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 71.44 mm _{+ 0.51 / - 0.00} (Equiv. 2.813 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm Additional stock available from USA subject to Prior Sale = 6051
Part Number: BLP-048-0714-CZ Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 21 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 21 Available Now. Backorder if more than 21.
BLP-048-0714-CZ --- Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-048-0714-CZ --- Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 21 Available Now
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 19.05 mm _{+ 0.51 / - 0.00} (Equiv. 0.75 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 9632
Part Number: BLP-064-0191-CZ Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 68 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 68 Available Now. Backorder if more than 68.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 19.05 mm _{+ 0.51 / - 0.00} (Equiv. 0.75 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 9632
Part Number: BLP-064-0191-CZ Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 68 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 68 Available Now. Backorder if more than 68.
BLP-064-0191-CZ --- Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-064-0191-CZ --- Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 68 Available Now
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 31.75 mm _{+ 0.51 / - 0.00} (Equiv. 1.25 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 783
Part Number: BLP-064-0318-CZ (2 Pcs) Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 17 units (34 pcs) Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.95 AUD Regular price ~~$5.47 AUD~~ Sale price $2.95 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 17 units (34 pcs) Available Now. Backorder if more than 17.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 31.75 mm _{+ 0.51 / - 0.00} (Equiv. 1.25 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 783
Part Number: BLP-064-0318-CZ (2 Pcs) Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 17 units (34 pcs) Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.95 AUD Regular price ~~$5.47 AUD~~ Sale price $2.95 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 17 units (34 pcs) Available Now. Backorder if more than 17.
BLP-064-0318-CZ (2 Pcs) --- Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0318-CZ (2 Pcs) --- Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.95 AUD Regular price ~~$5.47 AUD~~ Sale price $2.95 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties 17 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 44.45 mm _{+ 0.51 / - 0.00} (Equiv. 1.75 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 4916
Part Number: BLP-064-0445-CZ Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 94 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 94 Available Now. Backorder if more than 94.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 44.45 mm _{+ 0.51 / - 0.00} (Equiv. 1.75 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 4916
Part Number: BLP-064-0445-CZ Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 94 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 94 Available Now. Backorder if more than 94.
BLP-064-0445-CZ --- Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-064-0445-CZ --- Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 94 Available Now
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 57.15 mm _{+ 0.51 / - 0.00} (Equiv. 2.25 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0572-CZ Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 9 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $2.32 AUD Regular price ~~$4.13 AUD~~ Sale price $2.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 9 Available Now. Backorder if more than 9.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 57.15 mm _{+ 0.51 / - 0.00} (Equiv. 2.25 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0572-CZ Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 9 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $2.32 AUD Regular price ~~$4.13 AUD~~ Sale price $2.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 9 Available Now. Backorder if more than 9.
BLP-064-0572-CZ --- Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0572-CZ --- Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.32 AUD Regular price ~~$4.13 AUD~~ Sale price $2.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 9 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 69.85 mm _{+ 0.51 / - 0.00} (Equiv. 2.75 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 421
Part Number: BLP-064-0699-CZ Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 91 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.41 AUD Regular price ~~$4.33 AUD~~ Sale price $2.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 91 Available Now. Backorder if more than 91.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 69.85 mm _{+ 0.51 / - 0.00} (Equiv. 2.75 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 421
Part Number: BLP-064-0699-CZ Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 91 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.41 AUD Regular price ~~$4.33 AUD~~ Sale price $2.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 91 Available Now. Backorder if more than 91.
BLP-064-0699-CZ --- Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0699-CZ --- Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.41 AUD Regular price ~~$4.33 AUD~~ Sale price $2.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 91 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 82.55 mm _{+ 0.51 / - 0.00} (Equiv. 3.25 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 1327
Part Number: BLP-064-0826-CZ Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 98 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.77 AUD Regular price ~~$4.93 AUD~~ Sale price $2.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 98 Available Now. Backorder if more than 98.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 82.55 mm _{+ 0.51 / - 0.00} (Equiv. 3.25 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 1327
Part Number: BLP-064-0826-CZ Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 98 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.77 AUD Regular price ~~$4.93 AUD~~ Sale price $2.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 98 Available Now. Backorder if more than 98.
BLP-064-0826-CZ --- Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0826-CZ --- Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.77 AUD Regular price ~~$4.93 AUD~~ Sale price $2.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 98 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 95.25 mm _{+ 0.51 / - 0.00} (Equiv. 3.75 in.)	Nom. Length (L) 101.60 mm _{+ 0.51 / - 0.00} (Equiv. 4 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 2762
Part Number: BLP-064-0953-CZ Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 20 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $3.05 AUD Regular price ~~$5.36 AUD~~ Sale price $3.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 20 Available Now. Backorder if more than 20.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 95.25 mm _{+ 0.51 / - 0.00} (Equiv. 3.75 in.)	Nom. Length (L) 101.60 mm _{+ 0.51 / - 0.00} (Equiv. 4 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 2762
Part Number: BLP-064-0953-CZ Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 20 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $3.05 AUD Regular price ~~$5.36 AUD~~ Sale price $3.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 20 Available Now. Backorder if more than 20.
BLP-064-0953-CZ --- Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0953-CZ --- Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.05 AUD Regular price ~~$5.36 AUD~~ Sale price $3.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 20 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 120.65 mm _{+ 0.51 / - 0.00} (Equiv. 4.75 in.)	Nom. Length (L) 127.00 mm _{+ 0.51 / - 0.00} (Equiv. 5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 6075
Part Number: BLP-064-1207-CZ Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 15 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $3.41 AUD Regular price ~~$6.11 AUD~~ Sale price $3.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 15 Available Now. Backorder if more than 15.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 120.65 mm _{+ 0.51 / - 0.00} (Equiv. 4.75 in.)	Nom. Length (L) 127.00 mm _{+ 0.51 / - 0.00} (Equiv. 5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm Additional stock available from USA subject to Prior Sale = 6075
Part Number: BLP-064-1207-CZ Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 15 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $3.41 AUD Regular price ~~$6.11 AUD~~ Sale price $3.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 15 Available Now. Backorder if more than 15.
BLP-064-1207-CZ --- Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-1207-CZ --- Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.41 AUD Regular price ~~$6.11 AUD~~ Sale price $3.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 15 Available Now Sale
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 8006
Part Number: BLP-079-0159-CZ (2 Pcs) Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 units (20 pcs) Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $3.86 AUD Regular price ~~$7.15 AUD~~ Sale price $3.86 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 10 units (20 pcs) Available Now. Backorder if more than 10.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 8006
Part Number: BLP-079-0159-CZ (2 Pcs) Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 units (20 pcs) Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $3.86 AUD Regular price ~~$7.15 AUD~~ Sale price $3.86 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 10 units (20 pcs) Available Now. Backorder if more than 10.
BLP-079-0159-CZ (2 Pcs) --- Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-079-0159-CZ (2 Pcs) --- Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.86 AUD Regular price ~~$7.15 AUD~~ Sale price $3.86 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 6274
Part Number: BLP-079-0286-CZ Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 6274
Part Number: BLP-079-0286-CZ Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
BLP-079-0286-CZ --- Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-079-0286-CZ --- Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 10 Available Now
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 41.27 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 7875
Part Number: BLP-079-0413-CZ Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 6 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 6 Available Now. Backorder if more than 6.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 41.27 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 7875
Part Number: BLP-079-0413-CZ Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 6 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 6 Available Now. Backorder if more than 6.
BLP-079-0413-CZ --- Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-079-0413-CZ --- Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 6 Available Now
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 2414
Part Number: BLP-079-0540-CZ (3 Pcs) Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 2414
Part Number: BLP-079-0540-CZ (3 Pcs) Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
BLP-079-0540-CZ (3 Pcs) --- Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-079-0540-CZ (3 Pcs) --- Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 3042
Part Number: BLP-079-0667-CZ Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 45 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 45 Available Now. Backorder if more than 45.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 3042
Part Number: BLP-079-0667-CZ Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 45 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 45 Available Now. Backorder if more than 45.
BLP-079-0667-CZ --- Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-079-0667-CZ --- Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 45 Available Now
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 79.37 mm _{+ 0.51 / - 0.00} (Equiv. 3.125 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 3856
Part Number: BLP-079-0794-CZ Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.86 AUD Regular price ~~$6.39 AUD~~ Sale price $2.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 79.37 mm _{+ 0.51 / - 0.00} (Equiv. 3.125 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 3856
Part Number: BLP-079-0794-CZ Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.86 AUD Regular price ~~$6.39 AUD~~ Sale price $2.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
BLP-079-0794-CZ --- Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-079-0794-CZ --- Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.86 AUD Regular price ~~$6.39 AUD~~ Sale price $2.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 747
Part Number: BLP-095-0159-CZ Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm Additional stock available from USA subject to Prior Sale = 747
Part Number: BLP-095-0159-CZ Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
BLP-095-0159-CZ --- Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-095-0159-CZ --- Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 686
Part Number: BLP-095-0286-CZ Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.86 AUD Regular price ~~$5.10 AUD~~ Sale price $2.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 686
Part Number: BLP-095-0286-CZ Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $2.86 AUD Regular price ~~$5.10 AUD~~ Sale price $2.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
BLP-095-0286-CZ --- Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-095-0286-CZ --- Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.86 AUD Regular price ~~$5.10 AUD~~ Sale price $2.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 41.28 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 1894
Part Number: BLP-095-0413-CZ Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 80 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 80 Available Now. Backorder if more than 80.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 41.28 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 1894
Part Number: BLP-095-0413-CZ Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 80 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 80 Available Now. Backorder if more than 80.
BLP-095-0413-CZ --- Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-095-0413-CZ --- Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 80 Available Now
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 823
Part Number: BLP-095-0540-CZ (3 Pcs) Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 823
Part Number: BLP-095-0540-CZ (3 Pcs) Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
BLP-095-0540-CZ (3 Pcs) --- Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-095-0540-CZ (3 Pcs) --- Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 2123
Part Number: BLP-095-0667-CZ Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 40 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 40 Available Now. Backorder if more than 40.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm Additional stock available from USA subject to Prior Sale = 2123
Part Number: BLP-095-0667-CZ Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 40 Available Now \| Further orders can be expected around Tue, Dec 02, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 40 Available Now. Backorder if more than 40.
BLP-095-0667-CZ --- Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-095-0667-CZ --- Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 40 Available Now

Country/region

Miniature Bearings Australia

Collection: Pins - Clevis - Self Locking Zinc Plated

Category Details

Filter

Filter

Subscribe to our emails
