Mounts - Rectangular 4 Bolt

2 Products in this selection
  • Rectangular elastomer component bonded with two steel plates.
  • Low installation height provides good stability.
  • Effectively isolates against horizontal and vertical vibrations.
  • High deflection capacity in horiziontal direction whilst deflection is low in vertical.
  • Oil and grease resistant.
  • Meets OSHA anchoring standards. Ideal use in presses, blowers, pumps, vibrators, rolling mills, crushers etc.
Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
A more concise listing may be found on the Smallparts store at Mounts - Rectangular 4 Bolt. Smallparts promote the most popular MBA products.

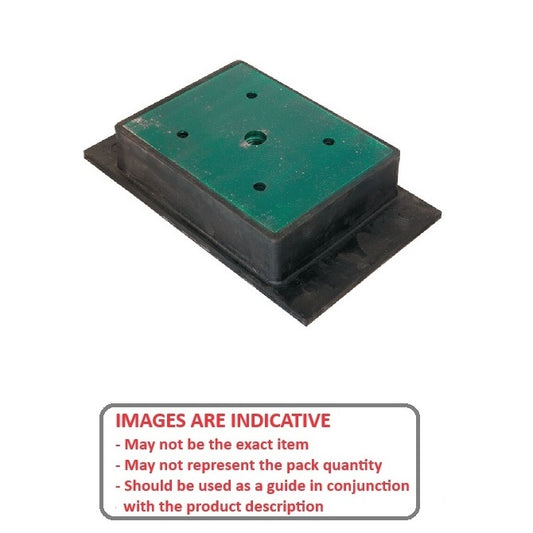

Max Load Length Width Height Plate Length Plate Width Indicative
Max Load
4535.9
Kg
Length
263.53
mm
Width
180.98
mm
Height
57.15
mm
Plate Length
215.9
mm
Plate Width
127.0
mm
1222055 | MR4-4536 --- Rectangular 4 Bolt Mounts - 4535.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Material: Steel and Neoprene
Part Number: MR4-4536 Rectangular 4 Bolt Mounts - 4535.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Out of Stock | Backorder Now | Orders can be expected around Wed, May 21, 2025
$1,243.59 AUD
$1,243.59 AUD
Each
Max Load Length Width Height Indicative
Max Load
4535.9
Kg
Length
263.53
mm
Width
180.98
mm
Height
57.15
mm
1222055 | MR4-4536 --- Rectangular 4 Bolt Mounts - 4535.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Material: Steel and Neoprene    Plate Length: 215.9 mm    Plate Width: 127.0 mm
Part Number: MR4-4536 Rectangular 4 Bolt Mounts - 4535.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Out of Stock | Backorder Now | Orders can be expected around Wed, May 21, 2025
$1,243.59 AUD
$1,243.59 AUD
Each
View the product page first if you are unsure.
Max Load
6803.9
Kg
Length
263.53
mm
Width
180.98
mm
Height
57.15
mm
Plate Length
215.9
mm
Plate Width
127.0
mm

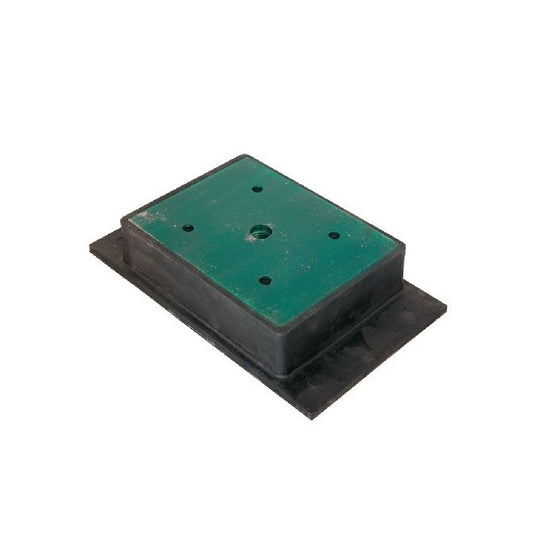

1224113 | MR4-6804 --- Rectangular 4 Bolt Mounts - 6803.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Material: Steel and Neoprene
Part Number: MR4-6804 Rectangular 4 Bolt Mounts - 6803.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Out of Stock | Backorder Now | Orders can be expected around Wed, May 21, 2025
$1,282.41 AUD
$1,282.41 AUD
Each
Max Load
6803.9
Kg
Length
263.53
mm
Width
180.98
mm
Height
57.15
mm
1224113 | MR4-6804 --- Rectangular 4 Bolt Mounts - 6803.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Material: Steel and Neoprene    Plate Length: 215.9 mm    Plate Width: 127.0 mm
Part Number: MR4-6804 Rectangular 4 Bolt Mounts - 6803.9 Kg - 263.53x180.98 mm - Steel and Neoprene
Out of Stock | Backorder Now | Orders can be expected around Wed, May 21, 2025
$1,282.41 AUD
$1,282.41 AUD
Each
View the product page first if you are unsure.
