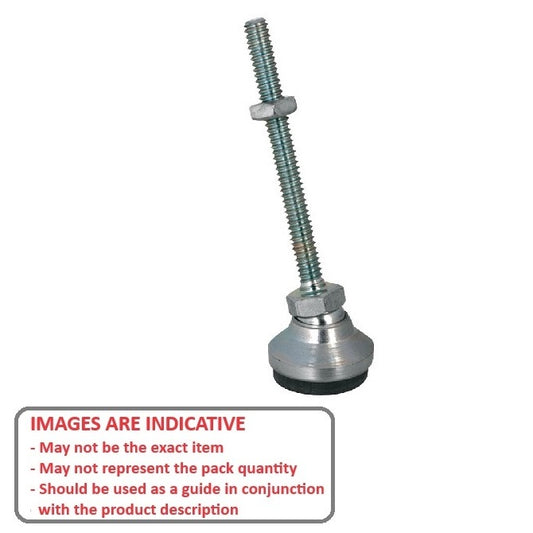

Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded

8 Products in this selection
  • Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
128.2
mm
Thread Length (F)
31.8
mm
Base Height (E)
7.14
mm
Overall Height
160.0
mm
1072561 | MSM-064C-032-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Material: Steel    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$769.86 AUD
$769.86 AUD
Per 25
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
128.2
mm
Thread Length (F)
31.8
mm
1072561 | MSM-064C-032-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Material: Steel    Base Height (E): 7.14 mm    Overall Height: 160.0 mm    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$769.86 AUD
$769.86 AUD
Per 25
View the product page first if you are unsure.
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
128.2
mm
Thread Length (F)
63.5
mm
Base Height (E)
7.14
mm
Overall Height
191.7
mm
1072563 | MSM-064C-064-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Material: Steel    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-064-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$961.05 AUD
$961.05 AUD
Per 25
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
128.2
mm
Thread Length (F)
63.5
mm
1072563 | MSM-064C-064-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Material: Steel    Base Height (E): 7.14 mm    Overall Height: 191.7 mm    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-064-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$961.05 AUD
$961.05 AUD
Per 25
View the product page first if you are unsure.
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
25.4
mm
Thread Length (F)
101.6
mm
Base Height (E)
7.93
mm
Overall Height
127.0
mm
1089906 | MSM-095C-102-CCCRP --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Material: Steel    Load Rating: 1300 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-CCCRP Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$42.23 AUD
$42.23 AUD
Each
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
25.4
mm
Thread Length (F)
101.6
mm
1089906 | MSM-095C-102-CCCRP --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Material: Steel    Base Height (E): 7.93 mm    Overall Height: 127.0 mm    Load Rating: 1300 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-CCCRP Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$42.23 AUD
$42.23 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
31.8
mm
Thread Length (F)
101.6
mm
Base Height (E)
9.53
mm
Overall Height
133.4
mm
1102440 | MSM-127C-102-CCCRP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Material: Steel    Load Rating: 1730 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-CCCRP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$46.14 AUD
$46.14 AUD
Each
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
31.8
mm
Thread Length (F)
101.6
mm
1102440 | MSM-127C-102-CCCRP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Material: Steel    Base Height (E): 9.53 mm    Overall Height: 133.4 mm    Load Rating: 1730 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-CCCRP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$46.14 AUD
$46.14 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
34.9
mm
Thread Length (F)
101.6
mm
Base Height (E)
11.10
mm
Overall Height
136.5
mm
1111598 | MSM-159C-102-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Load Rating: 2100 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$106.05 AUD
$106.05 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
34.9
mm
Thread Length (F)
101.6
mm
1111598 | MSM-159C-102-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Base Height (E): 11.10 mm    Overall Height: 136.5 mm    Load Rating: 2100 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$106.05 AUD
$106.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
34.9
mm
Thread Length (F)
50.8
mm
Base Height (E)
11.10
mm
Overall Height
85.7
mm
1113392 | MSM-159C-051-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Load Rating: 2100 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$82.32 AUD
$82.32 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
34.9
mm
Thread Length (F)
50.8
mm
1113392 | MSM-159C-051-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Base Height (E): 11.10 mm    Overall Height: 85.7 mm    Load Rating: 2100 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$82.32 AUD
$82.32 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
41.3
mm
Thread Length (F)
101.6
mm
Base Height (E)
15.88
mm
Overall Height
142.9
mm

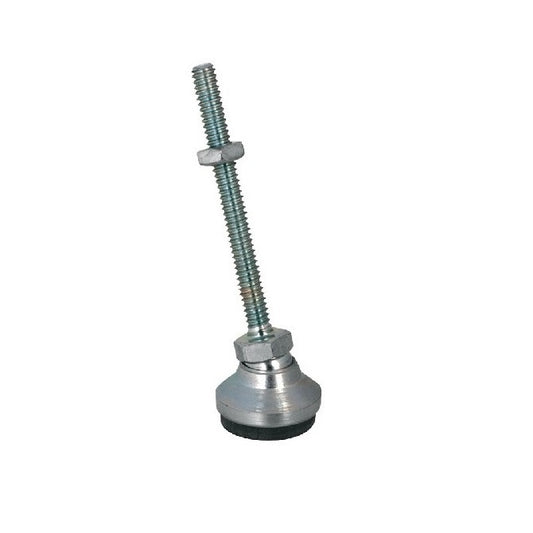

1120994 | MSM-191C-102-CCCRP --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel
Material: Steel    Load Rating: 2520 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-102-CCCRP Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$139.32 AUD
$139.32 AUD
Each
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
41.3
mm
Thread Length (F)
101.6
mm
1120994 | MSM-191C-102-CCCRP --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel
Material: Steel    Base Height (E): 15.88 mm    Overall Height: 142.9 mm    Load Rating: 2520 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-102-CCCRP Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$139.32 AUD
$139.32 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
50.8
mm
Thread Length (F)
203.2
mm
Base Height (E)
30.94
mm
Overall Height
254.0
mm
1136474 | MSM-254C-203-CCCRP --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x50.8 mm - Steel
Material: Steel    Load Rating: 7660 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-203-CCCRP Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x50.8 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$319.59 AUD
$319.59 AUD
Each
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
50.8
mm
Thread Length (F)
203.2
mm
1136474 | MSM-254C-203-CCCRP --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x50.8 mm - Steel
Material: Steel    Base Height (E): 30.94 mm    Overall Height: 254.0 mm    Load Rating: 7660 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-203-CCCRP Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x50.8 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$319.59 AUD
$319.59 AUD
Each
View the product page first if you are unsure.
