Mounts - Levelling Studded - Swivel - 303 Stainless - Standard

17 Products in this selection

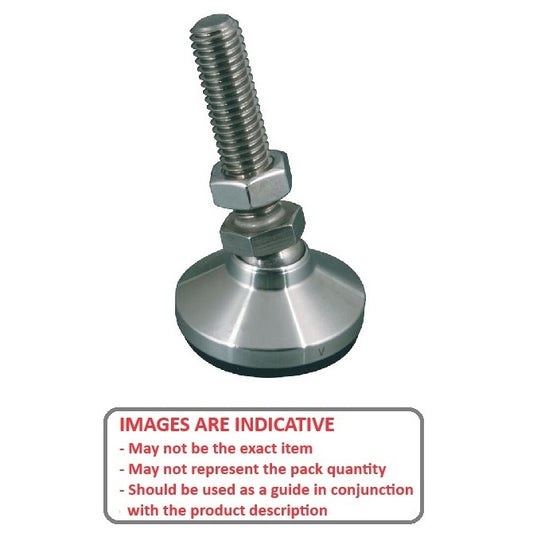

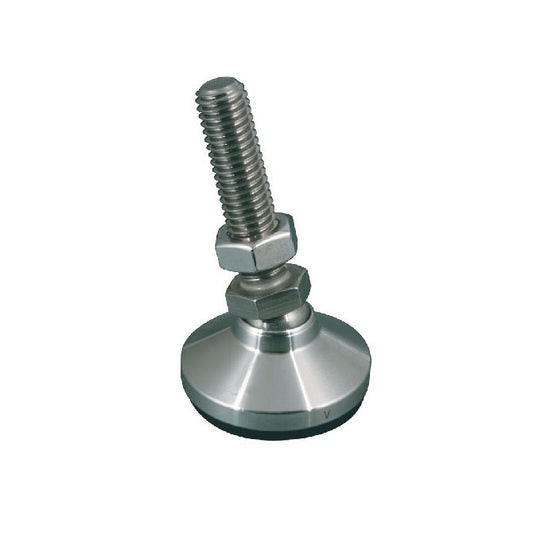

  • Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - 303 Stainless - Standard. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Thread Length (F)
25.4
mm
Base Height (E)
2.78
mm
Overall Height
38.9
mm
1056372 | MSM-048F-025-S3 (25 Pcs) --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 410 Kg    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-025-S3 (25 Pcs) Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$594.86 AUD
$594.86 AUD
Per 25
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Thread Length (F)
25.4
mm
1056372 | MSM-048F-025-S3 (25 Pcs) --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 2.78 mm    Overall Height: 38.9 mm    Load Rating: 410 Kg    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-025-S3 (25 Pcs) Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$594.86 AUD
$594.86 AUD
Per 25
View the product page first if you are unsure.
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Thread Length (F)
50.8
mm
Base Height (E)
2.78
mm
Overall Height
64.3
mm
1056389 | MSM-048F-051-S3 --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 315 Kg    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-051-S3 Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$27.59 AUD
$27.59 AUD
Each
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Thread Length (F)
50.8
mm
1056389 | MSM-048F-051-S3 --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 2.78 mm    Overall Height: 64.3 mm    Load Rating: 315 Kg    Hex Flats (B): 9.525 mm
Part Number: MSM-048F-051-S3 Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$27.59 AUD
$27.59 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.0
mm
Foot Height (C)
13.0
mm
Thread Length (F)
25.0
mm
Base Height (E)
3.00
mm
Overall Height
38.0
mm
1067171 | MSM-060M-025-S3 --- Levelling Studded Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 315 Kg    Hex Flats (B): 10.000 mm
Part Number: MSM-060M-025-S3 Levelling Studded Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$24.68 AUD
$24.68 AUD
Each
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.0
mm
Foot Height (C)
13.0
mm
Thread Length (F)
25.0
mm
1067171 | MSM-060M-025-S3 --- Levelling Studded Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.00 mm    Overall Height: 38.0 mm    Load Rating: 315 Kg    Hex Flats (B): 10.000 mm
Part Number: MSM-060M-025-S3 Levelling Studded Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$24.68 AUD
$24.68 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
17.9
mm
Thread Length (F)
31.8
mm
Base Height (E)
3.97
mm
Overall Height
49.7
mm
1072503 | MSM-064C-032-S3 --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 670 Kg    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-S3 Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$35.50 AUD
$35.50 AUD
Each
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
17.9
mm
Thread Length (F)
31.8
mm
1072503 | MSM-064C-032-S3 --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.97 mm    Overall Height: 49.7 mm    Load Rating: 670 Kg    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-S3 Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$35.50 AUD
$35.50 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
17.9
mm
Thread Length (F)
63.5
mm
Base Height (E)
3.97
mm
Overall Height
81.4
mm
1074290 | MSM-064C-064-S3 --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 500 Kg    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-064-S3 Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$37.59 AUD
$37.59 AUD
Each
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
17.9
mm
Thread Length (F)
63.5
mm
1074290 | MSM-064C-064-S3 --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.97 mm    Overall Height: 81.4 mm    Load Rating: 500 Kg    Hex Flats (B): 12.700 mm
Part Number: MSM-064C-064-S3 Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$37.59 AUD
$37.59 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Thread Length (F)
101.6
mm
Base Height (E)
4.76
mm
Overall Height
123.8
mm
1088104 | MSM-095C-102-S3 --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1700 Kg    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-S3 Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$74.68 AUD
$74.68 AUD
Each
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Thread Length (F)
101.6
mm
1088104 | MSM-095C-102-S3 --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 4.76 mm    Overall Height: 123.8 mm    Load Rating: 1700 Kg    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-S3 Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$74.68 AUD
$74.68 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Thread Length (F)
50.8
mm
Base Height (E)
4.76
mm
Overall Height
73.0
mm
1089895 | MSM-095C-051-S3 --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1700 Kg    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S3 Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$57.05 AUD
$57.05 AUD
Each
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Thread Length (F)
50.8
mm
1089895 | MSM-095C-051-S3 --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 4.76 mm    Overall Height: 73.0 mm    Load Rating: 1700 Kg    Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S3 Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$57.05 AUD
$57.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M10 (10x1.5mm)
Base Diameter (D)
32.0
mm
Foot Height (C)
22.0
mm
Thread Length (F)
51.0
mm
Base Height (E)
5.00
mm
Overall Height
73.0
mm
1093759 | MSM-100M-051-S3 (25 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1700 Kg    Hex Flats (B): 16.000 mm
Part Number: MSM-100M-051-S3 (25 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$1,034.41 AUD
$1,034.41 AUD
Per 25
Thread Size (A)
M10 (10x1.5mm)
Base Diameter (D)
32.0
mm
Foot Height (C)
22.0
mm
Thread Length (F)
51.0
mm
1093759 | MSM-100M-051-S3 (25 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 5.00 mm    Overall Height: 73.0 mm    Load Rating: 1700 Kg    Hex Flats (B): 16.000 mm
Part Number: MSM-100M-051-S3 (25 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$1,034.41 AUD
$1,034.41 AUD
Per 25
View the product page first if you are unsure.
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Thread Length (F)
101.6
mm
Base Height (E)
6.35
mm
Overall Height
130.2
mm
1102412 | MSM-127C-102-S3 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 2270 Kg    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-S3 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$87.95 AUD
$87.95 AUD
Each
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Thread Length (F)
101.6
mm
1102412 | MSM-127C-102-S3 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 6.35 mm    Overall Height: 130.2 mm    Load Rating: 2270 Kg    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-S3 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$87.95 AUD
$87.95 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Thread Length (F)
50.8
mm
Base Height (E)
6.35
mm
Overall Height
79.4
mm
1102432 | MSM-127C-051-S3 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 2270 Kg    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-051-S3 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$83.50 AUD
$83.50 AUD
Each
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Thread Length (F)
50.8
mm
1102432 | MSM-127C-051-S3 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 6.35 mm    Overall Height: 79.4 mm    Load Rating: 2270 Kg    Hex Flats (B): 19.050 mm
Part Number: MSM-127C-051-S3 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$83.50 AUD
$83.50 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Thread Length (F)
50.8
mm
Base Height (E)
7.94
mm
Overall Height
82.6
mm
1111588 | MSM-159C-051-S3 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 2720 Kg    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-S3 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$99.23 AUD
$99.23 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Thread Length (F)
50.8
mm
1111588 | MSM-159C-051-S3 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 7.94 mm    Overall Height: 82.6 mm    Load Rating: 2720 Kg    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-S3 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$99.23 AUD
$99.23 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Thread Length (F)
101.6
mm
Base Height (E)
7.94
mm
Overall Height
133.4
mm
1113366 | MSM-159C-102-S3 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 2720 Kg    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-S3 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$86.59 AUD
$86.59 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Thread Length (F)
101.6
mm
1113366 | MSM-159C-102-S3 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 7.94 mm    Overall Height: 133.4 mm    Load Rating: 2720 Kg    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-S3 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$86.59 AUD
$86.59 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Thread Length (F)
101.6
mm
Base Height (E)
12.70
mm
Overall Height
139.7
mm
1120964 | MSM-191C-102-S3 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 3270 Kg    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-102-S3 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$202.32 AUD
$202.32 AUD
Each
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Thread Length (F)
101.6
mm
1120964 | MSM-191C-102-S3 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 12.70 mm    Overall Height: 139.7 mm    Load Rating: 3270 Kg    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-102-S3 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$202.32 AUD
$202.32 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Thread Length (F)
50.8
mm
Base Height (E)
12.70
mm
Overall Height
88.9
mm
1122775 | MSM-191C-051-S3 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 3270 Kg    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-051-S3 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$177.05 AUD
$177.05 AUD
Each
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Thread Length (F)
50.8
mm
1122775 | MSM-191C-051-S3 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 12.70 mm    Overall Height: 88.9 mm    Load Rating: 3270 Kg    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-051-S3 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$177.05 AUD
$177.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M20 (20x2.5mm)
Base Diameter (D)
76.0
mm
Foot Height (C)
38.0
mm
Thread Length (F)
51.0
mm
Base Height (E)
13.00
mm
Overall Height
89.0
mm
1124084 | MSM-200M-051-S3 (25 Pcs) --- Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 3350 Kg    Hex Flats (B): 27.000 mm
Part Number: MSM-200M-051-S3 (25 Pcs) Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$4,500.32 AUD
$4,500.32 AUD
Per 25
Thread Size (A)
M20 (20x2.5mm)
Base Diameter (D)
76.0
mm
Foot Height (C)
38.0
mm
Thread Length (F)
51.0
mm
1124084 | MSM-200M-051-S3 (25 Pcs) --- Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 13.00 mm    Overall Height: 89.0 mm    Load Rating: 3350 Kg    Hex Flats (B): 27.000 mm
Part Number: MSM-200M-051-S3 (25 Pcs) Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$4,500.32 AUD
$4,500.32 AUD
Per 25
View the product page first if you are unsure.
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Thread Length (F)
108.0
mm
Base Height (E)
10.32
mm
Overall Height
155.6
mm
1134634 | MSM-254C-108-S3 --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 9980 Kg    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-108-S3 Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$430.32 AUD
$430.32 AUD
Each
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Thread Length (F)
108.0
mm
1134634 | MSM-254C-108-S3 --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 10.32 mm    Overall Height: 155.6 mm    Load Rating: 9980 Kg    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-108-S3 Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$430.32 AUD
$430.32 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Thread Length (F)
203.2
mm
Base Height (E)
10.32
mm
Overall Height
250.8
mm
1136464 | MSM-254C-203-S3 (25 Pcs) --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 9980 Kg    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-203-S3 (25 Pcs) Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$8,323.59 AUD
$8,323.59 AUD
Per 25
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Thread Length (F)
203.2
mm
1136464 | MSM-254C-203-S3 (25 Pcs) --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 10.32 mm    Overall Height: 250.8 mm    Load Rating: 9980 Kg    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-203-S3 (25 Pcs) Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$8,323.59 AUD
$8,323.59 AUD
Per 25
View the product page first if you are unsure.
