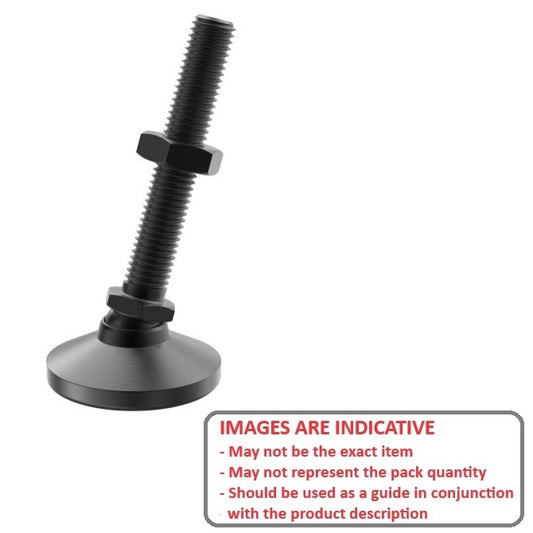

Mounts - Levelling Studded - Standard - Black Chromate

4 Products in this selection
  • Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
  • Load is distributed over 120o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
  • Zinc plated steel with case hardened ball.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Standard - Black Chromate. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Thread Length (F)
50.8
mm
Base Height (E)
4.75
mm
Overall Height
73.0
mm
1089887 | MLM-095C-051-CBC --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Load Rating: 1700 Kg    Finish: Black Chromate    Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CBC Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$38.05 AUD
$38.05 AUD
Each
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Thread Length (F)
50.8
mm
1089887 | MLM-095C-051-CBC --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Base Height (E): 4.75 mm    Overall Height: 73.0 mm    Load Rating: 1700 Kg    Finish: Black Chromate    Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CBC Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$38.05 AUD
$38.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Thread Length (F)
50.8
mm
Base Height (E)
6.35
mm
Overall Height
79.4
mm
1104216 | MLM-127C-051-CBC --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Material: Steel    Load Rating: 2270 Kg    Finish: Black Chromate    Hex Flats (B): 19.050 mm
Part Number: MLM-127C-051-CBC Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$52.86 AUD
$52.86 AUD
Each
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Thread Length (F)
50.8
mm
1104216 | MLM-127C-051-CBC --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Material: Steel    Base Height (E): 6.35 mm    Overall Height: 79.4 mm    Load Rating: 2270 Kg    Finish: Black Chromate    Hex Flats (B): 19.050 mm
Part Number: MLM-127C-051-CBC Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$52.86 AUD
$52.86 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Thread Length (F)
50.8
mm
Base Height (E)
7.93
mm
Overall Height
82.6
mm

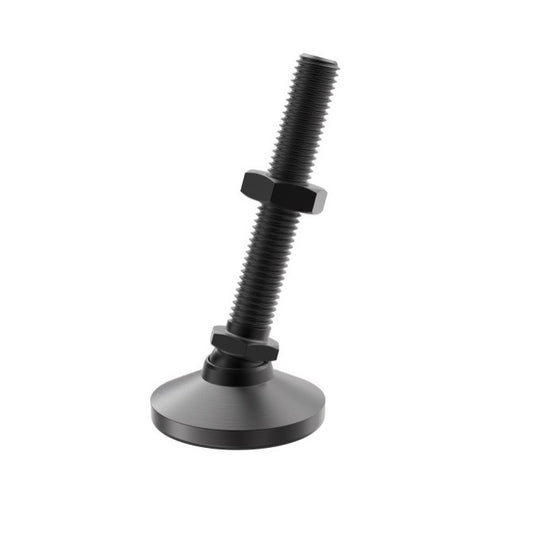

1113377 | MLM-159C-051-CBC --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Load Rating: 2720 Kg    Finish: Black Chromate    Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CBC Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$74.05 AUD
$74.05 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Thread Length (F)
50.8
mm
1113377 | MLM-159C-051-CBC --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Base Height (E): 7.93 mm    Overall Height: 82.6 mm    Load Rating: 2720 Kg    Finish: Black Chromate    Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CBC Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$74.05 AUD
$74.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Thread Length (F)
50.8
mm
Base Height (E)
12.70
mm
Overall Height
88.9
mm
1120983 | MLM-191C-051-CBC --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Black Chromate    Hex Flats (B): 26.975 mm
Part Number: MLM-191C-051-CBC Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$253.68 AUD
$253.68 AUD
Each
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Thread Length (F)
50.8
mm
1120983 | MLM-191C-051-CBC --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 88.9 mm    Load Rating: 3270 Kg    Finish: Black Chromate    Hex Flats (B): 26.975 mm
Part Number: MLM-191C-051-CBC Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 22, 2025
$253.68 AUD
$253.68 AUD
Each
View the product page first if you are unsure.
