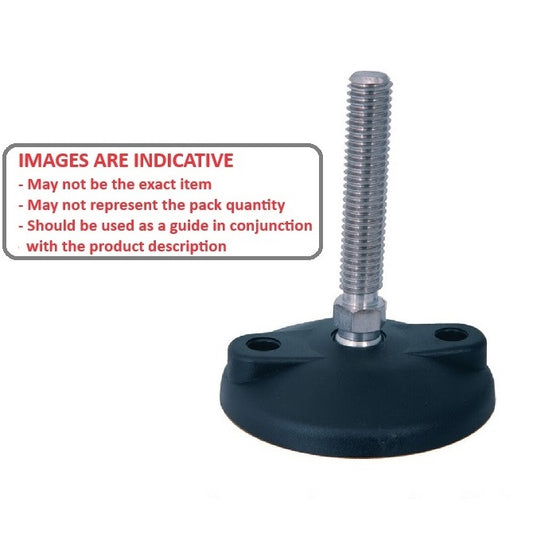

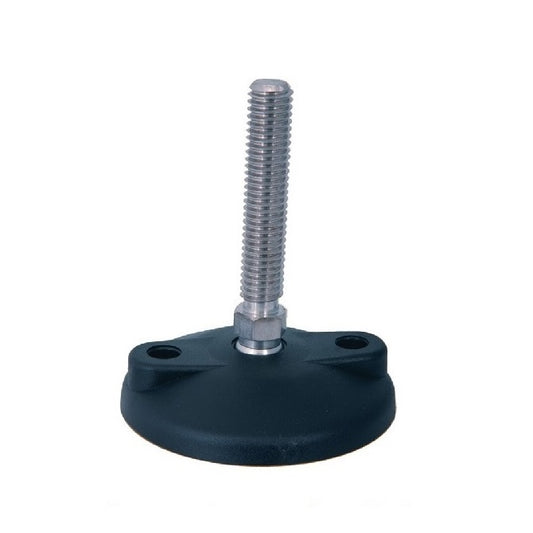

Collection: Mounts - Levelling Studded - Light Duty - Nylon - With Lag Holes

Mounts (With Images)

Levelling Studded

Light Duty

Nylon

Loc A Lign
No Lag Holes
With Lag Holes

21 Products in this selection

Levelling adjusters. Steel and stainless steel threads.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Light Duty - Nylon - With Lag Holes. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (C)	Overall Height (L)
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm	Base Height (C) 29.97 mm	Overall Height (L) 79.8 mm
Material: Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-095C-062-CNY-2LH Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $43.95 AUD Regular price Sale price $43.95 AUD Unit price per Each
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 79.8 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-095C-062-CNY-2LH Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $43.95 AUD Regular price Sale price $43.95 AUD Unit price per Each View the product page first if you are unsure.
MLM-095C-062-CNY-2LH --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Steel MLM-095C-062-CNY-2LH --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Steel Regular price $43.95 AUD Regular price Sale price $43.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm	Base Height (C) 29.97 mm	Overall Height (L) 79.8 mm
Material: Stainless Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-095C-062-S3NY-2LH Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 79.8 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-095C-062-S3NY-2LH Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Each View the product page first if you are unsure.
MLM-095C-062-S3NY-2LH --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Stainless Steel MLM-095C-062-S3NY-2LH --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 78.7x18.3 mm - Stainless Steel Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 125.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 143.3 mm
Material: Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-125-CNY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 125.0 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 143.3 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-125-CNY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-125-CNY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel MLM-127C-125-CNY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm	Base Height (C) 29.97 mm	Overall Height (L) 79.8 mm
Material: Stainless Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-062-S3NY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $51.32 AUD Regular price Sale price $51.32 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 79.8 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-062-S3NY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $51.32 AUD Regular price Sale price $51.32 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-062-S3NY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel MLM-127C-062-S3NY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel Regular price $51.32 AUD Regular price Sale price $51.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm	Base Height (C) 29.97 mm	Overall Height (L) 79.8 mm
Material: Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-062-CNY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 61.5 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 79.8 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-062-CNY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-062-CNY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel MLM-127C-062-CNY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Steel Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 125.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 143.3 mm
Material: Stainless Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-125-S3NY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $80.41 AUD Regular price Sale price $80.41 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 125.0 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 143.3 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-127C-125-S3NY-2LH Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $80.41 AUD Regular price Sale price $80.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-125-S3NY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel MLM-127C-125-S3NY-2LH --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 78.7x18.3 mm - Stainless Steel Regular price $80.41 AUD Regular price Sale price $80.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 124.9 mm	Base Height (C) 29.97 mm	Overall Height (L) 143.2 mm
Material: Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-159C-125-CNY-2LH Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $65.41 AUD Regular price Sale price $65.41 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 124.9 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 143.2 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-159C-125-CNY-2LH Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $65.41 AUD Regular price Sale price $65.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-125-CNY-2LH --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Steel MLM-159C-125-CNY-2LH --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Steel Regular price $65.41 AUD Regular price Sale price $65.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 124.9 mm	Base Height (C) 29.97 mm	Overall Height (L) 143.2 mm
Material: Stainless Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-159C-125-S3NY-2LH Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $109.41 AUD Regular price Sale price $109.41 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 124.9 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 143.2 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-159C-125-S3NY-2LH Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $109.41 AUD Regular price Sale price $109.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-125-S3NY-2LH --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Stainless Steel MLM-159C-125-S3NY-2LH --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 78.7x18.3 mm - Stainless Steel Regular price $109.41 AUD Regular price Sale price $109.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 123.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 141.3 mm
Material: Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-123-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $76.41 AUD Regular price Sale price $76.41 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 123.0 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 141.3 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-123-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $76.41 AUD Regular price Sale price $76.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-123-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel MLM-160M-123-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel Regular price $76.41 AUD Regular price Sale price $76.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 64.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 82.3 mm
Material: Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-064-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $61.05 AUD Regular price Sale price $61.05 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 64.0 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 82.3 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-064-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $61.05 AUD Regular price Sale price $61.05 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-064-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel MLM-160M-064-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Steel Regular price $61.05 AUD Regular price Sale price $61.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 97.8 mm	Foot Height (C) 18.3 mm	Thread Length (F) 168.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 186.3 mm
Material: Steel Load Rating: 1180 Kg Swivel Angle: 20 ° Lag Hole Diameter: 12.192 mm Distance Between Lags: 73.91 mm
Part Number: MLM-160M-168-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $92.41 AUD Regular price Sale price $92.41 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 97.8 mm	Foot Height (C) 18.3 mm	Thread Length (F) 168.0 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 186.3 mm Load Rating: 1180 Kg Swivel Angle: 20 ° Lag Hole Diameter: 12.192 mm Distance Between Lags: 73.91 mm
Part Number: MLM-160M-168-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $92.41 AUD Regular price Sale price $92.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-168-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel MLM-160M-168-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel Regular price $92.41 AUD Regular price Sale price $92.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 123.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 141.3 mm
Material: Stainless Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-123-S3NY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 123.0 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 141.3 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-123-S3NY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-123-S3NY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel MLM-160M-123-S3NY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 64.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 82.3 mm
Material: Stainless Steel Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-064-S3NY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $78.77 AUD Regular price Sale price $78.77 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 78.7 mm	Foot Height (C) 18.3 mm	Thread Length (F) 64.0 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 82.3 mm Load Rating: 900 Kg Swivel Angle: 20 ° Lag Hole Diameter: 9.144 mm Distance Between Lags: 54.61 mm
Part Number: MLM-160M-064-S3NY-2LH Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $78.77 AUD Regular price Sale price $78.77 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-064-S3NY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel MLM-160M-064-S3NY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 78.7x18.3 mm - Stainless Steel Regular price $78.77 AUD Regular price Sale price $78.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 97.8 mm	Foot Height (C) 18.3 mm	Thread Length (F) 168.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 186.3 mm
Material: Stainless Steel Load Rating: 1180 Kg Swivel Angle: 20 ° Lag Hole Diameter: 12.192 mm Distance Between Lags: 73.91 mm
Part Number: MLM-160M-168-S3NY-2LH Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $137.77 AUD Regular price Sale price $137.77 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 97.8 mm	Foot Height (C) 18.3 mm	Thread Length (F) 168.0 mm
Material: Stainless Steel Base Height (C): 29.97 mm Overall Height (L): 186.3 mm Load Rating: 1180 Kg Swivel Angle: 20 ° Lag Hole Diameter: 12.192 mm Distance Between Lags: 73.91 mm
Part Number: MLM-160M-168-S3NY-2LH Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $137.77 AUD Regular price Sale price $137.77 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-168-S3NY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Stainless Steel MLM-160M-168-S3NY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Stainless Steel Regular price $137.77 AUD Regular price Sale price $137.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 97.8 mm	Foot Height (C) 18.3 mm	Thread Length (F) 88.0 mm	Base Height (C) 29.97 mm	Overall Height (L) 106.3 mm
Material: Steel Load Rating: 1180 Kg Swivel Angle: 20 ° Lag Hole Diameter: 12.192 mm Distance Between Lags: 73.91 mm
Part Number: MLM-160M-088-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $72.14 AUD Regular price Sale price $72.14 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 97.8 mm	Foot Height (C) 18.3 mm	Thread Length (F) 88.0 mm
Material: Steel Base Height (C): 29.97 mm Overall Height (L): 106.3 mm Load Rating: 1180 Kg Swivel Angle: 20 ° Lag Hole Diameter: 12.192 mm Distance Between Lags: 73.91 mm
Part Number: MLM-160M-088-CNY-2LH Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $72.14 AUD Regular price Sale price $72.14 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-088-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel MLM-160M-088-CNY-2LH --- Levelling Studded Mounts - M16 -16x2mm- 97.8x18.3 mm - Steel Regular price $72.14 AUD Regular price Sale price $72.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm	Base Height (C) 65.28 mm	Overall Height (L) 142.2 mm
Material: Steel Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-191C-125-CNY-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $105.59 AUD Regular price Sale price $105.59 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm
Material: Steel Base Height (C): 65.28 mm Overall Height (L): 142.2 mm Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-191C-125-CNY-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $105.59 AUD Regular price Sale price $105.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-125-CNY-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Steel MLM-191C-125-CNY-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Steel Regular price $105.59 AUD Regular price Sale price $105.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 129.0 mm	Base Height (C) 60.96 mm	Overall Height (L) 146.0 mm
Material: Stainless Steel Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-191C-129-S3NY-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $180.59 AUD Regular price Sale price $180.59 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 129.0 mm
Material: Stainless Steel Base Height (C): 60.96 mm Overall Height (L): 146.0 mm Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-191C-129-S3NY-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $180.59 AUD Regular price Sale price $180.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-129-S3NY-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel MLM-191C-129-S3NY-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel Regular price $180.59 AUD Regular price Sale price $180.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm	Base Height (C) 65.28 mm	Overall Height (L) 142.2 mm
Material: Stainless Steel Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-191C-125-S3NY-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $157.95 AUD Regular price Sale price $157.95 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm
Material: Stainless Steel Base Height (C): 65.28 mm Overall Height (L): 142.2 mm Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-191C-125-S3NY-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $157.95 AUD Regular price Sale price $157.95 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-125-S3NY-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel MLM-191C-125-S3NY-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 122.9x17 mm - Stainless Steel Regular price $157.95 AUD Regular price Sale price $157.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm	Base Height (C) 65.28 mm	Overall Height (L) 142.2 mm
Material: Stainless Steel Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-254C-125-S3NY-2LH Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $161.68 AUD Regular price Sale price $161.68 AUD Unit price per Each
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm
Material: Stainless Steel Base Height (C): 65.28 mm Overall Height (L): 142.2 mm Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-254C-125-S3NY-2LH Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $161.68 AUD Regular price Sale price $161.68 AUD Unit price per Each View the product page first if you are unsure.
MLM-254C-125-S3NY-2LH --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel MLM-254C-125-S3NY-2LH --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel Regular price $161.68 AUD Regular price Sale price $161.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 129.0 mm	Base Height (C) 60.96 mm	Overall Height (L) 146.0 mm
Material: Stainless Steel Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-254C-129-S3NY-2LH Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $147.41 AUD Regular price Sale price $147.41 AUD Unit price per Each
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 129.0 mm
Material: Stainless Steel Base Height (C): 60.96 mm Overall Height (L): 146.0 mm Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-254C-129-S3NY-2LH Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $147.41 AUD Regular price Sale price $147.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-254C-129-S3NY-2LH --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel MLM-254C-129-S3NY-2LH --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 122.9x17 mm - Stainless Steel Regular price $147.41 AUD Regular price Sale price $147.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1.1/4-7 UNC (31.75mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm	Base Height (C) 65.28 mm	Overall Height (L) 142.2 mm
Material: Stainless Steel Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-320C-125-S3NY-2LH Levelling Studded Mounts - 1.1/4-7 UNC -31.75mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $241.41 AUD Regular price Sale price $241.41 AUD Unit price per Each
Thread Size (A) 1.1/4-7 UNC (31.75mm)	Base Diameter (D) 122.9 mm	Foot Height (C) 17.0 mm	Thread Length (F) 125.2 mm
Material: Stainless Steel Base Height (C): 65.28 mm Overall Height (L): 142.2 mm Load Rating: 4490 Kg Swivel Angle: 2 ° Lag Hole Diameter: 13.208 mm Distance Between Lags: 98.55 mm
Part Number: MLM-320C-125-S3NY-2LH Levelling Studded Mounts - 1.1/4-7 UNC -31.75mm- 122.9x17 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, May 22, 2025 Regular price $241.41 AUD Regular price Sale price $241.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-320C-125-S3NY-2LH --- Levelling Studded Mounts - 1.1/4-7 UNC -31.75mm- 122.9x17 mm - Stainless Steel MLM-320C-125-S3NY-2LH --- Levelling Studded Mounts - 1.1/4-7 UNC -31.75mm- 122.9x17 mm - Stainless Steel Regular price $241.41 AUD Regular price Sale price $241.41 AUD Unit price per Out of stock! Backorder Now
