Mounts - Levelling Socket - Swivel - Nickel Standard

Mounts -> Levelling Socket -> Swivel -> Nickel Standard

There are 9 products in the sub-categories of Mounts - Levelling Socket - Swivel - Nickel Standard. Browse the Mounts - Levelling Socket - Swivel - Nickel Standard products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

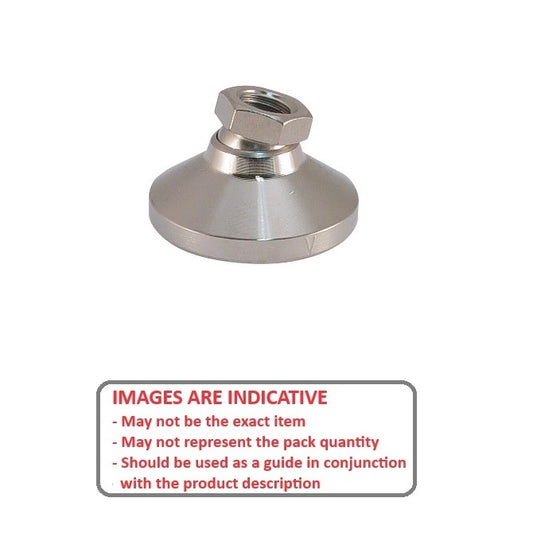

This category includes various types of levelling socket mounts.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - Nickel Standard category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Min. Thread Depth
4.3
mm
Base Height (E)
2.78
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel
Material: Steel    Load Rating: 315 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-048F-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$18.86 AUD
$22.64 AUD $18.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel
Material: Steel    Base Height (E): 2.78 mm    Load Rating: 315 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-048F-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$18.86 AUD
$22.64 AUD $18.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M6 - 6x1mm - 19x13 mm Swivel - Steel Mount
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.0
mm
Foot Height (C)
13.0
mm
Min. Thread Depth
4.0
mm
Base Height (E)
3.00
mm
Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Steel
Material: Steel    Load Rating: 315 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-060M-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$12.23 AUD
$14.67 AUD $12.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M6 - 6x1mm - 19x13 mm Swivel - Steel Mount
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.0
mm
Foot Height (C)
13.0
mm
Min. Thread Depth
4.0
mm
Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Steel
Material: Steel    Base Height (E): 3.00 mm    Load Rating: 315 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-060M-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$12.23 AUD
$14.67 AUD $12.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M8 - 8x1.25mm - 25x18 mm Swivel - Steel Mount
Thread Size (A)
M8 (8x1.25mm)
Base Diameter (D)
25.0
mm
Foot Height (C)
18.0
mm
Min. Thread Depth
8.0
mm
Base Height (E)
4.00
mm
Levelling Socket Mounts - M8 -8x1.25mm- 25x18 mm - Steel
Material: Steel    Load Rating: 450 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-080M-CNP (Each)
6 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 6 available can be backordered.
Levelling Socket Mounts - M8 - 8x1.25mm - 25x18 mm Swivel - Steel Mount
Thread Size (A)
M8 (8x1.25mm)
Base Diameter (D)
25.0
mm
Foot Height (C)
18.0
mm
Min. Thread Depth
8.0
mm
Levelling Socket Mounts - M8 -8x1.25mm- 25x18 mm - Steel
Material: Steel    Base Height (E): 4.00 mm    Load Rating: 450 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-080M-CNP (Each)
6 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

6 Available Now. Backorder if more than 6.
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Min. Thread Depth
9.7
mm
Base Height (E)
4.76
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Load Rating: 1700 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-095C-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.95 AUD
$26.35 AUD $21.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Base Height (E): 4.76 mm    Load Rating: 1700 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-095C-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.95 AUD
$26.35 AUD $21.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M10 - 10x1.5mm - 32x22 mm Swivel - Steel Mount
Thread Size (A)
M10 (10x1.5mm)
Base Diameter (D)
32.0
mm
Foot Height (C)
22.0
mm
Min. Thread Depth
10.0
mm
Base Height (E)
5.00
mm
Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Steel
Material: Steel    Load Rating: 1740 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-100M-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$29.77 AUD
$35.73 AUD $29.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M10 - 10x1.5mm - 32x22 mm Swivel - Steel Mount
Thread Size (A)
M10 (10x1.5mm)
Base Diameter (D)
32.0
mm
Foot Height (C)
22.0
mm
Min. Thread Depth
10.0
mm
Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Steel
Material: Steel    Base Height (E): 5.00 mm    Load Rating: 1740 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-100M-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$29.77 AUD
$35.73 AUD $29.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount
Thread Size (A)
M12 (12x1.75mm)
Base Diameter (D)
48.0
mm
Foot Height (C)
29.0
mm
Min. Thread Depth
11.0
mm
Base Height (E)
6.00
mm
Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Steel
Material: Steel    Load Rating: 2250 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-120M-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$40.41 AUD
$48.49 AUD $40.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount
Thread Size (A)
M12 (12x1.75mm)
Base Diameter (D)
48.0
mm
Foot Height (C)
29.0
mm
Min. Thread Depth
11.0
mm
Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Steel
Material: Steel    Base Height (E): 6.00 mm    Load Rating: 2250 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-120M-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$40.41 AUD
$48.49 AUD $40.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Min. Thread Depth
15.8
mm
Base Height (E)
12.70
mm
Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-191C-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$82.32 AUD
$98.78 AUD $82.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Min. Thread Depth
15.8
mm
Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Load Rating: 3270 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-191C-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$82.32 AUD
$98.78 AUD $82.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount
Thread Size (A)
M24 (24x3mm)
Base Diameter (D)
102.0
mm
Foot Height (C)
48.0
mm
Min. Thread Depth
20.0
mm
Base Height (E)
10.00
mm
Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Steel
Material: Steel    Load Rating: 9000 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-240M-CNP (PK-8)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$2,068.14 AUD
$2,068.14 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount
Thread Size (A)
M24 (24x3mm)
Base Diameter (D)
102.0
mm
Foot Height (C)
48.0
mm
Min. Thread Depth
20.0
mm
Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Steel
Material: Steel    Base Height (E): 10.00 mm    Load Rating: 9000 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-240M-CNP (PK-8)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$2,068.14 AUD
$2,068.14 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Min. Thread Depth
20.6
mm
Base Height (E)
10.32
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel
Material: Steel    Load Rating: 9980 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-254C-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$121.50 AUD
$145.80 AUD $121.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel
Material: Steel    Base Height (E): 10.32 mm    Load Rating: 9980 Kg    Finish: Nickel Plated
Category: Mounts - Levelling Socket - Swivel - Nickel Standard - Plated
Part Number: MSF-254C-CNP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$121.50 AUD
$145.80 AUD $121.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
