Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded

Mounts -> Levelling Socket -> Swivel -> Clear Chromate -> Rubber Padded

There are 5 products in the sub-categories of Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded. Browse the Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded products table.

Category Details

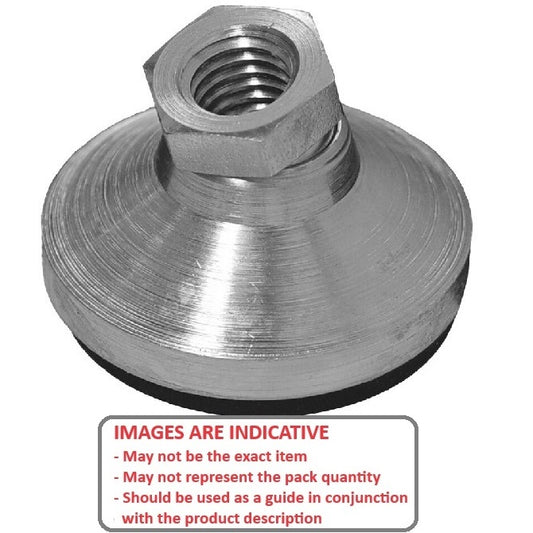

A selection of Rubber Padded Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
16.8
mm
Min. Thread Depth
4.3
mm
Base Height (E)
6.10
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x16.8 mm - Steel
Material: Steel    Load Rating: 240 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-CCCRP (PK-15)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$326.23 AUD
$326.23 AUD
Priced, Stocked and Sold Per 15 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
16.8
mm
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x16.8 mm - Steel
Material: Steel    Base Height (E): 6.10 mm    Load Rating: 240 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-CCCRP (PK-15)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$326.23 AUD
$326.23 AUD
Priced, Stocked and Sold Per 15 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x21.1 mm Swivel - Steel Mount
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
21.1
mm
Min. Thread Depth
7.9
mm
Base Height (E)
7.11
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x21.1 mm - Steel
Material: Steel    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-CCCRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$19.41 AUD
$23.29 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x21.1 mm Swivel - Steel Mount
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
21.1
mm
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x21.1 mm - Steel
Material: Steel    Base Height (E): 7.11 mm    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-CCCRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$19.41 AUD
$23.29 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm Swivel - Steel Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
25.4
mm
Min. Thread Depth
9.7
mm
Base Height (E)
7.93
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Material: Steel    Load Rating: 1270 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-CCCRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$29.95 AUD
$35.95 AUD $29.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm Swivel - Steel Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
25.4
mm
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Material: Steel    Base Height (E): 7.93 mm    Load Rating: 1270 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-CCCRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$29.95 AUD
$35.95 AUD $29.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Steel Mount
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
31.8
mm
Min. Thread Depth
11.2
mm
Base Height (E)
9.53
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Material: Steel    Load Rating: 1700 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-CCCRP (PK-15)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$408.68 AUD
$490.42 AUD $408.68 AUD
Priced, Stocked and Sold Per 15 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Steel Mount
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
31.8
mm
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Material: Steel    Base Height (E): 9.53 mm    Load Rating: 1700 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-CCCRP (PK-15)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$408.68 AUD
$490.42 AUD $408.68 AUD
Priced, Stocked and Sold Per 15 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x34.9 mm Swivel - Steel Mount
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
34.9
mm
Min. Thread Depth
11.2
mm
Base Height (E)
11.10
mm

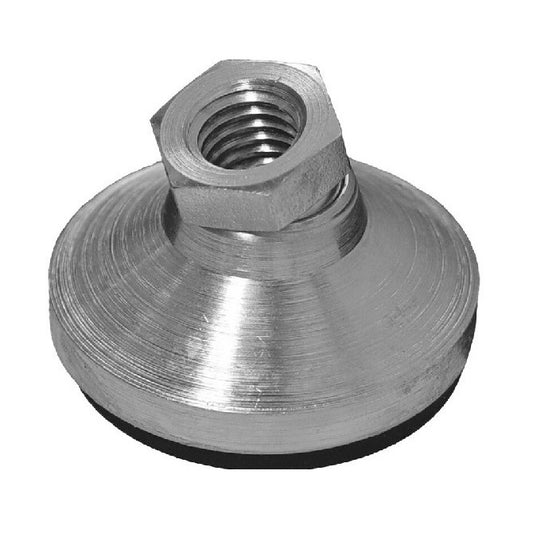

Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Load Rating: 2040 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-CCCRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$51.50 AUD
$61.80 AUD $51.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x34.9 mm Swivel - Steel Mount
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
34.9
mm
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Base Height (E): 11.10 mm    Load Rating: 2040 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-CCCRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$51.50 AUD
$61.80 AUD $51.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
