Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base

Mounts -> Levelling Socket -> Swivel -> 303 Stainless Acetal Base

There are 5 products in the sub-categories of Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base. Browse the Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base products table.

Category Details

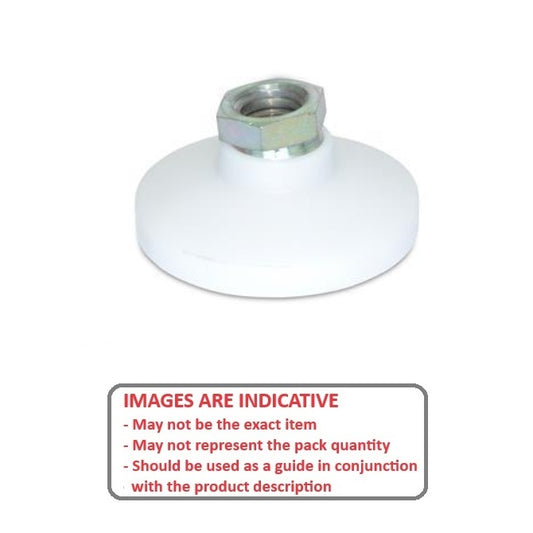

A selection of 303 Stainless Acetal Base Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Min. Thread Depth
4.3
mm
Base Height (E)
2.79
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Load Rating: 70 Kg    Pad Material: Delrin    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$25.23 AUD
$25.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Base Height (E): 2.79 mm    Load Rating: 70 Kg    Pad Material: Delrin    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$25.23 AUD
$25.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.8 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
17.8
mm
Min. Thread Depth
7.9
mm
Base Height (E)
3.81
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Load Rating: 90 Kg    Pad Material: Delrin    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$27.95 AUD
$33.55 AUD $27.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.8 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm
Foot Height (C)
17.8
mm
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Base Height (E): 3.81 mm    Load Rating: 90 Kg    Pad Material: Delrin    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$27.95 AUD
$33.55 AUD $27.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Min. Thread Depth
9.7
mm
Base Height (E)
4.75
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Load Rating: 140 Kg    Pad Material: Delrin    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$30.05 AUD
$36.05 AUD $30.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
31.8
mm
Foot Height (C)
22.2
mm
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Base Height (E): 4.75 mm    Load Rating: 140 Kg    Pad Material: Delrin    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$30.05 AUD
$36.05 AUD $30.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Min. Thread Depth
11.2
mm
Base Height (E)
6.35
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Load Rating: 315 Kg    Pad Material: Delrin    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$28.77 AUD
$34.53 AUD $28.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm
Foot Height (C)
28.6
mm
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Base Height (E): 6.35 mm    Load Rating: 315 Kg    Pad Material: Delrin    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$28.77 AUD
$34.53 AUD $28.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Min. Thread Depth
20.6
mm
Base Height (E)
27.76
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Load Rating: 1090 Kg    Pad Material: Delrin    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$171.41 AUD
$205.69 AUD $171.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Base Height (E): 27.76 mm    Load Rating: 1090 Kg    Pad Material: Delrin    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S3AP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$171.41 AUD
$205.69 AUD $171.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
