Mounts - Cup Industrial

Mounts -> Cup Industrial

There are 6 products in the sub-categories of Mounts - Cup Industrial. Browse the Mounts - Cup Industrial products table.

Category Details

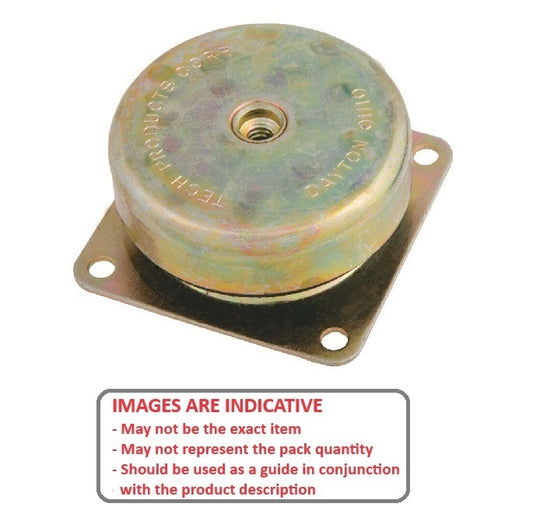

A selection of Cup Industrial Mounts. Protect against severe impact shock with efficient vibration isolation characteristics at frequencies above 40Hz.

  • Can be mounted in any orientation for protection of sensitive electronic, electrical and mechanical equipment from high impact shocks.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Cup Industrial category on the Small Parts & Bearings online store.
Load Rating Length (B) Thread Approx. Overall Height (E) Mount Diameter (F) Mount Height (G) Indicative
Load Rating
9.0
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Mount Diameter (F)
57.912
mm
Mount Height (G)
17.526
mm
Cup Industrial Mounts - 9 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0009-060
Cup Industrial Mounts - 9 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$109.77 AUD
$109.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating Length (B) Thread Approx. Overall Height (E) Indicative
Load Rating
9.0
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Cup Industrial Mounts - 9 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Mount Diameter (F): 57.912 mm    Mount Height (G): 17.526 mm    Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0009-060
Cup Industrial Mounts - 9 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$109.77 AUD
$109.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
18.1
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Mount Diameter (F)
57.912
mm
Mount Height (G)
17.526
mm
Cup Industrial Mounts - 18.1 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0018-060
Cup Industrial Mounts - 18.1 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$107.41 AUD
$128.89 AUD $107.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
18.1
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Cup Industrial Mounts - 18.1 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Mount Diameter (F): 57.912 mm    Mount Height (G): 17.526 mm    Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0018-060
Cup Industrial Mounts - 18.1 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$107.41 AUD
$128.89 AUD $107.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
31.7
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Mount Diameter (F)
57.912
mm
Mount Height (G)
17.526
mm

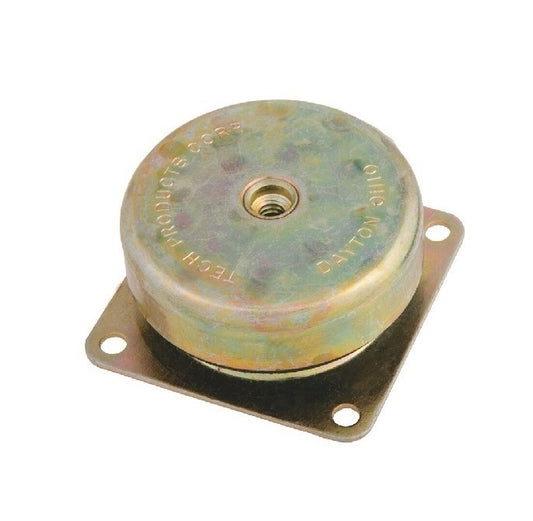

Cup Industrial Mounts - 31.7 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0032-060
Cup Industrial Mounts - 31.7 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$97.32 AUD
$116.78 AUD $97.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
31.7
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Cup Industrial Mounts - 31.7 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Mount Diameter (F): 57.912 mm    Mount Height (G): 17.526 mm    Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0032-060
Cup Industrial Mounts - 31.7 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$97.32 AUD
$116.78 AUD $97.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
63.5
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Mount Diameter (F)
57.912
mm
Mount Height (G)
17.526
mm
Cup Industrial Mounts - 63.5 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0064-060
Cup Industrial Mounts - 63.5 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$106.14 AUD
$127.36 AUD $106.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
63.5
Kg
Length (B)
60.452
mm

(Equiv. 2.38 in.)
Thread
1/4-20 UNC (6.35mm)

Approx. Overall Height (E)
28.702
mm
Cup Industrial Mounts - 63.5 Kg - 60.452 mm - 1/4-20 UNC -6.35mm-
Mount Diameter (F): 57.912 mm    Mount Height (G): 17.526 mm    Bolt Centres (A): 49.276 mm    Bolt Holes (D): 4.978 mm
Part Number: MCUP-0064-060
Cup Industrial Mounts - 63.5 Kg - 60.452 mm - 1/4-20 UNC - 6.35mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$106.14 AUD
$127.36 AUD $106.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
68.0
Kg
Length (B)
76.200
mm

(Equiv. 3 in.)
Thread
3/8-16 UNC (9.53mm)

Approx. Overall Height (E)
38.100
mm
Mount Diameter (F)
76.200
mm
Mount Height (G)
25.400
mm
Cup Industrial Mounts - 68 Kg - 76.2 mm - 3/8-16 UNC -9.53mm-
Bolt Centres (A): 63.500 mm    Bolt Holes (D): 6.756 mm
Part Number: MCUP-0068-076
Cup Industrial Mounts - 68 Kg - 76.2 mm - 3/8-16 UNC - 9.53mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$190.41 AUD
$228.49 AUD $190.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
68.0
Kg
Length (B)
76.200
mm

(Equiv. 3 in.)
Thread
3/8-16 UNC (9.53mm)

Approx. Overall Height (E)
38.100
mm
Cup Industrial Mounts - 68 Kg - 76.2 mm - 3/8-16 UNC -9.53mm-
Mount Diameter (F): 76.200 mm    Mount Height (G): 25.400 mm    Bolt Centres (A): 63.500 mm    Bolt Holes (D): 6.756 mm
Part Number: MCUP-0068-076
Cup Industrial Mounts - 68 Kg - 76.2 mm - 3/8-16 UNC - 9.53mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$190.41 AUD
$228.49 AUD $190.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
113.4
Kg
Length (B)
76.200
mm

(Equiv. 3 in.)
Thread
3/8-16 UNC (9.53mm)

Approx. Overall Height (E)
38.100
mm
Mount Diameter (F)
76.200
mm
Mount Height (G)
25.400
mm
Cup Industrial Mounts - 113.4 Kg - 76.2 mm - 3/8-16 UNC -9.53mm-
Bolt Centres (A): 63.500 mm    Bolt Holes (D): 6.756 mm
Part Number: MCUP-0113-076
Cup Industrial Mounts - 113.4 Kg - 76.2 mm - 3/8-16 UNC - 9.53mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$193.86 AUD
$232.64 AUD $193.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Load Rating
113.4
Kg
Length (B)
76.200
mm

(Equiv. 3 in.)
Thread
3/8-16 UNC (9.53mm)

Approx. Overall Height (E)
38.100
mm
Cup Industrial Mounts - 113.4 Kg - 76.2 mm - 3/8-16 UNC -9.53mm-
Mount Diameter (F): 76.200 mm    Mount Height (G): 25.400 mm    Bolt Centres (A): 63.500 mm    Bolt Holes (D): 6.756 mm
Part Number: MCUP-0113-076
Cup Industrial Mounts - 113.4 Kg - 76.2 mm - 3/8-16 UNC - 9.53mm -
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025
$193.86 AUD
$232.64 AUD $193.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
