Collection: Mounts - Bumpers
Mounts -> BumpersThere are 48 products in the sub-categories of Mounts - Bumpers. Scroll down or follow the link to Mounts - Bumpers in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Mounts - Bumpers - Neoprene Springs
A selection of Neoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven...
Mounts - Bumpers - Urethane Springs
A selection of Urethane Springs Bumpers Mounts. Urethane springs are designed for...
Category Details
This category includes various types of bumpers mounts.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Mounts - Bumpers category on the Small Parts & Bearings online store.
| Outside Diameter (A) | Inside Diameter (B) | Free Length (L) | Spring Rate | Max. Rec. Deflection | Approx. Load at Max Deflection |
Indicative Image |
|---|---|---|---|---|---|---|
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
11.9
mm (Equiv. 0.469 in.) |
Spring Rate
76.4
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
4.32
mm |
Approx. Load at Max Deflection
26.9
Kg |
|
|

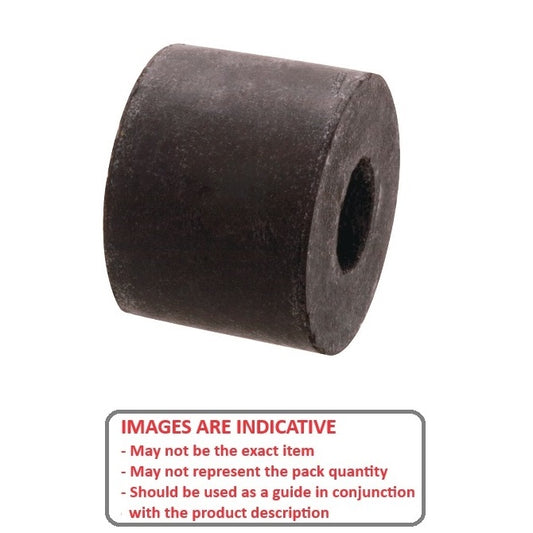

Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-012
Bumpers Mounts - 16x6.4x11.9 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$35.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Outside Diameter (A) | Inside Diameter (B) | Free Length (L) | Spring Rate |
Indicative Image |
||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
11.9
mm (Equiv. 0.469 in.) |
Spring Rate
76.4
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 4.32 mm
Approx. Load at Max Deflection: 26.9 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-012
Bumpers Mounts - 16x6.4x11.9 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$35.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
15.9
mm (Equiv. 0.626 in.) |
Spring Rate
61.8
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
5.59
mm |
Approx. Load at Max Deflection
28.7
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-016
Bumpers Mounts - 16x6.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$39.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
15.9
mm (Equiv. 0.626 in.) |
Spring Rate
61.8
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 5.59 mm
Approx. Load at Max Deflection: 28.7 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-016
Bumpers Mounts - 16x6.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$39.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
19.8
mm (Equiv. 0.78 in.) |
Spring Rate
51.1
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
6.86
mm |
Approx. Load at Max Deflection
29.9
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-020
Bumpers Mounts - 16x6.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$48.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
19.8
mm (Equiv. 0.78 in.) |
Spring Rate
51.1
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 6.86 mm
Approx. Load at Max Deflection: 29.9 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-020
Bumpers Mounts - 16x6.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$48.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
41.3
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
8.64
mm |
Approx. Load at Max Deflection
31.0
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-025
Bumpers Mounts - 16x6.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$46.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
16.00
mm (Equiv. 0.63 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
41.3
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 8.64 mm
Approx. Load at Max Deflection: 31.0 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0160-025
Bumpers Mounts - 16x6.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$46.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
15.9
mm (Equiv. 0.626 in.) |
Spring Rate
106.8
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
5.59
mm |
Approx. Load at Max Deflection
49.6
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-016
Bumpers Mounts - 20x8.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$42.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
15.9
mm (Equiv. 0.626 in.) |
Spring Rate
106.8
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 5.59 mm
Approx. Load at Max Deflection: 49.6 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-016
Bumpers Mounts - 20x8.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$42.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
66.7
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
8.89
mm |
Approx. Load at Max Deflection
49.6
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-025

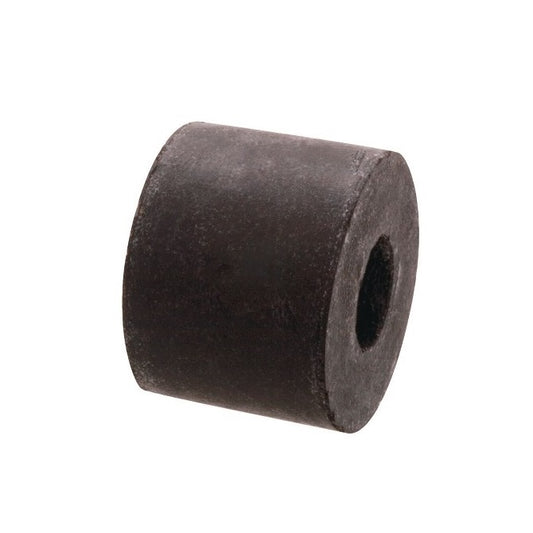

Bumpers Mounts - 20x8.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$47.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
66.7
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 8.89 mm
Approx. Load at Max Deflection: 49.6 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-025
Bumpers Mounts - 20x8.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$47.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
50.3
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
11.18
mm |
Approx. Load at Max Deflection
47.0
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-032
Bumpers Mounts - 20x8.4x31.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$45.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
50.3
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 11.18 mm
Approx. Load at Max Deflection: 47.0 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-032
Bumpers Mounts - 20x8.4x31.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$45.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
19.8
mm (Equiv. 0.78 in.) |
Spring Rate
84.4
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
7.11
mm |
Approx. Load at Max Deflection
49.3
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-020
Bumpers Mounts - 20x8.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$56.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Inside Diameter (B)
8.4
mm (Equiv. 0.331 in.) |
Free Length (L)
19.8
mm (Equiv. 0.78 in.) |
Spring Rate
84.4
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 7.11 mm
Approx. Load at Max Deflection: 49.3 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0200-020
Bumpers Mounts - 20x8.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$56.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
22.20
mm (Equiv. 0.874 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
192
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|

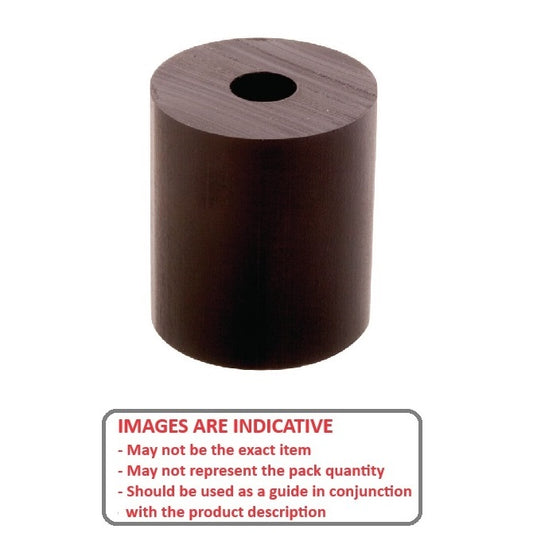

Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0222-025

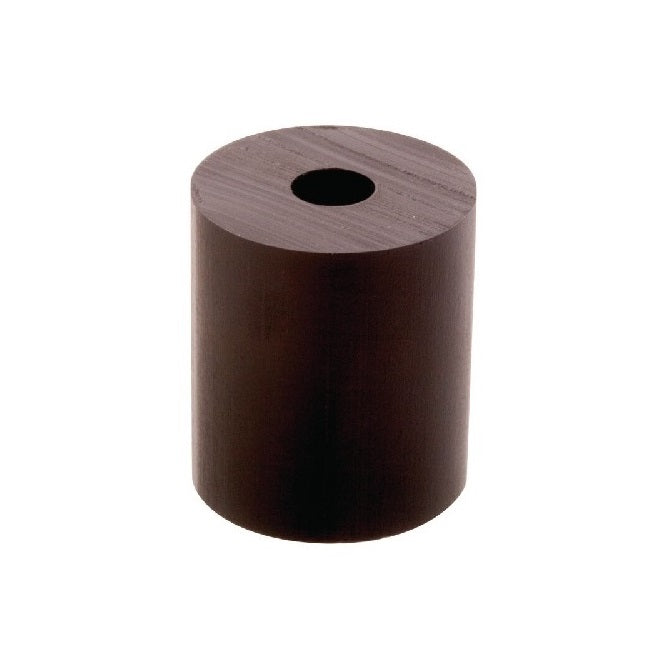

Bumpers Mounts - 22.2x6.4x25.4 mm Urethane Springs - Polyurethane Spring 10 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
22.20
mm (Equiv. 0.874 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
192
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0222-025
Bumpers Mounts - 22.2x6.4x25.4 mm Urethane Springs - Polyurethane Spring 10 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
22.20
mm (Equiv. 0.874 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
147
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0222-032 (21 Pcs)
Bumpers Mounts - 22.2x6.4x31.8 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$437.50 AUD
Regular price
Unit price
per
21 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
22.20
mm (Equiv. 0.874 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
147
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0222-032 (21 Pcs)
Bumpers Mounts - 22.2x6.4x31.8 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$437.50 AUD
Regular price
Unit price
per
21 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
22.20
mm (Equiv. 0.874 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
317.5
mm (Equiv. 12.5 in.) |
Max. Rec. Deflection
34470
mm |
|
||
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0222-318
Bumpers Mounts - 22.2x6.4x317.5 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$83.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
22.20
mm (Equiv. 0.874 in.) |
Inside Diameter (B)
6.4
mm (Equiv. 0.252 in.) |
Free Length (L)
317.5
mm (Equiv. 12.5 in.) |
|
|||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0222-318
Bumpers Mounts - 22.2x6.4x317.5 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$83.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
2.5
mm (Equiv. 0.098 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
91.8
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
11.18
mm |
Approx. Load at Max Deflection
85.5
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-032
Bumpers Mounts - 25.4x2.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$56.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
2.5
mm (Equiv. 0.098 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
91.8
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 11.18 mm
Approx. Load at Max Deflection: 85.5 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-032
Bumpers Mounts - 25.4x2.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$56.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
238
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-025 (30 Pcs)
Bumpers Mounts - 25.4x9.5x25.4 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$535.59 AUD
Regular price
Unit price
per
30 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
238
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-025 (30 Pcs)
Bumpers Mounts - 25.4x9.5x25.4 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$535.59 AUD
Regular price
Unit price
per
30 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
192
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-032
Bumpers Mounts - 25.4x9.5x31.8 mm Urethane Springs - Polyurethane Spring 4 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$19.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
192
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-032
Bumpers Mounts - 25.4x9.5x31.8 mm Urethane Springs - Polyurethane Spring 4 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$19.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
38.1
mm (Equiv. 1.5 in.) |
Spring Rate
147
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-038 (18 Pcs)
Bumpers Mounts - 25.4x9.5x38.1 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$449.32 AUD
Regular price
Unit price
per
18 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
38.1
mm (Equiv. 1.5 in.) |
Spring Rate
147
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-038 (18 Pcs)
Bumpers Mounts - 25.4x9.5x38.1 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$449.32 AUD
Regular price
Unit price
per
18 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
50.8
mm (Equiv. 2 in.) |
Spring Rate
113
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-051 (14 Pcs)
Bumpers Mounts - 25.4x9.5x50.8 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$445.41 AUD
Regular price
Unit price
per
14 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
50.8
mm (Equiv. 2 in.) |
Spring Rate
113
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-051 (14 Pcs)
Bumpers Mounts - 25.4x9.5x50.8 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$445.41 AUD
Regular price
Unit price
per
14 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
317.5
mm (Equiv. 12.5 in.) |
Max. Rec. Deflection
34470
mm |
|
||
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-318 (4 Pcs)
Bumpers Mounts - 25.4x9.5x317.5 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$455.41 AUD
Regular price
Unit price
per
4 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
9.5
mm (Equiv. 0.374 in.) |
Free Length (L)
317.5
mm (Equiv. 12.5 in.) |
|
|||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0254-318 (4 Pcs)
Bumpers Mounts - 25.4x9.5x317.5 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$455.41 AUD
Regular price
Unit price
per
4 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
10.4
mm (Equiv. 0.409 in.) |
Free Length (L)
19.8
mm (Equiv. 0.78 in.) |
Spring Rate
137.8
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
7.11
mm |
Approx. Load at Max Deflection
80.2
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-020
Bumpers Mounts - 25.4x10.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$53.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
10.4
mm (Equiv. 0.409 in.) |
Free Length (L)
19.8
mm (Equiv. 0.78 in.) |
Spring Rate
137.8
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 7.11 mm
Approx. Load at Max Deflection: 80.2 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-020
Bumpers Mounts - 25.4x10.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$53.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
10.4
mm (Equiv. 0.409 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
104.7
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
8.89
mm |
Approx. Load at Max Deflection
78.0
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-025
Bumpers Mounts - 25.4x10.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$57.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
10.4
mm (Equiv. 0.409 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
104.7
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 8.89 mm
Approx. Load at Max Deflection: 78.0 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-025
Bumpers Mounts - 25.4x10.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$57.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
10.4
mm (Equiv. 0.409 in.) |
Free Length (L)
39.7
mm (Equiv. 1.563 in.) |
Spring Rate
77.1
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
13.97
mm |
Approx. Load at Max Deflection
90.0
Kg |
|
|
Material: Neoprene Rubber
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-040
Bumpers Mounts - 25.4x10.4x39.7 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$61.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
25.40
mm (Equiv. 1 in.) |
Inside Diameter (B)
10.4
mm (Equiv. 0.409 in.) |
Free Length (L)
39.7
mm (Equiv. 1.563 in.) |
Spring Rate
77.1
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Neoprene Rubber
Max. Rec. Deflection: 13.97 mm
Approx. Load at Max Deflection: 90.0 Kg
Category: Mounts - Bumpers - Neoprene Springs |
||||||
|
Part Number: CSN-0254-040
Bumpers Mounts - 25.4x10.4x39.7 mm Neoprene Springs - Neoprene Rubber Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$61.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
272
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-025 (22 Pcs)
Bumpers Mounts - 28.6x12.7x25.4 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$445.14 AUD
Regular price
Unit price
per
22 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
25.4
mm (Equiv. 1 in.) |
Spring Rate
272
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-025 (22 Pcs)
Bumpers Mounts - 28.6x12.7x25.4 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$445.14 AUD
Regular price
Unit price
per
22 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
215
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-032
Bumpers Mounts - 28.6x12.7x31.8 mm Urethane Springs - Polyurethane Spring 6 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$15.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
31.8
mm (Equiv. 1.252 in.) |
Spring Rate
215
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-032
Bumpers Mounts - 28.6x12.7x31.8 mm Urethane Springs - Polyurethane Spring 6 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$15.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
50.8
mm (Equiv. 2 in.) |
Spring Rate
124
N/mm Deflection +/- 20 Perc |
Max. Rec. Deflection
34470
mm |
|
|
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-051
Bumpers Mounts - 28.6x12.7x50.8 mm Urethane Springs - Polyurethane Spring 4 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$27.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
50.8
mm (Equiv. 2 in.) |
Spring Rate
124
N/mm Deflection +/- 20 Perc |
|
||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-051
Bumpers Mounts - 28.6x12.7x50.8 mm Urethane Springs - Polyurethane Spring 4 Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$27.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
317.5
mm (Equiv. 12.5 in.) |
Max. Rec. Deflection
34470
mm |
|
||
|
Material: Polyurethane
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-318
Bumpers Mounts - 28.6x12.7x317.5 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$133.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Outside Diameter (A)
28.60
mm (Equiv. 1.126 in.) |
Inside Diameter (B)
12.7
mm (Equiv. 0.5 in.) |
Free Length (L)
317.5
mm (Equiv. 12.5 in.) |
|
|||
|
Material: Polyurethane
Max. Rec. Deflection: 34470 mm
Category: Mounts - Bumpers - Urethane Springs |
||||||
|
Part Number: CSU-0286-318
Bumpers Mounts - 28.6x12.7x317.5 mm Urethane Springs - Polyurethane Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$133.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
