Mounts - Bonded - Tee Bush Two Piece

Mounts -> Bonded -> Tee Bush Two Piece

There are 4 products in the sub-categories of Mounts - Bonded - Tee Bush Two Piece. Browse the Mounts - Bonded - Tee Bush Two Piece products table.

Category Details

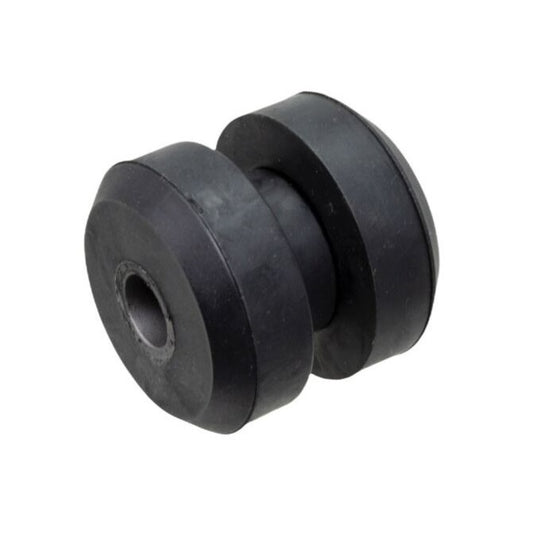

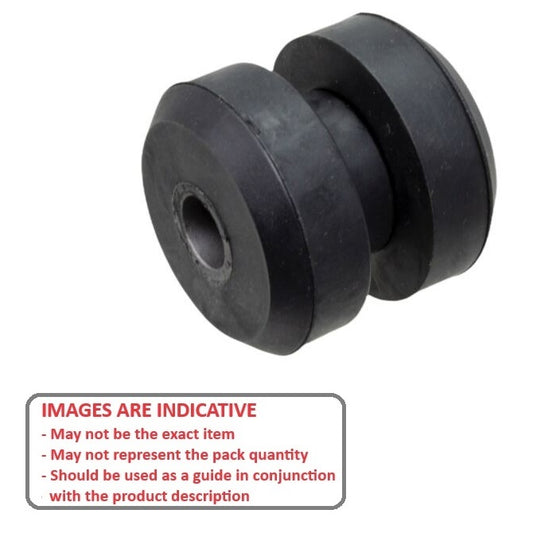

A selection of Tee Bush Two Piece Bonded Mounts. Steel insert overcoated with rubber joins the two pieces.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Bonded - Tee Bush Two Piece category on the Small Parts & Bearings online store.
Nominal Load rating Bolt Hole Dia Flange Dia (A) Main Flange Width (D) Support Flange Width (C) Main Part Length (B) Indicative
Nominal Load rating
40.8
Kg
Bolt Hole Dia
9.9
mm

(Equiv. 0.39 in.)
Flange Dia (A)
33.3
mm

(Equiv. 1.311 in.)
Main Flange Width (D)
12.3
mm
Support Flange Width (C)
12.3
mm
Main Part Length (B)
31.8
mm
Bonded Mounts - 40.8 Kg - 9.9x33.3 mm - Rubber
Material: Rubber    Shoulder Length (E): 9.65 mm    Insert Dia. (F): 14.7 mm    Shoulder Dia. (G): 20.1 mm    R: 1.0 mm
Part Number: MB2-0010-041
Bonded Mounts - 40.8 Kg - 9.9x33.3 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$18.50 AUD
$22.20 AUD $18.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Nominal Load rating Bolt Hole Dia Flange Dia (A) Main Flange Width (D) Indicative
Nominal Load rating
40.8
Kg
Bolt Hole Dia
9.9
mm

(Equiv. 0.39 in.)
Flange Dia (A)
33.3
mm

(Equiv. 1.311 in.)
Main Flange Width (D)
12.3
mm
Bonded Mounts - 40.8 Kg - 9.9x33.3 mm - Rubber
Material: Rubber    Support Flange Width (C): 12.3 mm    Main Part Length (B): 31.8 mm    Shoulder Length (E): 9.65 mm    Insert Dia. (F): 14.7 mm    Shoulder Dia. (G): 20.1 mm    R: 1.0 mm
Part Number: MB2-0010-041
Bonded Mounts - 40.8 Kg - 9.9x33.3 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$18.50 AUD
$22.20 AUD $18.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Nominal Load rating
68
Kg
Bolt Hole Dia
13.5
mm

(Equiv. 0.531 in.)
Flange Dia (A)
47.8
mm

(Equiv. 1.882 in.)
Main Flange Width (D)
19.8
mm
Support Flange Width (C)
19.8
mm
Main Part Length (B)
49.3
mm
Bonded Mounts - 68 Kg - 13.5x47.8 mm - Rubber
Material: Rubber    Shoulder Length (E): 12.7 mm    Insert Dia. (F): 21.1 mm    Shoulder Dia. (G): 33.0 mm    R: 1.5 mm
Part Number: MB2-0013-068
Bonded Mounts - 68 Kg - 13.5x47.8 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$32.14 AUD
$38.56 AUD $32.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Nominal Load rating
68
Kg
Bolt Hole Dia
13.5
mm

(Equiv. 0.531 in.)
Flange Dia (A)
47.8
mm

(Equiv. 1.882 in.)
Main Flange Width (D)
19.8
mm
Bonded Mounts - 68 Kg - 13.5x47.8 mm - Rubber
Material: Rubber    Support Flange Width (C): 19.8 mm    Main Part Length (B): 49.3 mm    Shoulder Length (E): 12.7 mm    Insert Dia. (F): 21.1 mm    Shoulder Dia. (G): 33.0 mm    R: 1.5 mm
Part Number: MB2-0013-068
Bonded Mounts - 68 Kg - 13.5x47.8 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$32.14 AUD
$38.56 AUD $32.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Nominal Load rating
127
Kg
Bolt Hole Dia
16.7
mm

(Equiv. 0.657 in.)
Flange Dia (A)
64.8
mm

(Equiv. 2.551 in.)
Main Flange Width (D)
22.9
mm
Support Flange Width (C)
22.9
mm
Main Part Length (B)
62.2
mm
Bonded Mounts - 127 Kg - 16.7x64.8 mm - Rubber
Material: Rubber    Shoulder Length (E): 19.05 mm    Insert Dia. (F): 24.6 mm    Shoulder Dia. (G): 40.1 mm    R: 2.3 mm
Part Number: MB2-0019-127
Bonded Mounts - 127 Kg - 16.7x64.8 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$63.14 AUD
$75.76 AUD $63.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Nominal Load rating
127
Kg
Bolt Hole Dia
16.7
mm

(Equiv. 0.657 in.)
Flange Dia (A)
64.8
mm

(Equiv. 2.551 in.)
Main Flange Width (D)
22.9
mm
Bonded Mounts - 127 Kg - 16.7x64.8 mm - Rubber
Material: Rubber    Support Flange Width (C): 22.9 mm    Main Part Length (B): 62.2 mm    Shoulder Length (E): 19.05 mm    Insert Dia. (F): 24.6 mm    Shoulder Dia. (G): 40.1 mm    R: 2.3 mm
Part Number: MB2-0019-127
Bonded Mounts - 127 Kg - 16.7x64.8 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$63.14 AUD
$75.76 AUD $63.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Nominal Load rating
195
Kg
Bolt Hole Dia
23.8
mm

(Equiv. 0.937 in.)
Flange Dia (A)
88.9
mm

(Equiv. 3.5 in.)
Main Flange Width (D)
25.4
mm
Support Flange Width (C)
25.4
mm
Main Part Length (B)
73.7
mm
Bonded Mounts - 195 Kg - 23.8x88.9 mm - Rubber
Material: Rubber    Shoulder Length (E): 25.4 mm    Insert Dia. (F): 34.8 mm    Shoulder Dia. (G): 58.4 mm    R: 3.0 mm
Part Number: MB2-0025-195 (25 Pcs)
Bonded Mounts - 195 Kg - 23.8x88.9 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$3,277.95 AUD
$3,933.55 AUD $3,277.95 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Nominal Load rating
195
Kg
Bolt Hole Dia
23.8
mm

(Equiv. 0.937 in.)
Flange Dia (A)
88.9
mm

(Equiv. 3.5 in.)
Main Flange Width (D)
25.4
mm
Bonded Mounts - 195 Kg - 23.8x88.9 mm - Rubber
Material: Rubber    Support Flange Width (C): 25.4 mm    Main Part Length (B): 73.7 mm    Shoulder Length (E): 25.4 mm    Insert Dia. (F): 34.8 mm    Shoulder Dia. (G): 58.4 mm    R: 3.0 mm
Part Number: MB2-0025-195 (25 Pcs)
Bonded Mounts - 195 Kg - 23.8x88.9 mm Tee Bush Two Piece - Rubber Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$3,277.95 AUD
$3,933.55 AUD $3,277.95 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
