Collection: Linear - Redi-Rail Roller Guides

Linear -> Redi-Rail Roller Guides

There are 5 products in the sub-categories of Linear - Redi-Rail Roller Guides. Browse the Linear - Redi-Rail Roller Guides products table.

Category Details

A selection of Redi-Rail Roller Guides Linear. Match carriage and rail by rail widh

Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.

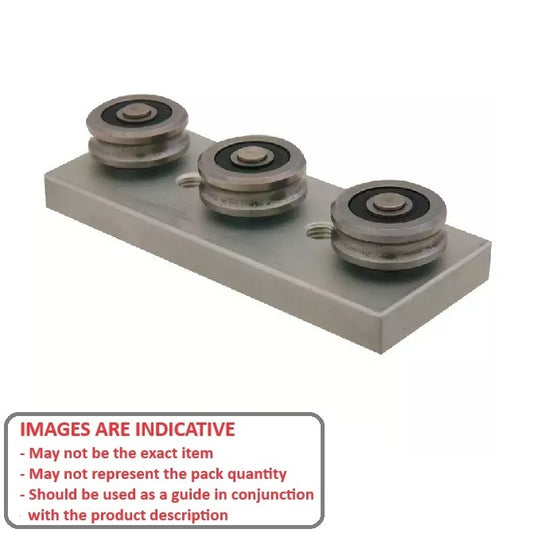

A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
Rollers made from 52100 hardened steel, lubricated and sealed.
Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Linear - Redi-Rail Roller Guides category on the Small Parts & Bearings online store.

Suitable Rail Width (B)	Overall Height (A)	Length (D)	Rail Width (E)	Mounting Hole (G)	Thread Size (Y)
Suitable Rail Width (B) 30.0 mm (Equiv. 1.181 in.)	Overall Height (A) 28.0 mm (Equiv. 1.102 in.)	Length (D) 86.000 mm (Equiv. 3.386 in.)	Rail Width (E) 25.400 mm	Mounting Hole (G) 26.000 mm	Thread Size (Y) M5 x 0.80

Part Number: PBC-625RS Redi-Rail Roller Guides Linear - 30x28x86 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $489.68 AUD Regular price ~~$587.62 AUD~~ Sale price $489.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width (B)	Overall Height (A)	Length (D)	Rail Width (E)	Indicative Image
Suitable Rail Width (B) 30.0 mm (Equiv. 1.181 in.)	Overall Height (A) 28.0 mm (Equiv. 1.102 in.)	Length (D) 86.000 mm (Equiv. 3.386 in.)	Rail Width (E) 25.400 mm
Mounting Hole (G): 26.000 mm Thread Size (Y): M5 x 0.80
Part Number: PBC-625RS Redi-Rail Roller Guides Linear - 30x28x86 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $489.68 AUD Regular price ~~$587.62 AUD~~ Sale price $489.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-625RS --- Redi-Rail Roller Guides Linear - 30x28x86 mm Sale PBC-625RS --- Redi-Rail Roller Guides Linear - 30x28x86 mm Regular price $489.68 AUD Regular price ~~$587.62 AUD~~ Sale price $489.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Suitable Rail Width (B) 33.528 mm (Equiv. 1.32 in.)	Overall Height (A) 23.317 mm (Equiv. 0.918 in.)	Length (D) 82.550 mm (Equiv. 3.25 in.)	Rail Width (E) 31.750 mm	Mounting Hole (G) 31.750 mm	Thread Size (Y) 1/4-28

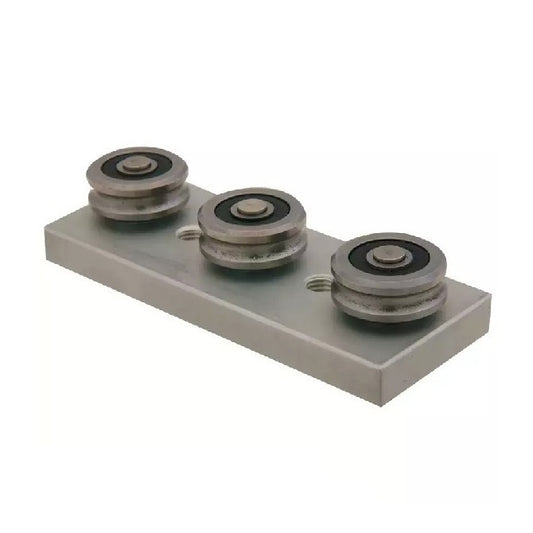

Part Number: PBC-605RS Redi-Rail Roller Guides Linear - 33.528x23.317x82.55 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $360.23 AUD Regular price Sale price $360.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width (B) 33.528 mm (Equiv. 1.32 in.)	Overall Height (A) 23.317 mm (Equiv. 0.918 in.)	Length (D) 82.550 mm (Equiv. 3.25 in.)	Rail Width (E) 31.750 mm
Mounting Hole (G): 31.750 mm Thread Size (Y): 1/4-28
Part Number: PBC-605RS Redi-Rail Roller Guides Linear - 33.528x23.317x82.55 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $360.23 AUD Regular price Sale price $360.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-605RS --- Redi-Rail Roller Guides Linear - 33.528x23.317x82.55 mm PBC-605RS --- Redi-Rail Roller Guides Linear - 33.528x23.317x82.55 mm Regular price $360.23 AUD Regular price Sale price $360.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Suitable Rail Width (B) 45.0 mm (Equiv. 1.772 in.)	Overall Height (A) 33.0 mm (Equiv. 1.299 in.)	Length (D) 116.000 mm (Equiv. 4.567 in.)	Rail Width (E) 38.100 mm	Mounting Hole (G) 36.000 mm	Thread Size (Y) M8 x 1.25

Part Number: PBC-630RS Redi-Rail Roller Guides Linear - 45x33x116 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $555.77 AUD Regular price ~~$666.93 AUD~~ Sale price $555.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width (B) 45.0 mm (Equiv. 1.772 in.)	Overall Height (A) 33.0 mm (Equiv. 1.299 in.)	Length (D) 116.000 mm (Equiv. 4.567 in.)	Rail Width (E) 38.100 mm
Mounting Hole (G): 36.000 mm Thread Size (Y): M8 x 1.25
Part Number: PBC-630RS Redi-Rail Roller Guides Linear - 45x33x116 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $555.77 AUD Regular price ~~$666.93 AUD~~ Sale price $555.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-630RS --- Redi-Rail Roller Guides Linear - 45x33x116 mm Sale PBC-630RS --- Redi-Rail Roller Guides Linear - 45x33x116 mm Regular price $555.77 AUD Regular price ~~$666.93 AUD~~ Sale price $555.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Suitable Rail Width (B) 48.514 mm (Equiv. 1.91 in.)	Overall Height (A) 28.575 mm (Equiv. 1.125 in.)	Length (D) 114.300 mm (Equiv. 4.5 in.)	Rail Width (E) 38.100 mm	Mounting Hole (G) 41.275 mm	Thread Size (Y) 5/16-24

Part Number: PBC-610RS Redi-Rail Roller Guides Linear - 48.514x28.575x114.3 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $512.23 AUD Regular price ~~$614.67 AUD~~ Sale price $512.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width (B) 48.514 mm (Equiv. 1.91 in.)	Overall Height (A) 28.575 mm (Equiv. 1.125 in.)	Length (D) 114.300 mm (Equiv. 4.5 in.)	Rail Width (E) 38.100 mm
Mounting Hole (G): 41.275 mm Thread Size (Y): 5/16-24
Part Number: PBC-610RS Redi-Rail Roller Guides Linear - 48.514x28.575x114.3 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $512.23 AUD Regular price ~~$614.67 AUD~~ Sale price $512.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-610RS --- Redi-Rail Roller Guides Linear - 48.514x28.575x114.3 mm Sale PBC-610RS --- Redi-Rail Roller Guides Linear - 48.514x28.575x114.3 mm Regular price $512.23 AUD Regular price ~~$614.67 AUD~~ Sale price $512.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Suitable Rail Width (B) 65.0 mm (Equiv. 2.559 in.)	Overall Height (A) 42.0 mm (Equiv. 1.654 in.)	Length (D) 161.000 mm (Equiv. 6.339 in.)	Rail Width (E) 50.800 mm	Mounting Hole (G) 52.000 mm	Thread Size (Y) M8 x 1.25

Part Number: PBC-635RS Redi-Rail Roller Guides Linear - 65x42x161 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $869.23 AUD Regular price ~~$1,043.07 AUD~~ Sale price $869.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width (B) 65.0 mm (Equiv. 2.559 in.)	Overall Height (A) 42.0 mm (Equiv. 1.654 in.)	Length (D) 161.000 mm (Equiv. 6.339 in.)	Rail Width (E) 50.800 mm
Mounting Hole (G): 52.000 mm Thread Size (Y): M8 x 1.25
Part Number: PBC-635RS Redi-Rail Roller Guides Linear - 65x42x161 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $869.23 AUD Regular price ~~$1,043.07 AUD~~ Sale price $869.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-635RS --- Redi-Rail Roller Guides Linear - 65x42x161 mm Sale PBC-635RS --- Redi-Rail Roller Guides Linear - 65x42x161 mm Regular price $869.23 AUD Regular price ~~$1,043.07 AUD~~ Sale price $869.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
