Collection: Linear - Rail Systems Type 3 Rails

Linear -> Rail Systems Type 3 Rails

There are 22 products in the sub-categories of Linear - Rail Systems Type 3 Rails. Scroll down or follow the link to Linear - Rail Systems Type 3 Rails in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Rail Systems Type 3 Rails Linear. Match with carriage by size column 1. Thomson 500 Series provide long life, exceptional rigidity, high dynamic and static load capabilities in all directions.

Accommodates high moment loads and maintains high running accuracy. Improved machine accuracies and rigidity resulting in reduced vibration and extended machine and tool life.
Rails are subjected to multiple straightening processes during and after grinding of the ball paths to ensure straight and accurate rails.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Linear - Rail Systems Type 3 Rails category on the Small Parts & Bearings online store.

Size Reference	Width (B1)	Length	Height (J1)	F1	F2
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 220 mm (Equiv. 8.661 in.)	Height (J1) 15.700 mm	F1 4.500 mm	F2 8.000 mm
G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3108RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x220 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $202.32 AUD Regular price ~~$242.78 AUD~~ Sale price $202.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.

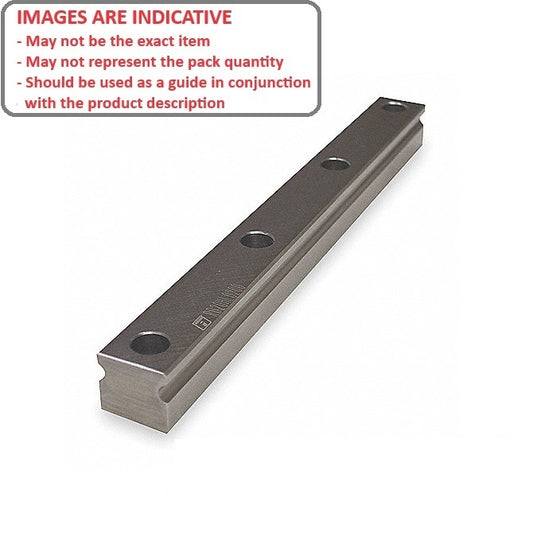

Size Reference	Width (B1)	Length	Height (J1)	Indicative Image
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 220 mm (Equiv. 8.661 in.)	Height (J1) 15.700 mm
F1: 4.500 mm F2: 8.000 mm G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3108RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x220 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $202.32 AUD Regular price ~~$242.78 AUD~~ Sale price $202.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3108RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x220 mm Sale TLM-3108RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x220 mm Regular price $202.32 AUD Regular price ~~$242.78 AUD~~ Sale price $202.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 160 mm (Equiv. 6.299 in.)	Height (J1) 15.700 mm	F1 4.500 mm	F2 8.000 mm
G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3107RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x160 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $172.95 AUD Regular price Sale price $172.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 160 mm (Equiv. 6.299 in.)	Height (J1) 15.700 mm
F1: 4.500 mm F2: 8.000 mm G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3107RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x160 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $172.95 AUD Regular price Sale price $172.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3107RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x160 mm TLM-3107RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x160 mm Regular price $172.95 AUD Regular price Sale price $172.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 280 mm (Equiv. 11.024 in.)	Height (J1) 15.700 mm	F1 4.500 mm	F2 8.000 mm
G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3109RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x280 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $247.77 AUD Regular price ~~$297.33 AUD~~ Sale price $247.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 280 mm (Equiv. 11.024 in.)	Height (J1) 15.700 mm
F1: 4.500 mm F2: 8.000 mm G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3109RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x280 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $247.77 AUD Regular price ~~$297.33 AUD~~ Sale price $247.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3109RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x280 mm Sale TLM-3109RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x280 mm Regular price $247.77 AUD Regular price ~~$297.33 AUD~~ Sale price $247.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 460 mm (Equiv. 18.11 in.)	Height (J1) 15.700 mm	F1 4.500 mm	F2 8.000 mm
G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3110RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x460 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $509.68 AUD Regular price ~~$611.62 AUD~~ Sale price $509.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 460 mm (Equiv. 18.11 in.)	Height (J1) 15.700 mm
F1: 4.500 mm F2: 8.000 mm G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3110RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x460 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $509.68 AUD Regular price ~~$611.62 AUD~~ Sale price $509.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3110RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x460 mm Sale TLM-3110RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x460 mm Regular price $509.68 AUD Regular price ~~$611.62 AUD~~ Sale price $509.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 820 mm (Equiv. 32.283 in.)	Height (J1) 15.700 mm	F1 4.500 mm	F2 8.000 mm
G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3111RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x820 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $902.59 AUD Regular price ~~$1,083.11 AUD~~ Sale price $902.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 15	Width (B1) 15.000 mm (Equiv. 0.591 in.)	Length 820 mm (Equiv. 32.283 in.)	Height (J1) 15.700 mm
F1: 4.500 mm F2: 8.000 mm G1: 4.500 mm Screw Size (S3): M4 (4x0.7mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3111RS Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x820 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $902.59 AUD Regular price ~~$1,083.11 AUD~~ Sale price $902.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3111RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x820 mm Sale TLM-3111RS --- Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x820 mm Regular price $902.59 AUD Regular price ~~$1,083.11 AUD~~ Sale price $902.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

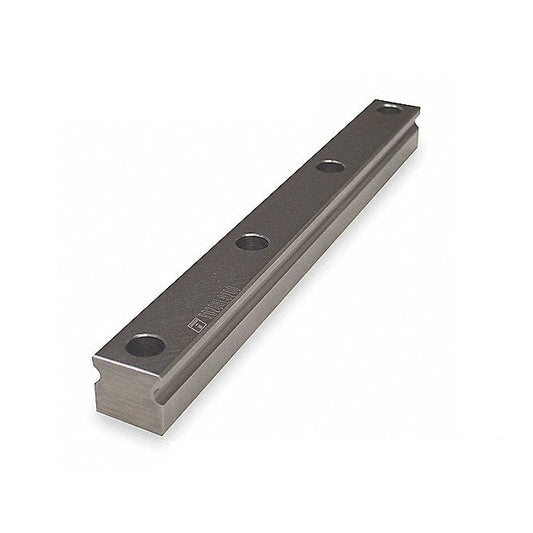

Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 160 mm (Equiv. 6.299 in.)	Height (J1) 19.000 mm	F1 5.800 mm	F2 10.000 mm
G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3112RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x160 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $167.14 AUD Regular price ~~$200.56 AUD~~ Sale price $167.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 160 mm (Equiv. 6.299 in.)	Height (J1) 19.000 mm
F1: 5.800 mm F2: 10.000 mm G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3112RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x160 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $167.14 AUD Regular price ~~$200.56 AUD~~ Sale price $167.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3112RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x160 mm Sale TLM-3112RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x160 mm Regular price $167.14 AUD Regular price ~~$200.56 AUD~~ Sale price $167.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 220 mm (Equiv. 8.661 in.)	Height (J1) 19.000 mm	F1 5.800 mm	F2 10.000 mm
G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3113RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x220 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $294.50 AUD Regular price ~~$353.40 AUD~~ Sale price $294.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 220 mm (Equiv. 8.661 in.)	Height (J1) 19.000 mm
F1: 5.800 mm F2: 10.000 mm G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3113RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x220 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $294.50 AUD Regular price ~~$353.40 AUD~~ Sale price $294.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3113RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x220 mm Sale TLM-3113RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x220 mm Regular price $294.50 AUD Regular price ~~$353.40 AUD~~ Sale price $294.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 460 mm (Equiv. 18.11 in.)	Height (J1) 19.000 mm	F1 5.800 mm	F2 10.000 mm
G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3115RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x460 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $544.59 AUD Regular price ~~$653.51 AUD~~ Sale price $544.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 460 mm (Equiv. 18.11 in.)	Height (J1) 19.000 mm
F1: 5.800 mm F2: 10.000 mm G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3115RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x460 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $544.59 AUD Regular price ~~$653.51 AUD~~ Sale price $544.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3115RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x460 mm Sale TLM-3115RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x460 mm Regular price $544.59 AUD Regular price ~~$653.51 AUD~~ Sale price $544.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 820 mm (Equiv. 32.283 in.)	Height (J1) 19.000 mm	F1 5.800 mm	F2 10.000 mm
G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3116RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x820 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $924.32 AUD Regular price ~~$1,109.18 AUD~~ Sale price $924.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 20	Width (B1) 20.000 mm (Equiv. 0.787 in.)	Length 820 mm (Equiv. 32.283 in.)	Height (J1) 19.000 mm
F1: 5.800 mm F2: 10.000 mm G1: 6.500 mm Screw Size (S3): M5 (5x0.8mm) Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3116RS Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x820 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $924.32 AUD Regular price ~~$1,109.18 AUD~~ Sale price $924.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3116RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x820 mm Sale TLM-3116RS --- Rail Systems Type 3 Rails Linear - Size Reference 20 - 20x820 mm Regular price $924.32 AUD Regular price ~~$1,109.18 AUD~~ Sale price $924.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 160 mm (Equiv. 6.299 in.)	Height (J1) 22.700 mm	F1 7.000 mm	F2 11.000 mm
G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3118RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x160 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $219.59 AUD Regular price ~~$263.51 AUD~~ Sale price $219.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 160 mm (Equiv. 6.299 in.)	Height (J1) 22.700 mm
F1: 7.000 mm F2: 11.000 mm G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3118RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x160 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $219.59 AUD Regular price ~~$263.51 AUD~~ Sale price $219.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3118RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x160 mm Sale TLM-3118RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x160 mm Regular price $219.59 AUD Regular price ~~$263.51 AUD~~ Sale price $219.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 220 mm (Equiv. 8.661 in.)	Height (J1) 22.700 mm	F1 7.000 mm	F2 11.000 mm
G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3119RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x220 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $311.77 AUD Regular price ~~$374.13 AUD~~ Sale price $311.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 220 mm (Equiv. 8.661 in.)	Height (J1) 22.700 mm
F1: 7.000 mm F2: 11.000 mm G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3119RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x220 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $311.77 AUD Regular price ~~$374.13 AUD~~ Sale price $311.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3119RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x220 mm Sale TLM-3119RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x220 mm Regular price $311.77 AUD Regular price ~~$374.13 AUD~~ Sale price $311.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 280 mm (Equiv. 11.024 in.)	Height (J1) 22.700 mm	F1 7.000 mm	F2 11.000 mm
G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3120RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x280 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $305.32 AUD Regular price ~~$366.38 AUD~~ Sale price $305.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 280 mm (Equiv. 11.024 in.)	Height (J1) 22.700 mm
F1: 7.000 mm F2: 11.000 mm G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3120RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x280 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $305.32 AUD Regular price ~~$366.38 AUD~~ Sale price $305.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3120RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x280 mm Sale TLM-3120RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x280 mm Regular price $305.32 AUD Regular price ~~$366.38 AUD~~ Sale price $305.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 820 mm (Equiv. 32.283 in.)	Height (J1) 22.700 mm	F1 7.000 mm	F2 11.000 mm
G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3123RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x820 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $931.23 AUD Regular price ~~$1,117.47 AUD~~ Sale price $931.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 25	Width (B1) 23.000 mm (Equiv. 0.906 in.)	Length 820 mm (Equiv. 32.283 in.)	Height (J1) 22.700 mm
F1: 7.000 mm F2: 11.000 mm G1: 8.000 mm Screw Size (S3): M6 Hole Spacing (X): 60.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3123RS Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x820 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $931.23 AUD Regular price ~~$1,117.47 AUD~~ Sale price $931.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3123RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x820 mm Sale TLM-3123RS --- Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x820 mm Regular price $931.23 AUD Regular price ~~$1,117.47 AUD~~ Sale price $931.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 30	Width (B1) 28.000 mm (Equiv. 1.102 in.)	Length 440 mm (Equiv. 17.323 in.)	Height (J1) 26.000 mm	F1 9.000 mm	F2 15.000 mm
G1: 10.000 mm Screw Size (S3): M7 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3127RS Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x440 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $554.86 AUD Regular price ~~$665.84 AUD~~ Sale price $554.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 30	Width (B1) 28.000 mm (Equiv. 1.102 in.)	Length 440 mm (Equiv. 17.323 in.)	Height (J1) 26.000 mm
F1: 9.000 mm F2: 15.000 mm G1: 10.000 mm Screw Size (S3): M7 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3127RS Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x440 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $554.86 AUD Regular price ~~$665.84 AUD~~ Sale price $554.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3127RS --- Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x440 mm Sale TLM-3127RS --- Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x440 mm Regular price $554.86 AUD Regular price ~~$665.84 AUD~~ Sale price $554.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 30	Width (B1) 28.000 mm (Equiv. 1.102 in.)	Length 680 mm (Equiv. 26.772 in.)	Height (J1) 26.000 mm	F1 9.000 mm	F2 15.000 mm
G1: 10.000 mm Screw Size (S3): M7 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3128RS Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x680 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $818.95 AUD Regular price ~~$982.75 AUD~~ Sale price $818.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 30	Width (B1) 28.000 mm (Equiv. 1.102 in.)	Length 680 mm (Equiv. 26.772 in.)	Height (J1) 26.000 mm
F1: 9.000 mm F2: 15.000 mm G1: 10.000 mm Screw Size (S3): M7 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3128RS Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x680 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $818.95 AUD Regular price ~~$982.75 AUD~~ Sale price $818.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3128RS --- Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x680 mm Sale TLM-3128RS --- Rail Systems Type 3 Rails Linear - Size Reference 30 - 28x680 mm Regular price $818.95 AUD Regular price ~~$982.75 AUD~~ Sale price $818.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 440 mm (Equiv. 17.323 in.)	Height (J1) 29.500 mm	F1 9.000 mm	F2 15.000 mm
G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3134RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x440 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $728.14 AUD Regular price ~~$873.76 AUD~~ Sale price $728.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 440 mm (Equiv. 17.323 in.)	Height (J1) 29.500 mm
F1: 9.000 mm F2: 15.000 mm G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3134RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x440 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $728.14 AUD Regular price ~~$873.76 AUD~~ Sale price $728.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3134RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x440 mm Sale TLM-3134RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x440 mm Regular price $728.14 AUD Regular price ~~$873.76 AUD~~ Sale price $728.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 840 mm (Equiv. 33.071 in.)	Height (J1) 29.500 mm	F1 9.000 mm	F2 15.000 mm
G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3136RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x840 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $1,090.14 AUD Regular price ~~$1,308.16 AUD~~ Sale price $1,090.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 840 mm (Equiv. 33.071 in.)	Height (J1) 29.500 mm
F1: 9.000 mm F2: 15.000 mm G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3136RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x840 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $1,090.14 AUD Regular price ~~$1,308.16 AUD~~ Sale price $1,090.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3136RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x840 mm Sale TLM-3136RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x840 mm Regular price $1,090.14 AUD Regular price ~~$1,308.16 AUD~~ Sale price $1,090.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 1240 mm (Equiv. 48.819 in.)	Height (J1) 29.500 mm	F1 9.000 mm	F2 15.000 mm
G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3137RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1240 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $1,702.77 AUD Regular price ~~$2,043.33 AUD~~ Sale price $1,702.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 1240 mm (Equiv. 48.819 in.)	Height (J1) 29.500 mm
F1: 9.000 mm F2: 15.000 mm G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3137RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1240 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $1,702.77 AUD Regular price ~~$2,043.33 AUD~~ Sale price $1,702.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3137RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1240 mm Sale TLM-3137RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1240 mm Regular price $1,702.77 AUD Regular price ~~$2,043.33 AUD~~ Sale price $1,702.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 1640 mm (Equiv. 64.567 in.)	Height (J1) 29.500 mm	F1 9.000 mm	F2 15.000 mm
G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3138RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1640 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $2,127.86 AUD Regular price ~~$2,553.44 AUD~~ Sale price $2,127.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 1640 mm (Equiv. 64.567 in.)	Height (J1) 29.500 mm
F1: 9.000 mm F2: 15.000 mm G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3138RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1640 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $2,127.86 AUD Regular price ~~$2,553.44 AUD~~ Sale price $2,127.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3138RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1640 mm Sale TLM-3138RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x1640 mm Regular price $2,127.86 AUD Regular price ~~$2,553.44 AUD~~ Sale price $2,127.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 2520 mm (Equiv. 99.213 in.)	Height (J1) 29.500 mm	F1 9.000 mm	F2 15.000 mm
G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3140RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x2520 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $3,367.32 AUD Regular price ~~$4,040.78 AUD~~ Sale price $3,367.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 35	Width (B1) 34.000 mm (Equiv. 1.339 in.)	Length 2520 mm (Equiv. 99.213 in.)	Height (J1) 29.500 mm
F1: 9.000 mm F2: 15.000 mm G1: 12.000 mm Screw Size (S3): M8 Hole Spacing (X): 80.000 mm Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3140RS Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x2520 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $3,367.32 AUD Regular price ~~$4,040.78 AUD~~ Sale price $3,367.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3140RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x2520 mm Sale TLM-3140RS --- Rail Systems Type 3 Rails Linear - Size Reference 35 - 34x2520 mm Regular price $3,367.32 AUD Regular price ~~$4,040.78 AUD~~ Sale price $3,367.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 45	Width (B1) 45.000 mm (Equiv. 1.772 in.)	Length 570 mm (Equiv. 22.441 in.)	Height (J1) 37.000 mm	F1 14.000 mm	F2 20.000 mm
G1: 15.000 mm Screw Size (S3): M12 Hole Spacing (X): 105.000 mm Hole Spacing from End (Y): 22.500 mm
Part Number: TLM-3142RS Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x570 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $1,103.23 AUD Regular price ~~$1,323.87 AUD~~ Sale price $1,103.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 45	Width (B1) 45.000 mm (Equiv. 1.772 in.)	Length 570 mm (Equiv. 22.441 in.)	Height (J1) 37.000 mm
F1: 14.000 mm F2: 20.000 mm G1: 15.000 mm Screw Size (S3): M12 Hole Spacing (X): 105.000 mm Hole Spacing from End (Y): 22.500 mm
Part Number: TLM-3142RS Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x570 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $1,103.23 AUD Regular price ~~$1,323.87 AUD~~ Sale price $1,103.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3142RS --- Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x570 mm Sale TLM-3142RS --- Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x570 mm Regular price $1,103.23 AUD Regular price ~~$1,323.87 AUD~~ Sale price $1,103.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Size Reference 45	Width (B1) 45.000 mm (Equiv. 1.772 in.)	Length 2040 mm (Equiv. 80.315 in.)	Height (J1) 37.000 mm	F1 14.000 mm	F2 20.000 mm
G1: 15.000 mm Screw Size (S3): M12 Hole Spacing (X): 105.000 mm Hole Spacing from End (Y): 22.500 mm
Part Number: TLM-3146RS Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x2040 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $3,493.50 AUD Regular price ~~$4,192.20 AUD~~ Sale price $3,493.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Size Reference 45	Width (B1) 45.000 mm (Equiv. 1.772 in.)	Length 2040 mm (Equiv. 80.315 in.)	Height (J1) 37.000 mm
F1: 14.000 mm F2: 20.000 mm G1: 15.000 mm Screw Size (S3): M12 Hole Spacing (X): 105.000 mm Hole Spacing from End (Y): 22.500 mm
Part Number: TLM-3146RS Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x2040 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $3,493.50 AUD Regular price ~~$4,192.20 AUD~~ Sale price $3,493.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
TLM-3146RS --- Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x2040 mm Sale TLM-3146RS --- Rail Systems Type 3 Rails Linear - Size Reference 45 - 45x2040 mm Regular price $3,493.50 AUD Regular price ~~$4,192.20 AUD~~ Sale price $3,493.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Linear - Rail Systems Type 3 Rails

Category Details

Filter

Filter

Subscribe to our emails
