A selection of Rail Systems Type 2 Rails Linear. Match with carriage by size column 1. Thomson 500 Series provide long life, exceptional rigidity, high dynamic and static load capabilities in all directions.

  • Linear rails to suit type 2 carriages.
  • Straight rails through advanced grinding technologies. Simple installation and greater accuracy with joint-free rails up to 6 meters
  • Accommodates high moment loads and maintains high running accuracy. Improved machine accuracies and rigidity resulting in reduced vibration and extended machine and tool life.
  • Rails are subjected to multiple straightening processes during and after grinding of the ball paths to ensure straight and accurate rails.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Rail Systems Type 2 Rails category on the Small Parts & Bearings online store.
Size Reference Width (B1) Length Height (J1) F1 F2 Indicative
Rail Systems Type 2 Rails Linear - Size Reference 20 - 19x160 mm
Size Reference
20
Width (B1)
19.000
mm
Length
160.000
mm
Height (J1)
19.000
mm
F1
5.800
mm
F2
10.000
mm
Rail Systems Type 2 Rails Linear - Size 20 - 19x160 mm
G1: 6.500 mm    Screw Size (S3): M5 (5x0.8mm)    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3153RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$293.05 AUD
$293.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Size Reference Width (B1) Length Height (J1) Indicative
Rail Systems Type 2 Rails Linear - Size Reference 20 - 19x160 mm
Size Reference
20
Width (B1)
19.000
mm
Length
160.000
mm
Height (J1)
19.000
mm
Rail Systems Type 2 Rails Linear - Size 20 - 19x160 mm
F1: 5.800 mm    F2: 10.000 mm    G1: 6.500 mm    Screw Size (S3): M5 (5x0.8mm)    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3153RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$293.05 AUD
$293.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rail Systems Type 2 Rails Linear - Size Reference 25 - 22.7x820 mm
Size Reference
25
Width (B1)
22.700
mm
Length
820.000
mm
Height (J1)
22.700
mm
F1
7.000
mm
F2
11.000
mm

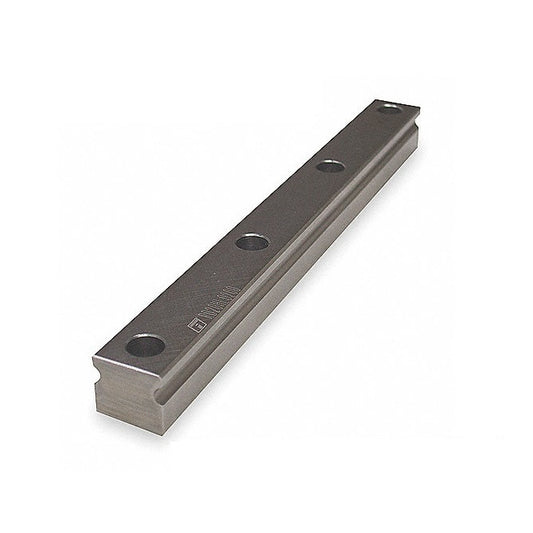

Rail Systems Type 2 Rails Linear - Size 25 - 22.7x820 mm
