Linear - Ball Spline Bearings Unflanged

Linear -> Ball Spline Bearings Unflanged

There is only 1 product in the sub-categories of Linear - Ball Spline Bearings Unflanged. Browse the Linear - Ball Spline Bearings Unflanged products table.

Category Details

A selection of Ball Spline Bearings Unflanged Linear. Use with Linear Ball Spline Shaft.

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Ball Spline Bearings Unflanged category on the Small Parts & Bearings online store.
Suitable Shaft Diameter (d) Bearing OD (D) Bearing Length (L1) Main Body Length (L2) Indent Width (d2) Basic Load Rating (Dyn/Stat.) Indicative
Suitable Shaft Diameter (d)
2.00
mm

(Equiv. 0.079 in.)
Bearing OD (D)
6.00
mm

(Equiv. 0.236 in.)
Bearing Length (L1)
8.50
mm

(Equiv. 0.335 in.)
Main Body Length (L2)
4.70
mm
Indent Width (d2)
1.20
mm
Basic Load Rating (Dyn/Stat.)
222 / 237
CN / CoN

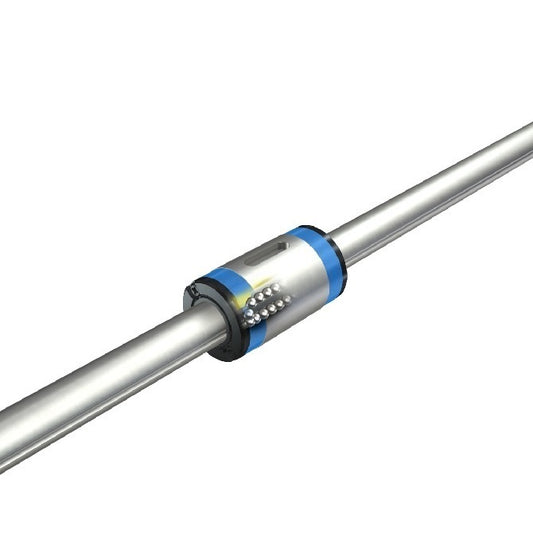

Ball Spline Bearings Unflanged Linear - 2x6x8.5 mm
Seals: None    Keyway ( W x t x k ): t = 0.7 mm
Deleted Item. Available while stocks last.
Part Number: LSAG2-C
Ball Spline Bearings Unflanged Linear - 2x6x8.5 mm
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft Diameter (d) Bearing OD (D) Bearing Length (L1) Main Body Length (L2) Indicative
Suitable Shaft Diameter (d)
2.00
mm

(Equiv. 0.079 in.)
Bearing OD (D)
6.00
mm

(Equiv. 0.236 in.)
Bearing Length (L1)
8.50
mm

(Equiv. 0.335 in.)
Main Body Length (L2)
4.70
mm

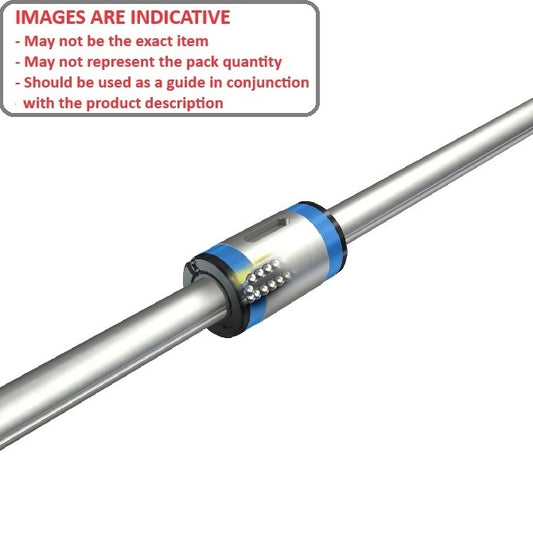

Ball Spline Bearings Unflanged Linear - 2x6x8.5 mm
Indent Width (d2): 1.20 mm    Basic Load Rating (Dyn/Stat.): 222 / 237 CN / CoN    Seals: None    Keyway ( W x t x k ): t = 0.7 mm
Deleted Item. Available while stocks last.
Part Number: LSAG2-C
Ball Spline Bearings Unflanged Linear - 2x6x8.5 mm
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
