Housing and Bearing Assembly - Pillow Block - Thermoplastic and Steel

Housing and Bearing Assembly -> Pillow Block -> Thermoplastic and Steel

There are 15 products in the sub-categories of Housing and Bearing Assembly - Pillow Block - Thermoplastic and Steel. Browse the Housing and Bearing Assembly - Pillow Block - Thermoplastic and Steel products table.

Category Details

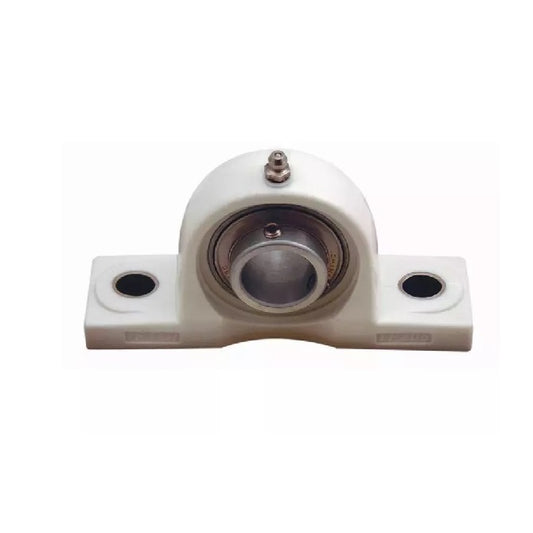

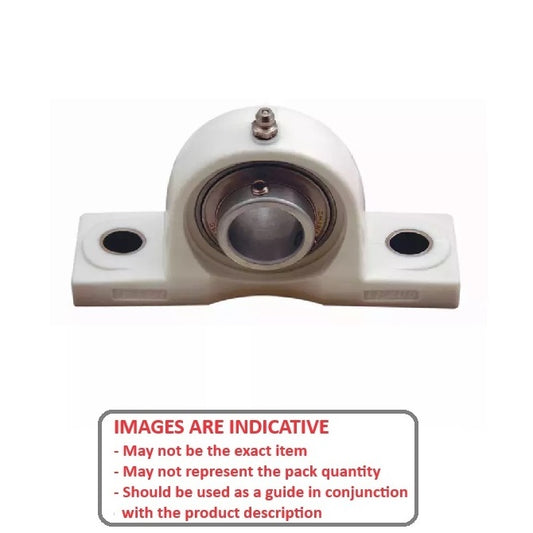

A selection of Thermoplastic and Chrome Steel Pillow Block Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.

  • Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
  • Excellent mechanical, thermal and electrical properties.
  • Operational temperature -20 to +100 oC

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housing and Bearing Assembly - Pillow Block - Thermoplastic and Steel category on the Small Parts & Bearings online store.
Inside Diameter Centre Height (A) Length (B) Width (C) Foot Height (D) Bolt Centres (E) Indicative
Inside Diameter
19.050
mm

(Equiv. 0.75 in.)
Centre Height (A)
33.338
mm

(Equiv. 1.313 in.)
Length (B)
127.000
mm

(Equiv. 5 in.)
Width (C)
38.100
mm
Foot Height (D)
14.280
mm
Bolt Centres (E)
95.250
mm
Pillow Block Housing Assembly - 19.05x33.338x127 mm
Bolt Hole Size (G): 14.275 mm    Height (H): 65.881 mm    K: 12.700 mm    L: 18.301 mm
Part Number: IP-212RS
Pillow Block Housing and Bearing Assembly - 19.05x33.338x127 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$234.14 AUD
$234.14 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter Centre Height (A) Length (B) Width (C) Indicative
Inside Diameter
19.050
mm

(Equiv. 0.75 in.)
Centre Height (A)
33.338
mm

(Equiv. 1.313 in.)
Length (B)
127.000
mm

(Equiv. 5 in.)
Width (C)
38.100
mm
Pillow Block Housing Assembly - 19.05x33.338x127 mm
Foot Height (D): 14.280 mm    Bolt Centres (E): 95.250 mm    Bolt Hole Size (G): 14.275 mm    Height (H): 65.881 mm    K: 12.700 mm    L: 18.301 mm
Part Number: IP-212RS
Pillow Block Housing and Bearing Assembly - 19.05x33.338x127 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$234.14 AUD
$234.14 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
20.000
mm

(Equiv. 0.787 in.)
Centre Height (A)
33.300
mm

(Equiv. 1.311 in.)
Length (B)
127.000
mm

(Equiv. 5 in.)
Width (C)
38.000
mm
Foot Height (D)
14.000
mm
Bolt Centres (E)
95.000
mm
Pillow Block Housing Assembly - 20x33.3x127 mm
Bolt Hole Size (G): 14.000 mm    Height (H): 14.000 mm    K: 12.700 mm    L: 18.300 mm
Part Number: IP-213RS
Pillow Block Housing and Bearing Assembly - 20x33.3x127 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$205.95 AUD
$247.15 AUD $205.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
20.000
mm

(Equiv. 0.787 in.)
Centre Height (A)
33.300
mm

(Equiv. 1.311 in.)
Length (B)
127.000
mm

(Equiv. 5 in.)
Width (C)
38.000
mm
Pillow Block Housing Assembly - 20x33.3x127 mm
Foot Height (D): 14.000 mm    Bolt Centres (E): 95.000 mm    Bolt Hole Size (G): 14.000 mm    Height (H): 14.000 mm    K: 12.700 mm    L: 18.300 mm
Part Number: IP-213RS
Pillow Block Housing and Bearing Assembly - 20x33.3x127 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$205.95 AUD
$247.15 AUD $205.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
22.225
mm

(Equiv. 0.875 in.)
Centre Height (A)
36.513
mm

(Equiv. 1.438 in.)
Length (B)
139.700
mm

(Equiv. 5.5 in.)
Width (C)
38.100
mm
Foot Height (D)
14.280
mm
Bolt Centres (E)
104.775
mm
Pillow Block Housing Assembly - 22.225x36.513x139.7 mm
Bolt Hole Size (G): 14.275 mm    Height (H): 71.438 mm    K: 14.300 mm    L: 19.700 mm
Part Number: IP-214RS
Pillow Block Housing and Bearing Assembly - 22.225x36.513x139.7 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$215.86 AUD
$259.04 AUD $215.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
22.225
mm

(Equiv. 0.875 in.)
Centre Height (A)
36.513
mm

(Equiv. 1.438 in.)
Length (B)
139.700
mm

(Equiv. 5.5 in.)
Width (C)
38.100
mm
Pillow Block Housing Assembly - 22.225x36.513x139.7 mm
Foot Height (D): 14.280 mm    Bolt Centres (E): 104.775 mm    Bolt Hole Size (G): 14.275 mm    Height (H): 71.438 mm    K: 14.300 mm    L: 19.700 mm
Part Number: IP-214RS
Pillow Block Housing and Bearing Assembly - 22.225x36.513x139.7 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$215.86 AUD
$259.04 AUD $215.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
25.000
mm

(Equiv. 0.984 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Length (B)
140.000
mm

(Equiv. 5.512 in.)
Width (C)
38.000
mm
Foot Height (D)
14.000
mm
Bolt Centres (E)
105.000
mm
Pillow Block Housing Assembly - 25x36.5x140 mm
Bolt Hole Size (G): 14.000 mm    Height (H): 71.000 mm    K: 14.300 mm    L: 19.700 mm
Part Number: IP-215RS
Pillow Block Housing and Bearing Assembly - 25x36.5x140 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$222.95 AUD
$267.55 AUD $222.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
25.000
mm

(Equiv. 0.984 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Length (B)
140.000
mm

(Equiv. 5.512 in.)
Width (C)
38.000
mm
Pillow Block Housing Assembly - 25x36.5x140 mm
Foot Height (D): 14.000 mm    Bolt Centres (E): 105.000 mm    Bolt Hole Size (G): 14.000 mm    Height (H): 71.000 mm    K: 14.300 mm    L: 19.700 mm
Part Number: IP-215RS
Pillow Block Housing and Bearing Assembly - 25x36.5x140 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$222.95 AUD
$267.55 AUD $222.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
25.400
mm

(Equiv. 1 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Length (B)
139.700
mm

(Equiv. 5.5 in.)
Width (C)
38.100
mm
Foot Height (D)
14.280
mm
Bolt Centres (E)
104.775
mm
Pillow Block Housing Assembly - 25.4x36.5x139.7 mm
Bolt Hole Size (G): 14.275 mm    Height (H): 71.438 mm    K: 14.300 mm    L: 19.700 mm
Part Number: IP-216RS
Pillow Block Housing and Bearing Assembly - 25.4x36.5x139.7 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$220.59 AUD
$264.71 AUD $220.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
25.400
mm

(Equiv. 1 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Length (B)
139.700
mm

(Equiv. 5.5 in.)
Width (C)
38.100
mm
Pillow Block Housing Assembly - 25.4x36.5x139.7 mm
Foot Height (D): 14.280 mm    Bolt Centres (E): 104.775 mm    Bolt Hole Size (G): 14.275 mm    Height (H): 71.438 mm    K: 14.300 mm    L: 19.700 mm
Part Number: IP-216RS
Pillow Block Housing and Bearing Assembly - 25.4x36.5x139.7 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$220.59 AUD
$264.71 AUD $220.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
28.575
mm

(Equiv. 1.125 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Length (B)
162.719
mm

(Equiv. 6.406 in.)
Width (C)
46.040
mm
Foot Height (D)
17.460
mm
Bolt Centres (E)
119.063
mm
Pillow Block Housing Assembly - 28.575x42.863x162.719 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 83.741 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-217RS
Pillow Block Housing and Bearing Assembly - 28.575x42.863x162.719 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
28.575
mm

(Equiv. 1.125 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Length (B)
162.719
mm

(Equiv. 6.406 in.)
Width (C)
46.040
mm
Pillow Block Housing Assembly - 28.575x42.863x162.719 mm
Foot Height (D): 17.460 mm    Bolt Centres (E): 119.063 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 83.741 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-217RS
Pillow Block Housing and Bearing Assembly - 28.575x42.863x162.719 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
30.000
mm

(Equiv. 1.181 in.)
Centre Height (A)
42.900
mm

(Equiv. 1.689 in.)
Length (B)
163.000
mm

(Equiv. 6.417 in.)
Width (C)
46.000
mm
Foot Height (D)
18.000
mm
Bolt Centres (E)
119.000
mm
Pillow Block Housing Assembly - 30x42.9x163 mm
Bolt Hole Size (G): 18.000 mm    Height (H): 84.000 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-218RS
Pillow Block Housing and Bearing Assembly - 30x42.9x163 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$266.59 AUD
$319.91 AUD $266.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
30.000
mm

(Equiv. 1.181 in.)
Centre Height (A)
42.900
mm

(Equiv. 1.689 in.)
Length (B)
163.000
mm

(Equiv. 6.417 in.)
Width (C)
46.000
mm
Pillow Block Housing Assembly - 30x42.9x163 mm
Foot Height (D): 18.000 mm    Bolt Centres (E): 119.000 mm    Bolt Hole Size (G): 18.000 mm    Height (H): 84.000 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-218RS
Pillow Block Housing and Bearing Assembly - 30x42.9x163 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$266.59 AUD
$319.91 AUD $266.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
30.163
mm

(Equiv. 1.188 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Length (B)
162.719
mm

(Equiv. 6.406 in.)
Width (C)
46.040
mm
Foot Height (D)
17.460
mm
Bolt Centres (E)
119.063
mm
Pillow Block Housing Assembly - 30.163x42.863x162.719 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 83.741 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-219RS
Pillow Block Housing and Bearing Assembly - 30.163x42.863x162.719 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$267.77 AUD
$321.33 AUD $267.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
30.163
mm

(Equiv. 1.188 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Length (B)
162.719
mm

(Equiv. 6.406 in.)
Width (C)
46.040
mm
Pillow Block Housing Assembly - 30.163x42.863x162.719 mm
Foot Height (D): 17.460 mm    Bolt Centres (E): 119.063 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 83.741 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-219RS
Pillow Block Housing and Bearing Assembly - 30.163x42.863x162.719 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$267.77 AUD
$321.33 AUD $267.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
31.750
mm

(Equiv. 1.25 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Length (B)
162.719
mm

(Equiv. 6.406 in.)
Width (C)
46.040
mm
Foot Height (D)
17.460
mm
Bolt Centres (E)
119.063
mm
Pillow Block Housing Assembly - 31.75x42.863x162.719 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 83.741 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-220RS
Pillow Block Housing and Bearing Assembly - 31.75x42.863x162.719 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$267.77 AUD
$321.33 AUD $267.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
31.750
mm

(Equiv. 1.25 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Length (B)
162.719
mm

(Equiv. 6.406 in.)
Width (C)
46.040
mm
Pillow Block Housing Assembly - 31.75x42.863x162.719 mm
Foot Height (D): 17.460 mm    Bolt Centres (E): 119.063 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 83.741 mm    K: 22.200 mm    L: 22.200 mm
Part Number: IP-220RS
Pillow Block Housing and Bearing Assembly - 31.75x42.863x162.719 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$267.77 AUD
$321.33 AUD $267.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
31.750
mm

(Equiv. 1.25 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Length (B)
168.275
mm

(Equiv. 6.625 in.)
Width (C)
48.420
mm
Foot Height (D)
17.460
mm
Bolt Centres (E)
127.000
mm
Pillow Block Housing Assembly - 31.75x47.625x168.275 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 93.663 mm    K: 17.501 mm    L: 25.400 mm
Part Number: IP-221RS
Pillow Block Housing and Bearing Assembly - 31.75x47.625x168.275 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$309.05 AUD
$370.85 AUD $309.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
31.750
mm

(Equiv. 1.25 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Length (B)
168.275
mm

(Equiv. 6.625 in.)
Width (C)
48.420
mm
Pillow Block Housing Assembly - 31.75x47.625x168.275 mm
Foot Height (D): 17.460 mm    Bolt Centres (E): 127.000 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 93.663 mm    K: 17.501 mm    L: 25.400 mm
Part Number: IP-221RS
Pillow Block Housing and Bearing Assembly - 31.75x47.625x168.275 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$309.05 AUD
$370.85 AUD $309.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
34.925
mm

(Equiv. 1.375 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Length (B)
168.275
mm

(Equiv. 6.625 in.)
Width (C)
48.420
mm
Foot Height (D)
17.460
mm
Bolt Centres (E)
127.000
mm
Pillow Block Housing Assembly - 34.925x47.625x168.275 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 93.663 mm    K: 17.501 mm    L: 25.400 mm
Part Number: IP-222RS
Pillow Block Housing and Bearing Assembly - 34.925x47.625x168.275 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$309.05 AUD
$370.85 AUD $309.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
34.925
mm

(Equiv. 1.375 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Length (B)
168.275
mm

(Equiv. 6.625 in.)
Width (C)
48.420
mm
Pillow Block Housing Assembly - 34.925x47.625x168.275 mm
Foot Height (D): 17.460 mm    Bolt Centres (E): 127.000 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 93.663 mm    K: 17.501 mm    L: 25.400 mm
Part Number: IP-222RS
Pillow Block Housing and Bearing Assembly - 34.925x47.625x168.275 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$309.05 AUD
$370.85 AUD $309.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
35.000
mm

(Equiv. 1.378 in.)
Centre Height (A)
47.600
mm

(Equiv. 1.874 in.)
Length (B)
168.000
mm

(Equiv. 6.614 in.)
Width (C)
48.000
mm
Foot Height (D)
18.000
mm
Bolt Centres (E)
127.000
mm
Pillow Block Housing Assembly - 35x47.6x168 mm
Bolt Hole Size (G): 18.000 mm    Height (H): 94.000 mm    K: 17.500 mm    L: 25.400 mm
Part Number: IP-223RS
Pillow Block Housing and Bearing Assembly - 35x47.6x168 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$315.68 AUD
$378.82 AUD $315.68 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
35.000
mm

(Equiv. 1.378 in.)
Centre Height (A)
47.600
mm

(Equiv. 1.874 in.)
Length (B)
168.000
mm

(Equiv. 6.614 in.)
Width (C)
48.000
mm
Pillow Block Housing Assembly - 35x47.6x168 mm
Foot Height (D): 18.000 mm    Bolt Centres (E): 127.000 mm    Bolt Hole Size (G): 18.000 mm    Height (H): 94.000 mm    K: 17.500 mm    L: 25.400 mm
Part Number: IP-223RS
Pillow Block Housing and Bearing Assembly - 35x47.6x168 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$315.68 AUD
$378.82 AUD $315.68 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
36.513
mm

(Equiv. 1.438 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Length (B)
168.275
mm

(Equiv. 6.625 in.)
Width (C)
48.420
mm
Foot Height (D)
17.460
mm
Bolt Centres (E)
127.000
mm
Pillow Block Housing Assembly - 36.513x47.625x168.275 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 93.663 mm    K: 17.501 mm    L: 25.400 mm
Part Number: IP-224RS
Pillow Block Housing and Bearing Assembly - 36.513x47.625x168.275 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$315.50 AUD
$378.60 AUD $315.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
36.513
mm

(Equiv. 1.438 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Length (B)
168.275
mm

(Equiv. 6.625 in.)
Width (C)
48.420
mm
Pillow Block Housing Assembly - 36.513x47.625x168.275 mm
Foot Height (D): 17.460 mm    Bolt Centres (E): 127.000 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 93.663 mm    K: 17.501 mm    L: 25.400 mm
Part Number: IP-224RS
Pillow Block Housing and Bearing Assembly - 36.513x47.625x168.275 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$315.50 AUD
$378.60 AUD $315.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
38.100
mm

(Equiv. 1.5 in.)
Centre Height (A)
49.213
mm

(Equiv. 1.938 in.)
Length (B)
184.150
mm

(Equiv. 7.25 in.)
Width (C)
53.980
mm
Foot Height (D)
19.840
mm
Bolt Centres (E)
138.100
mm
Pillow Block Housing Assembly - 38.1x49.213x184.15 mm
Bolt Hole Size (G): 18.256 mm    Height (H): 99.219 mm    K: 18.999 mm    L: 30.201 mm
Part Number: IP-225RS
Pillow Block Housing and Bearing Assembly - 38.1x49.213x184.15 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$384.59 AUD
$461.51 AUD $384.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
38.100
mm

(Equiv. 1.5 in.)
Centre Height (A)
49.213
mm

(Equiv. 1.938 in.)
Length (B)
184.150
mm

(Equiv. 7.25 in.)
Width (C)
53.980
mm
Pillow Block Housing Assembly - 38.1x49.213x184.15 mm
Foot Height (D): 19.840 mm    Bolt Centres (E): 138.100 mm    Bolt Hole Size (G): 18.256 mm    Height (H): 99.219 mm    K: 18.999 mm    L: 30.201 mm
Part Number: IP-225RS
Pillow Block Housing and Bearing Assembly - 38.1x49.213x184.15 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$384.59 AUD
$461.51 AUD $384.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
40.000
mm

(Equiv. 1.575 in.)
Centre Height (A)
49.200
mm

(Equiv. 1.937 in.)
Length (B)
184.000
mm

(Equiv. 7.244 in.)
Width (C)
54.000
mm
Foot Height (D)
20.000
mm
Bolt Centres (E)
137.000
mm
Pillow Block Housing Assembly - 40x49.2x184 mm
Bolt Hole Size (G): 18.000 mm    Height (H): 99.000 mm    K: 19.000 mm    L: 30.200 mm
Part Number: IP-226RS
Pillow Block Housing and Bearing Assembly - 40x49.2x184 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$389.05 AUD
$466.85 AUD $389.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Inside Diameter
40.000
mm

(Equiv. 1.575 in.)
Centre Height (A)
49.200
mm

(Equiv. 1.937 in.)
Length (B)
184.000
mm

(Equiv. 7.244 in.)
Width (C)
54.000
mm
Pillow Block Housing Assembly - 40x49.2x184 mm
Foot Height (D): 20.000 mm    Bolt Centres (E): 137.000 mm    Bolt Hole Size (G): 18.000 mm    Height (H): 99.000 mm    K: 19.000 mm    L: 30.200 mm
Part Number: IP-226RS
Pillow Block Housing and Bearing Assembly - 40x49.2x184 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$389.05 AUD
$466.85 AUD $389.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
