Hobby - Stepper Motors

1 Item Available

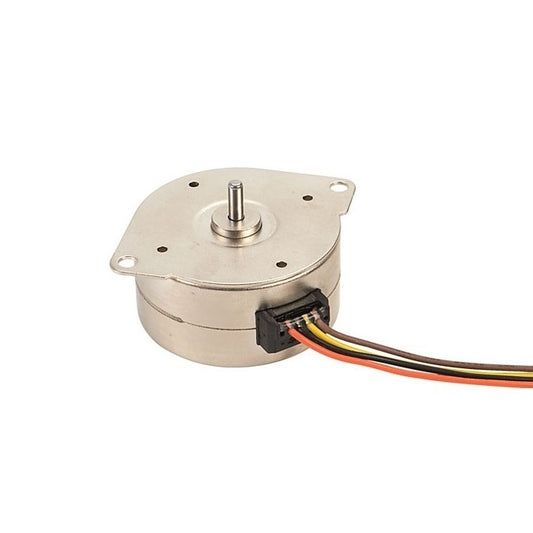

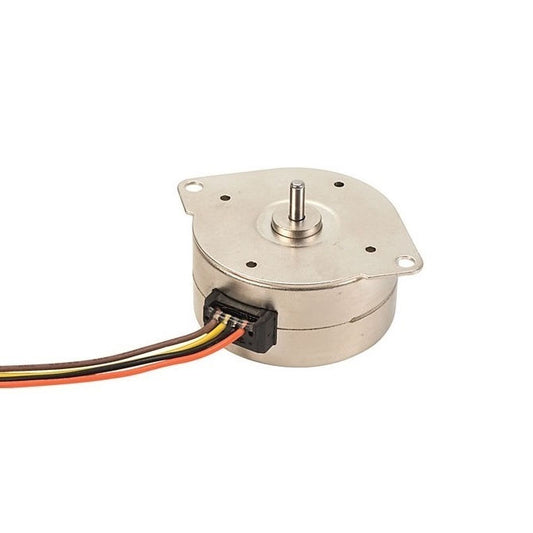

  • Small light weight stepper motor for your hobby or light duty projects
Additional resources:
A more concise listing may be found on the Smallparts store at Hobby - Stepper Motors. Smallparts promote the most popular MBA products.
Holding Torque Shaft Configuration Step Angle Voltage Phases Coil Resistance Indicative
Holding Torque
600-1200
g.cm
Shaft Configuration
Flange Mount 3mm Hardened Steel Shaft
Step Angle
64 Steps 5.625 °
Voltage
5
V DC
Phases
4
Coil Resistance
10
Ohm
Stepper Motors Hobby - 600-1200 g.cm Flange Mount 3mm Hardened Steel Shaft - 64 Steps 5.625
Frequency: 100 Hz    DC Resistance at 25 Deg C: 50 Ohm +/- 3.5   Diameter: 28 mm    Idle In Tranction Frequency: >600 Hz    Idle Out of Traction Frequency: >1000 Hz    In Traction Torque: >34.3 N.m
Part Number: MSTP-600-028-64 Stepper Motors Hobby - 600-1200 g.cm Flange Mount 3mm Hardened Steel Shaft - 64 Steps 5.625
10 Available Immediately | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Holding Torque Shaft Configuration Step Angle Voltage Indicative
Holding Torque
600-1200
g.cm
Shaft Configuration
Flange Mount 3mm Hardened Steel Shaft
Step Angle
64 Steps 5.625 °
Voltage
5
V DC
Stepper Motors Hobby - 600-1200 g.cm Flange Mount 3mm Hardened Steel Shaft - 64 Steps 5.625
Phases: 4    Coil Resistance: 10 Ohm    Frequency: 100 Hz    DC Resistance at 25 Deg C: 50 Ohm +/- 3.5   Diameter: 28 mm    Idle In Tranction Frequency: >600 Hz    Idle Out of Traction Frequency: >1000 Hz    In Traction Torque: >34.3 N.m
Part Number: MSTP-600-028-64 Stepper Motors Hobby - 600-1200 g.cm Flange Mount 3mm Hardened Steel Shaft - 64 Steps 5.625
10 Available Immediately | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
