Collection: Gears - Spur - Standard - Module 1 - Steel

Gears (With Images)

Spur

Standard

Module 1

Steel

215 Products in this selection

PCD in mm = No. of Teeth. 20 Degree Pressure Angle
The diameter increases by 1mm per tooth
Module 1. Approximately 3.14mm between the teeth.

Additional resources:

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - Module 1 - Steel. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 6.00 mm H7		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-080-060-C Spur Gears - 20 tooth - 20x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 6.00 mm H7
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-080-060-C Spur Gears - 20 tooth - 20x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each View the product page first if you are unsure.
G020B-020-M1-080-060-C --- Spur Gears - 20 tooth - 20x6 mm - S45C Steel G020B-020-M1-080-060-C --- Spur Gears - 20 tooth - 20x6 mm - S45C Steel Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 6.000 mm	Outside Diameter (OD) 22.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G020B-20-M1-080-060-C-ND Spur Gears - 20 tooth - 20x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 6.000 mm	Outside Diameter (OD) 22.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G020B-20-M1-080-060-C-ND Spur Gears - 20 tooth - 20x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 22.000 mm	Face Width (FW) 10.000 mm
Material: Steel AISI 4135 Locking Method: Set Screw Quality: ISO 5 - Ground
Part Number: G020B-20-M1-100-080-CGD Spur Gears - 20 tooth - 20x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 22.000 mm
Material: Steel AISI 4135 Face Width (FW): 10.000 mm Locking Method: Set Screw Quality: ISO 5 - Ground
Part Number: G020B-20-M1-100-080-CGD Spur Gears - 20 tooth - 20x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 22.000 mm	Face Width (FW) 10.000 mm
Material: Steel AISI 4135 Locking Method: No Set Screw Quality: ISO 5 - Ground
Part Number: G020B-20-M1-100-080-C-PD Spur Gears - 20 tooth - 20x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 22.000 mm
Material: Steel AISI 4135 Face Width (FW): 10.000 mm Locking Method: No Set Screw Quality: ISO 5 - Ground
Part Number: G020B-20-M1-100-080-C-PD Spur Gears - 20 tooth - 20x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 22.000 mm	Face Width (FW) 8.000 mm
Material: Carbon Steel Locking Method: No Set Screw Quality: ISO 8 - ( AGMA 9 )
Part Number: G020B-20-M1-080-080-C-P22D Spur Gears - 20 tooth - 20x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 22.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Locking Method: No Set Screw Quality: ISO 8 - ( AGMA 9 )
Part Number: G020B-20-M1-080-080-C-P22D Spur Gears - 20 tooth - 20x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 10.000 mm	Outside Diameter (OD) 22.000 mm	Face Width (FW) 10.000 mm
Material: Steel AISI 4135 Locking Method: Set Screw Quality: ISO 5 - Ground
Part Number: G020B-20-M1-100-100-CGD Spur Gears - 20 tooth - 20x10 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm	Bore (d) 10.000 mm	Outside Diameter (OD) 22.000 mm
Material: Steel AISI 4135 Face Width (FW): 10.000 mm Locking Method: Set Screw Quality: ISO 5 - Ground
Part Number: G020B-20-M1-100-100-CGD Spur Gears - 20 tooth - 20x10 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 21	Pitch Circle Diameter (PD) 21.00 mm	Bore (d) 6.00 mm H7		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-080-060-C Spur Gears - 21 tooth - 21x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each
Teeth 21	Pitch Circle Diameter (PD) 21.00 mm	Bore (d) 6.00 mm H7
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-080-060-C Spur Gears - 21 tooth - 21x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each View the product page first if you are unsure.
G021B-021-M1-080-060-C --- Spur Gears - 21 tooth - 21x6 mm - S45C Steel G021B-021-M1-080-060-C --- Spur Gears - 21 tooth - 21x6 mm - S45C Steel Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Pitch Circle Diameter (PD) 21.00 mm	Bore (d) 8.00 mm H7		Face Width (FW) 12.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-120-080-C Spur Gears - 21 tooth - 21x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each
Teeth 21	Pitch Circle Diameter (PD) 21.00 mm	Bore (d) 8.00 mm H7
Material: S45C Steel Face Width (FW): 12.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-120-080-C Spur Gears - 21 tooth - 21x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each View the product page first if you are unsure.
G021B-021-M1-120-080-C --- Spur Gears - 21 tooth - 21x8 mm - S45C Steel G021B-021-M1-120-080-C --- Spur Gears - 21 tooth - 21x8 mm - S45C Steel Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 22.00 mm	Bore (d) 6.00 mm H7		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-080-060-C Spur Gears - 22 tooth - 22x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 22.00 mm	Bore (d) 6.00 mm H7
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-080-060-C Spur Gears - 22 tooth - 22x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each View the product page first if you are unsure.
G022B-022-M1-080-060-C --- Spur Gears - 22 tooth - 22x6 mm - S45C Steel G022B-022-M1-080-060-C --- Spur Gears - 22 tooth - 22x6 mm - S45C Steel Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 22.00 mm	Bore (d) 8.00 mm H7		Face Width (FW) 12.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-120-080-C Spur Gears - 22 tooth - 22x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 22.00 mm	Bore (d) 8.00 mm H7
Material: S45C Steel Face Width (FW): 12.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-120-080-C Spur Gears - 22 tooth - 22x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each View the product page first if you are unsure.
G022B-022-M1-120-080-C --- Spur Gears - 22 tooth - 22x8 mm - S45C Steel G022B-022-M1-120-080-C --- Spur Gears - 22 tooth - 22x8 mm - S45C Steel Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Pitch Circle Diameter (PD) 23.00 mm	Bore (d) 6.00 mm H7		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-080-060-C Spur Gears - 23 tooth - 23x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 23.00 mm	Bore (d) 6.00 mm H7
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-080-060-C Spur Gears - 23 tooth - 23x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each View the product page first if you are unsure.
G023B-023-M1-080-060-C --- Spur Gears - 23 tooth - 23x6 mm - S45C Steel G023B-023-M1-080-060-C --- Spur Gears - 23 tooth - 23x6 mm - S45C Steel Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Pitch Circle Diameter (PD) 23.00 mm	Bore (d) 8.00 mm H7		Face Width (FW) 12.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-120-080-C Spur Gears - 23 tooth - 23x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 23.00 mm	Bore (d) 8.00 mm H7
Material: S45C Steel Face Width (FW): 12.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-120-080-C Spur Gears - 23 tooth - 23x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each View the product page first if you are unsure.
G023B-023-M1-120-080-C --- Spur Gears - 23 tooth - 23x8 mm - S45C Steel G023B-023-M1-120-080-C --- Spur Gears - 23 tooth - 23x8 mm - S45C Steel Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 6.00 mm H8		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-100-060-C Spur Gears - 24 tooth - 24x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 6.00 mm H8
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-100-060-C Spur Gears - 24 tooth - 24x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each View the product page first if you are unsure.
G024B-024-M1-100-060-C --- Spur Gears - 24 tooth - 24x6 mm - S45C Steel G024B-024-M1-100-060-C --- Spur Gears - 24 tooth - 24x6 mm - S45C Steel Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 6.00 mm H7		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-080-060-C Spur Gears - 24 tooth - 24x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 6.00 mm H7
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-080-060-C Spur Gears - 24 tooth - 24x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each View the product page first if you are unsure.
G024B-024-M1-080-060-C --- Spur Gears - 24 tooth - 24x6 mm - S45C Steel G024B-024-M1-080-060-C --- Spur Gears - 24 tooth - 24x6 mm - S45C Steel Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 6.000 mm	Outside Diameter (OD) 26.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G024B-24-M1-080-060-C-ND Spur Gears - 24 tooth - 24x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 6.000 mm	Outside Diameter (OD) 26.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G024B-24-M1-080-060-C-ND Spur Gears - 24 tooth - 24x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.00 mm H7		Face Width (FW) 12.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-120-080-C Spur Gears - 24 tooth - 24x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.00 mm H7
Material: S45C Steel Face Width (FW): 12.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-120-080-C Spur Gears - 24 tooth - 24x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each View the product page first if you are unsure.
G024B-024-M1-120-080-C --- Spur Gears - 24 tooth - 24x8 mm - S45C Steel G024B-024-M1-120-080-C --- Spur Gears - 24 tooth - 24x8 mm - S45C Steel Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 26.000 mm	Face Width (FW) 10.000 mm
Material: Steel AISI 4135 Locking Method: Set Screw Quality: ISO 5 - Ground
Part Number: G024B-24-M1-100-080-CGD Spur Gears - 24 tooth - 24x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 26.000 mm
Material: Steel AISI 4135 Face Width (FW): 10.000 mm Locking Method: Set Screw Quality: ISO 5 - Ground
Part Number: G024B-24-M1-100-080-CGD Spur Gears - 24 tooth - 24x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 26.000 mm	Face Width (FW) 12.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G024B-24-M1-120-080-C-ND Spur Gears - 24 tooth - 24x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 26.000 mm
Material: Carbon Steel Face Width (FW): 12.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G024B-24-M1-120-080-C-ND Spur Gears - 24 tooth - 24x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 26.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G024B-24-M1-080-080-C-ND Spur Gears - 24 tooth - 24x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 24	Pitch Circle Diameter (PD) 24.00 mm	Bore (d) 8.000 mm	Outside Diameter (OD) 26.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G024B-24-M1-080-080-C-ND Spur Gears - 24 tooth - 24x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 5.00 mm H8		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-050-C Spur Gears - 25 tooth - 25x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 5.00 mm H8
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-050-C Spur Gears - 25 tooth - 25x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Each View the product page first if you are unsure.
G025B-025-M1-100-050-C --- Spur Gears - 25 tooth - 25x5 mm - S45C Steel G025B-025-M1-100-050-C --- Spur Gears - 25 tooth - 25x5 mm - S45C Steel Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 6.00 mm H8		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-060-C Spur Gears - 25 tooth - 25x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 6.00 mm H8
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-060-C Spur Gears - 25 tooth - 25x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each View the product page first if you are unsure.
G025B-025-M1-100-060-C --- Spur Gears - 25 tooth - 25x6 mm - S45C Steel G025B-025-M1-100-060-C --- Spur Gears - 25 tooth - 25x6 mm - S45C Steel Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 6.00 mm H7		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-080-060-C Spur Gears - 25 tooth - 25x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 6.00 mm H7
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-080-060-C Spur Gears - 25 tooth - 25x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each View the product page first if you are unsure.
G025B-025-M1-080-060-C --- Spur Gears - 25 tooth - 25x6 mm - S45C Steel G025B-025-M1-080-060-C --- Spur Gears - 25 tooth - 25x6 mm - S45C Steel Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 6.000 mm	Outside Diameter (OD) 27.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G025B-25-M1-080-060-C-ND Spur Gears - 25 tooth - 25x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 6.000 mm	Outside Diameter (OD) 27.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G025B-25-M1-080-060-C-ND Spur Gears - 25 tooth - 25x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 8.00 mm H7		Face Width (FW) 12.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-120-080-C Spur Gears - 25 tooth - 25x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 25.00 mm	Bore (d) 8.00 mm H7
Material: S45C Steel Face Width (FW): 12.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial

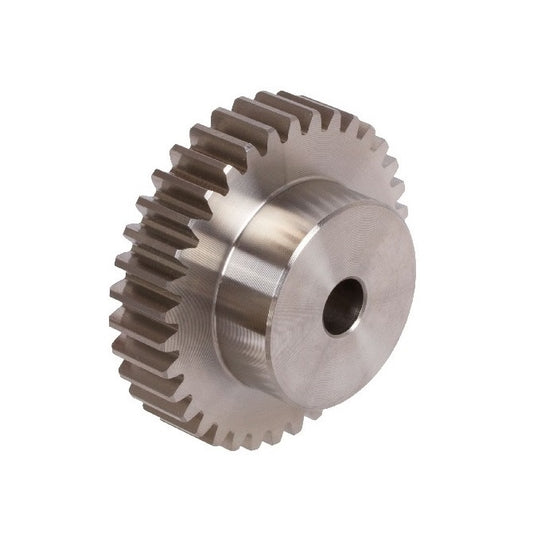

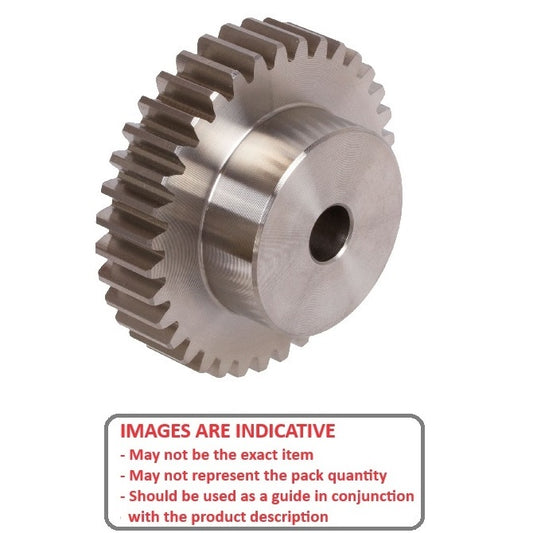

Part Number: G025B-025-M1-120-080-C Spur Gears - 25 tooth - 25x8 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each View the product page first if you are unsure.
G025B-025-M1-120-080-C --- Spur Gears - 25 tooth - 25x8 mm - S45C Steel G025B-025-M1-120-080-C --- Spur Gears - 25 tooth - 25x8 mm - S45C Steel Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Out of stock! Backorder Now
