Gears - Spur - Hubbed - 72DP - Stainless

Gears -> Spur -> Hubbed -> 72DP -> Stainless

There are 2 products in the sub-categories of Gears - Spur - Hubbed - 72DP - Stainless. Browse the Gears - Spur - Hubbed - 72DP - Stainless products table.

Category Details

A selection of Stainless 72DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.3528 (1/72 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.

  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.
  • The diameter increases by 1 inch for every 72 teeth
  • 72 Diametrical Pitch. Approx 1.11mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Hubbed - 72DP - Stainless category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
100

Pitch Circle Diameter (PD)
35.28
mm

(Equiv. 1.389 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
35.979
mm
Face Width (FW)
4.75
mm
Type
Hubbed

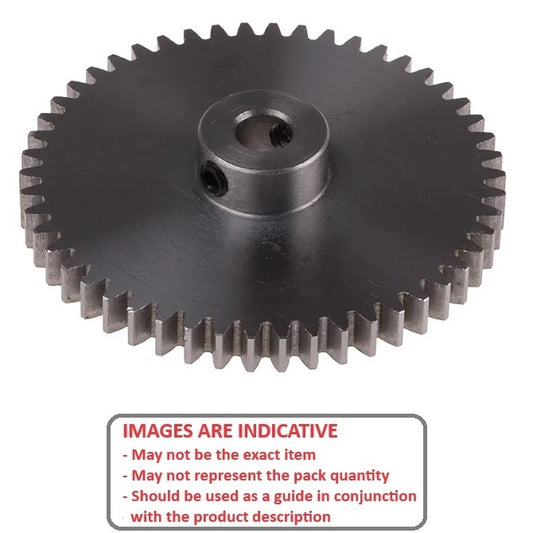

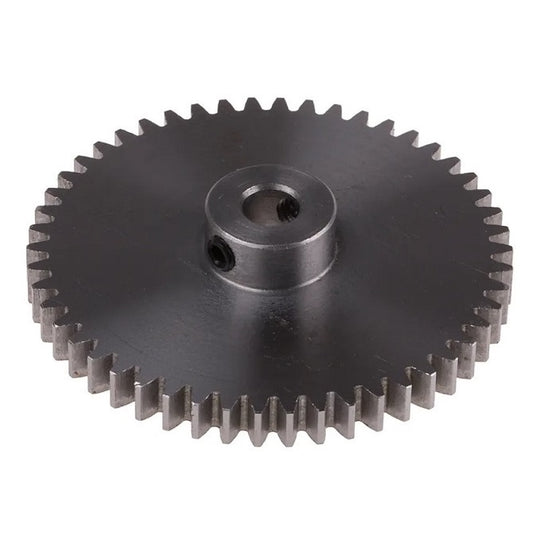

Spur Gears - 100 tooth - 35.28x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.35 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G035B-100-D72-048-064-S3-G
Spur Gears - 100 tooth - 35.28x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
100

Pitch Circle Diameter (PD)
35.28
mm

(Equiv. 1.389 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
35.979
mm
Spur Gears - 100 tooth - 35.28x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Face Width (FW): 4.75 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.35 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G035B-100-D72-048-064-S3-G
Spur Gears - 100 tooth - 35.28x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
126

Pitch Circle Diameter (PD)
44.45
mm

(Equiv. 1.75 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
45.151
mm
Face Width (FW)
4.75
mm
Type
Hubbed
Spur Gears - 126 tooth - 44.45x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.35 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G044B-126-D72-048-064-S3-G
Spur Gears - 126 tooth - 44.45x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
126

Pitch Circle Diameter (PD)
44.45
mm

(Equiv. 1.75 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
45.151
mm
Spur Gears - 126 tooth - 44.45x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Face Width (FW): 4.75 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.35 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G044B-126-D72-048-064-S3-G
Spur Gears - 126 tooth - 44.45x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
