Gears - Spur - Hubbed - 32DP - 14.5 Degree

Gears -> Spur -> Hubbed -> 32DP -> 14.5 Degree

There are 5 products in the sub-categories of Gears - Spur - Hubbed - 32DP - 14.5 Degree. Browse the Gears - Spur - Hubbed - 32DP - 14.5 Degree products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of spur gears.
  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Hubbed - 32DP - 14.5 Degree category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
16

Pitch Circle Diameter (PD)
12.700
mm

(Equiv. 0.5 in.)
Bore (d)
4.763
mm

(Equiv. 0.188 in.)
Outside Diameter (OD)
14.275
mm
Face Width (FW)
4.775
mm
Type
Hubbed

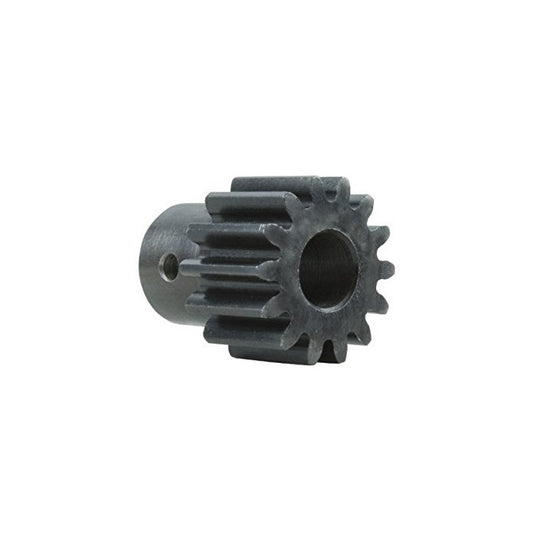

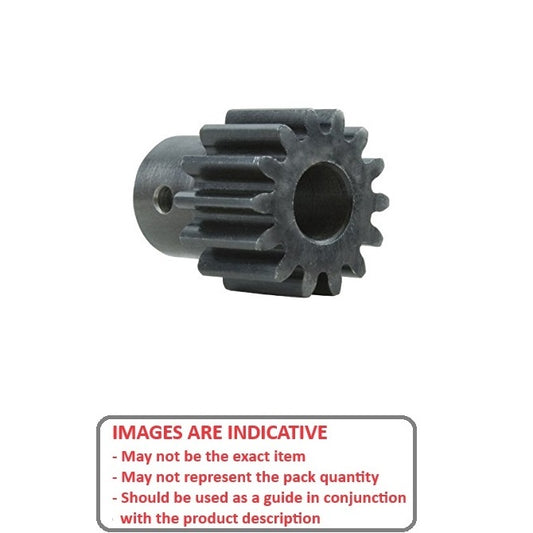

Spur Gears - 16 tooth - 12.7x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 9.906 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G013B-016-V32-048-048-CG
Spur Gears - 16 tooth - 12.7x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$134.68 AUD
$134.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
16

Pitch Circle Diameter (PD)
12.700
mm

(Equiv. 0.5 in.)
Bore (d)
4.763
mm

(Equiv. 0.188 in.)
Outside Diameter (OD)
14.275
mm
Spur Gears - 16 tooth - 12.7x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 4.775 mm    Type: Hubbed    Hub Diameter (D1): 9.906 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G013B-016-V32-048-048-CG
Spur Gears - 16 tooth - 12.7x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$134.68 AUD
$134.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
18

Pitch Circle Diameter (PD)
14.275
mm

(Equiv. 0.562 in.)
Bore (d)
4.763
mm

(Equiv. 0.188 in.)
Outside Diameter (OD)
15.850
mm
Face Width (FW)
4.775
mm
Type
Hubbed
Spur Gears - 18 tooth - 14.275x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 11.430 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G014B-018-V32-048-048-CG
Spur Gears - 18 tooth - 14.275x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$130.14 AUD
$156.16 AUD $130.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
18

Pitch Circle Diameter (PD)
14.275
mm

(Equiv. 0.562 in.)
Bore (d)
4.763
mm

(Equiv. 0.188 in.)
Outside Diameter (OD)
15.850
mm
Spur Gears - 18 tooth - 14.275x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 4.775 mm    Type: Hubbed    Hub Diameter (D1): 11.430 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G014B-018-V32-048-048-CG
Spur Gears - 18 tooth - 14.275x4.763 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$130.14 AUD
$156.16 AUD $130.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Pitch Circle Diameter (PD)
15.875
mm

(Equiv. 0.625 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
17.450
mm
Face Width (FW)
4.775
mm
Type
Hubbed
Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 13.208 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G016B-020-V32-048-064-CG
Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$127.77 AUD
$153.33 AUD $127.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Pitch Circle Diameter (PD)
15.875
mm

(Equiv. 0.625 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Outside Diameter (OD)
17.450
mm
Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 4.775 mm    Type: Hubbed    Hub Diameter (D1): 13.208 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G016B-020-V32-048-064-CG
Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$127.77 AUD
$153.33 AUD $127.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
24

Pitch Circle Diameter (PD)
19.050
mm

(Equiv. 0.75 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Outside Diameter (OD)
20.625
mm
Face Width (FW)
4.775
mm
Type
Hubbed
Spur Gears - 24 tooth - 19.05x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 16.256 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G019B-024-V32-048-079-CG
Spur Gears - 24 tooth - 19.05x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$125.86 AUD
$151.04 AUD $125.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
24

Pitch Circle Diameter (PD)
19.050
mm

(Equiv. 0.75 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Outside Diameter (OD)
20.625
mm
Spur Gears - 24 tooth - 19.05x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 4.775 mm    Type: Hubbed    Hub Diameter (D1): 16.256 mm    Hub Projection (HL): 7.874 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G019B-024-V32-048-079-CG
Spur Gears - 24 tooth - 19.05x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$125.86 AUD
$151.04 AUD $125.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
40

Pitch Circle Diameter (PD)
31.750
mm

(Equiv. 1.25 in.)
Bore (d)
9.525
mm

(Equiv. 0.375 in.)
Outside Diameter (OD)
33.325
mm
Face Width (FW)
4.775
mm
Type
Hubbed
Spur Gears - 40 tooth - 31.75x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Hub Diameter (D1): 22.352 mm    Hub Projection (HL): 9.652 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G032B-040-V32-048-095-CG
Spur Gears - 40 tooth - 31.75x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$137.05 AUD
$164.45 AUD $137.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
40

Pitch Circle Diameter (PD)
31.750
mm

(Equiv. 1.25 in.)
Bore (d)
9.525
mm

(Equiv. 0.375 in.)
Outside Diameter (OD)
33.325
mm
Spur Gears - 40 tooth - 31.75x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Material: Steel 0.20 carbon steel with no subsequent treatment    Face Width (FW): 4.775 mm    Type: Hubbed    Hub Diameter (D1): 22.352 mm    Hub Projection (HL): 9.652 mm    Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel
Part Number: G032B-040-V32-048-095-CG
Spur Gears - 40 tooth - 31.75x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 20, 2025
$137.05 AUD
$164.45 AUD $137.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
