Collection: Gears - Rack - Imperial - 24DP
Gears -> Rack -> Imperial -> 24DPThere are 2 products in the sub-categories of Gears - Rack - Imperial - 24DP. Browse the Gears - Rack - Imperial - 24DP products table. To narrow down the selection, please choose a sub-category from the links below.

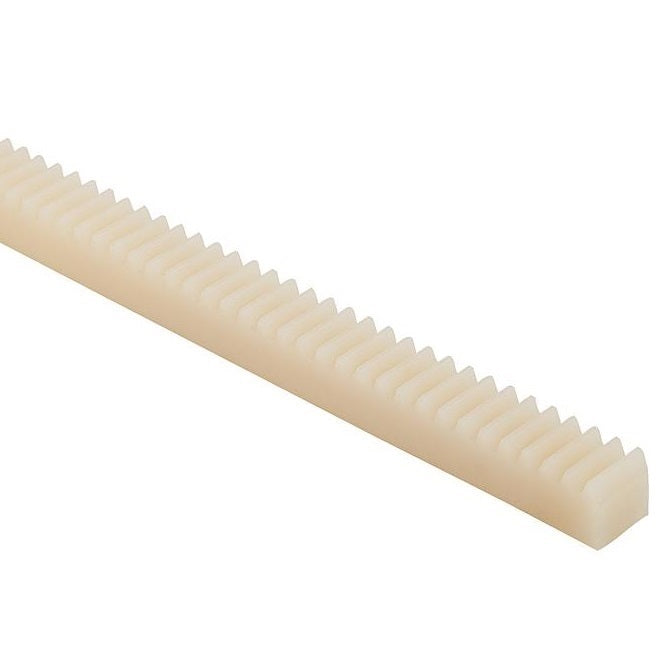

Gears - Rack - Imperial - 24DP - Plastic
A selection of Plastic 24DP Imperial Rack Gears. 14.5 Degree Pressure Angle....

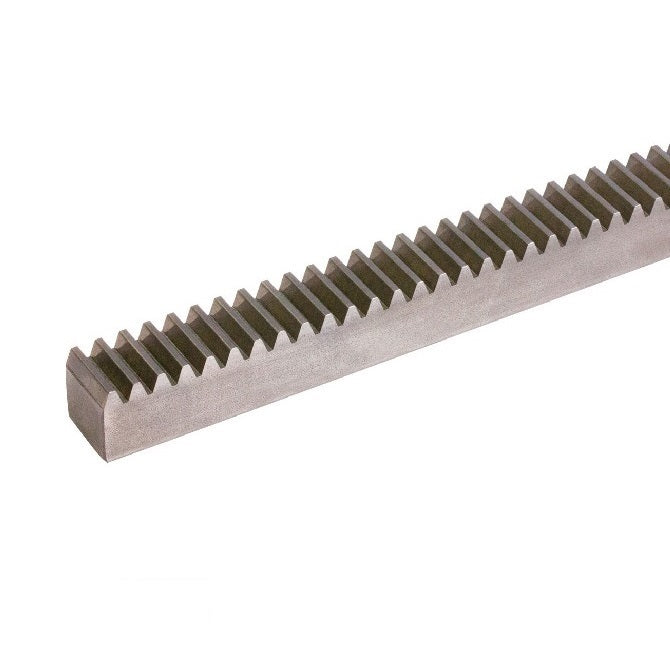

Gears - Rack - Imperial - 24DP - Stainless
A selection of Stainless 24DP Imperial Rack Gears. 20 Degree Pressure Angle....
Category Details
This category includes various types of rack gears.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Gears - Rack - Imperial - 24DP category on the Small Parts & Bearings online store.
| Length (L) | Face Width (fw) | Height (h) | Pitch Type | Pitch Height (ph) | Pressure Angle |
Indicative Image |
|---|---|---|---|---|---|---|

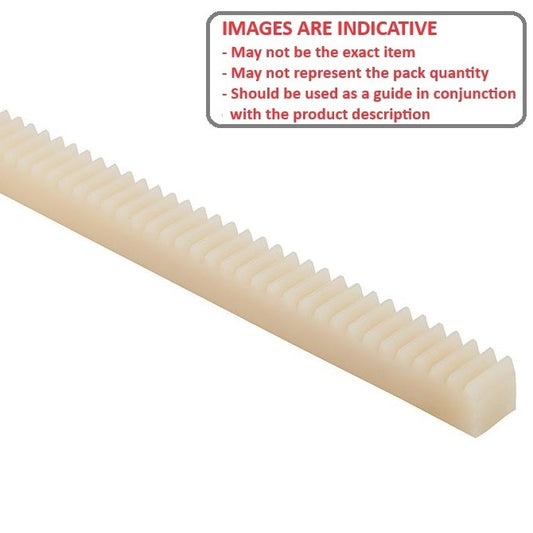

| Rack Gears - 304.8x6.35x6.35 mm Imperial - Nylon 101 | ||||||
|
Length (L)
304.80
mm |
Face Width (fw)
6.350
mm |
Height (h)
6.350
mm |
Pitch Type
24DP - 14.5 PA
|
Pitch Height (ph)
5.159
mm |
Pressure Angle
14.5
°
|
|
|
Material: Nylon 101
Precision: Commercial
Mounting Holes: None
Shape: Square
Category: Gears - Rack - Imperial - 24DP - Plastic |
||||||
|
Part Number: GR-V24-06-0305-06-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 18, 2026 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Length (L) | Face Width (fw) | Height (h) | Pitch Type |
Indicative Image |
||
| Rack Gears - 304.8x6.35x6.35 mm Imperial - Nylon 101 | ||||||
|
Length (L)
304.80
mm |
Face Width (fw)
6.350
mm |
Height (h)
6.350
mm |
Pitch Type
24DP - 14.5 PA
|
|
||
|
Material: Nylon 101
Pitch Height (ph): 5.159 mm
Pressure Angle: 14.5 °
Precision: Commercial
Mounting Holes: None
Shape: Square
Category: Gears - Rack - Imperial - 24DP - Plastic |
||||||
|
Part Number: GR-V24-06-0305-06-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 18, 2026 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

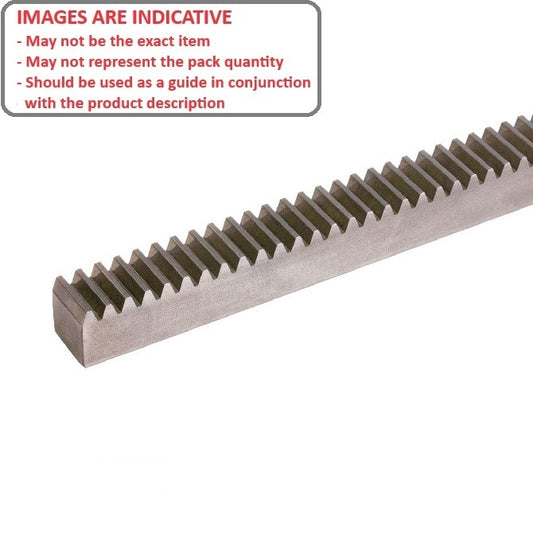

| Rack Gears - 457.2x5.842x12.192 mm Imperial - Stainless Steel AISI 416 Rc 36-42 | ||||||
|
Length (L)
457.20
mm |
Face Width (fw)
5.842
mm |
Height (h)
12.192
mm |
Pitch Type
24DP
|
Pitch Height (ph)
11.133
mm |
Pressure Angle
20
°
|
|
|
Material: Stainless Steel AISI 416 Rc 36-42
Precision: Precision
Mounting Holes: None
Shape: Rectangular
Category: Gears - Rack - Imperial - 24DP - Stainless |
||||||
|
Part Number: GR-D24-06-0457-12-S4 (Each)
1 Available Now | Further orders can be expected around Sat, Jul 18, 2026 Regular price
$253.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Rack Gears - 457.2x5.842x12.192 mm Imperial - Stainless Steel AISI 416 Rc 36-42 | ||||||
|
Length (L)
457.20
mm |
Face Width (fw)
5.842
mm |
Height (h)
12.192
mm |
Pitch Type
24DP
|
|
||
|
Material: Stainless Steel AISI 416 Rc 36-42
Pitch Height (ph): 11.133 mm
Pressure Angle: 20 °
Precision: Precision
Mounting Holes: None
Shape: Rectangular
Category: Gears - Rack - Imperial - 24DP - Stainless |
||||||
|
Part Number: GR-D24-06-0457-12-S4 (Each)
1 Available Now | Further orders can be expected around Sat, Jul 18, 2026 Regular price
$253.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
