Gears - Rack - Imperial - 10DP

Gears -> Rack -> Imperial -> 10DP

There are 3 products in the sub-categories of Gears - Rack - Imperial - 10DP. Browse the Gears - Rack - Imperial - 10DP products table.

Category Details

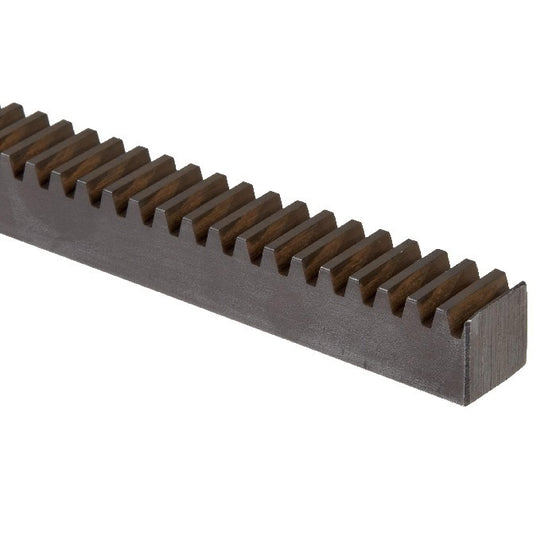

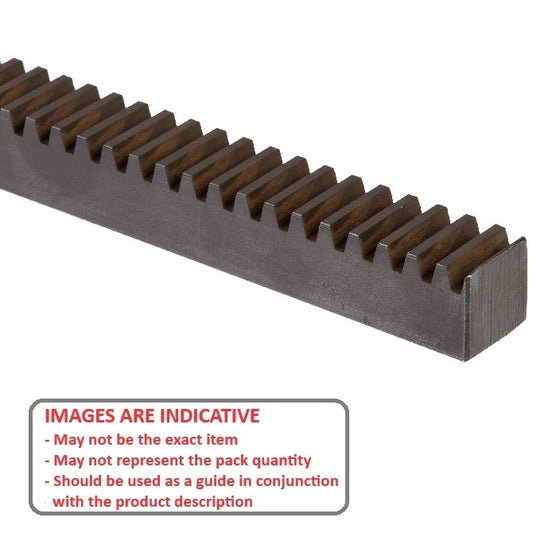

A selection of 10DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.

  • Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
  • An expanded range may be available on special order. Please enquire.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
  • 10 DP. Approx 7.98mm between teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Rack - Imperial - 10DP category on the Small Parts & Bearings online store.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative
Rack Gears - 1219.2x25.4x15.875 mm Imperial - Steel
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Pitch Height (ph)
13.335
mm
Pressure Angle
14.5 °
Rack Gears - 1219.2x25.4x15.875 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1219-16-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 24, 2026
$1,020.86 AUD
$1,020.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Rack Gears - 1219.2x25.4x15.875 mm Imperial - Steel
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Rack Gears - 1219.2x25.4x15.875 mm - Steel
Material: Steel    Pitch Height (ph): 13.335 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1219-16-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 24, 2026
$1,020.86 AUD
$1,020.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rack Gears - 1219.2x25.4x25.4 mm Imperial - Steel
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
25.400
mm

(Equiv. 1 in.)
Pitch Type
10DP - 14.5 PA
Pitch Height (ph)
22.860
mm
Pressure Angle
14.5 °
Rack Gears - 1219.2x25.4x25.4 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Square
Part Number: GR-V10-25-1219-25-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 24, 2026
$921.77 AUD
$1,106.13 AUD $921.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rack Gears - 1219.2x25.4x25.4 mm Imperial - Steel
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
25.400
mm

(Equiv. 1 in.)
Pitch Type
10DP - 14.5 PA
Rack Gears - 1219.2x25.4x25.4 mm - Steel
Material: Steel    Pitch Height (ph): 22.860 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Square
Part Number: GR-V10-25-1219-25-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 24, 2026
$921.77 AUD
$1,106.13 AUD $921.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rack Gears - 1828.8x25.4x15.875 mm Imperial - Steel
Length (L)
1828.8
mm

(Equiv. 72 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Pitch Height (ph)
13.335
mm
Pressure Angle
14.5 °
Rack Gears - 1828.8x25.4x15.875 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1829-16-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 24, 2026
$1,151.50 AUD
$1,381.80 AUD $1,151.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rack Gears - 1828.8x25.4x15.875 mm Imperial - Steel
Length (L)
1828.8
mm

(Equiv. 72 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Rack Gears - 1828.8x25.4x15.875 mm - Steel
Material: Steel    Pitch Height (ph): 13.335 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1829-16-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 24, 2026
$1,151.50 AUD
$1,381.80 AUD $1,151.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
