Gears - Pinion Wire 32DP

Gears -> Pinion Wire 32DP

There is only 1 product in the sub-categories of Gears - Pinion Wire 32DP. Browse the Gears - Pinion Wire 32DP products table.

Category Details

A selection of Pinion Wire 32DP Gears. Brass and carbon steel.

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Please note that very thin pinion wire may not be supplied perfectly straight. Pinion wire is meant to be cut into much smaller pieces to make pinion gears so the slight bends in the long length will have no effect on the intended use.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
  • DP is Diametrical Pitch

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Pinion Wire 32DP category on the Small Parts & Bearings online store.
Number of Teeth Outside Diameter (OD) Length (L) Pressure Angle Indicative
Number of Teeth
9

Outside Diameter (OD)
8.738
mm

(Equiv. 0.344 in.)
Length (L)
300
mm

(Equiv. 11.811 in.)
Pressure Angle
20 °

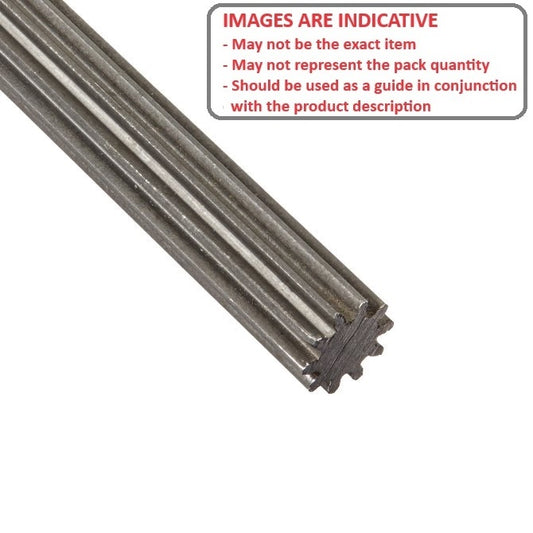

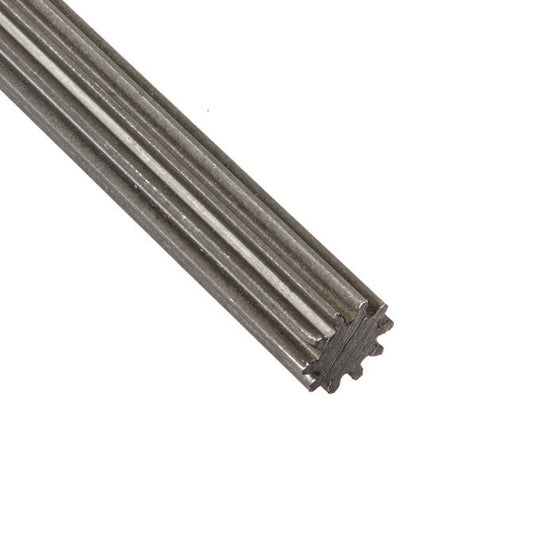

Pinion Wire 32DP Gears - 9 tooth - 8.738x300 mm - Carbon steel
Material: Carbon steel    Pitch Diameter (PD): 7.14 mm
Deleted Item. Available while stocks last.
Part Number: G007L-09-D32-0300-C (Length)
Pinion Wire 32DP Gears - 9 tooth - 8.738x300 mm - Carbon steel Gear
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$70.00 AUD
$133.00 AUD $70.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
