Collection: Couplings - Neo Flex
- Couplings (With Images)
- Neo Flex
3 Products in this selection
- 0.71 to 1.27 Nm.
- 303 stainless steel with 73 durometer neoprene centre.
- Shaft to shaft insulation.
- Torsional vibration isolation.
- Ribbed style are more flexible than smooth style.
- Bore Tolerances: +0.025 / -0.000.
Additional resources:
A more concise listing may be found on the Smallparts store at Couplings - Neo Flex. Smallparts promote the most popular MBA products.
| Bores (A1) | Bores (A2) | OD | Overall Length (L) | Max. Torque | Max. Speed |

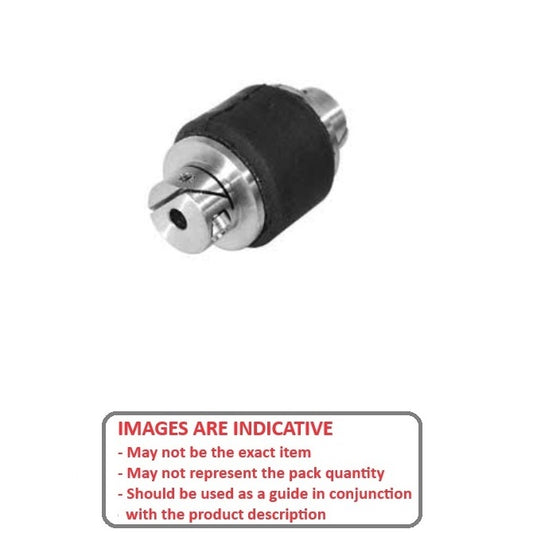

Indicative Image |
|---|---|---|---|---|---|---|
|
Bores (A1)
3.000
mm (0.118 in.) |
Bores (A2)
4.000
mm (0.157 in.) |
OD
20.6
mm (0.811 in.) |
Overall Length (L)
31.8
mm |
Max. Torque
0.71
n.m |
Max. Speed
Not Listed
RPM |
|
| Material: Stainless Steel 303 and Neoprene Hub Config. / Hub Diameter(s): Set Screw / 7.900 / 9.500 mm Body Type: Ribbed Angle Misalignment: 5 ° Max. Parallel Offset: 0.250 mm | ||||||
|
Part Number: CP-030-040-21-032-NF-R3S Neo Flex Couplings - 3x4x20.6 mm - Stainless Steel 303 and Neoprene
1 Available Immediately | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
|
||||||
| Bores (A1) | Bores (A2) | OD | Overall Length (L) |

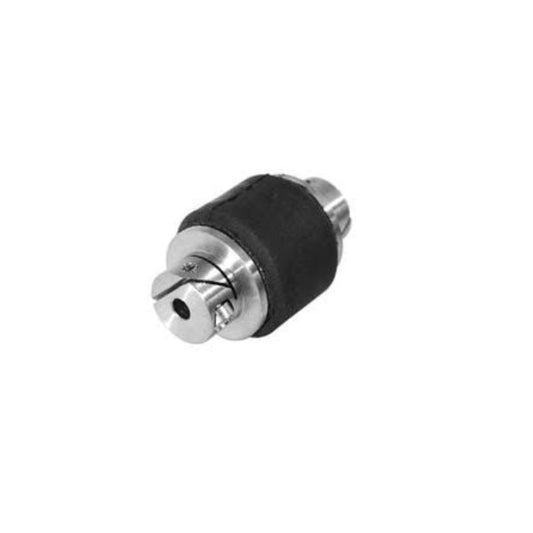

Indicative Image |
||
|
Bores (A1)
3.000
mm (0.118 in.) |
Bores (A2)
4.000
mm (0.157 in.) |
OD
20.6
mm (0.811 in.) |
Overall Length (L)
31.8
mm |
|
||
| Material: Stainless Steel 303 and Neoprene Max. Torque: 0.71 n.m Max. Speed: Not Listed RPM Hub Config. / Hub Diameter(s): Set Screw / 7.900 / 9.500 mm Body Type: Ribbed Angle Misalignment: 5 ° Max. Parallel Offset: 0.250 mm | ||||||
|
Part Number: CP-030-040-21-032-NF-R3S Neo Flex Couplings - 3x4x20.6 mm - Stainless Steel 303 and Neoprene
1 Available Immediately | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bores (A1)
4.000
mm (0.157 in.) |
Bores (A2)
6.000
mm (0.236 in.) |
OD
20.6
mm (0.811 in.) |
Overall Length (L)
31.8
mm |
Max. Torque
0.84
n.m |
Max. Speed
Not Listed
RPM |
|
| Material: Stainless Steel 303 and Neoprene Hub Config. / Hub Diameter(s): Set Screw / 9.500 / 12.700 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-032-NF-S3S Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene
1 Available Immediately | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bores (A1)
4.000
mm (0.157 in.) |
Bores (A2)
6.000
mm (0.236 in.) |
OD
20.6
mm (0.811 in.) |
Overall Length (L)
31.8
mm |
|
||
| Material: Stainless Steel 303 and Neoprene Max. Torque: 0.84 n.m Max. Speed: Not Listed RPM Hub Config. / Hub Diameter(s): Set Screw / 9.500 / 12.700 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-032-NF-S3S Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene
1 Available Immediately | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bores (A1)
4.000
mm (0.157 in.) |
Bores (A2)
6.000
mm (0.236 in.) |
OD
20.6
mm (0.811 in.) |
Overall Length (L)
34.6
mm |
Max. Torque
0.84
n.m |
Max. Speed
Not Listed
RPM |
|
| Material: Stainless Steel 303 and Neoprene Hub Config. / Hub Diameter(s): Fairloc / 16.000 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-035-NF-S3C Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene
2 Available Immediately | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bores (A1)
4.000
mm (0.157 in.) |
Bores (A2)
6.000
mm (0.236 in.) |
OD
20.6
mm (0.811 in.) |
Overall Length (L)
34.6
mm |
|
||
| Material: Stainless Steel 303 and Neoprene Max. Torque: 0.84 n.m Max. Speed: Not Listed RPM Hub Config. / Hub Diameter(s): Fairloc / 16.000 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-035-NF-S3C Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene
2 Available Immediately | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
