Collection: Collars - Shaft - Standard - Nylon

Collars (With Images)

Shaft

Standard

15 Products in this selection

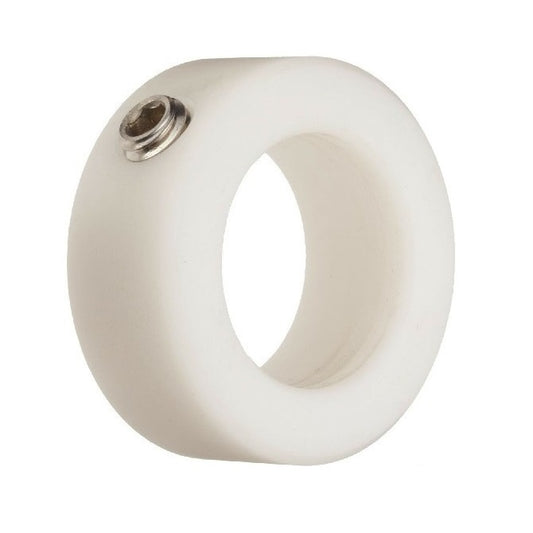

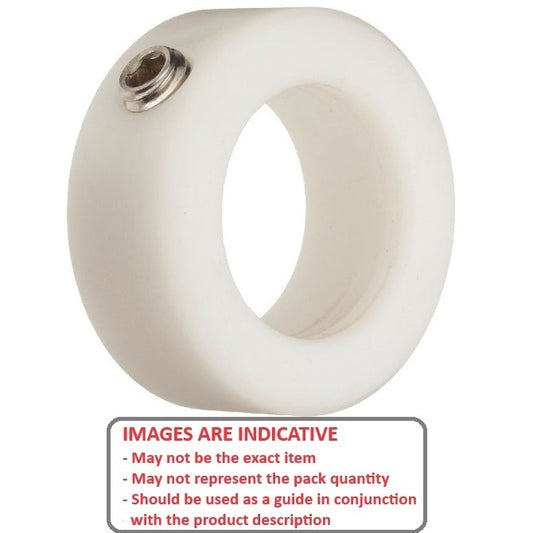

Standard one piece nylon shaft collar with set screw
Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft

Additional resources:
Shaft Collars PDF Catalogue

A more concise listing may be found on the Smallparts store at Collars - Shaft - Standard - Nylon. Smallparts promote the most popular MBA products.

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Screw Size
Shaft Size (d) 3.000 mm + 0.000 / + 0.014 _{(0.118 in.)}	Outside Diameter (D) 10.00 mm _{(0.394 in.)}	Overall Width (S) 6.0 mm _{(0.236 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00300-010-06-NY Shaft Collars - 3x10x6 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Each
Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Indicative Image
Shaft Size (d) 3.000 mm + 0.000 / + 0.014 _{(0.118 in.)}	Outside Diameter (D) 10.00 mm _{(0.394 in.)}	Overall Width (S) 6.0 mm _{(0.236 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00300-010-06-NY Shaft Collars - 3x10x6 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Each View the product page first if you are unsure.
COL-00300-010-06-NY --- Shaft Collars - 3x10x6 mm - Nylon Polyamide 6/6 COL-00300-010-06-NY --- Shaft Collars - 3x10x6 mm - Nylon Polyamide 6/6 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 4.000 mm + 0.000 / + 0.018 _{(0.157 in.)}	Outside Diameter (D) 12.00 mm _{(0.472 in.)}	Overall Width (S) 6.0 mm _{(0.236 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00400-012-06-NY Shaft Collars - 4x12x6 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Each
Shaft Size (d) 4.000 mm + 0.000 / + 0.018 _{(0.157 in.)}	Outside Diameter (D) 12.00 mm _{(0.472 in.)}	Overall Width (S) 6.0 mm _{(0.236 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00400-012-06-NY Shaft Collars - 4x12x6 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Each View the product page first if you are unsure.
COL-00400-012-06-NY --- Shaft Collars - 4x12x6 mm - Nylon Polyamide 6/6 COL-00400-012-06-NY --- Shaft Collars - 4x12x6 mm - Nylon Polyamide 6/6 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 5.000 mm + 0.000 / + 0.018 _{(0.197 in.)}	Outside Diameter (D) 14.00 mm _{(0.551 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00500-014-08-NY Shaft Collars - 5x14x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each
Shaft Size (d) 5.000 mm + 0.000 / + 0.018 _{(0.197 in.)}	Outside Diameter (D) 14.00 mm _{(0.551 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00500-014-08-NY Shaft Collars - 5x14x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each View the product page first if you are unsure.
COL-00500-014-08-NY --- Shaft Collars - 5x14x8 mm - Nylon Polyamide 6/6 COL-00500-014-08-NY --- Shaft Collars - 5x14x8 mm - Nylon Polyamide 6/6 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 6.000 mm + 0.000 / + 0.018 _{(0.236 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00600-015-08-NY Shaft Collars - 6x15x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Each
Shaft Size (d) 6.000 mm + 0.000 / + 0.018 _{(0.236 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00600-015-08-NY Shaft Collars - 6x15x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Each View the product page first if you are unsure.
COL-00600-015-08-NY --- Shaft Collars - 6x15x8 mm - Nylon Polyamide 6/6 COL-00600-015-08-NY --- Shaft Collars - 6x15x8 mm - Nylon Polyamide 6/6 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 8.000 mm + 0.000 / + 0.022 _{(0.315 in.)}	Outside Diameter (D) 18.00 mm _{(0.709 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00800-018-08-NY Shaft Collars - 8x18x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each
Shaft Size (d) 8.000 mm + 0.000 / + 0.022 _{(0.315 in.)}	Outside Diameter (D) 18.00 mm _{(0.709 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-00800-018-08-NY Shaft Collars - 8x18x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each View the product page first if you are unsure.
COL-00800-018-08-NY --- Shaft Collars - 8x18x8 mm - Nylon Polyamide 6/6 COL-00800-018-08-NY --- Shaft Collars - 8x18x8 mm - Nylon Polyamide 6/6 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 10.000 mm + 0.000 / + 0.022 _{(0.394 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01000-020-08-NY Shaft Collars - 10x20x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each
Shaft Size (d) 10.000 mm + 0.000 / + 0.022 _{(0.394 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01000-020-08-NY Shaft Collars - 10x20x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each View the product page first if you are unsure.
COL-01000-020-08-NY --- Shaft Collars - 10x20x8 mm - Nylon Polyamide 6/6 COL-01000-020-08-NY --- Shaft Collars - 10x20x8 mm - Nylon Polyamide 6/6 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 12.000 mm + 0.000 / + 0.027 _{(0.472 in.)}	Outside Diameter (D) 22.00 mm _{(0.866 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01200-022-08-NY Shaft Collars - 12x22x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each
Shaft Size (d) 12.000 mm + 0.000 / + 0.027 _{(0.472 in.)}	Outside Diameter (D) 22.00 mm _{(0.866 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01200-022-08-NY Shaft Collars - 12x22x8 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each View the product page first if you are unsure.
COL-01200-022-08-NY --- Shaft Collars - 12x22x8 mm - Nylon Polyamide 6/6 COL-01200-022-08-NY --- Shaft Collars - 12x22x8 mm - Nylon Polyamide 6/6 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 15.000 mm + 0.000 / + 0.027 _{(0.591 in.)}	Outside Diameter (D) 28.00 mm _{(1.102 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01500-028-10-NY Shaft Collars - 15x28x10 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each
Shaft Size (d) 15.000 mm + 0.000 / + 0.027 _{(0.591 in.)}	Outside Diameter (D) 28.00 mm _{(1.102 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01500-028-10-NY Shaft Collars - 15x28x10 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each View the product page first if you are unsure.
COL-01500-028-10-NY --- Shaft Collars - 15x28x10 mm - Nylon Polyamide 6/6 COL-01500-028-10-NY --- Shaft Collars - 15x28x10 mm - Nylon Polyamide 6/6 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 16.000 mm + 0.000 / + 0.027 _{(0.63 in.)}	Outside Diameter (D) 30.00 mm _{(1.181 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01600-030-10-NY Shaft Collars - 16x30x10 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each
Shaft Size (d) 16.000 mm + 0.000 / + 0.027 _{(0.63 in.)}	Outside Diameter (D) 30.00 mm _{(1.181 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01600-030-10-NY Shaft Collars - 16x30x10 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each View the product page first if you are unsure.
COL-01600-030-10-NY --- Shaft Collars - 16x30x10 mm - Nylon Polyamide 6/6 COL-01600-030-10-NY --- Shaft Collars - 16x30x10 mm - Nylon Polyamide 6/6 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 19.050 mm _{(0.75 in.)}	Outside Diameter (D) 31.75 mm _{(1.25 in.)}	Overall Width (S) 14.3 mm _{(0.563 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01905-032-14-NY (150 Pcs) Shaft Collars - 19.05x31.75x14.3 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 31, 2025 Regular price $1,062.05 AUD Regular price Sale price $1,062.05 AUD Unit price per Per 150
Shaft Size (d) 19.050 mm _{(0.75 in.)}	Outside Diameter (D) 31.75 mm _{(1.25 in.)}	Overall Width (S) 14.3 mm _{(0.563 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-01905-032-14-NY (150 Pcs) Shaft Collars - 19.05x31.75x14.3 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 31, 2025 Regular price $1,062.05 AUD Regular price Sale price $1,062.05 AUD Unit price per Per 150 View the product page first if you are unsure.
COL-01905-032-14-NY (150 Pcs) --- Shaft Collars - 19.05x31.75x14.3 mm - Nylon Polyamide 6/6 COL-01905-032-14-NY (150 Pcs) --- Shaft Collars - 19.05x31.75x14.3 mm - Nylon Polyamide 6/6 Regular price $1,062.05 AUD Regular price Sale price $1,062.05 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 20.000 mm + 0.000 / + 0.033 _{(0.787 in.)}	Outside Diameter (D) 34.00 mm _{(1.339 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-02000-034-12-NY Shaft Collars - 20x34x12 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Each
Shaft Size (d) 20.000 mm + 0.000 / + 0.033 _{(0.787 in.)}	Outside Diameter (D) 34.00 mm _{(1.339 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-02000-034-12-NY Shaft Collars - 20x34x12 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Each View the product page first if you are unsure.
COL-02000-034-12-NY --- Shaft Collars - 20x34x12 mm - Nylon Polyamide 6/6 COL-02000-034-12-NY --- Shaft Collars - 20x34x12 mm - Nylon Polyamide 6/6 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 25.000 mm + 0.000 / + 0.033 _{(0.984 in.)}	Outside Diameter (D) 38.00 mm _{(1.496 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-02500-038-12-NY Shaft Collars - 25x38x12 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $35.59 AUD Regular price Sale price $35.59 AUD Unit price per Each
Shaft Size (d) 25.000 mm + 0.000 / + 0.033 _{(0.984 in.)}	Outside Diameter (D) 38.00 mm _{(1.496 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-02500-038-12-NY Shaft Collars - 25x38x12 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $35.59 AUD Regular price Sale price $35.59 AUD Unit price per Each View the product page first if you are unsure.
COL-02500-038-12-NY --- Shaft Collars - 25x38x12 mm - Nylon Polyamide 6/6 COL-02500-038-12-NY --- Shaft Collars - 25x38x12 mm - Nylon Polyamide 6/6 Regular price $35.59 AUD Regular price Sale price $35.59 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 25.400 mm _{(1 in.)}	Outside Diameter (D) 41.28 mm _{(1.625 in.)}	Overall Width (S) 15.9 mm _{(0.626 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-02540-041-16-NY (50 Pcs) Shaft Collars - 25.4x41.28x15.9 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 31, 2025 Regular price $396.59 AUD Regular price Sale price $396.59 AUD Unit price per Per 50
Shaft Size (d) 25.400 mm _{(1 in.)}	Outside Diameter (D) 41.28 mm _{(1.625 in.)}	Overall Width (S) 15.9 mm _{(0.626 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-02540-041-16-NY (50 Pcs) Shaft Collars - 25.4x41.28x15.9 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 31, 2025 Regular price $396.59 AUD Regular price Sale price $396.59 AUD Unit price per Per 50 View the product page first if you are unsure.
COL-02540-041-16-NY (50 Pcs) --- Shaft Collars - 25.4x41.28x15.9 mm - Nylon Polyamide 6/6 COL-02540-041-16-NY (50 Pcs) --- Shaft Collars - 25.4x41.28x15.9 mm - Nylon Polyamide 6/6 Regular price $396.59 AUD Regular price Sale price $396.59 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 30.000 mm + 0.000 / + 0.033 _{(1.181 in.)}	Outside Diameter (D) 45.00 mm _{(1.772 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-03000-045-12-NY Shaft Collars - 30x45x12 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each
Shaft Size (d) 30.000 mm + 0.000 / + 0.033 _{(1.181 in.)}	Outside Diameter (D) 45.00 mm _{(1.772 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-03000-045-12-NY Shaft Collars - 30x45x12 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each View the product page first if you are unsure.
COL-03000-045-12-NY --- Shaft Collars - 30x45x12 mm - Nylon Polyamide 6/6 COL-03000-045-12-NY --- Shaft Collars - 30x45x12 mm - Nylon Polyamide 6/6 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 31.750 mm _{(1.25 in.)}	Outside Diameter (D) 50.80 mm _{(2 in.)}	Overall Width (S) 17.5 mm _{(0.689 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-03175-051-18-NY Shaft Collars - 31.75x50.8x17.5 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $22.59 AUD Regular price Sale price $22.59 AUD Unit price per Each
Shaft Size (d) 31.750 mm _{(1.25 in.)}	Outside Diameter (D) 50.80 mm _{(2 in.)}	Overall Width (S) 17.5 mm _{(0.689 in.)}
Material: Nylon (Polyamide 6/6)
Part Number: COL-03175-051-18-NY Shaft Collars - 31.75x50.8x17.5 mm - Nylon Polyamide 6/6 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $22.59 AUD Regular price Sale price $22.59 AUD Unit price per Each View the product page first if you are unsure.
COL-03175-051-18-NY --- Shaft Collars - 31.75x50.8x17.5 mm - Nylon Polyamide 6/6 COL-03175-051-18-NY --- Shaft Collars - 31.75x50.8x17.5 mm - Nylon Polyamide 6/6 Regular price $22.59 AUD Regular price Sale price $22.59 AUD Unit price per Out of stock! Backorder Now
