Collection: Collars - Shaft - Clamp Type - Two Piece - 300 Grade Stainless Steel

Collars (With Images)

Shaft

Clamp Type

Two Piece

300 Grade Stainless Steel
316 Stainless Steel
Aluminium
Steel

90 Products in this selection

Includes 303 and 304 Grade Stainless

Additional resources:
Shaft Collars PDF Catalogue

A more concise listing may be found on the Smallparts store at Collars - Shaft - Clamp Type - Two Piece - 300 Grade Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Screw Size	Screw Centres (E)
Shaft Size (d) 3.000 mm + 0.000 / - 0.007 _{(0.118 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 4.50
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00300-015-08-2C-S4 Shaft Collars - 3x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity

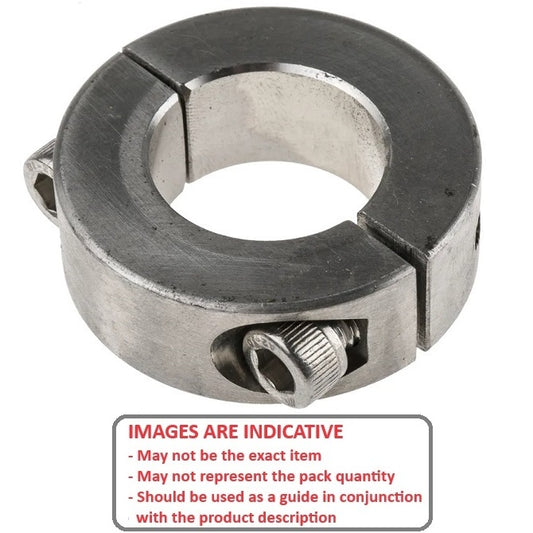

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Indicative Image
Shaft Size (d) 3.000 mm + 0.000 / - 0.007 _{(0.118 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 4.50
Part Number: COL-00300-015-08-2C-S4 Shaft Collars - 3x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00300-016-09-2C-S3 Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $112.86 AUD Regular price Sale price $112.86 AUD Unit price per Each
Shaft Size (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00300-016-09-2C-S3 Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $112.86 AUD Regular price Sale price $112.86 AUD Unit price per Each View the product page first if you are unsure.
COL-00300-016-09-2C-S3 --- Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00300-016-09-2C-S3 --- Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $112.86 AUD Regular price Sale price $112.86 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (D) 15.88 mm _{(0.625 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00318-016-08-2C-S4 Shaft Collars - 3.175x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each
Shaft Size (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (D) 15.88 mm _{(0.625 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00318-016-08-2C-S4 Shaft Collars - 3.175x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each View the product page first if you are unsure.
COL-00318-016-08-2C-S4 --- Shaft Collars - 3.175x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale COL-00318-016-08-2C-S4 --- Shaft Collars - 3.175x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 4.000 mm + 0.000 / - 0.012 _{(0.157 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 4.50
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00400-015-08-2C-S4 Shaft Collars - 4x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm + 0.000 / - 0.012 _{(0.157 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 4.50
Part Number: COL-00400-015-08-2C-S4 Shaft Collars - 4x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm _{(0.157 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00400-016-09-2C-S3 Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $103.68 AUD Regular price Sale price $103.68 AUD Unit price per Each
Shaft Size (d) 4.000 mm _{(0.157 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00400-016-09-2C-S3 Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $103.68 AUD Regular price Sale price $103.68 AUD Unit price per Each View the product page first if you are unsure.
COL-00400-016-09-2C-S3 --- Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00400-016-09-2C-S3 --- Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $103.68 AUD Regular price Sale price $103.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (D) 15.88 mm _{(0.625 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00476-016-08-2C-S4 Shaft Collars - 4.763x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Dec 30, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each
Shaft Size (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (D) 15.88 mm _{(0.625 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00476-016-08-2C-S4 Shaft Collars - 4.763x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Dec 30, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each View the product page first if you are unsure.
COL-00476-016-08-2C-S4 --- Shaft Collars - 4.763x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale COL-00476-016-08-2C-S4 --- Shaft Collars - 4.763x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00500-016-09-2C-S3 Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $98.77 AUD Regular price Sale price $98.77 AUD Unit price per Each
Shaft Size (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00500-016-09-2C-S3 Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $98.77 AUD Regular price Sale price $98.77 AUD Unit price per Each View the product page first if you are unsure.
COL-00500-016-09-2C-S3 --- Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00500-016-09-2C-S3 --- Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $98.77 AUD Regular price Sale price $98.77 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 5.000 mm + 0.000 / - 0.012 _{(0.197 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 5.50
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00500-020-08-2C-S4 Shaft Collars - 5x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 5.000 mm + 0.000 / - 0.012 _{(0.197 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 5.50
Part Number: COL-00500-020-08-2C-S4 Shaft Collars - 5x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00600-016-09-2C-S3 Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $98.77 AUD Regular price Sale price $98.77 AUD Unit price per Each
Shaft Size (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00600-016-09-2C-S3 Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $98.77 AUD Regular price Sale price $98.77 AUD Unit price per Each View the product page first if you are unsure.
COL-00600-016-09-2C-S3 --- Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00600-016-09-2C-S3 --- Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $98.77 AUD Regular price Sale price $98.77 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 6.000 mm + 0.000 / - 0.012 _{(0.236 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 6.00
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00600-020-08-2C-S4 Shaft Collars - 6x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm + 0.000 / - 0.012 _{(0.236 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 6.00
Part Number: COL-00600-020-08-2C-S4 Shaft Collars - 6x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 15.88 mm _{(0.625 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00635-016-08-2C-S4 Shaft Collars - 6.35x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 15.88 mm _{(0.625 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00635-016-08-2C-S4 Shaft Collars - 6.35x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
COL-00635-016-08-2C-S4 --- Shaft Collars - 6.35x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale COL-00635-016-08-2C-S4 --- Shaft Collars - 6.35x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 17.50 mm _{(0.689 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}	Screw Size 4-40 UNC
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00635-017-08-2C-S3 Shaft Collars - 6.35x17.5x7.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Each
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 17.50 mm _{(0.689 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: 4-40 UNC
Part Number: COL-00635-017-08-2C-S3 Shaft Collars - 6.35x17.5x7.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Each View the product page first if you are unsure.
COL-00635-017-08-2C-S3 --- Shaft Collars - 6.35x17.5x7.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00635-017-08-2C-S3 --- Shaft Collars - 6.35x17.5x7.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (D) 17.46 mm _{(0.687 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00794-017-08-2C-S4 Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each
Shaft Size (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (D) 17.46 mm _{(0.687 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00794-017-08-2C-S4 Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each View the product page first if you are unsure.
COL-00794-017-08-2C-S4 --- Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 COL-00794-017-08-2C-S4 --- Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (D) 18.00 mm _{(0.709 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00800-018-09-2C-S3 Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $85.77 AUD Regular price Sale price $85.77 AUD Unit price per Each
Shaft Size (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (D) 18.00 mm _{(0.709 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00800-018-09-2C-S3 Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $85.77 AUD Regular price Sale price $85.77 AUD Unit price per Each View the product page first if you are unsure.
COL-00800-018-09-2C-S3 --- Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00800-018-09-2C-S3 --- Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $85.77 AUD Regular price Sale price $85.77 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 8.000 mm + 0.000 / - 0.015 _{(0.315 in.)}	Outside Diameter (D) 25.00 mm _{(0.984 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 8.00
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00800-025-08-2C-S4 Shaft Collars - 8x25x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm + 0.000 / - 0.015 _{(0.315 in.)}	Outside Diameter (D) 25.00 mm _{(0.984 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 8.00
Part Number: COL-00800-025-08-2C-S4 Shaft Collars - 8x25x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.000 mm _{(0.354 in.)}	Outside Diameter (D) 24.00 mm _{(0.945 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00900-024-09-2C-S3 Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $107.23 AUD Regular price Sale price $107.23 AUD Unit price per Each
Shaft Size (d) 9.000 mm _{(0.354 in.)}	Outside Diameter (D) 24.00 mm _{(0.945 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00900-024-09-2C-S3 Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $107.23 AUD Regular price Sale price $107.23 AUD Unit price per Each View the product page first if you are unsure.
COL-00900-024-09-2C-S3 --- Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-00900-024-09-2C-S3 --- Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $107.23 AUD Regular price Sale price $107.23 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.20 mm _{(0.874 in.)}	Overall Width (S) 8.7 mm _{(0.343 in.)}	Screw Size 6-32 UNC (3.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00953-022-09-2C-S3 Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.20 mm _{(0.874 in.)}	Overall Width (S) 8.7 mm _{(0.343 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: 6-32 UNC (3.5mm)
Part Number: COL-00953-022-09-2C-S3 Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each View the product page first if you are unsure.
COL-00953-022-09-2C-S3 --- Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sale COL-00953-022-09-2C-S3 --- Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.23 mm _{(0.875 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00953-022-10-2C-S4 Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Each
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.23 mm _{(0.875 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00953-022-10-2C-S4 Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per Each View the product page first if you are unsure.
COL-00953-022-10-2C-S4 --- Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale COL-00953-022-10-2C-S4 --- Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $16.68 AUD Regular price ~~$20.02 AUD~~ Sale price $16.68 AUD Unit price per 10 Available Now Sale
Shaft Size (d) 10.000 mm _{(0.394 in.)}	Outside Diameter (D) 24.00 mm _{(0.945 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-01000-024-09-2C-S3 Shaft Collars - 10x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $102.14 AUD Regular price Sale price $102.14 AUD Unit price per Each
Shaft Size (d) 10.000 mm _{(0.394 in.)}	Outside Diameter (D) 24.00 mm _{(0.945 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-01000-024-09-2C-S3 Shaft Collars - 10x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $102.14 AUD Regular price Sale price $102.14 AUD Unit price per Each View the product page first if you are unsure.
COL-01000-024-09-2C-S3 --- Shaft Collars - 10x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-01000-024-09-2C-S3 --- Shaft Collars - 10x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $102.14 AUD Regular price Sale price $102.14 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 10.000 mm + 0.000 / - 0.015 _{(0.394 in.)}	Outside Diameter (D) 30.00 mm _{(1.181 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}	Screw Size M4 (4x0.7mm)	Screw Centres (E) 9.00
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-01000-030-10-2C-S4 Shaft Collars - 10x30x10 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 10.000 mm + 0.000 / - 0.015 _{(0.394 in.)}	Outside Diameter (D) 30.00 mm _{(1.181 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M4 (4x0.7mm) Screw Centres (E): 9.00
Part Number: COL-01000-030-10-2C-S4 Shaft Collars - 10x30x10 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 11.000 mm _{(0.433 in.)}	Outside Diameter (D) 28.00 mm _{(1.102 in.)}	Overall Width (S) 11.0 mm _{(0.433 in.)}	Screw Size M4 (4x0.7mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-01100-028-11-2C-S3 Shaft Collars - 11x28x11 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Each
Shaft Size (d) 11.000 mm _{(0.433 in.)}	Outside Diameter (D) 28.00 mm _{(1.102 in.)}	Overall Width (S) 11.0 mm _{(0.433 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M4 (4x0.7mm)
Part Number: COL-01100-028-11-2C-S3 Shaft Collars - 11x28x11 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Each View the product page first if you are unsure.
COL-01100-028-11-2C-S3 --- Shaft Collars - 11x28x11 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-01100-028-11-2C-S3 --- Shaft Collars - 11x28x11 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 11.113 mm _{(0.438 in.)}	Outside Diameter (D) 23.80 mm _{(0.937 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}	Screw Size 6-32 UNC (3.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-01111-024-10-2C-S3 Shaft Collars - 11.113x23.8x9.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each
Shaft Size (d) 11.113 mm _{(0.438 in.)}	Outside Diameter (D) 23.80 mm _{(0.937 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: 6-32 UNC (3.5mm)
Part Number: COL-01111-024-10-2C-S3 Shaft Collars - 11.113x23.8x9.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each View the product page first if you are unsure.
COL-01111-024-10-2C-S3 --- Shaft Collars - 11.113x23.8x9.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 COL-01111-024-10-2C-S3 --- Shaft Collars - 11.113x23.8x9.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 11.113 mm _{(0.438 in.)}	Outside Diameter (D) 23.81 mm _{(0.937 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-01111-024-10-2C-S4 (38 Pcs) Shaft Collars - 11.113x23.81x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 30, 2025 Regular price $725.14 AUD Regular price Sale price $725.14 AUD Unit price per Per 38
Shaft Size (d) 11.113 mm _{(0.438 in.)}	Outside Diameter (D) 23.81 mm _{(0.937 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-01111-024-10-2C-S4 (38 Pcs) Shaft Collars - 11.113x23.81x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 30, 2025 Regular price $725.14 AUD Regular price Sale price $725.14 AUD Unit price per Per 38 View the product page first if you are unsure.
COL-01111-024-10-2C-S4 (38 Pcs) --- Shaft Collars - 11.113x23.81x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 COL-01111-024-10-2C-S4 (38 Pcs) --- Shaft Collars - 11.113x23.81x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $725.14 AUD Regular price Sale price $725.14 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 12.000 mm + 0.000 / - 0.018 _{(0.472 in.)}	Outside Diameter (D) 28.00 mm + 0.25 / - 0.00 _{(1.102 in.)}	Overall Width (S) 11.0 mm _{(0.433 in.)}	Screw Size M4 (4x0.7mm)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-01200-028-11-2C-S4 (25 Pcs) Shaft Collars - 12x28x11 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 30, 2025 Regular price $475.23 AUD Regular price Sale price $475.23 AUD Unit price per Per 25
Shaft Size (d) 12.000 mm + 0.000 / - 0.018 _{(0.472 in.)}	Outside Diameter (D) 28.00 mm + 0.25 / - 0.00 _{(1.102 in.)}	Overall Width (S) 11.0 mm _{(0.433 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M4 (4x0.7mm)
Part Number: COL-01200-028-11-2C-S4 (25 Pcs) Shaft Collars - 12x28x11 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 30, 2025 Regular price $475.23 AUD Regular price Sale price $475.23 AUD Unit price per Per 25 View the product page first if you are unsure.
COL-01200-028-11-2C-S4 (25 Pcs) --- Shaft Collars - 12x28x11 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 COL-01200-028-11-2C-S4 (25 Pcs) --- Shaft Collars - 12x28x11 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $475.23 AUD Regular price Sale price $475.23 AUD Unit price per Out of stock! Backorder Now

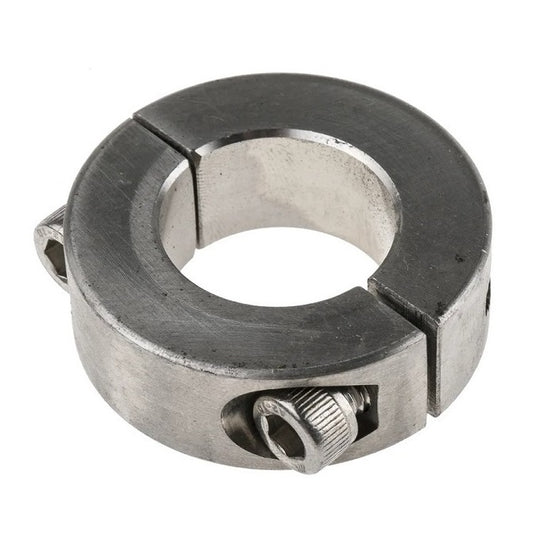

Collection: Collars - Shaft - Clamp Type - Two Piece - 300 Grade Stainless Steel

Filter:

COL-00300-016-09-2C-S3 --- Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00300-016-09-2C-S3 --- Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00318-016-08-2C-S4 --- Shaft Collars - 3.175x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00318-016-08-2C-S4 --- Shaft Collars - 3.175x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00400-016-09-2C-S3 --- Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00400-016-09-2C-S3 --- Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00476-016-08-2C-S4 --- Shaft Collars - 4.763x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00476-016-08-2C-S4 --- Shaft Collars - 4.763x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00500-016-09-2C-S3 --- Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00500-016-09-2C-S3 --- Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00600-016-09-2C-S3 --- Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00600-016-09-2C-S3 --- Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00635-016-08-2C-S4 --- Shaft Collars - 6.35x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00635-016-08-2C-S4 --- Shaft Collars - 6.35x15.88x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00635-017-08-2C-S3 --- Shaft Collars - 6.35x17.5x7.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00635-017-08-2C-S3 --- Shaft Collars - 6.35x17.5x7.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00794-017-08-2C-S4 --- Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00794-017-08-2C-S4 --- Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00800-018-09-2C-S3 --- Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00800-018-09-2C-S3 --- Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00900-024-09-2C-S3 --- Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00900-024-09-2C-S3 --- Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00953-022-09-2C-S3 --- Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00953-022-09-2C-S3 --- Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-00953-022-10-2C-S4 --- Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-00953-022-10-2C-S4 --- Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-01000-024-09-2C-S3 --- Shaft Collars - 10x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-01000-024-09-2C-S3 --- Shaft Collars - 10x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-01100-028-11-2C-S3 --- Shaft Collars - 11x28x11 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-01100-028-11-2C-S3 --- Shaft Collars - 11x28x11 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-01111-024-10-2C-S3 --- Shaft Collars - 11.113x23.8x9.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-01111-024-10-2C-S3 --- Shaft Collars - 11.113x23.8x9.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

COL-01111-024-10-2C-S4 (38 Pcs) --- Shaft Collars - 11.113x23.81x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-01111-024-10-2C-S4 (38 Pcs) --- Shaft Collars - 11.113x23.81x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-01200-028-11-2C-S4 (25 Pcs) --- Shaft Collars - 12x28x11 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

COL-01200-028-11-2C-S4 (25 Pcs) --- Shaft Collars - 12x28x11 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

Country/region

Country/region

Country/region

Collection: Collars - Shaft - Clamp Type - Two Piece - 300 Grade Stainless Steel

Filter

Filter

Subscribe to our emails
