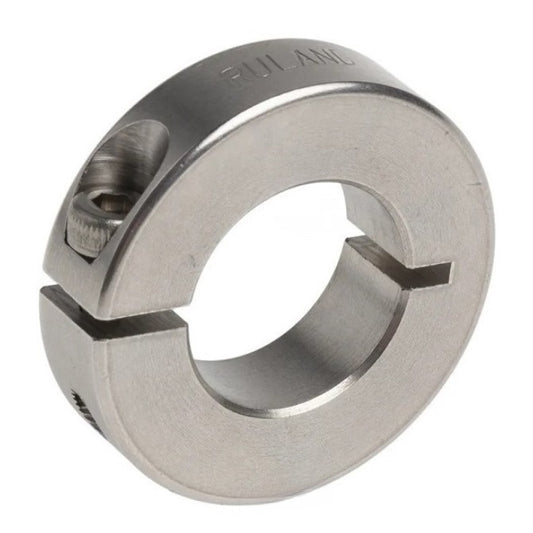

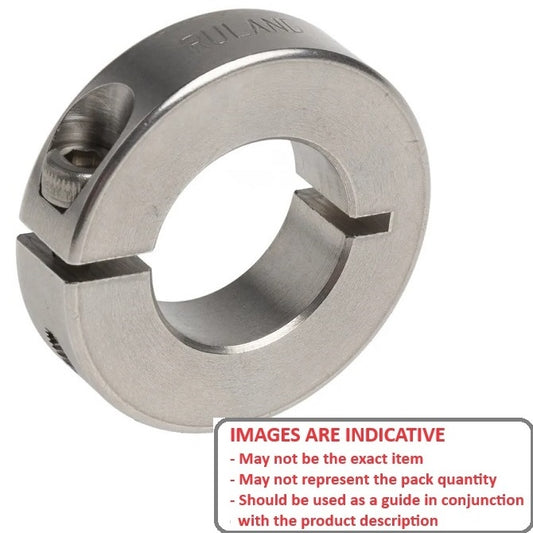

Collection: Collars - Shaft - Clamp Type - One Piece - Stainless Steel

Collars (With Images)

Shaft

Clamp Type

One Piece

Aluminium
Stainless Steel
Steel

88 Products in this selection

This is the main category in this series

Additional resources:
Shaft Collars PDF Catalogue

A more concise listing may be found on the Smallparts store at Collars - Shaft - Clamp Type - One Piece - Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Screw Size	Screw Centres (E)
Shaft Size (d) 3.000 mm + 0.000 / - 0.007 _{(0.118 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 4.50
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00300-015-08-1C-S4 Shaft Collars - 3x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Indicative Image
Shaft Size (d) 3.000 mm + 0.000 / - 0.007 _{(0.118 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 4.50
Part Number: COL-00300-015-08-1C-S4 Shaft Collars - 3x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 3.000 mm + 0.000 / - 0.007 _{(0.118 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 4.50
Material: Stainless Steel 304 with Urethane Pad Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00300-015-10-1C-S4P Shaft Collars - 3x15x10 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 3.000 mm + 0.000 / - 0.007 _{(0.118 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Stainless Steel 304 with Urethane Pad Screw Size: M3 (3x0.5mm) Screw Centres (E): 4.50 Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00300-015-10-1C-S4P Shaft Collars - 3x15x10 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00300-016-09-1C-S3 Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00300-016-09-1C-S3 Shaft Collars - 3x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (D) 12.70 mm _{(0.5 in.)}	Overall Width (S) 6.4 mm _{(0.252 in.)}	Screw Size 1/4-28 UNC
Material: Stainless Steel
Part Number: COL-00318-013-06-1C-S3 Shaft Collars - 3.175x12.7x6.4 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each
Shaft Size (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (D) 12.70 mm _{(0.5 in.)}	Overall Width (S) 6.4 mm _{(0.252 in.)}
Material: Stainless Steel Screw Size: 1/4-28 UNC
Part Number: COL-00318-013-06-1C-S3 Shaft Collars - 3.175x12.7x6.4 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each View the product page first if you are unsure.
COL-00318-013-06-1C-S3 --- Shaft Collars - 3.175x12.7x6.4 mm - Stainless Steel COL-00318-013-06-1C-S3 --- Shaft Collars - 3.175x12.7x6.4 mm - Stainless Steel Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 4.000 mm + 0.000 / - 0.012 _{(0.157 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 4.50
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00400-015-08-1C-S4 Shaft Collars - 4x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm + 0.000 / - 0.012 _{(0.157 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 4.50
Part Number: COL-00400-015-08-1C-S4 Shaft Collars - 4x15x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm + 0.000 / - 0.012 _{(0.157 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 4.50
Material: Stainless Steel 304 with Urethane Pad Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00400-015-10-1C-S4P Shaft Collars - 4x15x10 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm + 0.000 / - 0.012 _{(0.157 in.)}	Outside Diameter (D) 15.00 mm _{(0.591 in.)}	Overall Width (S) 10.0 mm _{(0.394 in.)}
Material: Stainless Steel 304 with Urethane Pad Screw Size: M3 (3x0.5mm) Screw Centres (E): 4.50 Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00400-015-10-1C-S4P Shaft Collars - 4x15x10 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm _{(0.157 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00400-016-09-1C-S3 Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.000 mm _{(0.157 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00400-016-09-1C-S3 Shaft Collars - 4x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (D) 15.90 mm _{(0.626 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}	Screw Size 4-40 UNC
Material: Stainless Steel
Part Number: COL-00475-016-08-1C-S3 Shaft Collars - 4.763x15.9x7.9 mm - Stainless Steel 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each
Shaft Size (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (D) 15.90 mm _{(0.626 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel Screw Size: 4-40 UNC
Part Number: COL-00475-016-08-1C-S3 Shaft Collars - 4.763x15.9x7.9 mm - Stainless Steel 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each View the product page first if you are unsure.
COL-00475-016-08-1C-S3 --- Shaft Collars - 4.763x15.9x7.9 mm - Stainless Steel Sale COL-00475-016-08-1C-S3 --- Shaft Collars - 4.763x15.9x7.9 mm - Stainless Steel Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00500-016-09-1C-S3 Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00500-016-09-1C-S3 Shaft Collars - 5x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 5.000 mm + 0.000 / - 0.012 _{(0.197 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 6.00
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00500-020-08-1C-S4 Shaft Collars - 5x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 5.000 mm + 0.000 / - 0.012 _{(0.197 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 6.00
Part Number: COL-00500-020-08-1C-S4 Shaft Collars - 5x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 5.000 mm + 0.000 / - 0.012 _{(0.197 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}	Screw Size M4 (4x0.7mm)	Screw Centres (E) 6.00
Material: Stainless Steel 304 with Urethane Pad Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00500-020-12-1C-S4P Shaft Collars - 5x20x12 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 5.000 mm + 0.000 / - 0.012 _{(0.197 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Stainless Steel 304 with Urethane Pad Screw Size: M4 (4x0.7mm) Screw Centres (E): 6.00 Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00500-020-12-1C-S4P Shaft Collars - 5x20x12 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00600-016-09-1C-S3 Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (D) 16.00 mm _{(0.63 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00600-016-09-1C-S3 Shaft Collars - 6x16x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm + 0.000 / - 0.012 _{(0.236 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 6.00
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00600-020-08-1C-S4 Shaft Collars - 6x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm + 0.000 / - 0.012 _{(0.236 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 6.00
Part Number: COL-00600-020-08-1C-S4 Shaft Collars - 6x20x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm + 0.000 / - 0.012 _{(0.236 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}	Screw Size M4 (4x0.7mm)	Screw Centres (E) 6.00
Material: Stainless Steel 304 with Urethane Pad Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00600-020-12-1C-S4P Shaft Collars - 6x20x12 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.000 mm + 0.000 / - 0.012 _{(0.236 in.)}	Outside Diameter (D) 20.00 mm _{(0.787 in.)}	Overall Width (S) 12.0 mm _{(0.472 in.)}
Material: Stainless Steel 304 with Urethane Pad Screw Size: M4 (4x0.7mm) Screw Centres (E): 6.00 Dampening Pad Thickness (L2): 2.0 mm
Part Number: COL-00600-020-12-1C-S4P Shaft Collars - 6x20x12 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 17.46 mm _{(0.687 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00635-017-08-1C-S4 Shaft Collars - 6.35x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Wed, Dec 31, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 17.46 mm _{(0.687 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00635-017-08-1C-S4 Shaft Collars - 6.35x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Wed, Dec 31, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each View the product page first if you are unsure.
COL-00635-017-08-1C-S4 --- Shaft Collars - 6.35x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale COL-00635-017-08-1C-S4 --- Shaft Collars - 6.35x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 27.00 mm _{(1.063 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}	Screw Size 4-40 UNC
Material: Stainless Steel
Part Number: COL-00635-027-08-1C-S3 Shaft Collars - 6.35x27x7.9 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Each
Shaft Size (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (D) 27.00 mm _{(1.063 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel Screw Size: 4-40 UNC
Part Number: COL-00635-027-08-1C-S3 Shaft Collars - 6.35x27x7.9 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Each View the product page first if you are unsure.
COL-00635-027-08-1C-S3 --- Shaft Collars - 6.35x27x7.9 mm - Stainless Steel COL-00635-027-08-1C-S3 --- Shaft Collars - 6.35x27x7.9 mm - Stainless Steel Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (D) 17.46 mm _{(0.687 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00794-017-08-1C-S4 Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Each
Shaft Size (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (D) 17.46 mm _{(0.687 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00794-017-08-1C-S4 Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Each View the product page first if you are unsure.
COL-00794-017-08-1C-S4 --- Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 COL-00794-017-08-1C-S4 --- Shaft Collars - 7.938x17.46x7.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (D) 27.00 mm _{(1.063 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}	Screw Size 4-40 UNC
Material: Stainless Steel
Part Number: COL-00793-027-08-1C-S3 Shaft Collars - 7.938x27x7.9 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per Each
Shaft Size (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (D) 27.00 mm _{(1.063 in.)}	Overall Width (S) 7.9 mm _{(0.311 in.)}
Material: Stainless Steel Screw Size: 4-40 UNC
Part Number: COL-00793-027-08-1C-S3 Shaft Collars - 7.938x27x7.9 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per Each View the product page first if you are unsure.
COL-00793-027-08-1C-S3 --- Shaft Collars - 7.938x27x7.9 mm - Stainless Steel COL-00793-027-08-1C-S3 --- Shaft Collars - 7.938x27x7.9 mm - Stainless Steel Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (D) 18.00 mm _{(0.709 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00800-018-09-1C-S3 Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (D) 18.00 mm _{(0.709 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00800-018-09-1C-S3 Shaft Collars - 8x18x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm + 0.000 / - 0.015 _{(0.315 in.)}	Outside Diameter (D) 25.00 mm _{(0.984 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}	Screw Size M3 (3x0.5mm)	Screw Centres (E) 8.00
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00800-025-08-1C-S4 Shaft Collars - 8x25x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm + 0.000 / - 0.015 _{(0.315 in.)}	Outside Diameter (D) 25.00 mm _{(0.984 in.)}	Overall Width (S) 8.0 mm _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm) Screw Centres (E): 8.00
Part Number: COL-00800-025-08-1C-S4 Shaft Collars - 8x25x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm + 0.000 / - 0.015 _{(0.315 in.)}	Outside Diameter (D) 30.00 mm _{(1.181 in.)}	Overall Width (S) 18.0 mm _{(0.709 in.)}	Screw Size M6	Screw Centres (E) 9.00
Material: Stainless Steel 304 with Urethane Pad Dampening Pad Thickness (L2): 3.0 mm
Part Number: COL-00800-030-18-1C-S4P Shaft Collars - 8x30x18 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm + 0.000 / - 0.015 _{(0.315 in.)}	Outside Diameter (D) 30.00 mm _{(1.181 in.)}	Overall Width (S) 18.0 mm _{(0.709 in.)}
Material: Stainless Steel 304 with Urethane Pad Screw Size: M6 Screw Centres (E): 9.00 Dampening Pad Thickness (L2): 3.0 mm
Part Number: COL-00800-030-18-1C-S4P Shaft Collars - 8x30x18 mm - Stainless Steel 304 with Urethane Pad Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.000 mm _{(0.354 in.)}	Outside Diameter (D) 24.00 mm _{(0.945 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}	Screw Size M3 (3x0.5mm)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Part Number: COL-00900-024-09-1C-S3 Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.000 mm _{(0.354 in.)}	Outside Diameter (D) 24.00 mm _{(0.945 in.)}	Overall Width (S) 9.0 mm _{(0.354 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Screw Size: M3 (3x0.5mm)
Part Number: COL-00900-024-09-1C-S3 Shaft Collars - 9x24x9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.20 mm _{(0.874 in.)}	Overall Width (S) 8.7 mm _{(0.343 in.)}	Screw Size 6-32 UNC (3.5mm)
Material: Stainless Steel
Part Number: COL-00953-022-09-1C-S3 Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.20 mm _{(0.874 in.)}	Overall Width (S) 8.7 mm _{(0.343 in.)}
Material: Stainless Steel Screw Size: 6-32 UNC (3.5mm)
Part Number: COL-00953-022-09-1C-S3 Shaft Collars - 9.525x22.2x8.7 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.23 mm _{(0.875 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00953-022-10-1C-S4 Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each
Shaft Size (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (D) 22.23 mm _{(0.875 in.)}	Overall Width (S) 9.5 mm _{(0.374 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Part Number: COL-00953-022-10-1C-S4 Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each View the product page first if you are unsure.
COL-00953-022-10-1C-S4 --- Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 COL-00953-022-10-1C-S4 --- Shaft Collars - 9.525x22.23x9.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
