Cam Followers - V-Groove

2 Products in this selection

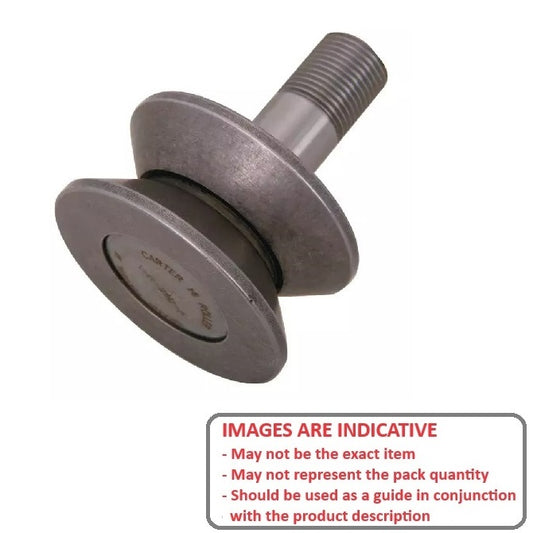

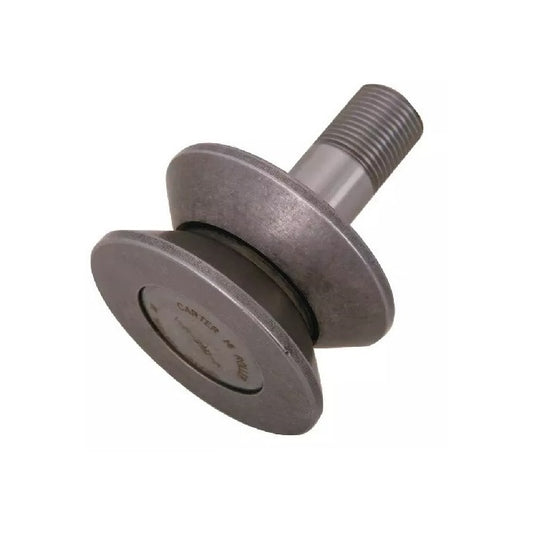

A selection of V-Groove Cam Followers. Follows the contours of a camshaft, translating rotational motion into linear movement.

    Miniature Bearings Australia (Minibearings)

    Additional resources:
    A more concise listing may be found on the Smallparts store at Cam Followers - V-Groove. Smallparts promote the most popular MBA products.
    Diameter (A) Length Thread Thread Length (M) Roller Width (B) Groove Diameter (F) Indicative
    Diameter (A)
    63.500
    mm

    (Equiv. 2.5 in.)
    Length
    77.800
    mm

    (Equiv. 3.063 in.)
    Thread
    3/4-16 UNF
    mm

    (Equiv. 0.118 in.)
    Thread Length (M)
    22.225
    mm
    Roller Width (B)
    33.350
    mm
    Groove Diameter (F)
    38.100
    mm
    		V-Groove Cam Followers - 63.5x77.8 - 3/4-16 UNF - Steel
    Material: Steel    Centre of Groove (G): 17.475 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 770 kg
    Part Number: CCF305RS V-Groove Cam Followers - 63.5x77.8 - 3/4-16 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $386.86 AUD
    $386.86 AUD
    Each
    Diameter (A) Length Thread Thread Length (M) Indicative
    Diameter (A)
    63.500
    mm

    (Equiv. 2.5 in.)
    Length
    77.800
    mm

    (Equiv. 3.063 in.)
    Thread
    3/4-16 UNF
    mm

    (Equiv. 0.118 in.)
    Thread Length (M)
    22.225
    mm
    		V-Groove Cam Followers - 63.5x77.8 - 3/4-16 UNF - Steel
    Material: Steel    Roller Width (B): 33.350 mm    Groove Diameter (F): 38.100 mm    Centre of Groove (G): 17.475 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 770 kg
    Part Number: CCF305RS V-Groove Cam Followers - 63.5x77.8 - 3/4-16 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $386.86 AUD
    $386.86 AUD
    Each
    View the product page first if you are unsure.
    Diameter (A)
    88.900
    mm

    (Equiv. 3.5 in.)
    Length
    93.675
    mm

    (Equiv. 3.688 in.)
    Thread
    7/8-14 UNF
    mm

    (Equiv. 0.276 in.)
    Thread Length (M)
    28.575
    mm
    Roller Width (B)
    42.875
    mm
    Groove Diameter (F)
    57.150
    mm
    		V-Groove Cam Followers - 88.9x93.675 - 7/8-14 UNF - Steel
    Material: Steel    Centre of Groove (G): 22.225 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 1440 kg
    Part Number: CCF310RS V-Groove Cam Followers - 88.9x93.675 - 7/8-14 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $415.77 AUD
    $498.93 AUD $415.77 AUD
    Each
    Diameter (A)
    88.900
    mm

    (Equiv. 3.5 in.)
    Length
    93.675
    mm

    (Equiv. 3.688 in.)
    Thread
    7/8-14 UNF
    mm

    (Equiv. 0.276 in.)
    Thread Length (M)
    28.575
    mm
    		V-Groove Cam Followers - 88.9x93.675 - 7/8-14 UNF - Steel
    Material: Steel    Roller Width (B): 42.875 mm    Groove Diameter (F): 57.150 mm    Centre of Groove (G): 22.225 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 1440 kg
    Part Number: CCF310RS V-Groove Cam Followers - 88.9x93.675 - 7/8-14 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $415.77 AUD
    $498.93 AUD $415.77 AUD
    Each
    View the product page first if you are unsure.
