Cam Followers - Roller - Urethane Covered

7 Products in this selection

A selection of Urethane Covered Roller Cam Followers. Urethane tyred cam followers for noise reduction, reduced wear and non marking

    Miniature Bearings Australia (Minibearings)

    Additional resources:
    A more concise listing may be found on the Smallparts store at Cam Followers - Roller - Urethane Covered. Smallparts promote the most popular MBA products.
    Diameter (D) Overall Length (B1) Thread (E) Thread Length (G1) Roller Width (B) Indicative
    Diameter (D)
    19.050
    mm
    +/- 0.13
    (Equiv. 0.75 in.)
    Overall Length (B1)
    25.4
    mm
    +/- 0.13
    (Equiv. 1 in.)
    Thread (E)
    10-32 x 6.35
    mm
    + 0.025 / - 0.00
    (Equiv. 0.394 in.)
    Roller Width (B)
    9.525
    mm
    		Roller Cam Followers - 19.05x25.4 - 10-32 x 6.35 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Stud Diameter (C): 4.826    Stud Length (D) +/- 0.254: 15.875
    Part Number: CCF-1180RS Roller Cam Followers - 19.05x25.4 - 10-32 x 6.35 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $140.68 AUD
    $168.82 AUD $140.68 AUD
    Each
    Diameter (D) Overall Length (B1) Thread (E) Thread Length (G1) Indicative
    Diameter (D)
    19.050
    mm
    +/- 0.13
    (Equiv. 0.75 in.)
    Overall Length (B1)
    25.4
    mm
    +/- 0.13
    (Equiv. 1 in.)
    Thread (E)
    10-32 x 6.35
    mm
    + 0.025 / - 0.00
    (Equiv. 0.394 in.)
    		Roller Cam Followers - 19.05x25.4 - 10-32 x 6.35 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 9.525 mm    Stud Diameter (C): 4.826    Stud Length (D) +/- 0.254: 15.875
    Part Number: CCF-1180RS Roller Cam Followers - 19.05x25.4 - 10-32 x 6.35 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $140.68 AUD
    $168.82 AUD $140.68 AUD
    Each
    View the product page first if you are unsure.
    Diameter (D)
    25.400
    mm
    +/- 0.13
    (Equiv. 1 in.)
    Overall Length (B1)
    34.925
    mm
    +/- 0.13
    (Equiv. 1.375 in.)
    Thread (E)
    3/8-24 x 9.53
    mm
    + 0.025 / - 0.00
    (Equiv. 0.118 in.)
    Roller Width (B)
    12.700
    mm
    		Roller Cam Followers - 25.4x34.925 - 3/8-24 x 9.53 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 9.525    Stud Length (D) +/- 0.254: 22.225
    Part Number: CCF-1185RS Roller Cam Followers - 25.4x34.925 - 3/8-24 x 9.53 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $145.14 AUD
    $174.16 AUD $145.14 AUD
    Each
    Diameter (D)
    25.400
    mm
    +/- 0.13
    (Equiv. 1 in.)
    Overall Length (B1)
    34.925
    mm
    +/- 0.13
    (Equiv. 1.375 in.)
    Thread (E)
    3/8-24 x 9.53
    mm
    + 0.025 / - 0.00
    (Equiv. 0.118 in.)
    		Roller Cam Followers - 25.4x34.925 - 3/8-24 x 9.53 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 12.700 mm    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 9.525    Stud Length (D) +/- 0.254: 22.225
    Part Number: CCF-1185RS Roller Cam Followers - 25.4x34.925 - 3/8-24 x 9.53 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $145.14 AUD
    $174.16 AUD $145.14 AUD
    Each
    View the product page first if you are unsure.
    Diameter (D)
    31.750
    mm
    +/- 0.13
    (Equiv. 1.25 in.)
    Overall Length (B1)
    41.275
    mm
    +/- 0.13
    (Equiv. 1.625 in.)
    Thread (E)
    7/16-20 x 12.70
    mm
    + 0.025 / - 0.00
    (Equiv. 0.276 in.)
    Roller Width (B)
    15.875
    mm
    		Roller Cam Followers - 31.75x41.275 - 7/16-20 x 12.70 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 11.113    Stud Length (D) +/- 0.254: 25.400
    Part Number: CCF-1190RS Roller Cam Followers - 31.75x41.275 - 7/16-20 x 12.70 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $172.14 AUD
    $206.56 AUD $172.14 AUD
    Each
    Diameter (D)
    31.750
    mm
    +/- 0.13
    (Equiv. 1.25 in.)
    Overall Length (B1)
    41.275
    mm
    +/- 0.13
    (Equiv. 1.625 in.)
    Thread (E)
    7/16-20 x 12.70
    mm
    + 0.025 / - 0.00
    (Equiv. 0.276 in.)
    		Roller Cam Followers - 31.75x41.275 - 7/16-20 x 12.70 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 15.875 mm    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 11.113    Stud Length (D) +/- 0.254: 25.400
    Part Number: CCF-1190RS Roller Cam Followers - 31.75x41.275 - 7/16-20 x 12.70 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $172.14 AUD
    $206.56 AUD $172.14 AUD
    Each
    View the product page first if you are unsure.
    Diameter (D)
    38.100
    mm
    +/- 0.13
    (Equiv. 1.5 in.)
    Overall Length (B1)
    50.8
    mm
    +/- 0.13
    (Equiv. 2 in.)
    Thread (E)
    1/2-20 x 15.88
    mm
    + 0.025 / - 0.00
    (Equiv. 0.039 in.)
    Roller Width (B)
    19.050
    mm
    		Roller Cam Followers - 38.1x50.8 - 1/2-20 x 15.88 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 12.700    Stud Length (D) +/- 0.254: 31.750
    Part Number: CCF-1195RS Roller Cam Followers - 38.1x50.8 - 1/2-20 x 15.88 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $203.50 AUD
    $244.20 AUD $203.50 AUD
    Each
    Diameter (D)
    38.100
    mm
    +/- 0.13
    (Equiv. 1.5 in.)
    Overall Length (B1)
    50.8
    mm
    +/- 0.13
    (Equiv. 2 in.)
    Thread (E)
    1/2-20 x 15.88
    mm
    + 0.025 / - 0.00
    (Equiv. 0.039 in.)
    		Roller Cam Followers - 38.1x50.8 - 1/2-20 x 15.88 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 19.050 mm    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 12.700    Stud Length (D) +/- 0.254: 31.750
    Part Number: CCF-1195RS Roller Cam Followers - 38.1x50.8 - 1/2-20 x 15.88 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $203.50 AUD
    $244.20 AUD $203.50 AUD
    Each
    View the product page first if you are unsure.
    Diameter (D)
    44.450
    mm
    +/- 0.13
    (Equiv. 1.75 in.)
    Overall Length (B1)
    60.325
    mm
    +/- 0.13
    (Equiv. 2.375 in.)
    Thread (E)
    5/8-18 x 19.05
    mm
    + 0.025 / - 0.00
    (Equiv. 0.197 in.)
    Roller Width (B)
    22.225
    mm

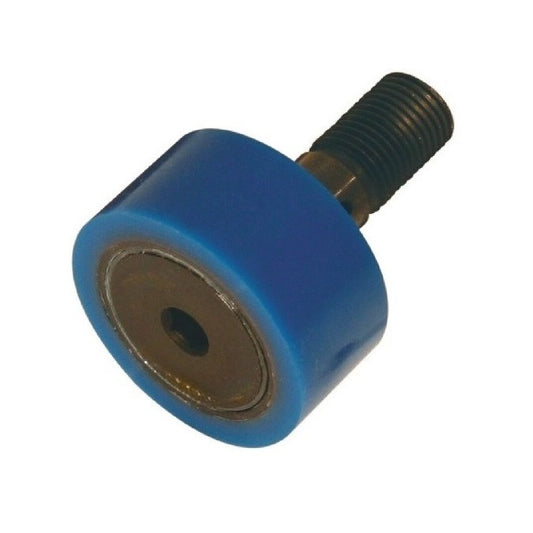

    		Roller Cam Followers - 44.45x60.325 - 5/8-18 x 19.05 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 15.875    Stud Length (D) +/- 0.254: 38.100
    Part Number: CCF-1200RS Roller Cam Followers - 44.45x60.325 - 5/8-18 x 19.05 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $239.59 AUD
    $287.51 AUD $239.59 AUD
    Each
    Diameter (D)
    44.450
    mm
    +/- 0.13
    (Equiv. 1.75 in.)
    Overall Length (B1)
    60.325
    mm
    +/- 0.13
    (Equiv. 2.375 in.)
    Thread (E)
    5/8-18 x 19.05
    mm
    + 0.025 / - 0.00
    (Equiv. 0.197 in.)
    		Roller Cam Followers - 44.45x60.325 - 5/8-18 x 19.05 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 22.225 mm    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 15.875    Stud Length (D) +/- 0.254: 38.100
    Part Number: CCF-1200RS Roller Cam Followers - 44.45x60.325 - 5/8-18 x 19.05 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $239.59 AUD
    $287.51 AUD $239.59 AUD
    Each
    View the product page first if you are unsure.
    Diameter (D)
    50.800
    mm
    +/- 0.13
    (Equiv. 2 in.)
    Overall Length (B1)
    69.85
    mm
    +/- 0.13
    (Equiv. 2.75 in.)
    Thread (E)
    3/4-16 x 22.23
    mm
    + 0.025 / - 0.00
    (Equiv. 0.118 in.)
    Roller Width (B)
    25.400
    mm
    		Roller Cam Followers - 50.8x69.85 - 3/4-16 x 22.23 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 19.050    Stud Length (D) +/- 0.254: 44.450
    Part Number: CCF-1205RS Roller Cam Followers - 50.8x69.85 - 3/4-16 x 22.23 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 15, 2025
    $398.77 AUD
    $398.77 AUD
    Each
    Diameter (D)
    50.800
    mm
    +/- 0.13
    (Equiv. 2 in.)
    Overall Length (B1)
    69.85
    mm
    +/- 0.13
    (Equiv. 2.75 in.)
    Thread (E)
    3/4-16 x 22.23
    mm
    + 0.025 / - 0.00
    (Equiv. 0.118 in.)
    		Roller Cam Followers - 50.8x69.85 - 3/4-16 x 22.23 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 25.400 mm    Grease Hole Size (H): 2.38 mm    Stud Diameter (C): 19.050    Stud Length (D) +/- 0.254: 44.450
    Part Number: CCF-1205RS Roller Cam Followers - 50.8x69.85 - 3/4-16 x 22.23 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 15, 2025
    $398.77 AUD
    $398.77 AUD
    Each
    View the product page first if you are unsure.
    Diameter (D)
    57.150
    mm
    +/- 0.13
    (Equiv. 2.25 in.)
    Overall Length (B1)
    82.55
    mm
    +/- 0.13
    (Equiv. 3.25 in.)
    Thread (E)
    7/8-14 x 25.40
    mm
    + 0.025 / - 0.00
    (Equiv. 0.276 in.)
    Roller Width (B)
    31.750
    mm
    		Roller Cam Followers - 57.15x82.55 - 7/8-14 x 25.40 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Grease Hole Size (H): 3.18 mm    Stud Diameter (C): 22.225    Stud Length (D) +/- 0.254: 50.800
    Part Number: CCF-1210RS Roller Cam Followers - 57.15x82.55 - 7/8-14 x 25.40 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $353.50 AUD
    $424.20 AUD $353.50 AUD
    Each
    Diameter (D)
    57.150
    mm
    +/- 0.13
    (Equiv. 2.25 in.)
    Overall Length (B1)
    82.55
    mm
    +/- 0.13
    (Equiv. 3.25 in.)
    Thread (E)
    7/8-14 x 25.40
    mm
    + 0.025 / - 0.00
    (Equiv. 0.276 in.)
    		Roller Cam Followers - 57.15x82.55 - 7/8-14 x 25.40 - Steel with Urethane Cover
    Material: Steel with Urethane Cover    Roller Width (B): 31.750 mm    Grease Hole Size (H): 3.18 mm    Stud Diameter (C): 22.225    Stud Length (D) +/- 0.254: 50.800
    Part Number: CCF-1210RS Roller Cam Followers - 57.15x82.55 - 7/8-14 x 25.40 Urethane Covered - Steel with Urethane Cover
    Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 13, 2025
    $353.50 AUD
    $424.20 AUD $353.50 AUD
    Each
    View the product page first if you are unsure.
