Cam Followers - Flanged Stud

6 Products in this selection

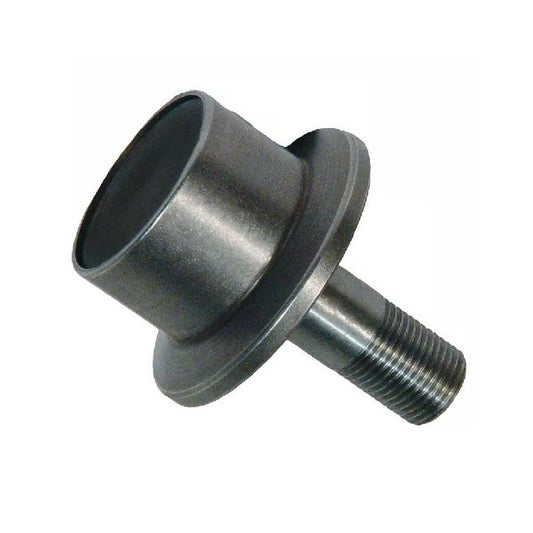

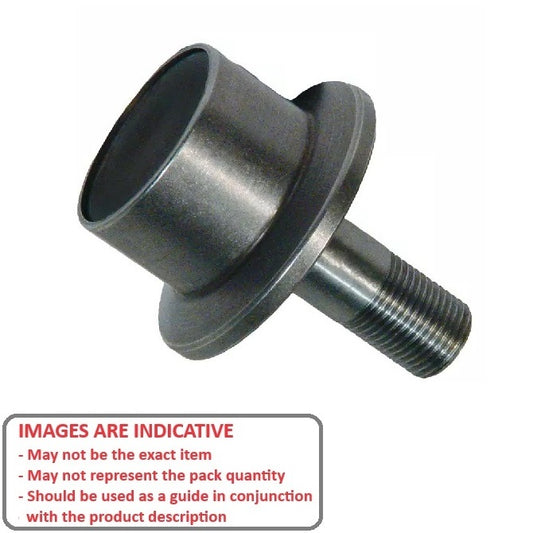

A selection of Flanged Stud Cam Followers. Follows the contours of a camshaft, translating rotational motion into linear movement.

    Miniature Bearings Australia (Minibearings)

    Additional resources:
    A more concise listing may be found on the Smallparts store at Cam Followers - Flanged Stud. Smallparts promote the most popular MBA products.
    Diameter (A) Overall Length (B+L) Thread Size Thread Length (M) Roller Width (B) Flange Diameter (C) Indicative
    Diameter (A)
    38.100
    mm

    (Equiv. 1.5 in.)
    Overall Length (B+L)
    68.275
    mm

    (Equiv. 2.688 in.)
    Thread Size
    5/8-18 UNF

    Thread Length (M)
    19.050
    mm
    Roller Width (B)
    30.175
    mm
    Flange Diameter (C)
    55.575
    mm
    		Flanged Stud Cam Followers - 38.1x68.275 mm - 5/8-18 UNF - Steel
    Material: Steel    Flange Width (D): 8.738 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 770 kg    Thread Length (L): 38.10 mm
    Part Number: CCF260RS Flanged Stud Cam Followers - 38.1x68.275 mm - 5/8-18 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $189.86 AUD
    $227.84 AUD $189.86 AUD
    Each
    Diameter (A) Overall Length (B+L) Thread Size Thread Length (M) Indicative
    Diameter (A)
    38.100
    mm

    (Equiv. 1.5 in.)
    Overall Length (B+L)
    68.275
    mm

    (Equiv. 2.688 in.)
    Thread Size
    5/8-18 UNF

    Thread Length (M)
    19.050
    mm
    		Flanged Stud Cam Followers - 38.1x68.275 mm - 5/8-18 UNF - Steel
    Material: Steel    Roller Width (B): 30.175 mm    Flange Diameter (C): 55.575 mm    Flange Width (D): 8.738 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 770 kg    Thread Length (L): 38.10 mm
    Part Number: CCF260RS Flanged Stud Cam Followers - 38.1x68.275 mm - 5/8-18 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $189.86 AUD
    $227.84 AUD $189.86 AUD
    Each
    View the product page first if you are unsure.
    Diameter (A)
    44.450
    mm

    (Equiv. 1.75 in.)
    Overall Length (B+L)
    74.625
    mm

    (Equiv. 2.938 in.)
    Thread Size
    3/4-16 UNF

    Thread Length (M)
    22.225
    mm
    Roller Width (B)
    30.175
    mm
    Flange Diameter (C)
    61.874
    mm
    		Flanged Stud Cam Followers - 44.45x74.625 mm - 3/4-16 UNF - Steel
    Material: Steel    Flange Width (D): 8.738 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 770 kg    Thread Length (L): 44.45 mm
    Part Number: CCF265RS Flanged Stud Cam Followers - 44.45x74.625 mm - 3/4-16 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $225.23 AUD
    $270.27 AUD $225.23 AUD
    Each
    Diameter (A)
    44.450
    mm

    (Equiv. 1.75 in.)
    Overall Length (B+L)
    74.625
    mm

    (Equiv. 2.938 in.)
    Thread Size
    3/4-16 UNF

    Thread Length (M)
    22.225
    mm
    		Flanged Stud Cam Followers - 44.45x74.625 mm - 3/4-16 UNF - Steel
    Material: Steel    Roller Width (B): 30.175 mm    Flange Diameter (C): 61.874 mm    Flange Width (D): 8.738 mm    Dyanmic Radial Load: 1250 kg    Dynamic Thrust Load: 770 kg    Thread Length (L): 44.45 mm
    Part Number: CCF265RS Flanged Stud Cam Followers - 44.45x74.625 mm - 3/4-16 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $225.23 AUD
    $270.27 AUD $225.23 AUD
    Each
    View the product page first if you are unsure.
    Diameter (A)
    50.800
    mm

    (Equiv. 2 in.)
    Overall Length (B+L)
    93.675
    mm

    (Equiv. 3.688 in.)
    Thread Size
    7/8-14 UNF

    Thread Length (M)
    28.575
    mm
    Roller Width (B)
    42.875
    mm
    Flange Diameter (C)
    68.275
    mm
    		Flanged Stud Cam Followers - 50.8x93.675 mm - 7/8-14 UNF - Steel
    Material: Steel    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 1700 kg    Dynamic Thrust Load: 1080 kg    Thread Length (L): 50.80 mm
    Part Number: CCF270RS Flanged Stud Cam Followers - 50.8x93.675 mm - 7/8-14 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $256.95 AUD
    $308.35 AUD $256.95 AUD
    Each
    Diameter (A)
    50.800
    mm

    (Equiv. 2 in.)
    Overall Length (B+L)
    93.675
    mm

    (Equiv. 3.688 in.)
    Thread Size
    7/8-14 UNF

    Thread Length (M)
    28.575
    mm
    		Flanged Stud Cam Followers - 50.8x93.675 mm - 7/8-14 UNF - Steel
    Material: Steel    Roller Width (B): 42.875 mm    Flange Diameter (C): 68.275 mm    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 1700 kg    Dynamic Thrust Load: 1080 kg    Thread Length (L): 50.80 mm
    Part Number: CCF270RS Flanged Stud Cam Followers - 50.8x93.675 mm - 7/8-14 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $256.95 AUD
    $308.35 AUD $256.95 AUD
    Each
    View the product page first if you are unsure.
    Diameter (A)
    57.150
    mm

    (Equiv. 2.25 in.)
    Overall Length (B+L)
    93.675
    mm

    (Equiv. 3.688 in.)
    Thread Size
    1-14 UNF

    Thread Length (M)
    28.575
    mm
    Roller Width (B)
    42.875
    mm
    Flange Diameter (C)
    74.625
    mm
    		Flanged Stud Cam Followers - 57.15x93.675 mm - 1-14 UNF - Steel
    Material: Steel    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 1700 kg    Dynamic Thrust Load: 1080 kg    Thread Length (L): 50.80 mm
    Part Number: CCF275RS Flanged Stud Cam Followers - 57.15x93.675 mm - 1-14 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $284.77 AUD
    $341.73 AUD $284.77 AUD
    Each
    Diameter (A)
    57.150
    mm

    (Equiv. 2.25 in.)
    Overall Length (B+L)
    93.675
    mm

    (Equiv. 3.688 in.)
    Thread Size
    1-14 UNF

    Thread Length (M)
    28.575
    mm
    		Flanged Stud Cam Followers - 57.15x93.675 mm - 1-14 UNF - Steel
    Material: Steel    Roller Width (B): 42.875 mm    Flange Diameter (C): 74.625 mm    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 1700 kg    Dynamic Thrust Load: 1080 kg    Thread Length (L): 50.80 mm
    Part Number: CCF275RS Flanged Stud Cam Followers - 57.15x93.675 mm - 1-14 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $284.77 AUD
    $341.73 AUD $284.77 AUD
    Each
    View the product page first if you are unsure.
    Diameter (A)
    63.500
    mm

    (Equiv. 2.5 in.)
    Overall Length (B+L)
    100.025
    mm

    (Equiv. 3.938 in.)
    Thread Size
    1.1/4-12 UNF

    Thread Length (M)
    38.100
    mm
    Roller Width (B)
    42.875
    mm
    Flange Diameter (C)
    80.975
    mm
    		Flanged Stud Cam Followers - 63.5x100.025 mm - 1.1/4-12 UNF - Steel
    Material: Steel    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 2350 kg    Dynamic Thrust Load: 1450 kg    Thread Length (L): 57.15 mm
    Part Number: CCF280RS Flanged Stud Cam Followers - 63.5x100.025 mm - 1.1/4-12 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $310.95 AUD
    $373.15 AUD $310.95 AUD
    Each
    Diameter (A)
    63.500
    mm

    (Equiv. 2.5 in.)
    Overall Length (B+L)
    100.025
    mm

    (Equiv. 3.938 in.)
    Thread Size
    1.1/4-12 UNF

    Thread Length (M)
    38.100
    mm
    		Flanged Stud Cam Followers - 63.5x100.025 mm - 1.1/4-12 UNF - Steel
    Material: Steel    Roller Width (B): 42.875 mm    Flange Diameter (C): 80.975 mm    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 2350 kg    Dynamic Thrust Load: 1450 kg    Thread Length (L): 57.15 mm
    Part Number: CCF280RS Flanged Stud Cam Followers - 63.5x100.025 mm - 1.1/4-12 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $310.95 AUD
    $373.15 AUD $310.95 AUD
    Each
    View the product page first if you are unsure.
    Diameter (A)
    76.200
    mm

    (Equiv. 3 in.)
    Overall Length (B+L)
    114.300
    mm

    (Equiv. 4.5 in.)
    Thread Size
    1.1/4-12 UNF

    Thread Length (M)
    44.450
    mm
    Roller Width (B)
    50.800
    mm
    Flange Diameter (C)
    100.025
    mm
    		Flanged Stud Cam Followers - 76.2x114.3 mm - 1.1/4-12 UNF - Steel
    Material: Steel    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 6450 kg    Dynamic Thrust Load: 2630 kg    Thread Length (L): 63.50 mm
    Part Number: CCF285RS Flanged Stud Cam Followers - 76.2x114.3 mm - 1.1/4-12 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $507.86 AUD
    $609.44 AUD $507.86 AUD
    Each
    Diameter (A)
    76.200
    mm

    (Equiv. 3 in.)
    Overall Length (B+L)
    114.300
    mm

    (Equiv. 4.5 in.)
    Thread Size
    1.1/4-12 UNF

    Thread Length (M)
    44.450
    mm
    		Flanged Stud Cam Followers - 76.2x114.3 mm - 1.1/4-12 UNF - Steel
    Material: Steel    Roller Width (B): 50.800 mm    Flange Diameter (C): 100.025 mm    Flange Width (D): 15.088 mm    Dyanmic Radial Load: 6450 kg    Dynamic Thrust Load: 2630 kg    Thread Length (L): 63.50 mm
    Part Number: CCF285RS Flanged Stud Cam Followers - 76.2x114.3 mm - 1.1/4-12 UNF - Steel
    Out of Stock | Backorder Now | Orders can be expected around Tue, Aug 12, 2025
    $507.86 AUD
    $609.44 AUD $507.86 AUD
    Each
    View the product page first if you are unsure.
