Bushings - Integral Taper

Bushings -> Integral Taper

There is only 1 product in the sub-categories of Bushings - Integral Taper. Browse the Bushings - Integral Taper products table.

Category Details

A selection of Integral Taper Bushings. Stainless Steel Taper Bushings.

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Will not mar shafts.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushings - Integral Taper category on the Small Parts & Bearings online store.
Suitable Shaft Size (d) H7 Component ID (D) h7 Sleeve Length (l) Max. Torque Overall Length (L) +/-0.1 Indicative
Suitable Shaft Size (d) H7
6.350
mm

(Equiv. 0.25 in.)
Component ID (D) h7
10.000
mm

(Equiv. 0.394 in.)
Sleeve Length (l)
12.500
mm

(Equiv. 0.492 in.)
Max. Torque
7
N.m
Overall Length (L) +/-0.1
15.00
mm

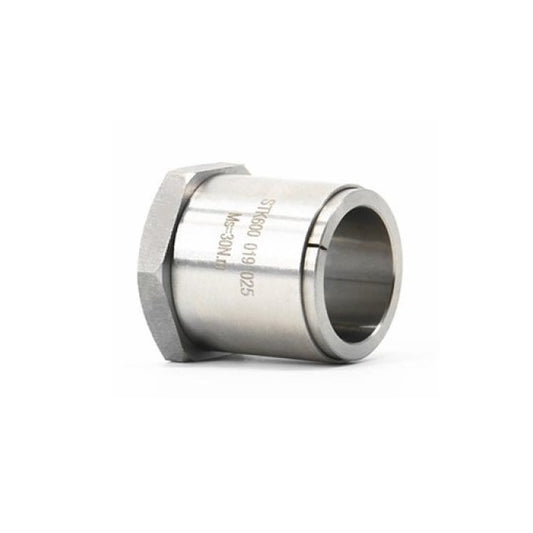

Integral Taper Bushings - 6.35x10x12.5 mm
Material: Steel    Bore Tolerances: +.012/-.000 mm    OD Tolerance: +.000/-.015 mm    Dimension Across Flats: 10 mm    Thread Size (T): M8x0.5
Deleted Item. Available while stocks last.
Part Number: BIT-064-10
Integral Taper Bushings - 6.35x10x12.5 mm - Steel Bushing
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft Size (d) H7 Component ID (D) h7 Sleeve Length (l) Max. Torque Indicative
Suitable Shaft Size (d) H7
6.350
mm

(Equiv. 0.25 in.)
Component ID (D) h7
10.000
mm

(Equiv. 0.394 in.)
Sleeve Length (l)
12.500
mm

(Equiv. 0.492 in.)
Max. Torque
7
N.m

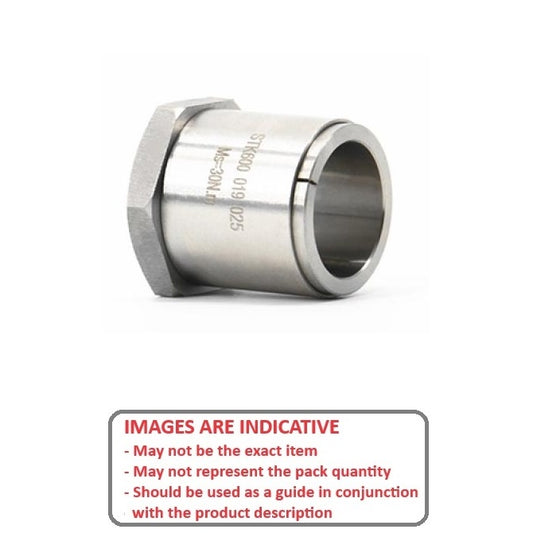

Integral Taper Bushings - 6.35x10x12.5 mm
Material: Steel    Overall Length (L) +/-0.1: 15.00 mm    Bore Tolerances: +.012/-.000 mm    OD Tolerance: +.000/-.015 mm    Dimension Across Flats: 10 mm    Thread Size (T): M8x0.5
Deleted Item. Available while stocks last.
Part Number: BIT-064-10
Integral Taper Bushings - 6.35x10x12.5 mm - Steel Bushing
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
