Collection: Bushes - Flanged - Brass Graphite Plug

Bushes -> Flanged -> Brass Graphite Plug

There are 154 products in the sub-categories of Bushes - Flanged - Brass Graphite Plug. Scroll down or follow the link to Bushes - Flanged - Brass Graphite Plug in the products table to see all these items combined into a handy table with filters.

Category Details

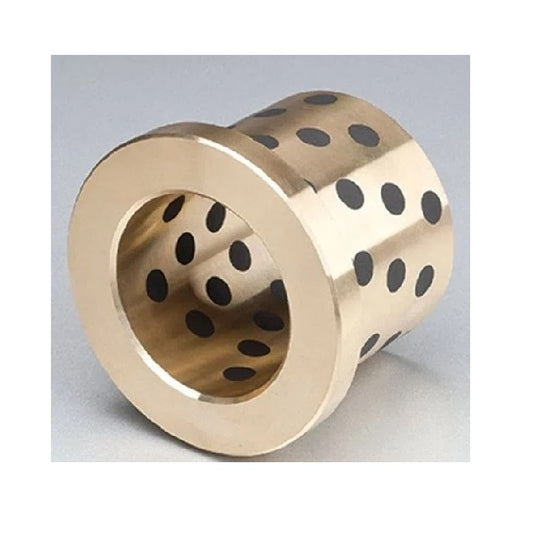

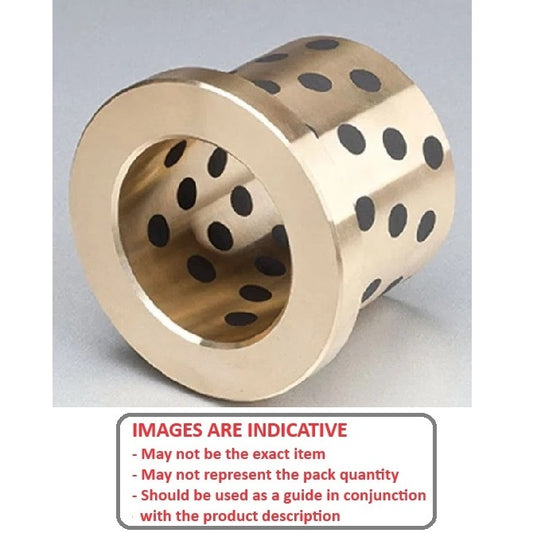

A selection of Brass Graphite Plug Flanged Bushes. Used for dies, moulds and heavy machinery. Brass Alloy.

An expanded range may be available on special order. Please enquire.
High-Tensile Brass Alloy. Suitable for use under conditions of heavy load and low speed operation.
Solid Lubricant Plugs
Excellent wear resistance can be exerted at parts with reciprocating motion, frequent starting and stopping, etc., where oil film is difficult to form.
Class 7 precision ID
29N per mm sq max allowable load with max allowable speed 0.5m per second unlubricated and 1m per second lubricated

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Bushes PDF Catalogue

A more concise listing may be found in the Bushes - Flanged - Brass Graphite Plug category on the Small Parts & Bearings online store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Length (s)	Flange OD (D1)	Flange Thickness (S1)
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.276 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 11.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0050-0070-0100-BRP Flanged Bushes - 5x7x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $27.41 AUD Regular price ~~$32.89 AUD~~ Sale price $27.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Length (s)	Flange OD (D1)	Indicative Image
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.276 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 11.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0050-0070-0100-BRP Flanged Bushes - 5x7x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $27.41 AUD Regular price ~~$32.89 AUD~~ Sale price $27.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0050-0070-0100-BRP --- Flanged Bushes - 5x7x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0050-0070-0100-BRP --- Flanged Bushes - 5x7x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $27.41 AUD Regular price ~~$32.89 AUD~~ Sale price $27.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.276 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 11.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0050-0070-0120-BRP Flanged Bushes - 5x7x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 7.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.276 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 11.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0050-0070-0120-BRP Flanged Bushes - 5x7x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0050-0070-0120-BRP --- Flanged Bushes - 5x7x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0050-0070-0120-BRP --- Flanged Bushes - 5x7x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $23.68 AUD Regular price ~~$28.42 AUD~~ Sale price $23.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.354 in.)	Length (s) 8.000 mm _{- 0.1 / - 0.3} (Equiv. 0.315 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0050-0090-0080-BRP Flanged Bushes - 5x9x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.50 AUD Regular price ~~$10.20 AUD~~ Sale price $8.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.354 in.)	Length (s) 8.000 mm _{- 0.1 / - 0.3} (Equiv. 0.315 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0050-0090-0080-BRP Flanged Bushes - 5x9x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.50 AUD Regular price ~~$10.20 AUD~~ Sale price $8.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0050-0090-0080-BRP --- Flanged Bushes - 5x9x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0050-0090-0080-BRP --- Flanged Bushes - 5x9x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $8.50 AUD Regular price ~~$10.20 AUD~~ Sale price $8.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.354 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0050-0090-0100-BRP Flanged Bushes - 5x9x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.354 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0050-0090-0100-BRP Flanged Bushes - 5x9x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0050-0090-0100-BRP --- Flanged Bushes - 5x9x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0050-0090-0100-BRP --- Flanged Bushes - 5x9x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.354 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0050-0090-0120-BRP Flanged Bushes - 5x9x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 5.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 9.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.354 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0050-0090-0120-BRP Flanged Bushes - 5x9x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0050-0090-0120-BRP --- Flanged Bushes - 5x9x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0050-0090-0120-BRP --- Flanged Bushes - 5x9x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.315 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 12.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0080-0100-BRP Flanged Bushes - 6x8x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.315 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 12.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0080-0100-BRP Flanged Bushes - 6x8x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0080-0100-BRP --- Flanged Bushes - 6x8x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0080-0100-BRP --- Flanged Bushes - 6x8x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.315 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 12.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0080-0120-BRP Flanged Bushes - 6x8x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $19.05 AUD Regular price ~~$22.85 AUD~~ Sale price $19.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.315 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 12.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0080-0120-BRP Flanged Bushes - 6x8x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $19.05 AUD Regular price ~~$22.85 AUD~~ Sale price $19.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0080-0120-BRP --- Flanged Bushes - 6x8x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0080-0120-BRP --- Flanged Bushes - 6x8x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $19.05 AUD Regular price ~~$22.85 AUD~~ Sale price $19.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.315 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 12.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0080-0150-BRP Flanged Bushes - 6x8x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $25.23 AUD Regular price ~~$30.27 AUD~~ Sale price $25.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.315 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 12.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0080-0150-BRP Flanged Bushes - 6x8x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $25.23 AUD Regular price ~~$30.27 AUD~~ Sale price $25.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0080-0150-BRP --- Flanged Bushes - 6x8x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0080-0150-BRP --- Flanged Bushes - 6x8x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $25.23 AUD Regular price ~~$30.27 AUD~~ Sale price $25.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 8.000 mm _{- 0.1 / - 0.3} (Equiv. 0.315 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0100-0080-BRP Flanged Bushes - 6x10x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 8.000 mm _{- 0.1 / - 0.3} (Equiv. 0.315 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0100-0080-BRP Flanged Bushes - 6x10x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0100-0080-BRP --- Flanged Bushes - 6x10x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0100-0080-BRP --- Flanged Bushes - 6x10x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0100-0100-BRP Flanged Bushes - 6x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0100-0100-BRP Flanged Bushes - 6x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0100-0100-BRP --- Flanged Bushes - 6x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0100-0100-BRP --- Flanged Bushes - 6x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0100-0120-BRP Flanged Bushes - 6x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0100-0120-BRP Flanged Bushes - 6x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0100-0120-BRP --- Flanged Bushes - 6x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0100-0120-BRP --- Flanged Bushes - 6x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0060-0100-0150-BRP Flanged Bushes - 6x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.000 mm _{+ 0.020 / + 0.032} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0060-0100-0150-BRP Flanged Bushes - 6x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0060-0100-0150-BRP --- Flanged Bushes - 6x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0060-0100-0150-BRP --- Flanged Bushes - 6x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $9.41 AUD Regular price ~~$11.29 AUD~~ Sale price $9.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0100-0100-BRP Flanged Bushes - 8x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0100-0100-BRP Flanged Bushes - 8x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0100-0100-BRP --- Flanged Bushes - 8x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0100-0100-BRP --- Flanged Bushes - 8x10x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0100-0120-BRP Flanged Bushes - 8x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $26.77 AUD Regular price ~~$32.13 AUD~~ Sale price $26.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0100-0120-BRP Flanged Bushes - 8x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $26.77 AUD Regular price ~~$32.13 AUD~~ Sale price $26.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0100-0120-BRP --- Flanged Bushes - 8x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0100-0120-BRP --- Flanged Bushes - 8x10x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $26.77 AUD Regular price ~~$32.13 AUD~~ Sale price $26.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0100-0150-BRP Flanged Bushes - 8x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $22.32 AUD Regular price ~~$26.78 AUD~~ Sale price $22.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0100-0150-BRP Flanged Bushes - 8x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $22.32 AUD Regular price ~~$26.78 AUD~~ Sale price $22.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0100-0150-BRP --- Flanged Bushes - 8x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0100-0150-BRP --- Flanged Bushes - 8x10x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $22.32 AUD Regular price ~~$26.78 AUD~~ Sale price $22.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 20.000 mm _{- 0.1 / - 0.3} (Equiv. 0.787 in.)	Flange OD (D1) 14.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0100-0200-BRP Flanged Bushes - 8x10x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 10.000 mm _{+ 0.019 / + 0.028} (Equiv. 0.394 in.)	Length (s) 20.000 mm _{- 0.1 / - 0.3} (Equiv. 0.787 in.)	Flange OD (D1) 14.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0100-0200-BRP Flanged Bushes - 8x10x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0100-0200-BRP --- Flanged Bushes - 8x10x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0100-0200-BRP --- Flanged Bushes - 8x10x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 8.000 mm _{- 0.1 / - 0.3} (Equiv. 0.315 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0120-0080-BRP Flanged Bushes - 8x12x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 8.000 mm _{- 0.1 / - 0.3} (Equiv. 0.315 in.)	Flange OD (D1) 20.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0120-0080-BRP Flanged Bushes - 8x12x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0120-0080-BRP --- Flanged Bushes - 8x12x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0120-0080-BRP --- Flanged Bushes - 8x12x8 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0120-0100-BRP Flanged Bushes - 8x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $9.68 AUD Regular price ~~$11.62 AUD~~ Sale price $9.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 20.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0120-0100-BRP Flanged Bushes - 8x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $9.68 AUD Regular price ~~$11.62 AUD~~ Sale price $9.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0120-0100-BRP --- Flanged Bushes - 8x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0120-0100-BRP --- Flanged Bushes - 8x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $9.68 AUD Regular price ~~$11.62 AUD~~ Sale price $9.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0120-0120-BRP Flanged Bushes - 8x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $10.32 AUD Regular price ~~$12.38 AUD~~ Sale price $10.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 20.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0120-0120-BRP Flanged Bushes - 8x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $10.32 AUD Regular price ~~$12.38 AUD~~ Sale price $10.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0120-0120-BRP --- Flanged Bushes - 8x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0120-0120-BRP --- Flanged Bushes - 8x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $10.32 AUD Regular price ~~$12.38 AUD~~ Sale price $10.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0120-0150-BRP Flanged Bushes - 8x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 20.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0120-0150-BRP Flanged Bushes - 8x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0120-0150-BRP --- Flanged Bushes - 8x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0120-0150-BRP --- Flanged Bushes - 8x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 20.000 mm _{- 0.1 / - 0.3} (Equiv. 0.787 in.)	Flange OD (D1) 20.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0080-0120-0200-BRP Flanged Bushes - 8x12x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 20.000 mm _{- 0.1 / - 0.3} (Equiv. 0.787 in.)	Flange OD (D1) 20.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0080-0120-0200-BRP Flanged Bushes - 8x12x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0080-0120-0200-BRP --- Flanged Bushes - 8x12x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0080-0120-0200-BRP --- Flanged Bushes - 8x12x20 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0100-0120-0100-BRP Flanged Bushes - 10x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 10.000 mm _{- 0.1 / - 0.3} (Equiv. 0.394 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0100-0120-0100-BRP Flanged Bushes - 10x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0100-0120-0100-BRP --- Flanged Bushes - 10x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0100-0120-0100-BRP --- Flanged Bushes - 10x12x10 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $22.14 AUD Regular price ~~$26.56 AUD~~ Sale price $22.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0100-0120-0120-BRP Flanged Bushes - 10x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $24.41 AUD Regular price ~~$29.29 AUD~~ Sale price $24.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 12.000 mm _{- 0.1 / - 0.3} (Equiv. 0.472 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0100-0120-0120-BRP Flanged Bushes - 10x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $24.41 AUD Regular price ~~$29.29 AUD~~ Sale price $24.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0100-0120-0120-BRP --- Flanged Bushes - 10x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0100-0120-0120-BRP --- Flanged Bushes - 10x12x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $24.41 AUD Regular price ~~$29.29 AUD~~ Sale price $24.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 16.00 mm	Flange Thickness (S1) 2.00 mm
Material: Brass with Graphite Plug
Part Number: BF0100-0120-0150-BRP Flanged Bushes - 10x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $19.32 AUD Regular price ~~$23.18 AUD~~ Sale price $19.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 10.000 mm _{+ 0.025 / + 0.040} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 12.000 mm _{+ 0.023 / + 0.034} (Equiv. 0.472 in.)	Length (s) 15.000 mm _{- 0.1 / - 0.3} (Equiv. 0.591 in.)	Flange OD (D1) 16.00 mm
Material: Brass with Graphite Plug Flange Thickness (S1): 2.00 mm
Part Number: BF0100-0120-0150-BRP Flanged Bushes - 10x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $19.32 AUD Regular price ~~$23.18 AUD~~ Sale price $19.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BF0100-0120-0150-BRP --- Flanged Bushes - 10x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Sale BF0100-0120-0150-BRP --- Flanged Bushes - 10x12x15 mm Brass Graphite Plug - Brass with Graphite Plug Bush Regular price $19.32 AUD Regular price ~~$23.18 AUD~~ Sale price $19.32 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Bushes - Flanged - Brass Graphite Plug

Category Details

Filter

Filter

Subscribe to our emails
