Collection: Belts - Timing 3.000mm Pitch - GT - 9mm Wide - Double Sided

Belts (With Images)

Timing 3.000mm Pitch

9mm Wide

Double Sided
Single Sided

5 Products in this selection

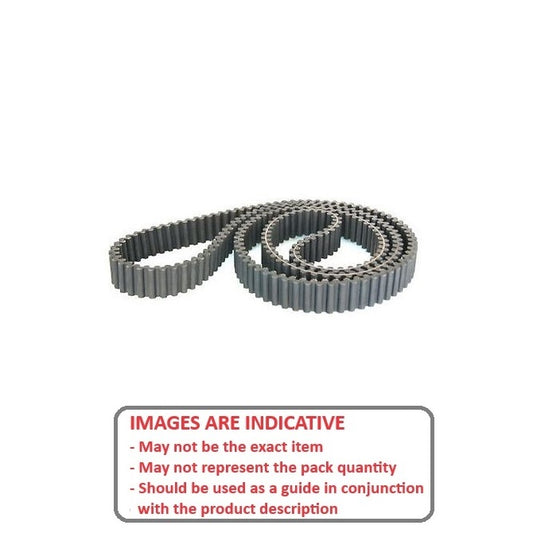

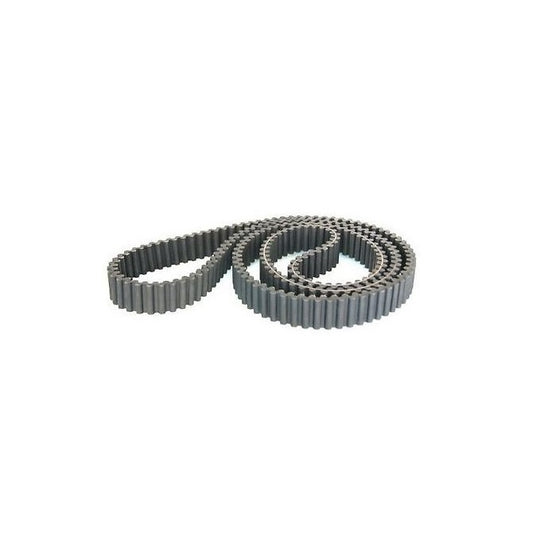

GT2 and GT3 Series Metric Timing Belts Double Sided
Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Tooth Height (H) - 1.22mm.
Belt Height (W) - 3.20mm.
GT3 replaces GT2 as GT2 stock is depleted
Pitch (P) - 3.000mm

Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
3mm GT Timing Pulleys

A more concise listing may be found on the Smallparts store at Belts - Timing 3.000mm Pitch - GT - 9mm Wide - Double Sided. Smallparts promote the most popular MBA products.

Teeth	Length	Width	Reinforcement	Appearance
Teeth 216	Length 648 mm _{(25.512 in.)}	Width 9.0 mm _{(0.354 in.)}	Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0216-0090-NFB Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Each
Teeth	Length	Width	Indicative Image
Teeth 216	Length 648 mm _{(25.512 in.)}	Width 9.0 mm _{(0.354 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3) Appearance: Black Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0216-0090-NFB Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Each View the product page first if you are unsure.
BD-030G-0216-0090-NFB --- Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords BD-030G-0216-0090-NFB --- Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Out of stock! Backorder Now
Teeth 265	Length 795 mm _{(31.299 in.)}	Width 9.0 mm _{(0.354 in.)}	Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0265-0090-NFB Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $99.05 AUD Regular price Sale price $99.05 AUD Unit price per Each
Teeth 265	Length 795 mm _{(31.299 in.)}	Width 9.0 mm _{(0.354 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3) Appearance: Black Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0265-0090-NFB Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $99.05 AUD Regular price Sale price $99.05 AUD Unit price per Each View the product page first if you are unsure.
BD-030G-0265-0090-NFB --- Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords BD-030G-0265-0090-NFB --- Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Regular price $99.05 AUD Regular price Sale price $99.05 AUD Unit price per Out of stock! Backorder Now
Teeth 315	Length 945 mm _{(37.205 in.)}	Width 9.0 mm _{(0.354 in.)}	Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0315-0090-NFB Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $106.05 AUD Regular price Sale price $106.05 AUD Unit price per Each
Teeth 315	Length 945 mm _{(37.205 in.)}	Width 9.0 mm _{(0.354 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3) Appearance: Black Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0315-0090-NFB Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $106.05 AUD Regular price Sale price $106.05 AUD Unit price per Each View the product page first if you are unsure.
BD-030G-0315-0090-NFB --- Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords BD-030G-0315-0090-NFB --- Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Regular price $106.05 AUD Regular price Sale price $106.05 AUD Unit price per Out of stock! Backorder Now
Teeth 445	Length 1335 mm _{(52.559 in.)}	Width 9.0 mm _{(0.354 in.)}	Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0445-0090-NFB Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $133.95 AUD Regular price Sale price $133.95 AUD Unit price per Each
Teeth 445	Length 1335 mm _{(52.559 in.)}	Width 9.0 mm _{(0.354 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3) Appearance: Black Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0445-0090-NFB Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $133.95 AUD Regular price Sale price $133.95 AUD Unit price per Each View the product page first if you are unsure.
BD-030G-0445-0090-NFB --- Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords BD-030G-0445-0090-NFB --- Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Regular price $133.95 AUD Regular price Sale price $133.95 AUD Unit price per Out of stock! Backorder Now
Teeth 512	Length 1536 mm _{(60.472 in.)}	Width 9.0 mm _{(0.354 in.)}	Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0512-0090-NFB Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $154.50 AUD Regular price Sale price $154.50 AUD Unit price per Each
Teeth 512	Length 1536 mm _{(60.472 in.)}	Width 9.0 mm _{(0.354 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3) Appearance: Black Breaking Strength: 1710 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: BD-030G-0512-0090-NFB Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $154.50 AUD Regular price Sale price $154.50 AUD Unit price per Each View the product page first if you are unsure.
BD-030G-0512-0090-NFB --- Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords BD-030G-0512-0090-NFB --- Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords Regular price $154.50 AUD Regular price Sale price $154.50 AUD Unit price per Out of stock! Backorder Now
