Collection: Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide

Belts (With Images)

Inch Timing

5.080mm Pitch XL

188 Products in this selection

Standard Series Timing Belts 5.080mm or 0.200 inch pitch. 12mm or 12.7mm width.
Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Tooth Length (T) - 1.40mm.
Tooth Height (H) - 1.30mm.
Belt Height (W) - 2.30mm - Corner Radii ( r ) - 0.40mm.
Pitch (P) - 5.080mm (0.200 inch)

Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue

A more concise listing may be found on the Smallparts store at Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide. Smallparts promote the most popular MBA products.

Teeth	Length	Width	Reinforcement	Appearance	Indicative Image

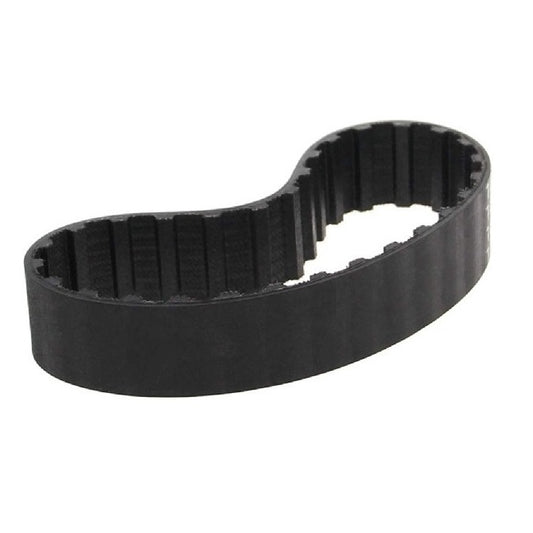

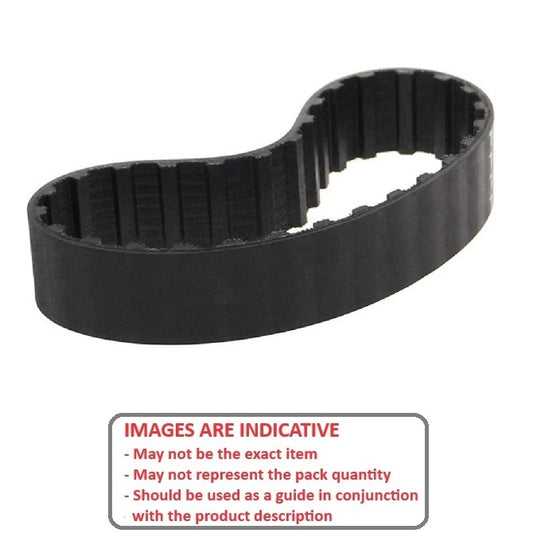

Teeth 30	Length 152.4 mm _{(6 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0030-0127-NFB Inch Timing Belts - 30 tooth - 152.4x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Teeth	Length	Width	Indicative Image
Teeth 30	Length 152.4 mm _{(6 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass Reinforcement: Fibreglass Appearance: Black Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0030-0127-NFB Inch Timing Belts - 30 tooth - 152.4x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0030-0127-NFB --- Inch Timing Belts - 30 tooth - 152.4x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass B-XL-0030-0127-NFB --- Inch Timing Belts - 30 tooth - 152.4x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Teeth 31	Length 157.48 mm _{(6.2 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0031-0127-NFB Inch Timing Belts - 31 tooth - 157.48x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 31	Length 157.48 mm _{(6.2 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0031-0127-NFB Inch Timing Belts - 31 tooth - 157.48x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0031-0127-NFB --- Inch Timing Belts - 31 tooth - 157.48x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0031-0127-NFB --- Inch Timing Belts - 31 tooth - 157.48x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Length 162.56 mm _{(6.4 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0032-0127-NFB Inch Timing Belts - 32 tooth - 162.56x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 32	Length 162.56 mm _{(6.4 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0032-0127-NFB Inch Timing Belts - 32 tooth - 162.56x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0032-0127-NFB --- Inch Timing Belts - 32 tooth - 162.56x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0032-0127-NFB --- Inch Timing Belts - 32 tooth - 162.56x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Length 172.72 mm _{(6.8 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0034-0127-NFB Inch Timing Belts - 34 tooth - 172.72x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 34	Length 172.72 mm _{(6.8 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0034-0127-NFB Inch Timing Belts - 34 tooth - 172.72x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0034-0127-NFB --- Inch Timing Belts - 34 tooth - 172.72x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0034-0127-NFB --- Inch Timing Belts - 34 tooth - 172.72x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 35	Length 177.8 mm _{(7 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0035-0127-NFB Inch Timing Belts - 35 tooth - 177.8x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Teeth 35	Length 177.8 mm _{(7 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass Reinforcement: Fibreglass Appearance: Black Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0035-0127-NFB Inch Timing Belts - 35 tooth - 177.8x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0035-0127-NFB --- Inch Timing Belts - 35 tooth - 177.8x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass B-XL-0035-0127-NFB --- Inch Timing Belts - 35 tooth - 177.8x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Length 182.88 mm _{(7.2 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0036-0127-NFB Inch Timing Belts - 36 tooth - 182.88x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 36	Length 182.88 mm _{(7.2 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0036-0127-NFB Inch Timing Belts - 36 tooth - 182.88x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0036-0127-NFB --- Inch Timing Belts - 36 tooth - 182.88x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0036-0127-NFB --- Inch Timing Belts - 36 tooth - 182.88x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 37	Length 187.96 mm _{(7.4 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0037-0127-NFB Inch Timing Belts - 37 tooth - 187.96x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 37	Length 187.96 mm _{(7.4 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0037-0127-NFB Inch Timing Belts - 37 tooth - 187.96x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0037-0127-NFB --- Inch Timing Belts - 37 tooth - 187.96x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0037-0127-NFB --- Inch Timing Belts - 37 tooth - 187.96x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Length 193.04 mm _{(7.6 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0038-0127-NFB Inch Timing Belts - 38 tooth - 193.04x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 38	Length 193.04 mm _{(7.6 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0038-0127-NFB Inch Timing Belts - 38 tooth - 193.04x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0038-0127-NFB --- Inch Timing Belts - 38 tooth - 193.04x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0038-0127-NFB --- Inch Timing Belts - 38 tooth - 193.04x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 39	Length 198.12 mm _{(7.8 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0039-0127-NFB Inch Timing Belts - 39 tooth - 198.12x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 39	Length 198.12 mm _{(7.8 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0039-0127-NFB Inch Timing Belts - 39 tooth - 198.12x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0039-0127-NFB --- Inch Timing Belts - 39 tooth - 198.12x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0039-0127-NFB --- Inch Timing Belts - 39 tooth - 198.12x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Length 203.2 mm _{(8 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0040-0127-NFB Inch Timing Belts - 40 tooth - 203.2x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Teeth 40	Length 203.2 mm _{(8 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass Reinforcement: Fibreglass Appearance: Black Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0040-0127-NFB Inch Timing Belts - 40 tooth - 203.2x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0040-0127-NFB --- Inch Timing Belts - 40 tooth - 203.2x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass B-XL-0040-0127-NFB --- Inch Timing Belts - 40 tooth - 203.2x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Teeth 41	Length 208.28 mm _{(8.2 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0041-0127-NFB Inch Timing Belts - 41 tooth - 208.28x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 41	Length 208.28 mm _{(8.2 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0041-0127-NFB Inch Timing Belts - 41 tooth - 208.28x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0041-0127-NFB --- Inch Timing Belts - 41 tooth - 208.28x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0041-0127-NFB --- Inch Timing Belts - 41 tooth - 208.28x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 42	Length 213.36 mm _{(8.4 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0042-0127-NFB Inch Timing Belts - 42 tooth - 213.36x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 42	Length 213.36 mm _{(8.4 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0042-0127-NFB Inch Timing Belts - 42 tooth - 213.36x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0042-0127-NFB --- Inch Timing Belts - 42 tooth - 213.36x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0042-0127-NFB --- Inch Timing Belts - 42 tooth - 213.36x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 43	Length 218.44 mm _{(8.6 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0043-0127-NFB Inch Timing Belts - 43 tooth - 218.44x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 43	Length 218.44 mm _{(8.6 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0043-0127-NFB Inch Timing Belts - 43 tooth - 218.44x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0043-0127-NFB --- Inch Timing Belts - 43 tooth - 218.44x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0043-0127-NFB --- Inch Timing Belts - 43 tooth - 218.44x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Length 223.52 mm _{(8.8 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0044-0127-NFB Inch Timing Belts - 44 tooth - 223.52x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 44	Length 223.52 mm _{(8.8 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0044-0127-NFB Inch Timing Belts - 44 tooth - 223.52x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0044-0127-NFB --- Inch Timing Belts - 44 tooth - 223.52x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0044-0127-NFB --- Inch Timing Belts - 44 tooth - 223.52x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 45	Length 228.6 mm _{(9 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0045-0127-NFB Inch Timing Belts - 45 tooth - 228.6x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Teeth 45	Length 228.6 mm _{(9 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass Reinforcement: Fibreglass Appearance: Black Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0045-0127-NFB Inch Timing Belts - 45 tooth - 228.6x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0045-0127-NFB --- Inch Timing Belts - 45 tooth - 228.6x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass B-XL-0045-0127-NFB --- Inch Timing Belts - 45 tooth - 228.6x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Teeth 46	Length 233.68 mm _{(9.2 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0046-0127-NFB Inch Timing Belts - 46 tooth - 233.68x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 46	Length 233.68 mm _{(9.2 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0046-0127-NFB Inch Timing Belts - 46 tooth - 233.68x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0046-0127-NFB --- Inch Timing Belts - 46 tooth - 233.68x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0046-0127-NFB --- Inch Timing Belts - 46 tooth - 233.68x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 47	Length 238.76 mm _{(9.4 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0047-0127-NFB Inch Timing Belts - 47 tooth - 238.76x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 47	Length 238.76 mm _{(9.4 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0047-0127-NFB Inch Timing Belts - 47 tooth - 238.76x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0047-0127-NFB --- Inch Timing Belts - 47 tooth - 238.76x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0047-0127-NFB --- Inch Timing Belts - 47 tooth - 238.76x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Length 243.84 mm _{(9.6 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0048-0127-NFB Inch Timing Belts - 48 tooth - 243.84x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 48	Length 243.84 mm _{(9.6 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0048-0127-NFB Inch Timing Belts - 48 tooth - 243.84x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0048-0127-NFB --- Inch Timing Belts - 48 tooth - 243.84x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0048-0127-NFB --- Inch Timing Belts - 48 tooth - 243.84x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 49	Length 248.92 mm _{(9.8 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0049-0127-NFB Inch Timing Belts - 49 tooth - 248.92x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 49	Length 248.92 mm _{(9.8 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0049-0127-NFB Inch Timing Belts - 49 tooth - 248.92x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0049-0127-NFB --- Inch Timing Belts - 49 tooth - 248.92x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0049-0127-NFB --- Inch Timing Belts - 49 tooth - 248.92x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 50	Length 254 mm _{(10 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0050-0127-NFB Inch Timing Belts - 50 tooth - 254x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Teeth 50	Length 254 mm _{(10 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass Reinforcement: Fibreglass Appearance: Black Breaking Strength: 2006 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-XL-0050-0127-NFB Inch Timing Belts - 50 tooth - 254x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0050-0127-NFB --- Inch Timing Belts - 50 tooth - 254x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass B-XL-0050-0127-NFB --- Inch Timing Belts - 50 tooth - 254x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Teeth 51	Length 259.08 mm _{(10.2 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0051-0127-NFB Inch Timing Belts - 51 tooth - 259.08x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 51	Length 259.08 mm _{(10.2 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0051-0127-NFB Inch Timing Belts - 51 tooth - 259.08x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0051-0127-NFB --- Inch Timing Belts - 51 tooth - 259.08x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0051-0127-NFB --- Inch Timing Belts - 51 tooth - 259.08x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 52	Length 264.16 mm _{(10.4 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0052-0127-NFB Inch Timing Belts - 52 tooth - 264.16x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 52	Length 264.16 mm _{(10.4 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0052-0127-NFB Inch Timing Belts - 52 tooth - 264.16x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0052-0127-NFB --- Inch Timing Belts - 52 tooth - 264.16x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0052-0127-NFB --- Inch Timing Belts - 52 tooth - 264.16x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 53	Length 269.24 mm _{(10.6 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords

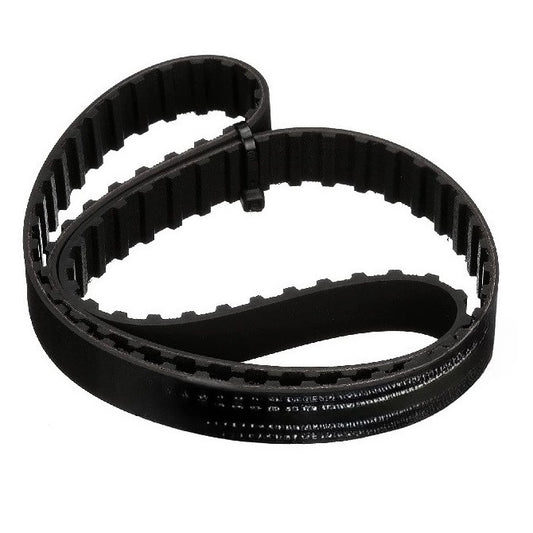

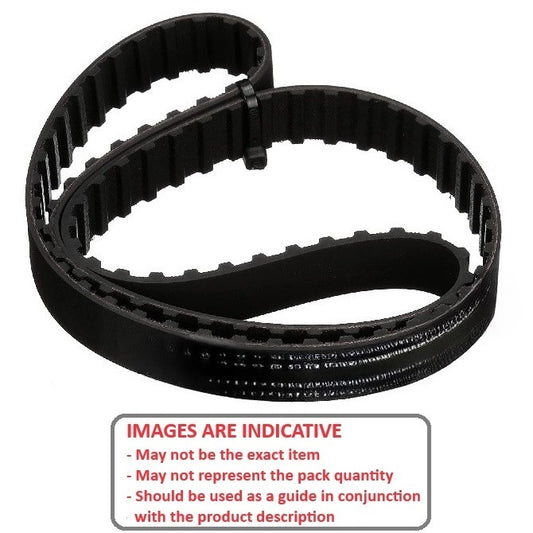

Part Number: B-XL-0053-0127-NFB Inch Timing Belts - 53 tooth - 269.24x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 53	Length 269.24 mm _{(10.6 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0053-0127-NFB Inch Timing Belts - 53 tooth - 269.24x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0053-0127-NFB --- Inch Timing Belts - 53 tooth - 269.24x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0053-0127-NFB --- Inch Timing Belts - 53 tooth - 269.24x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
Teeth 54	Length 274.32 mm _{(10.8 in.)}	Width 12.7 mm _{(0.5 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0054-0127-NFB Inch Timing Belts - 54 tooth - 274.32x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Teeth 54	Length 274.32 mm _{(10.8 in.)}	Width 12.7 mm _{(0.5 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-XL-0054-0127-NFB Inch Timing Belts - 54 tooth - 274.32x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0054-0127-NFB --- Inch Timing Belts - 54 tooth - 274.32x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0054-0127-NFB --- Inch Timing Belts - 54 tooth - 274.32x12.7 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Out of stock! Backorder Now
