Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide

Belts -> Inch Timing -> 2.032mm Pitch MXL -> 7.9mm Wide

There is only 1 product in the sub-categories of Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide. Browse the Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide products table.

Category Details

A selection of 7.9mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 7.93mm (5/16 inch) widths +/- 0.2mm

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 0.76mm
  • Tooth Height (H) - 0.46mm
  • Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm
  • Pitch (P) - 2.032mm (0.08 inch)

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide category on the Small Parts & Bearings online store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Number of Teeth
295

Length
599.44
mm

(Equiv. 23.6 in.)
Width
7.9
mm

(Equiv. 0.311 in.)
Reinforcement
Fibreglass
Appearance
Black

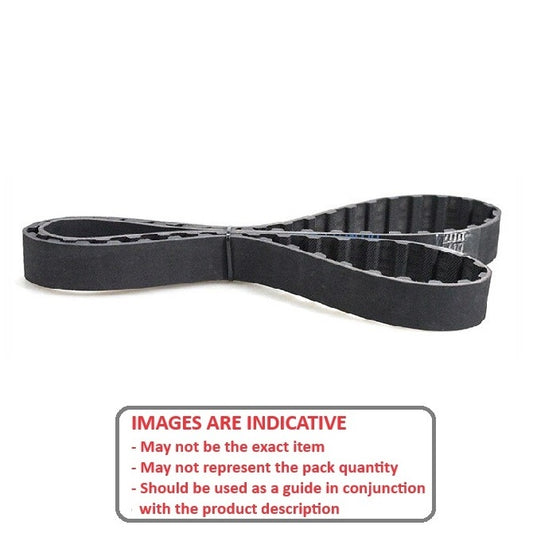

Inch Timing Belts - 295 tooth - 599.44x7.9 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 572 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Part Number: B-MXL-0295-0079-NFB (2 Pcs)
Inch Timing Belts - 295 tooth - 599.44x7.9 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Length Width Indicative
Number of Teeth
295

Length
599.44
mm

(Equiv. 23.6 in.)
Width
7.9
mm

(Equiv. 0.311 in.)

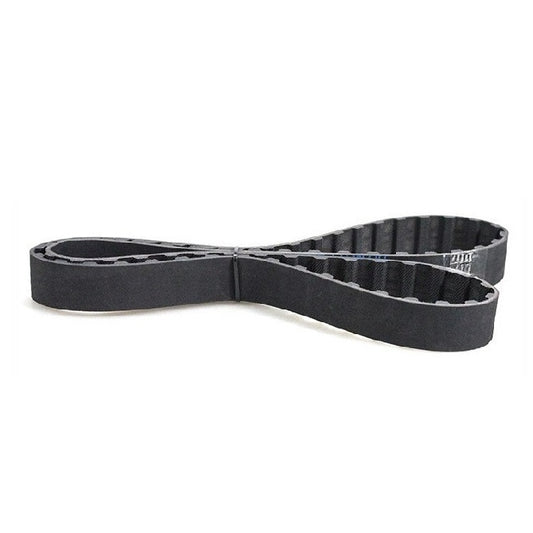

Inch Timing Belts - 295 tooth - 599.44x7.9 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 572 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Part Number: B-MXL-0295-0079-NFB (2 Pcs)
Inch Timing Belts - 295 tooth - 599.44x7.9 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
