Bearings - Tapered Roller Cone

Bearings -> Tapered Roller Cone

There are 4 products in the sub-categories of Bearings - Tapered Roller Cone. Browse the Bearings - Tapered Roller Cone products table.

Category Details

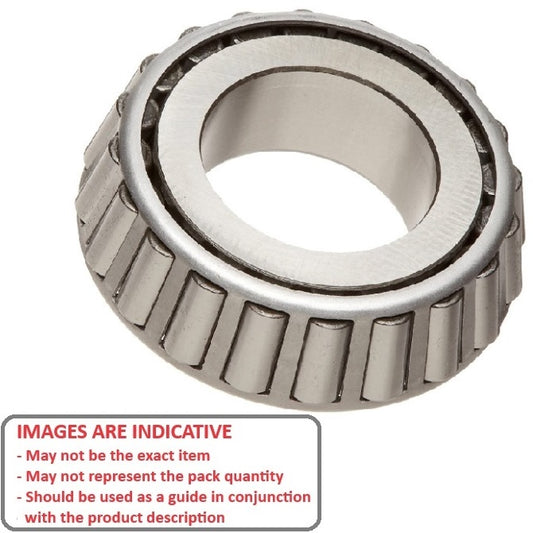

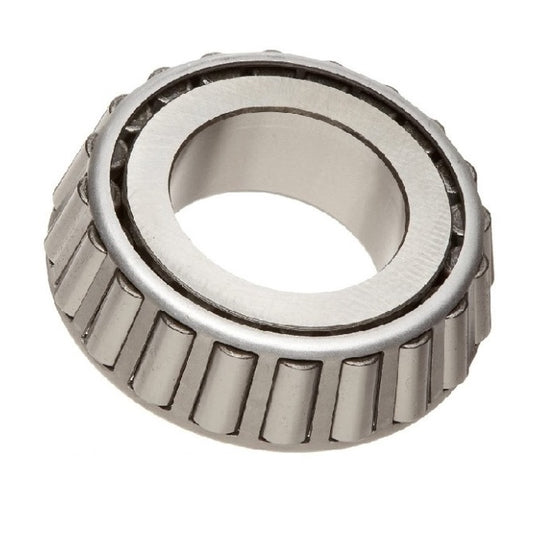

A selection of Tapered Roller Cone Bearings. Replacements for existing tapered roller cones (inner part). Match with part number on your existing bearing. It is recommended that you change both cup and cone whenever possible.

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Match the cone with the appropriate cup as listed in the tables. Sometimes there will be a range of cups to suit. Be sure to check the dimesions thoroughly.
  • The cup is the outer part of the bearing, and has no rollers. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Tapered Roller Cone category on the Small Parts & Bearings online store.
Inside Diameter Cone Width Matching Cups rs1 min rs2 min Indicative
Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel Bearing
Inside Diameter
19.050
mm
Cone Width
19.050
mm
Matching Cups
09194, 09195, 09196
rs1 min
1.300
mm
rs2 min
1.300
mm
Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09074 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$46.23 AUD
$54.47 AUD $46.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Inside Diameter Cone Width Matching Cups Indicative
Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel Bearing
Inside Diameter
19.050
mm
Cone Width
19.050
mm
Matching Cups
09194, 09195, 09196
Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel
Material: Chrome Steel    rs1 min: 1.300 mm    rs2 min: 1.300 mm    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09074 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$46.23 AUD
$54.47 AUD $46.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel Bearing
Inside Diameter
44.450
mm
Cone Width
30.302
mm
Matching Cups
3720, 3730
rs1 min
3.500
mm
rs2 min
0.800
mm
Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3780 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$47.14 AUD
$55.56 AUD $47.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel Bearing
Inside Diameter
44.450
mm
Cone Width
30.302
mm
Matching Cups
3720, 3730
Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel
Material: Chrome Steel    rs1 min: 3.500 mm    rs2 min: 0.800 mm    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3780 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$47.14 AUD
$55.56 AUD $47.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel Bearing
Inside Diameter
66.675
mm
Cone Width
38.354
mm
Matching Cups
HM212010
rs1 min
3.500
mm
rs2 min
1.500
mm
Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212049 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$76.41 AUD
$90.09 AUD $76.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel Bearing
Inside Diameter
66.675
mm
Cone Width
38.354
mm
Matching Cups
HM212010
Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel
Material: Chrome Steel    rs1 min: 3.500 mm    rs2 min: 1.500 mm    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212049 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$76.41 AUD
$90.09 AUD $76.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel Bearing
Inside Diameter
90.000
mm
Cone Width
40.000
mm
Matching Cups
HM218210
rs1 min
7.000
mm
rs2 min
3.500
mm
Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218248 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$108.14 AUD
$128.16 AUD $108.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel Bearing
Inside Diameter
90.000
mm
Cone Width
40.000
mm
Matching Cups
HM218210
Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel
Material: Chrome Steel    rs1 min: 7.000 mm    rs2 min: 3.500 mm    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218248 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 01, 2026
$108.14 AUD
$128.16 AUD $108.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
