Collection: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4

Bearings -> Single Row Ball -> Unflanged -> Precision -> Ceramic Si3N4

There are 87 products in the sub-categories of Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4. Scroll down or follow the link to Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4 in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Ceramic Si3N4 Precision Unflanged Single Row Ball Bearings. Excellent performance in electrical and magnetism sensitive applications. Higher speed than Zr02. Full ceramic silicon nitride.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Applications include cryopumps, medical applications, semiconductors, turbine flow meters, food processing, robotics and optics.
Wear and corrosion resistance. Lubrication and maintenance free. 3.2g/cubic cm density. Wear and corrosion resistance. Depending on the application, these bearings may run lubrication free or lubricated by the medium in which they are submerged.
Cages of PTFE, Glass Fibre Reinforced Nylon, or PEEK. Can be made from special aviation aluminum on request.
Si3N4 (GSN-201) standard material for balls and rings. HRC80 Hardness.
High and low- temperature application. Up to 250 Deg C with PTFE Cage, 200 Deg C with PEEK Cage, and 130 Deg C with Nylon Cage. Up to 700 deg C without a cage or seals.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4 category on the Small Parts & Bearings online store.

ID (d)	O.D. (D)	Width (B)	Inner Ring Width (Bn)	Flange Diameter (DF)
Single Row Ball Bearings - 3x7x2 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)

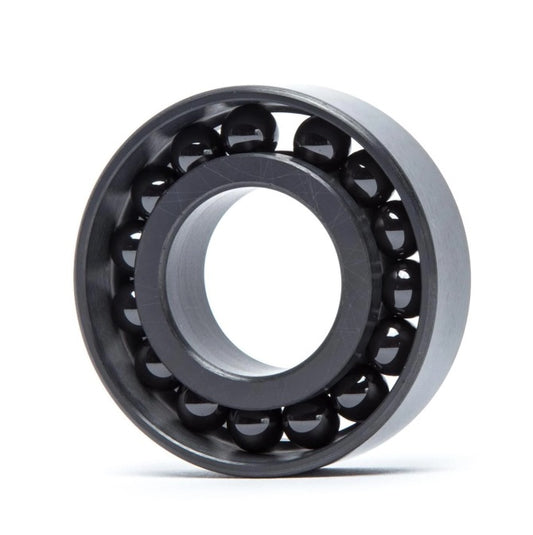

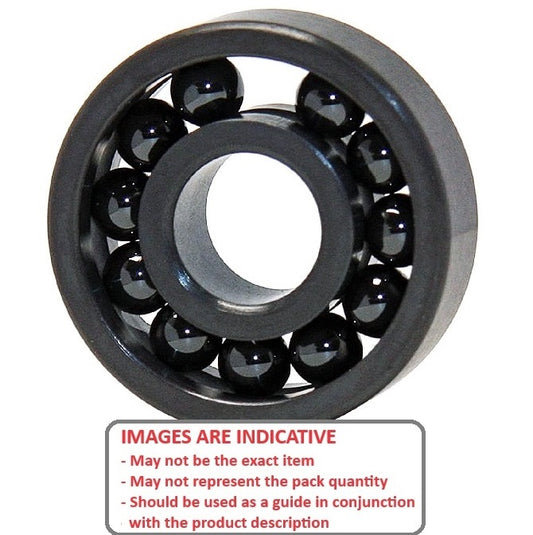

Material: Ceramic Silicon Nitride - Full Complement Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-683-MC34-FC-DRY (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Sat, Mar 14, 2026 Regular price $2,557.50 AUD Regular price Sale price $2,557.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ID (d)	O.D. (D)	Width (B)	Inner Ring Width (Bn)	Indicative Image
Single Row Ball Bearings - 3x7x2 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)
Material: Ceramic Silicon Nitride - Full Complement Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-683-MC34-FC-DRY (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Sat, Mar 14, 2026 Regular price $2,557.50 AUD Regular price Sale price $2,557.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-683-MC34-FC-DRY (PK-20) --- Single Row Ball Bearings - 3x7x2 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing CSN-683-MC34-FC-DRY (PK-20) --- Single Row Ball Bearings - 3x7x2 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing Regular price $2,557.50 AUD Regular price Sale price $2,557.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Ceramic Silicon Nitride - Full Complement Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-683A-MC34-FC-DRY (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Sat, Mar 14, 2026 Regular price $2,557.50 AUD Regular price Sale price $2,557.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Ceramic Silicon Nitride - Full Complement Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-683A-MC34-FC-DRY (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Sat, Mar 14, 2026 Regular price $2,557.50 AUD Regular price Sale price $2,557.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-683A-MC34-FC-DRY (PK-20) --- Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing CSN-683A-MC34-FC-DRY (PK-20) --- Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - Full Complement Bearing Regular price $2,557.50 AUD Regular price Sale price $2,557.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)

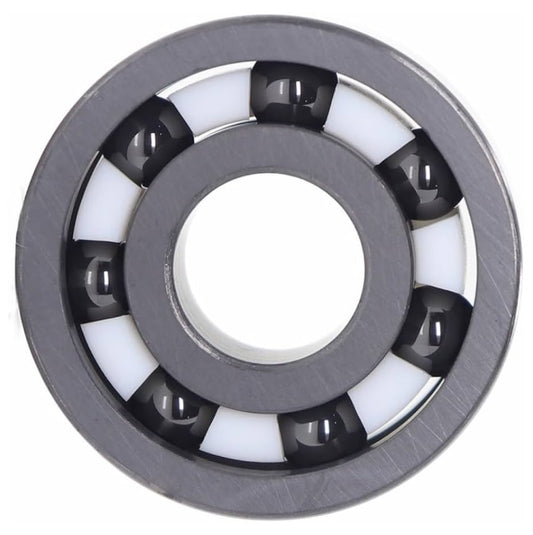

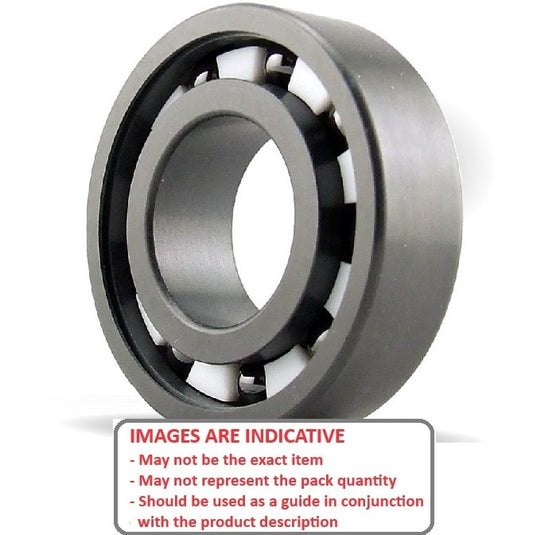

Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-683A-MC34-PK-DRY (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $792.05 AUD Regular price Sale price $792.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-683A-MC34-PK-DRY (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $792.05 AUD Regular price Sale price $792.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-683A-MC34-PK-DRY (PK-10) --- Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing CSN-683A-MC34-PK-DRY (PK-10) --- Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing Regular price $792.05 AUD Regular price Sale price $792.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-683A-MC34-PK-SRL (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $792.05 AUD Regular price Sale price $792.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-683A-MC34-PK-SRL (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $792.05 AUD Regular price Sale price $792.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-683A-MC34-PK-SRL (PK-10) --- Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing CSN-683A-MC34-PK-SRL (PK-10) --- Single Row Ball Bearings - 3x7x3 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing Regular price $792.05 AUD Regular price Sale price $792.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3x8x4 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.008} (Equiv. 0.118 in.)	O.D. (D) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	Width (B) 4.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.157 in.)
Material: Ceramic Silicon Nitride - PTFE Cage Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-693A-TTS-TF-DRY (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $278.68 AUD Regular price ~~$334.42 AUD~~ Sale price $278.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3x8x4 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.008} (Equiv. 0.118 in.)	O.D. (D) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	Width (B) 4.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.157 in.)
Material: Ceramic Silicon Nitride - PTFE Cage Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-693A-TTS-TF-DRY (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $278.68 AUD Regular price ~~$334.42 AUD~~ Sale price $278.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-693A-TTS-TF-DRY (PK-10) --- Single Row Ball Bearings - 3x8x4 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing Sale CSN-693A-TTS-TF-DRY (PK-10) --- Single Row Ball Bearings - 3x8x4 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing Regular price $278.68 AUD Regular price ~~$334.42 AUD~~ Sale price $278.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 10.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.394 in.)	Width (B) 4.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.157 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-623-TTS-MC34-PK-DRY (Each) 2 Available Now \| Further orders can be expected around Mon, Mar 02, 2026 Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 2 available can be backordered.
Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 10.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.394 in.)	Width (B) 4.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.157 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-623-TTS-MC34-PK-DRY (Each) 2 Available Now \| Further orders can be expected around Mon, Mar 02, 2026 Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
CSN-623-TTS-MC34-PK-DRY (Each) --- Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing CSN-623-TTS-MC34-PK-DRY (Each) --- Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now
Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 10.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.394 in.)	Width (B) 4.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.157 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-623-TTS-MC34-PK-SRL (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $1,515.77 AUD Regular price Sale price $1,515.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	O.D. (D) 10.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.394 in.)	Width (B) 4.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.157 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-623-TTS-MC34-PK-SRL (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $1,515.77 AUD Regular price Sale price $1,515.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-623-TTS-MC34-PK-SRL (PK-20) --- Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing CSN-623-TTS-MC34-PK-SRL (PK-20) --- Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing Regular price $1,515.77 AUD Regular price Sale price $1,515.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-R2-MC34-PK-DRY (PK-4) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $105.50 AUD Regular price ~~$126.60 AUD~~ Sale price $105.50 AUD Unit price per Priced, Stocked and Sold Per 4 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-R2-MC34-PK-DRY (PK-4) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $105.50 AUD Regular price ~~$126.60 AUD~~ Sale price $105.50 AUD Unit price per Priced, Stocked and Sold Per 4 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-R2-MC34-PK-DRY (PK-4) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing Sale CSN-R2-MC34-PK-DRY (PK-4) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing Regular price $105.50 AUD Regular price ~~$126.60 AUD~~ Sale price $105.50 AUD Unit price per Priced, Stocked and Sold Per 4 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-R2-MC34-PK-SRL (PK-4) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $125.23 AUD Regular price Sale price $125.23 AUD Unit price per Priced, Stocked and Sold Per 4 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-R2-MC34-PK-SRL (PK-4) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $125.23 AUD Regular price Sale price $125.23 AUD Unit price per Priced, Stocked and Sold Per 4 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-R2-MC34-PK-SRL (PK-4) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing CSN-R2-MC34-PK-SRL (PK-4) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage Bearing Regular price $125.23 AUD Regular price Sale price $125.23 AUD Unit price per Priced, Stocked and Sold Per 4 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-R2-TTS-MC34-PK-DRY (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 19, 2026 Regular price $965.23 AUD Regular price Sale price $965.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-R2-TTS-MC34-PK-DRY (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 19, 2026 Regular price $965.23 AUD Regular price Sale price $965.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-R2-TTS-MC34-PK-DRY (PK-50) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing CSN-R2-TTS-MC34-PK-DRY (PK-50) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing Regular price $965.23 AUD Regular price Sale price $965.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-R2-TTS-MC34-PK-SRL (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 19, 2026 Regular price $965.23 AUD Regular price Sale price $965.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075} (Equiv. 0.375 in.)	Width (B) 3.969 mm _{+ 0.000 / - 0.125} (Equiv. 0.156 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-R2-TTS-MC34-PK-SRL (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 19, 2026 Regular price $965.23 AUD Regular price Sale price $965.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-R2-TTS-MC34-PK-SRL (PK-50) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing CSN-R2-TTS-MC34-PK-SRL (PK-50) --- Single Row Ball Bearings - 3.175x9.525x3.969 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing Regular price $965.23 AUD Regular price Sale price $965.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 4x8x2 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing
ID (d) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	O.D. (D) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)
Material: Ceramic Silicon Nitride - PTFE Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-MR84-TF-DRY (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $2,497.68 AUD Regular price ~~$2,997.22 AUD~~ Sale price $2,497.68 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 4x8x2 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing
ID (d) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	O.D. (D) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)
Material: Ceramic Silicon Nitride - PTFE Cage Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-MR84-TF-DRY (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $2,497.68 AUD Regular price ~~$2,997.22 AUD~~ Sale price $2,497.68 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-MR84-TF-DRY (PK-100) --- Single Row Ball Bearings - 4x8x2 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing Sale CSN-MR84-TF-DRY (PK-100) --- Single Row Ball Bearings - 4x8x2 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage Bearing Regular price $2,497.68 AUD Regular price ~~$2,997.22 AUD~~ Sale price $2,497.68 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	O.D. (D) 16.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.63 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)

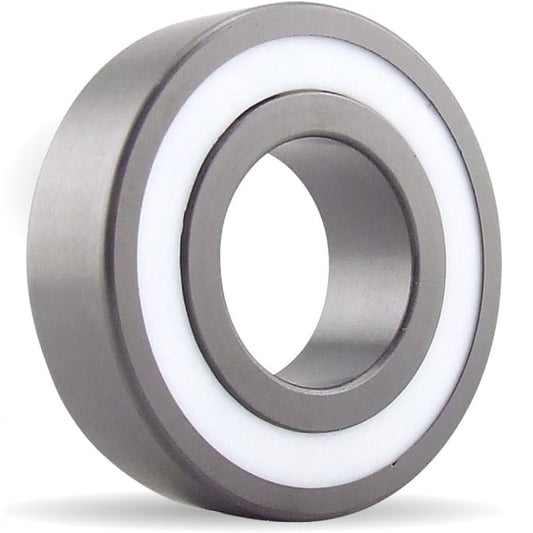

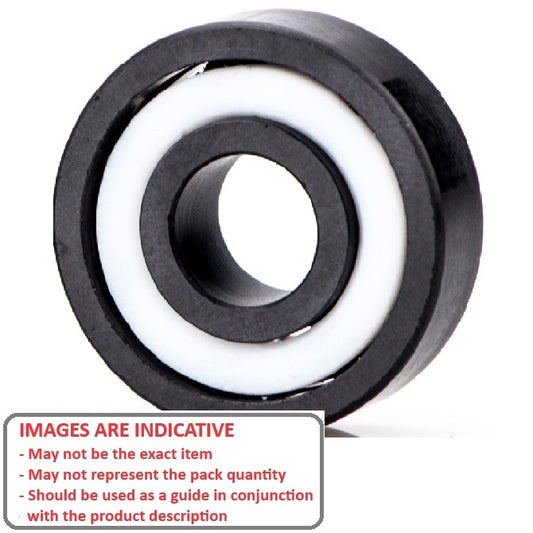

Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-634-TTS-MC34-TF-DRY (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $3,343.50 AUD Regular price ~~$4,012.20 AUD~~ Sale price $3,343.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	O.D. (D) 16.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.63 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-634-TTS-MC34-TF-DRY (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $3,343.50 AUD Regular price ~~$4,012.20 AUD~~ Sale price $3,343.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-634-TTS-MC34-TF-DRY (PK-50) --- Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Sale CSN-634-TTS-MC34-TF-DRY (PK-50) --- Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $3,343.50 AUD Regular price ~~$4,012.20 AUD~~ Sale price $3,343.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	O.D. (D) 16.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.63 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-634-TTS-MC34-TF-SRL (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $3,343.50 AUD Regular price ~~$4,012.20 AUD~~ Sale price $3,343.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	O.D. (D) 16.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.63 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-634-TTS-MC34-TF-SRL (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Apr 09, 2026 Regular price $3,343.50 AUD Regular price ~~$4,012.20 AUD~~ Sale price $3,343.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-634-TTS-MC34-TF-SRL (PK-50) --- Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Sale CSN-634-TTS-MC34-TF-SRL (PK-50) --- Single Row Ball Bearings - 4x16x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $3,343.50 AUD Regular price ~~$4,012.20 AUD~~ Sale price $3,343.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.008} (Equiv. 0.236 in.)	O.D. (D) 15.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.591 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-696-TTS-MC34-TF-SRL (PK-5) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $183.32 AUD Regular price Sale price $183.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.008} (Equiv. 0.236 in.)	O.D. (D) 15.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.591 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-696-TTS-MC34-TF-SRL (PK-5) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $183.32 AUD Regular price Sale price $183.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-696-TTS-MC34-TF-SRL (PK-5) --- Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing CSN-696-TTS-MC34-TF-SRL (PK-5) --- Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $183.32 AUD Regular price Sale price $183.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.008} (Equiv. 0.236 in.)	O.D. (D) 15.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.591 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-696-TTS-MC34-TF-DRY (PK-5) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $197.77 AUD Regular price Sale price $197.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.008} (Equiv. 0.236 in.)	O.D. (D) 15.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.591 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-696-TTS-MC34-TF-DRY (PK-5) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $197.77 AUD Regular price Sale price $197.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-696-TTS-MC34-TF-DRY (PK-5) --- Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing CSN-696-TTS-MC34-TF-DRY (PK-5) --- Single Row Ball Bearings - 6x15x5 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $197.77 AUD Regular price Sale price $197.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	O.D. (D) 19.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.748 in.)	Width (B) 6.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.236 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-626-TTS-MC34-TF-DRY (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $541.50 AUD Regular price ~~$649.80 AUD~~ Sale price $541.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	O.D. (D) 19.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.748 in.)	Width (B) 6.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.236 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-626-TTS-MC34-TF-DRY (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $541.50 AUD Regular price ~~$649.80 AUD~~ Sale price $541.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-626-TTS-MC34-TF-DRY (PK-20) --- Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Sale CSN-626-TTS-MC34-TF-DRY (PK-20) --- Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $541.50 AUD Regular price ~~$649.80 AUD~~ Sale price $541.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	O.D. (D) 19.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.748 in.)	Width (B) 6.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.236 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-626-TTS-MC34-TF-SRL (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $697.23 AUD Regular price Sale price $697.23 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	O.D. (D) 19.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.748 in.)	Width (B) 6.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.236 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-626-TTS-MC34-TF-SRL (PK-20) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $697.23 AUD Regular price Sale price $697.23 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-626-TTS-MC34-TF-SRL (PK-20) --- Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing CSN-626-TTS-MC34-TF-SRL (PK-20) --- Single Row Ball Bearings - 6x19x6 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $697.23 AUD Regular price Sale price $697.23 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 6.35x19.05x7.142 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.350 mm _{+ 0.000 / - 0.008} (Equiv. 0.25 in.)	O.D. (D) 19.050 mm (Equiv. 0.75 in.)	Width (B) 7.142 mm _{+ 0.000 / - 0.125} (Equiv. 0.281 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-R4-12B-TTS-TF-DRY (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $324.68 AUD Regular price ~~$389.62 AUD~~ Sale price $324.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 6.35x19.05x7.142 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 6.350 mm _{+ 0.000 / - 0.008} (Equiv. 0.25 in.)	O.D. (D) 19.050 mm (Equiv. 0.75 in.)	Width (B) 7.142 mm _{+ 0.000 / - 0.125} (Equiv. 0.281 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-R4-12B-TTS-TF-DRY (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $324.68 AUD Regular price ~~$389.62 AUD~~ Sale price $324.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-R4-12B-TTS-TF-DRY (PK-10) --- Single Row Ball Bearings - 6.35x19.05x7.142 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Sale CSN-R4-12B-TTS-TF-DRY (PK-10) --- Single Row Ball Bearings - 6.35x19.05x7.142 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $324.68 AUD Regular price ~~$389.62 AUD~~ Sale price $324.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-627-TTS-MC34-TF-SRL (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Sun, Mar 15, 2026 Regular price $448.59 AUD Regular price Sale price $448.59 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-627-TTS-MC34-TF-SRL (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Sun, Mar 15, 2026 Regular price $448.59 AUD Regular price Sale price $448.59 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-627-TTS-MC34-TF-SRL (PK-10) --- Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing CSN-627-TTS-MC34-TF-SRL (PK-10) --- Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $448.59 AUD Regular price Sale price $448.59 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-627-TTS-MC34-TF-DRY (Each) 9 Available Now \| Further orders can be expected around Sun, Mar 15, 2026 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 9 available can be backordered.
Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 7.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.276 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-627-TTS-MC34-TF-DRY (Each) 9 Available Now \| Further orders can be expected around Sun, Mar 15, 2026 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 9 Available Now. Backorder if more than 9.
CSN-627-TTS-MC34-TF-DRY (Each) --- Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Sale CSN-627-TTS-MC34-TF-DRY (Each) --- Single Row Ball Bearings - 7x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 9 Available Now Sale
Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-608-TTS-MC34-TF-SRL (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $280.14 AUD Regular price Sale price $280.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: Kyodo Yushi SRL
Part Number: CSN-608-TTS-MC34-TF-SRL (PK-10) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Mar 02, 2026 Regular price $280.14 AUD Regular price Sale price $280.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CSN-608-TTS-MC34-TF-SRL (PK-10) --- Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing CSN-608-TTS-MC34-TF-SRL (PK-10) --- Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $280.14 AUD Regular price Sale price $280.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-608-TTS-MC34-TF-DRY (Each) 5 Available Now \| Further orders can be expected around Mon, Mar 02, 2026 Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 5 available can be backordered.
Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing
ID (d) 8.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.315 in.)	O.D. (D) 22.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.866 in.)	Width (B) 7.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.276 in.)
Material: Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-608-TTS-MC34-TF-DRY (Each) 5 Available Now \| Further orders can be expected around Mon, Mar 02, 2026 Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. Backorder if more than 5.
CSN-608-TTS-MC34-TF-DRY (Each) --- Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing CSN-608-TTS-MC34-TF-DRY (Each) --- Single Row Ball Bearings - 8x22x7 mm Unflanged - Ceramic Silicon Nitride - PTFE Cage - PTFE Seals Bearing Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now
Single Row Ball Bearings - 10x19x5 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 10.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.394 in.)	O.D. (D) 19.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.748 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-6800-TTS-PK-DRY (Each) 3 Available Now \| Further orders can be expected around Sun, Mar 15, 2026 Regular price $66.68 AUD Regular price ~~$80.02 AUD~~ Sale price $66.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 3 available can be backordered.
Single Row Ball Bearings - 10x19x5 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing
ID (d) 10.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.394 in.)	O.D. (D) 19.000 mm _{+ 0.000 / - 0.010} (Equiv. 0.748 in.)	Width (B) 5.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.197 in.)
Material: Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Precision Grade: Abec 1 Closure Type: TTS Bearing Type: Radial Lubricant: No Lube
Part Number: CSN-6800-TTS-PK-DRY (Each) 3 Available Now \| Further orders can be expected around Sun, Mar 15, 2026 Regular price $66.68 AUD Regular price ~~$80.02 AUD~~ Sale price $66.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
CSN-6800-TTS-PK-DRY (Each) --- Single Row Ball Bearings - 10x19x5 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing Sale CSN-6800-TTS-PK-DRY (Each) --- Single Row Ball Bearings - 10x19x5 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing Regular price $66.68 AUD Regular price ~~$80.02 AUD~~ Sale price $66.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now Sale

Country/region

Miniature Bearings Australia

Collection: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4

Category Details

Filter

Filter

Subscribe to our emails
